Name: Checkline HPSA-R Durometer
Brand: Checkline
SKU: 53

Checkline HPSA-R Durometer for Nip / Rubber Rollers and Cylindrical Materials

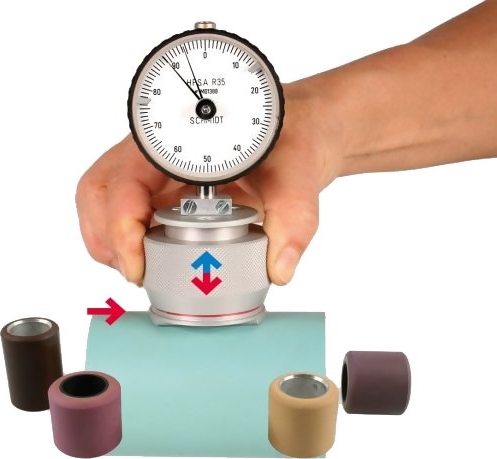

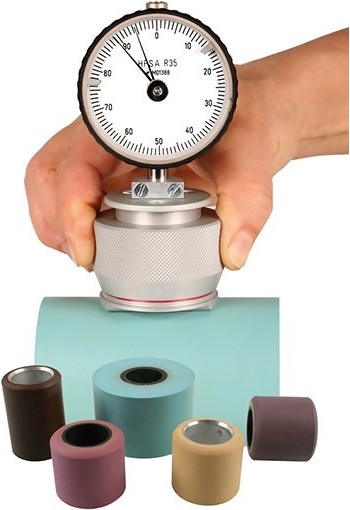

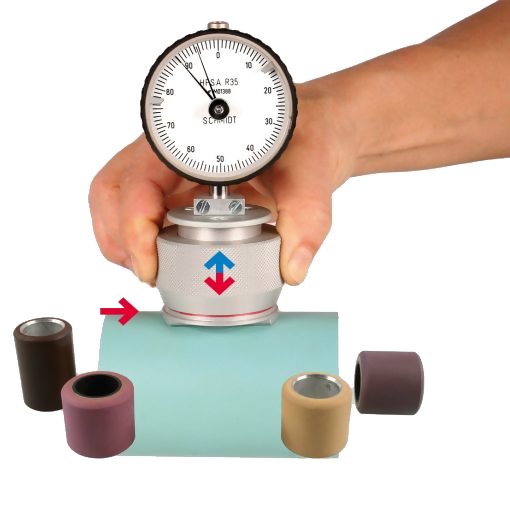

Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line

3 Models Available:
HPSA-R20 - roller diameters up to 40mm
HPSA-R35 - roller diameters up to 70mm
HPSA-R55 - roller diameters up to 110mm

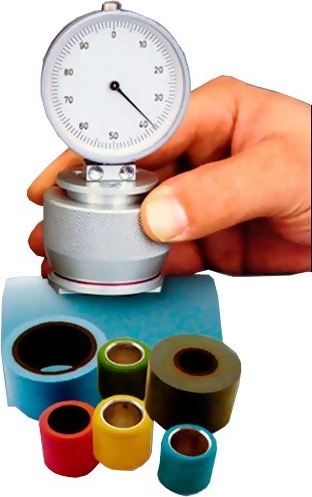

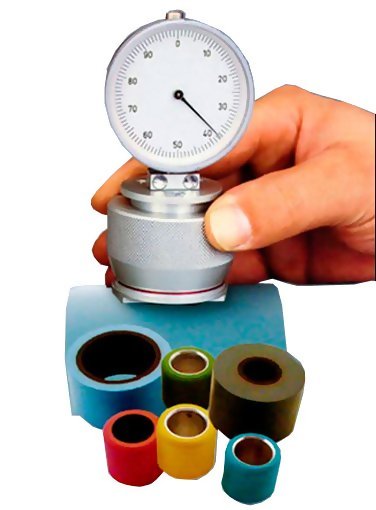

The HPSA-R Durometeror is used to measure the hardness of cots, pressure rollers and many other rubber coated rollers, etc. The correct Shore A hardness of the cots is a critical factor to get the desired yarn structure and quality. As cots are abrasive, the hardness should be checked from time to time as they age

line

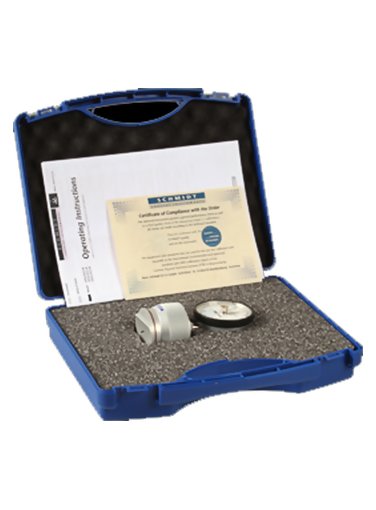

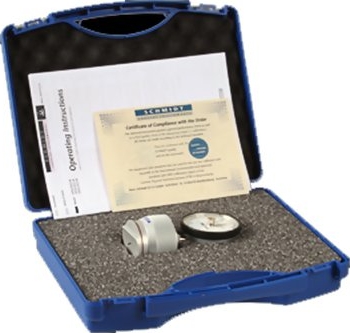

Kit Contents
line

HPSA-R Durometer
Instruction manual
Foam-fitted carrying case

line
Features
line

Constant-pressure indicating system assures uniform test pressure eliminating false readings due to differences between operators.

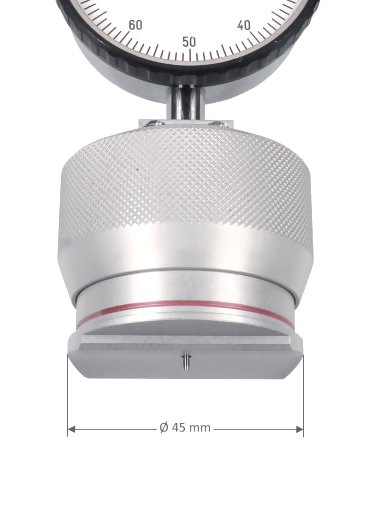

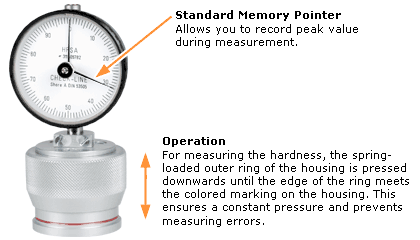

Operation is as easy as pressing the spring-loaded knurled aluminum shell down to the red line.
Supplied in a foam-fitted carrying case.

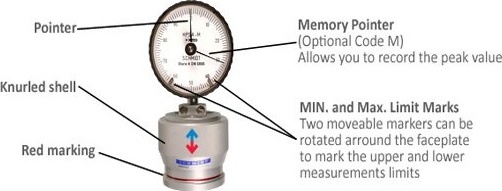

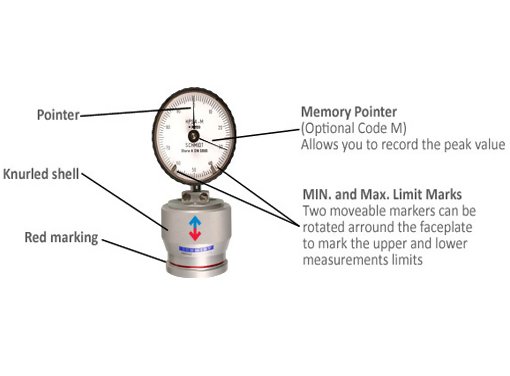

Standard Memory Pointer to capture peak measurement.

line

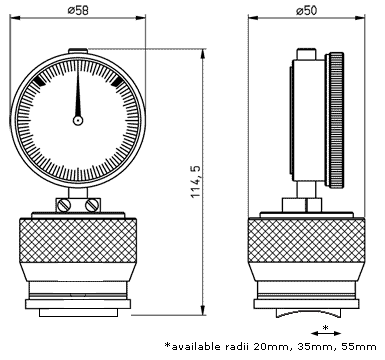

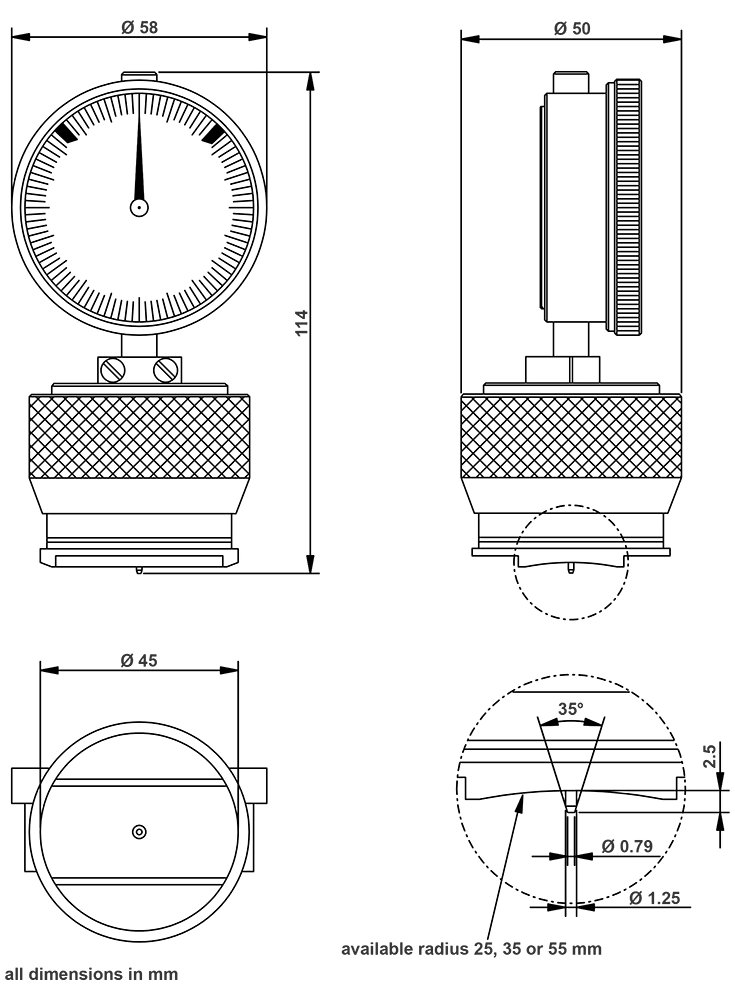

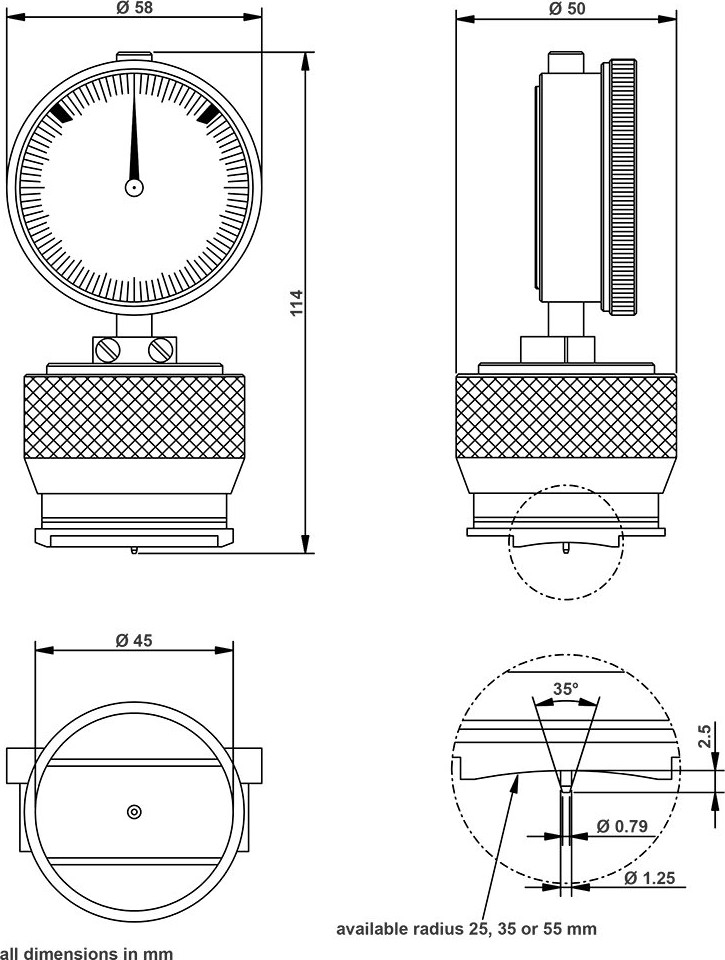

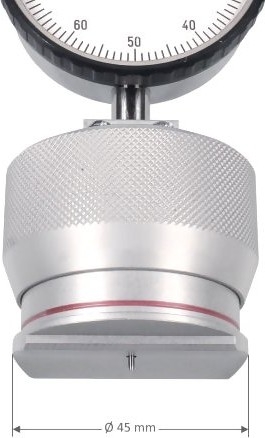

Dimensions
line

line
Specifications
line

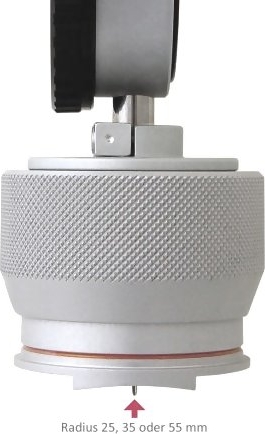

Work Face Radius	HPSA-R20 - 20mm HPSA-R35 - 35mm HPSA-R55 - 55mm
Indenter	Cone 35°, 1.3 mm Ø
Typical applications	Hardness of elastomers and rubber etc.
Depth of indentation	0 - 2.5 mm
Test pressure	approx. 12.5 N
Measuring spring force	0.55 - 8.065 N
Working face	16 mm Ø = 2 cm2
Display range	0 - 100 Scale
Scale diameter	56 mm
Weight, net (gross)	approx. 300 g (500 g)
Dimensions	50 x 50 x 110 mm (L x W x H)
