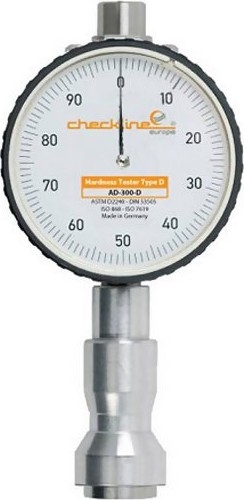

Checkline AD-300 Precision Durometer
Measures according to
DIN 53505 (A, D)
ISO 868 (A, D)
ISO 7619 (A, D)
ASTM D 2240 (A, D, C, O).

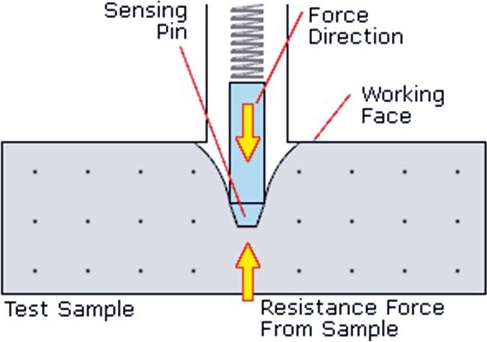

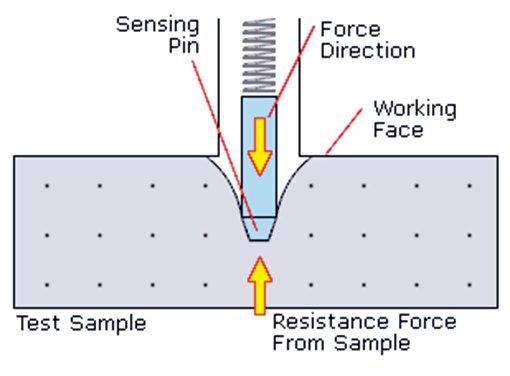

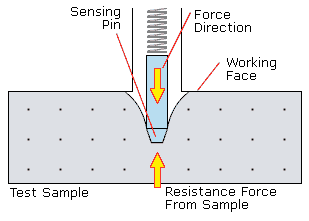

The Checkline AD-300 precision durometer is designed to measure the hardness of vulcanized or thermoplastic rubbers, elastomeric or soft plastic materials and silicon products via indentation resistance.
The AD-300 durometer meets the requirements of most international standards, including:
- DIN 53505 (A, D)
- ISO 868 (A, D)
- ISO 7619 (A, AO, D)
- ASTM D 2240 (A, D, C, O)
The AD-300 is German-engineering with the highest build employing an ultra-low friction movement and an indentor machined to the highest standards. Together with the ergonomic enlarged foot this enables you to take highly accurate and repeatable measurements.
The AD-300 Hardness Tester is available in Shore A, D, C and O scales
| Hardness readings are displayed on an easy-to-read analog scale. An optional MEMORY POINTER holds readings until manually reset, allowing the operator to concentrate on the measurement task. The AD-300 Hardness Tester will be delivered with operating instructions, carrying case and manufacturer's certificate. A full calibration certificate can be ordered optionally. |  |
Features
- Ergonomic barrel and 18mm footer offers stable platform for measurement eliminating "wobble"
- Large easy to read dial indicator (0-100 units)
- Memory pointer optionally available
- Highly accurate and repeatable
- German-engineered and built
- Conforms to DIN 53505, ISO 868, ISO 7619 and ASTM D 2240
- Traceable calibration certificate Optional
Specifications
| Dial face diameter | 57 mm |
| Total length | 121 mm |
| Range | 0 - 100 |
| Footer Diameter | 18 mm |
| Accuracy | ±0.5 |
| Weight | 184g |
| Standards | DIN 53505 (A, D)
ISO 868 (A, D)
ISO 7619 (A, A, D)
ASTM D 2240 (A, D, C, O) |
Conformance to International Standards
| Model | ASTM D2240 | DIN 53505 | ISO 868 | ISO 7619 |
| AD-300-A | X | X | X | X |
| AD-300-C | X | | | |
| AD-300-D | X | X | X | X |
| AD-300-O | X | | | |
Indentor Types
| Type | Indentor Shape | Force |
| A | | Flat cone point, 35º Included Angle
Soft rubber, plastics, and elastomers, printer's rolls. | 822 Gr |
| C | | Flat cone point, 35º Included Angle
Medium hard elastomers and plastics. Also useful to avoid surface marks. | 4536 Gr |
| D | | Sharp cone point, 30º Included Angle
Hard rubber and plastics such as thermo plastics, flooring and bowling balls. | 4536 Gr |
| O | | 3/32" Spherical
Very soft elastomers, textile windings, soft granular materials. Use below 20 Duro A. | 822 Gr |
