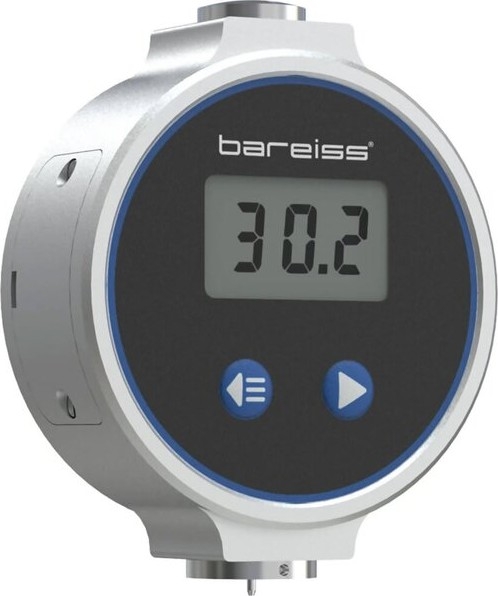

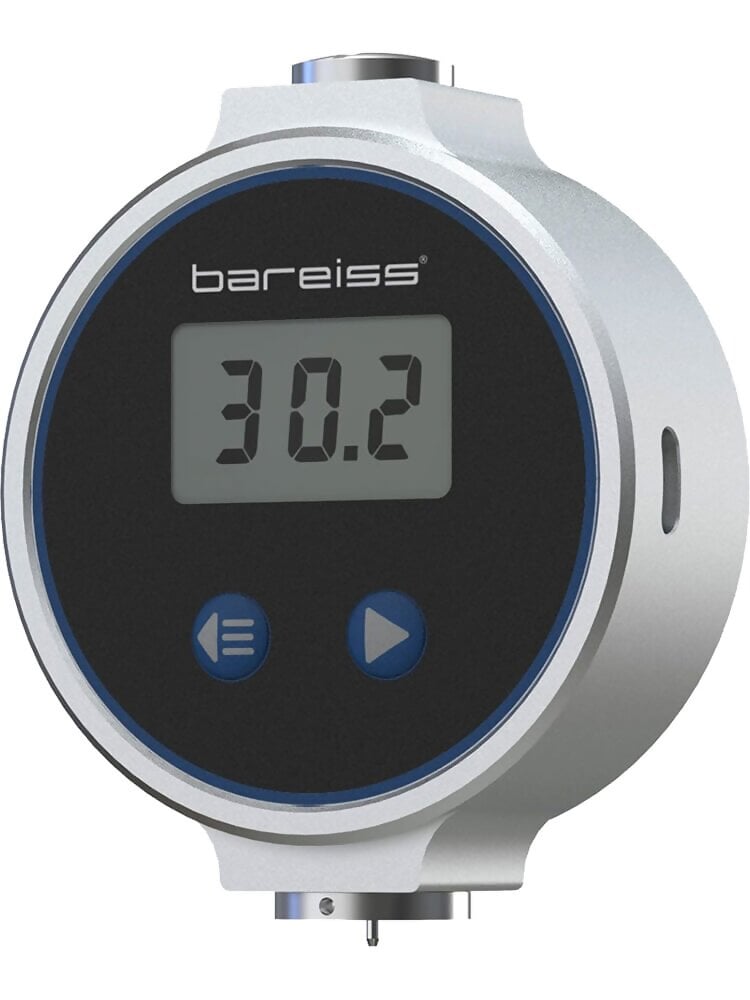

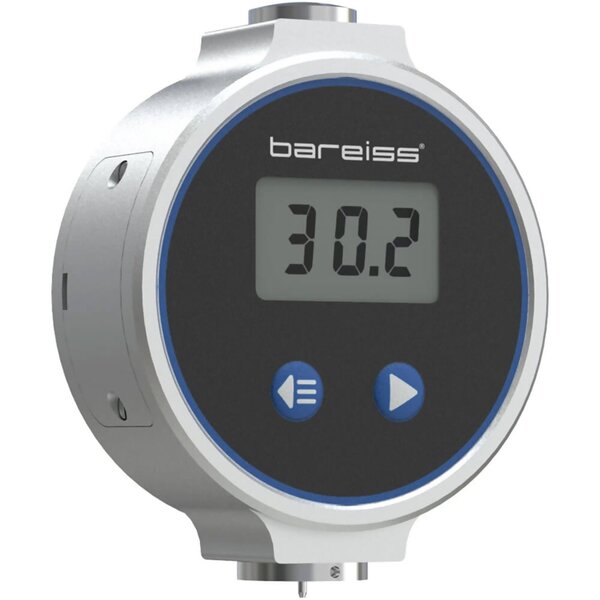

The Bareiss HP-DIGITAL Basic Digital Durometer is a portable Shore hardness tester durometer available in both Shore A and Shore D scales. This cost-effective durometer is our answer for customers who seek a simple and fast testing operation without compromising the quality of the measuring results. Bareiss has been known for producing the highest-quality hardness testing instruments since 1954 and the first generation of the HP model became an iconic representation of how durometers look today.

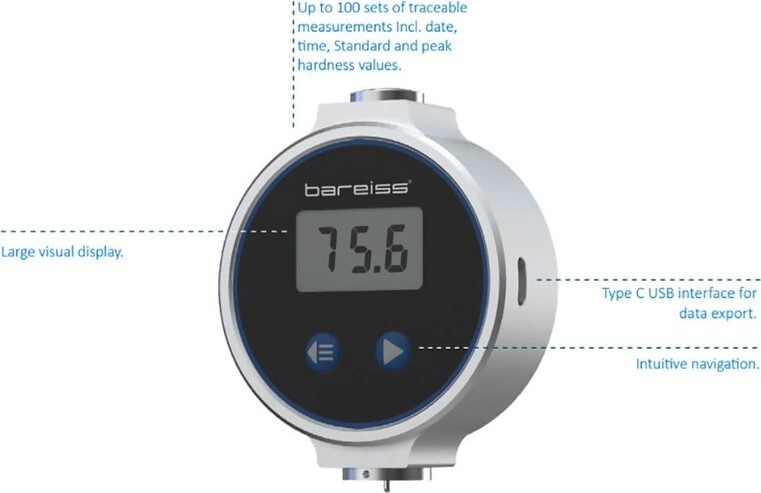

The Bareiss HP-DIGITAL Basic Digital Durometer durometer offers every conceivable digital convenience available for a durometer. It can store and display up to 100 sets of measuring data with a Type-C USB interface for exporting data once the limit is exceeded. Additionally, it includes features such as the ability to select the measuring time, switch between peak value and standard value, and provide a visual indication when the measurement is completed.
- Conforms to ASTM D2240, DIN ISO 868 and 48-4
- Adjustable Capture Time
- Memory for 100 readings
- USB Data Output
- Large Digital Display
- Traceable Calibration Certificate OPTIONAL
| Resolution: | 0.4 Shore units
|
| Power: | Non-chargeable lithium battery CR2477
|
| Memory: | 100 measurements
|
| Output: | USB Type-C
|
| Dimensions: | 78 H x 65 W x 26 D mm
|
| Weight: | 182g |
The Checkline HP Series Shore Durometer is designed to measure the hardness or firmness of a wide variety of parts and test samples. This Durometer features a unique spring-operator test pressure shell, which helps insure that similar test pressures are used for each measurement. This system significantly enhances the measurement repeatability, especially between different operators. Oversized flat bottom surface makes position of working face (area of contact as specified in ASTM/DIN Standards) convenient and consistent which limits variability between operators.
The Bareiss HP Durometer is ideal to measure hardness according to ASTM and ISO standards. Every HP is carefully assembled and calibrated by Bareiss technicians. To reduce friction, all Durometers include precision ball bearings to ensure smooth traveling of the indentor eliminating errors caused by friction. The Bareiss HP Series is available in different Shore and non-Shore scales.
The Bareiss HPE-PJ Pusey & Jones Hardness Durometer Tester Plastometer is designed for testing the hardness of rubber and rubber-like materials. It is typically used for testing rubber rollers used by the paper industry. It can also be used for testing specimens with a flat surface and thickness of 13 mm.
The Bareiss HPE-III-Fff Fruit Firmness Tester penetrometer is designed for non-destructive hardness testing of fruits, vegetables, meat, and fish. A spring-loaded outer sleeve assists the operator in applying the correct pressure to achieve repeatable results. Interchangeable anvils allow for fast and accurate measurement on common applications including peaches, apricots, plums, cherries, tomatoes, strawberries, apples, avocados, kohlrabi, carrots, cucumbers, radish, and more. A built-in timer allows the operator to record the measured value after 3 seconds of contact per industry standards. The timer is adjustable as desired.
