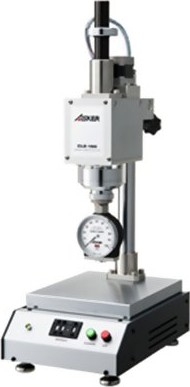

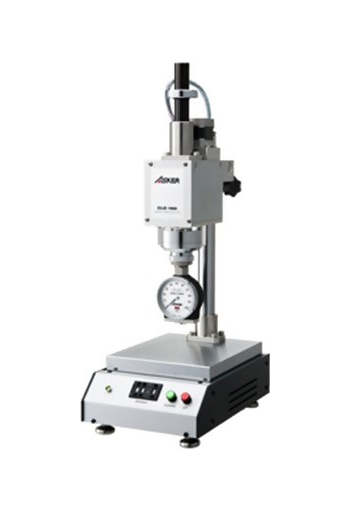

Asker CLE-150 Durometer Motorized Constant Speed - Load Stand
Adjustable Test speed: 0.1~19.9 mm/sec in .1 mm increments
Unique flexible coupling system automatically aligns the presser foot to the surface of sample
3 Models Available:
CLE-150L: For Shore A and Asker C Durometers
CLE-150H: For Shore D Durometers
CLE-150M: For Shore A, D and Asker C Durometers
The Asker CLE-150 motorized constant speed/load stand eliminates speed and load variables which occur when hand-testing samples with a durometer. Select speeds from 0.1~19.9 mm/sec in .1 mm increments.
Choose a model with the appropriate hardness scale for the material you are testing. In addition, the unique flexible coupling enables the presser foot of the durometer to make perfect contact even on samples with inclined surfaces.
Features
- Test speed and weight are constant
- Unique flexible coupling system automatically aligns the presser foot to the surface of sample
- Adjustable Test speed: 0.1~19.9 mm/sec in .1 mm increments
Operating Principle
Downloads
