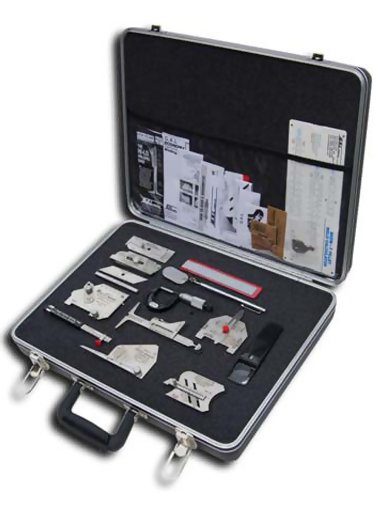

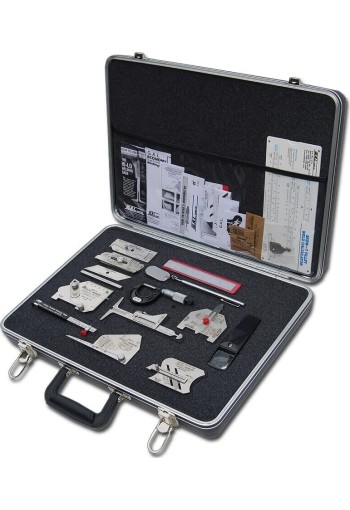

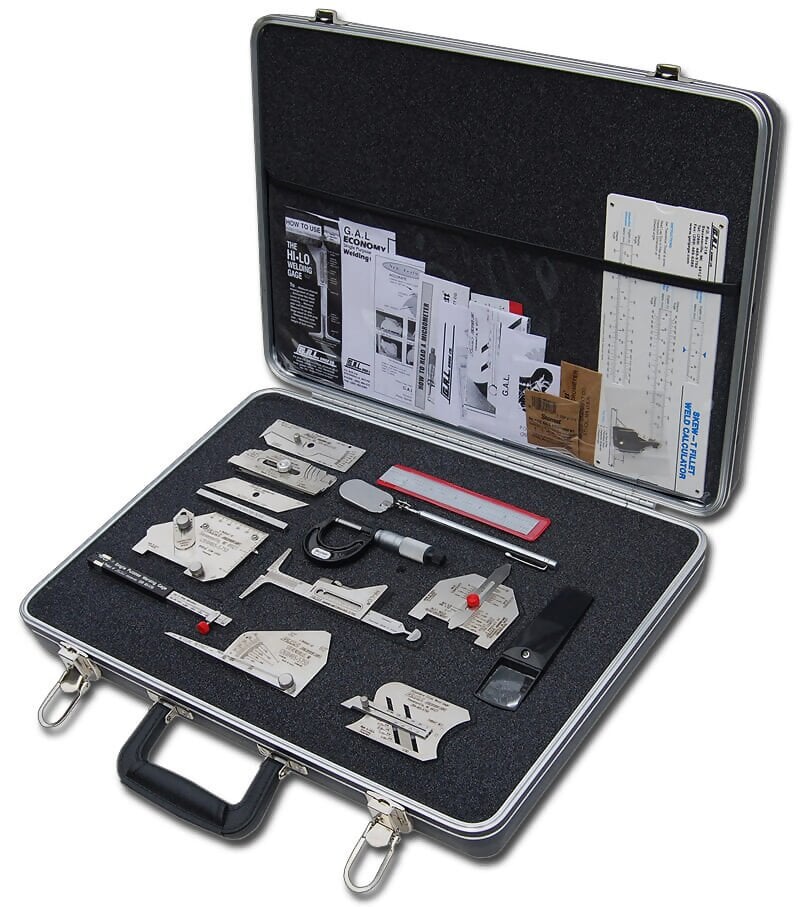

G.A.L. Gage Co. Cat # 12 Brief Case Type Large Tool Kit/Lock and Key GAL-12
Measurement Scale: Inch or Metric
Equip your quality control and inspection team with the ultimate all-in-one welding measurement solution. The G.A.L. Gage Co. CAT-12 Large Tool Kit houses an elite collection of industry-standard precision gauges inside a durable, secure, locking briefcase. Designed for professional welding inspectors, fabricators, and QA/QC engineers, this comprehensive kit ensures you have high-accuracy instruments readily available for any shop floor, pipeline, or structural steel inspection job.
Kit Contents
- Brief Case Type Large (18" X 12 1/2" X 3") Tool Kit/Lock and Key

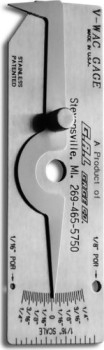

- Cat # 5 V-WAC Gauge (inch OR metric)
- Cat # 8 Fillet Weld (inch OR metric)
- Cat # 7 WTPS Gauge (inch AND metric)

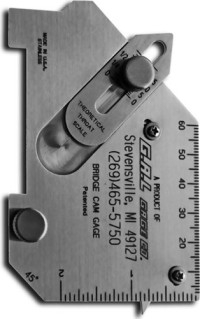

- Cat # 4 Bridge Cam (inch AND metric)
- Cat # 2 Single Purpose (inch OR metric)
- 6" SPI Scale (inch OR metric)
- Telescoping Mirror
- Micrometer w/ Ball (inch OR metric)

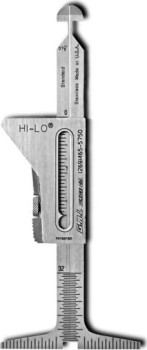

- Cat # 1 Hi-Lo Gauge (inch AND metric)

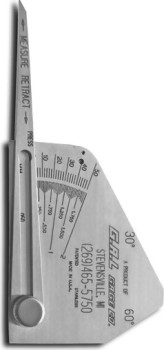

- Cat # 9c Skew-T Fillet Weld w/ Calc (inch AND metric)
- Cat # 6 AWS Type Gauge (inch OR metric)

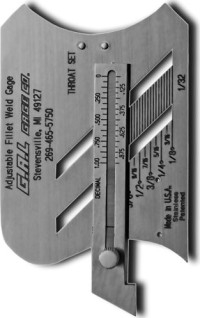

- Cat # 3 ADJ Fillet Weld (inch OR metric)
- Magnifier
Certification
The Cat # 12 Large Tool Kit contains 11 items that can be certified: Cat # 1, Cat # 2, Cat # 3, Cat # 4, Cat # 5, Cat # 6, Cat # 7, Cat # 8, Cat # 9c, Micrometer and Ruler. The certification is not included in the base price and is available at an additional cost. Just add it to cart if your quality control or compliance standards require it.
Features
- Comprehensive Inspection Suite: Packed with a complete assortment of industry-trusted G.A.L. Gage Co. instruments for measuring weld sizes, misalignments, undercuts, and angles.
- Secure and Portable: Housed in a robust, professional briefcase (approx. 18" x 12½" x 3") featuring a built-in lock and key system to keep your precision tools safe and organized on the go.
- Customizable Scale Options: Selectable in either standard Inch or Metric calibrations to meet your project specifications.
- Top-Tier Reliability: Manufactured by global leader in weld measurement technology, built to withstand rigorous industrial environments.
Specifications
| V-WAC Gauge | Ideal for checking undercut depth, pit depth, and weld reinforcement |
| Fillet Weld WTPS Gauge | Quick and accurate sizing for fillet welds |
| Bridge Cam Single Purpose Gauge | Measures angle of preparation, excess weld metal, and depth of undercut |
| 6" SPI Scale | Precision stainless steel rule for general layout and measuring |
| Telescoping Mirror | Essential for viewing hard-to-reach joints and root passes |
| Micrometer with Ball | For precise wall thickness and dimension checks |
| Hi-Lo Gauge | Evaluates internal pipe alignment prior to and after welding |
| Skew-T Fillet Weld Gauge with Calculator | Simplifies calculations for skewed T-joints |
| AWS Type Gauge | Conforms to American Welding Society standards for weld sizing |
| Adjustable Fillet Weld Gauge | Versatile dual-leg and throat measurement |
| Magnifier | High-clarity lens for detailed visual weld examination and flaw detection |
| Manufacturer | G.A.L. Gage Co. |
| Warranty | One Year |
| Country of Manufacture | US |
