Name: G.A.L. Gage Co. Cat # 2 Economy Single Purpose HI-LO Welding Gauge GAL-2
Brand: G.A.L. Gage Co.
SKU: 1269

For eliminate costly weld rejects and maximize productivity

Eliminate costly weld rejects and maximize productivity with the G.A.L. Gage Co. Cat # 2 Economy Single Purpose Hi-Lo Welding Gauge. Often referred to as the wire-type Hi-Lo gauge, this compact, pocket-sized inspection tool is specifically engineered for pipe fitters and welding inspectors. It allows you to quickly check internal high-lo misalignments to ensure compliance with strict code requirements—especially in piping applications where the backside of the weld is inaccessible. Featuring a tapered section for precise root gap verification, this reliable instrument ensures precise joint fit-up every time. Available in customizable Inch (Imperial) or Metric scale options.

The G.A.L. Gage Co. Cat # 2 Economy Single Purpose Hi-Lo Welding Gauge is also included as a component in several comprehensive welder and inspector kits featured in the Related Products section below.

Kit Contents

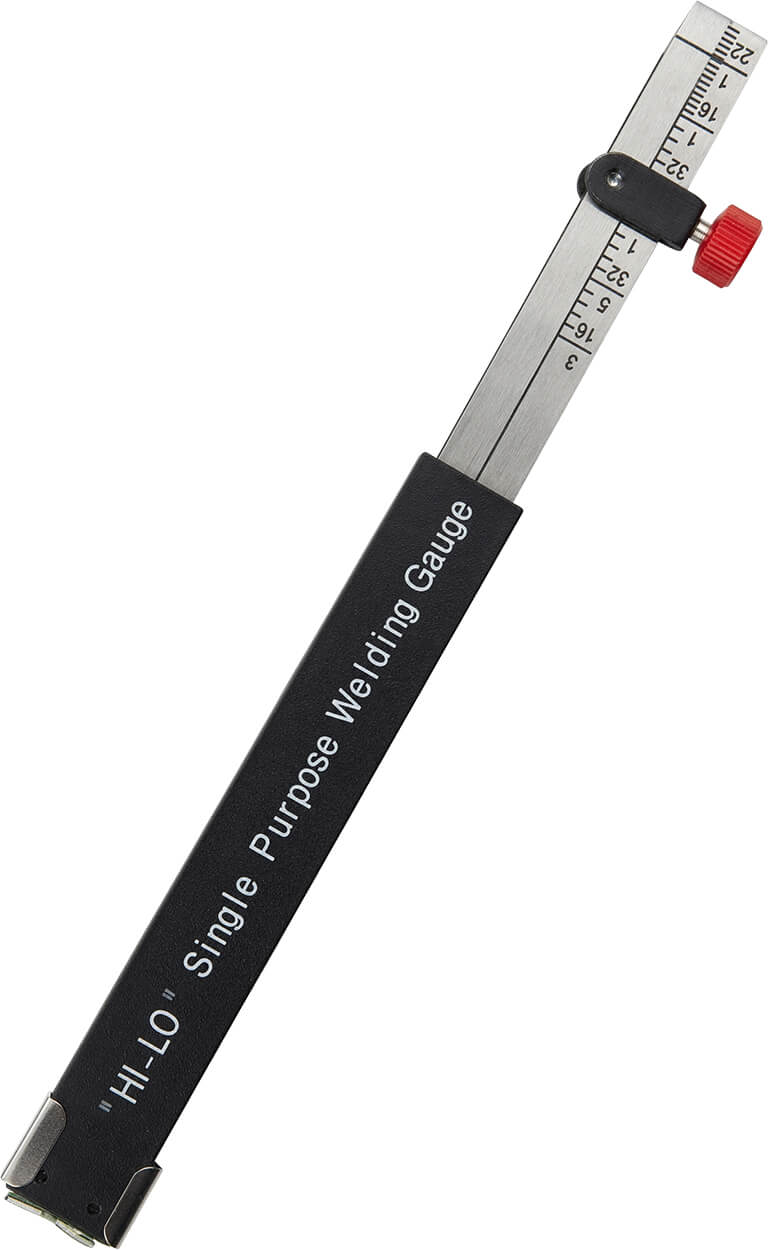

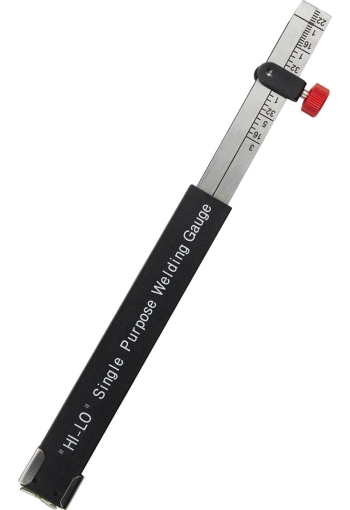

G.A.L. Gage Co. Cat # 2 Economy Single Purpose HI-LO Welding Gauge GAL-2

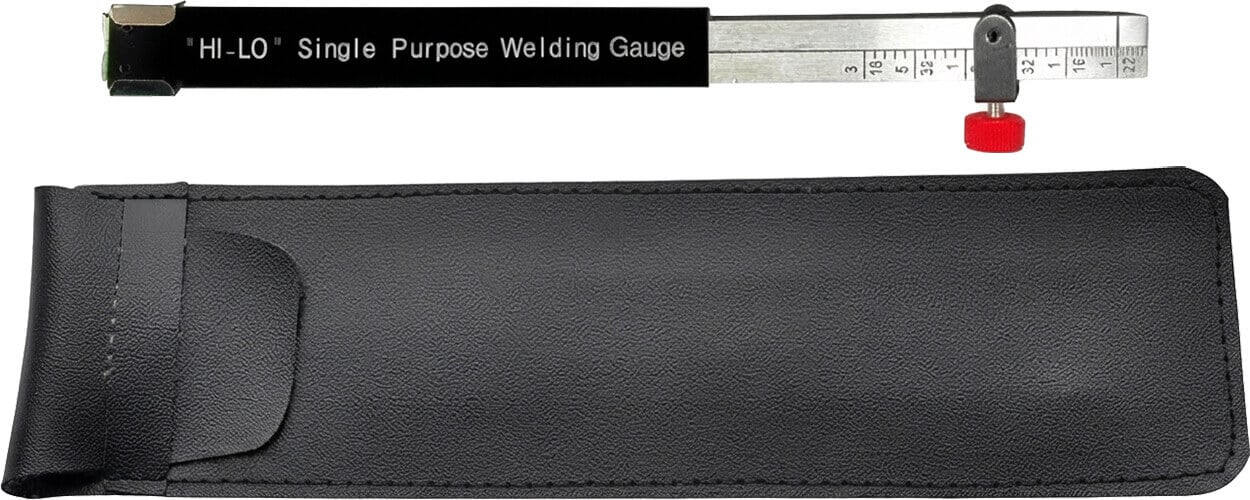

Protective Carry Pouch

Click image to enlarge

Certification

The Cat # 2 Economy Single Purpose HI-LO Welding Gauge can be certified. The certification is not included in the base price and is available at an additional cost. Just add it to cart if your quality control or compliance standards require it.

Features

Eliminates Rejects and Boosts Productivity: Prevents costly rework by ensuring precise internal alignment and fit-up before welding begins
Internal Misalignment (Hi-Lo) Check: Quickly detects internal and external pipe mismatch to meet rigorous industry code standards
Root Weld Space Verification: Integrated tapered section accurately measures root gaps and joint fit-up dimensions
Pocket-Sized Portability: Compact and lightweight design fits easily into your top work pocket for instant, on-site accessibility
Flexible Calibration: Available in standard Inch or Metric measurement scales to match your project requirements

Applications

Pipeline Construction and Installation: Essential for verifying root spacing and high-lo alignment on cross-country oil, gas, and water pipelines
Refinery and Petrochemical Plant Turnarounds: Perfect for rapid joint fit-up checks in tight or restricted piping environments
Pressure Vessel Fabrication: Ensures strict compliance with code requirements for internal alignment and joint preparation
Pipefitting and Structural Metalwork: A must-have daily carry tool for professional pipe fitters and quality control technicians

Specifications

Measurement Scale

Available in Inch or Metric

Primary Functions

Internal misalignment check and root weld space/gap measurement

Manufacturer

Imported by G.A.L. Gage Company

How to Use

Check Internal Alignment (Hi-Lo): Insert the gauge legs into the internal root opening of the pipe joint. Read the mismatch indicator to verify whether the internal alignment meets allowable tolerances, preventing high-low mismatch defects
Measure Root Weld Gap: Use the tapered wire-type section of the gauge to measure the root opening (fit-up gap) between pipe ends before tacking or final welding
Verify Dimensions: Read the clearly engraved imperial or metric scale directly from the tool face to confirm that the gap and alignment satisfy code specifications
Secure Settings: Utilize the built-in retaining screw mechanism to hold measurements in place for secondary reference or documentation when needed
