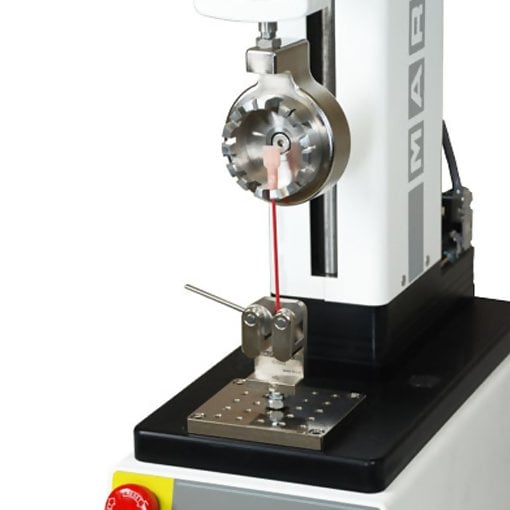

    Mark-10 WTT-ESM Motorized Wire Terminal Tester
    Motorized Wire Terminal Tester with Programmable Force Control
    Range: 0 -200 lbs / 0-100 Kg / 0 to 1000 N
    Conforms to all international test standards: MIL, UL, SAE, DIN, IEC, BS and EN

    2 System Configurations
    WTT-ESM-STD Basic System for destructive testing
    WTT-ESM-ADV Advanced System with Closed Loop Control

    The Mark-10 WTT-ESM Motorized Wire Terminal Test System is a precision solution for wire terminal testing applications up to 200 lb.

    The WTT-ESM-STD is a basic system designed for destructive testing to determine the maximum force a crimped on connector will hold.

    The WTT-ESM-ADV is specifically designed for meeting ASTM test standards that require a test sample to maintain a specific load for a set interval (typically 1 minute). The closed loop control function will automatically adjust the load to stay constant during the test. Performs Test Procedures According to UL486A and SAE/USCAR-21

    Standard USB and RS232 output allow operators to transfer data to a PC or data collection system.

    *3 Wire Terminal Grips Available
    For Wire Diameters:

    • 0 - 0.125 [0 - 3.1mm]
    • 0.125 - 0.25 [3.1 - 6.3mm]
    • 0.25 - 0.375 [6.3 - 9.5mm]

    *1 Grip Included, additional ranges optional


    line
    Kit Contents
    line

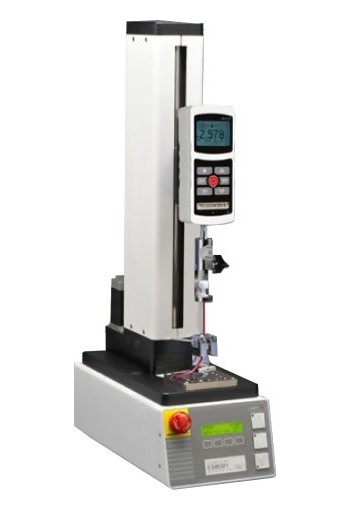

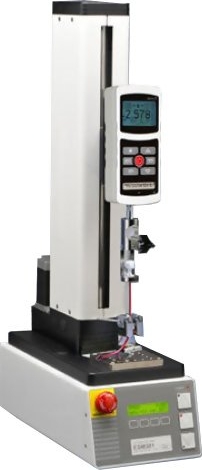

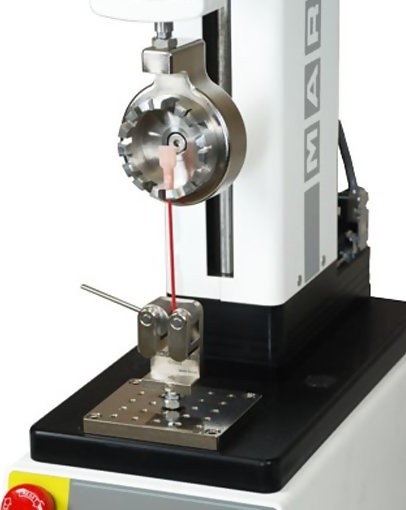

    • The WTT-ESM is sold as a complete test system that includes the following items;

      ESM301 - ESM301 Progammable Test Stand
    • M4-200 - Digital Force Gauge
    • G1002 - Wire Cam Grip

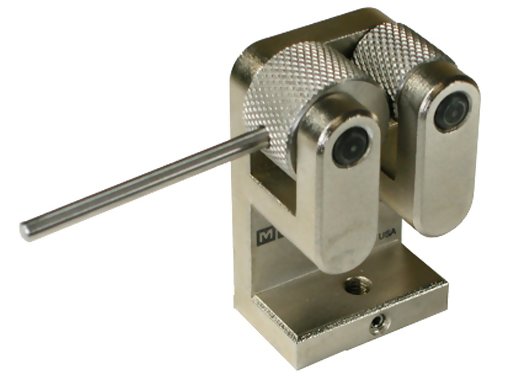

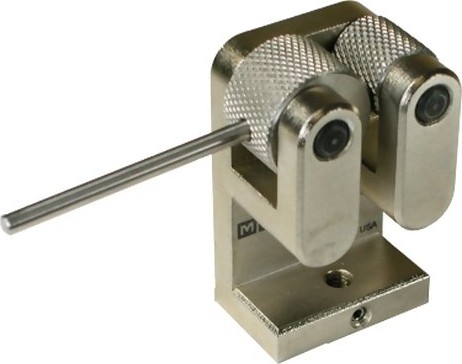

    • G1001 - Wire Terminal Grip

    The WTT-ESM-ADV also Includes:
    • 09-1162 - Multi-function cable, gauge to ESM301
    • EF014 - Cycling / dwell time
    • CF002-2N - Closed loop force control
    • M5-200 - M5 Advanced Digital Force Gauge instead of the M4 Force Gauge Supplied with WTT-ESM-STD


    line
    Features
    line

    • LCD display with UP, DOWN, STOP and emergency stop buttons and soft keys
    • RS-232, Mitutoyo and analog outputs
    • Integrated travel limit switches
    • Removable fixture mounting plate with matrix of threaded holes
    • Mounting holes for bench mounting
    • Password protection of test parameters, to prevent unauthorized changes
    • Stepper motor-driven, produces 0% speed variation load
    • 3 Year Warranty
    • CE Mark


    lineSpecificationsline

    Capacity200 lbs / 100 Kg / 1000 N
    Standard Speed Range0.6 - 13 in/mm (13 - 330 mm/min)
    Maximum Travel11.5 in (292 mm)
    Speed Setting Accuracy±0.2%
    Speed Variation with load±0% (Stepper motor driven)
    Limit switch repeatability0.001 in (0.03 mm)
    PowerUniversal input 80-240 VAC, 50/60 Hz
    Weight (without options)32 lbs (14.5 kg)


    line
    Related Products
    line

    Series-4
    Digital Force Gauge with Output

    • USB, RS-232, Mitutoyo, and analog outputs
    • 3,000 Hz peak sampling rate
    related

    line

    Series-5
    Advanced Digital Force Gauge - Model M5

    • High-speed 7,000 Hz peak sampling rate
    • USB, RS-232, Mitutoyo, and analog outputs
    related

    line

    ESM301
    Programmable Test Stand with PC Control

    • Selectable speed units of measurement (in/min & mm/min)
    • Stepper motor-driven, produces 0% speed variation load
    related


    line
    Downloads
    line

    WTT-ESM Motorized Wire Terminal Tester - BG Data Sheet
    WTT-ESM Motorized Wire Terminal Tester - ESM301 Data Sheet
    WTT-ESM Motorized Wire Terminal Tester - Standards
