Mountz Gedore 050525 ATB 2.5i Adjustable Breaking Torque Wrench, 4.5-22.5 lbf.in, 8mm SPIGOT

See More Torque Wrenches

Mountz Gedore 050525 ATB 2.5i Adjustable Breaking Torque Wrench, 4.5-22.5 lbf.in, 8mm SPIGOT

See More Torque Wrenches
Price:
$589.73
    warrenty

    Product Description

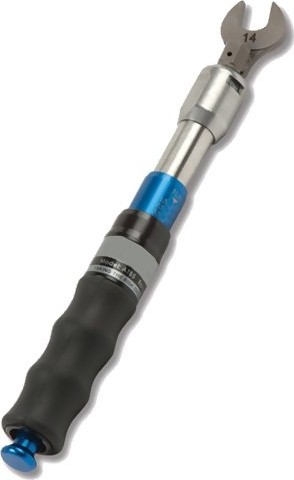

    Break-Over Torque Wrench with Fixed Head
    Torque Ranges: 25 ozf.in - 50 lbf.in
    "Breaks-over" when preset torque is reached eliminating overtorquing.

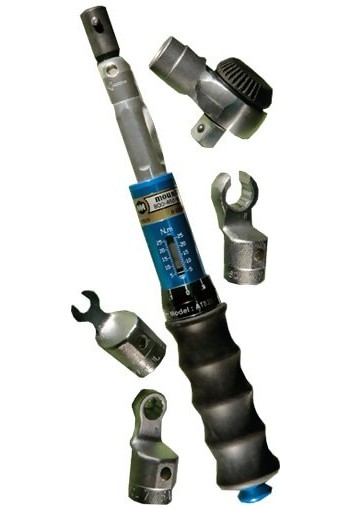

    The Mountz Gedore ATB Adjustable Break-Over Torque Wrench suitable for a variety of applications across multiple industries from aviation maintenance to general repair tasks. The wrench has the ability to change head configurations like open end, box, flare or a ratchet head. At the set torque, the handle moves through an angle of 20º before resetting.


    line
    Features
    line

    • Adjustable torque wrench that breaks over upon reaching preset torque and resets automatically.
    • Easy-to-read single scale models protected by a display window. Graduation collar on the torque handle.
    • Extenally adjustable tool that offers different setting options for applications that require more than one torque value.
    • The "positive" locking system securely prevents incidental torque adjustment.
    • Compact and well balanced. Ideal for use in restricted areas.
    • Interchangeable Heads for all models are available.


    line
    Ranges
    line

    ModelItem #RangeRes.DriveLengthWeight
    ATB2.502065850 - 250 cN.m1.25 cN.m8mm Spigot7 1/2" (190mm)8.5 oz (240 g)
    ATB2.5i0206594.5 -22.5 lbf.in0.1 lbf.in8mm Spigot7 1/2" (190mm)8.5 oz (240 g)
    ATB50206281 - 5 N.m0.025 N.m8mm Spigot8 2/3" (220mm)10.2 oz (290 g)
    ATB5i02062910 - 45 lbf.in0.25 lbf.in8mm Spigot8 2/3" (220mm)10.2 oz (290 g)
    ATB100206202 - 10 N.m1 N.m8mm Spigot8 2/3" (220mm)10.6 oz (300 g)
    ATB10i02062220 - 90 lbf.in0.5 lbf.in8mm Spigot8 2/3" (220mm)10.6 oz (300 g)


    line
    Interchangeable Heads
    line

    Open End

    Open Ended Head

    American:SizeCap.ModelSizeCap.
    0230035/32"10 N.m0230119/16"10 N.m
    0230043/16"10 N.m0230125/8"10 N.m
    0230057/32"10 N.m02301311/16"10 N.m
    0230061/4"10 N.m0230143/4"10 N.m
    0230075/16"10 N.m02301513/16"10 N.m
    0230083/8"10 N.m0230167/8"10 N.m
    0230097/16"10 N.m02301715/16"10 N.m
    0230101/2"10 N.m0230181"10 N.m

    Metric:SizeCap.ModelSizeCap.
    0230193.210 N.m0230311410 N.m
    023020410 N.m0230321510 N.m
    023021510 N.m0230331610 N.m
    0230225.510 N.m0230341710 N.m
    023023610 N.m0230351810 N.m
    023024710 N.m0230361910 N.m
    023025810 N.m0230372010 N.m
    023026910 N.m0230382110 N.m
    0230271010 N.m0230392210 N.m
    0230281110 N.m0230402310 N.m
    0230291210 N.m0230412410 N.m
    0230301310 N.m0230422510 N.m

    line

    Box EndOpen Ended Head
    American:SizeCap.ModelSizeCap.
    0230435/32"10 N.m0230519/16"10 N.m
    0230443/16"10 N.m0230525/8"10 N.m
    0230457/32"10 N.m02305311/16"10 N.m
    0230461/4"10 N.m0230543/4"10 N.m
    0230475/16"10 N.m02305513/16"10 N.m
    0230483/8"10 N.m0230567/8"10 N.m
    0230497/16"10 N.m02305715/16"10 N.m
    0230501/2"10 N.m0230581"10 N.m

    Metric:SizeCap.ModelSizeCap.
    0230593.210 N.m0230711410 N.m
    023060410 N.m0230721510 N.m
    023061510 N.m0230731610 N.m
    0230625.510 N.m0230741710 N.m
    023063610 N.m0230751810 N.m
    023064710 N.m0230761910 N.m
    023065810 N.m0230772010 N.m
    023066910 N.m0230782110 N.m
    0230671010 N.m0230792210 N.m
    0230681110 N.m0230802310 N.m
    0230691210 N.m0230812410 N.m
    0230701310 N.m0230822510 N.m

    line

    Flare EndOpen Ended Head

    American:SizeCap.ModelSizeCap.
    0230831/4"10 N.m0230889/16"10 N.m
    0230845/16"10 N.m0230895/8"10 N.m
    0230853/8"10 N.m0230903/4"10 N.m
    0230867/16"10 N.m0230917/8"10 N.m
    0230871/2"10 N.m0230921"10 N.m

    Metric:SizeCap.ModelSizeCap.
    023093810 N.m0231001510 N.m
    023094910 N.m0231011610 N.m
    0230951010 N.m0231021710 N.m
    0230961110 N.m0231031910 N.m
    0230971210 N.m0231052210 N.m
    0230981310 N.m0231072410 N.m
    0230991410 N.m


    line

    Hex Key

    Hex Key HeadHex Key HeadHex Key Head

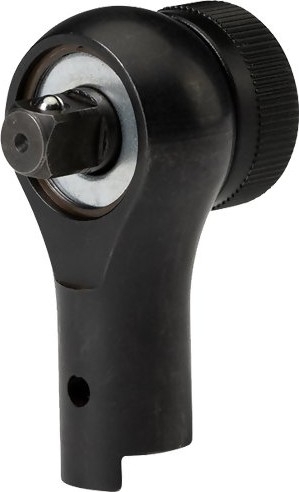

    Ratchet End
    Item # 023000
    Square Drive Size: 1/4"
    Max. Torque Capacity 10 N.m
    Ratchet End
    Item # 023000
    Square Drive Size: 1/4"
    Max. Torque Capacity 10 N.m

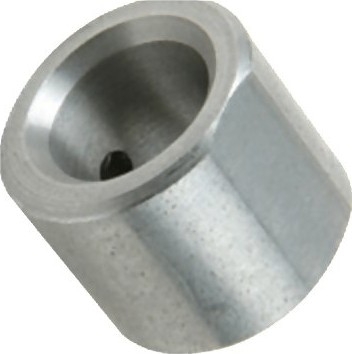

    Blank End
    Item # 023002


    line
    Downloads
    line

    ATB Adjustable Break-Over Torque Wrench - Data Sheet
