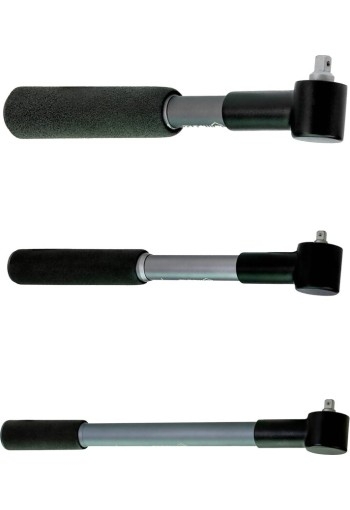

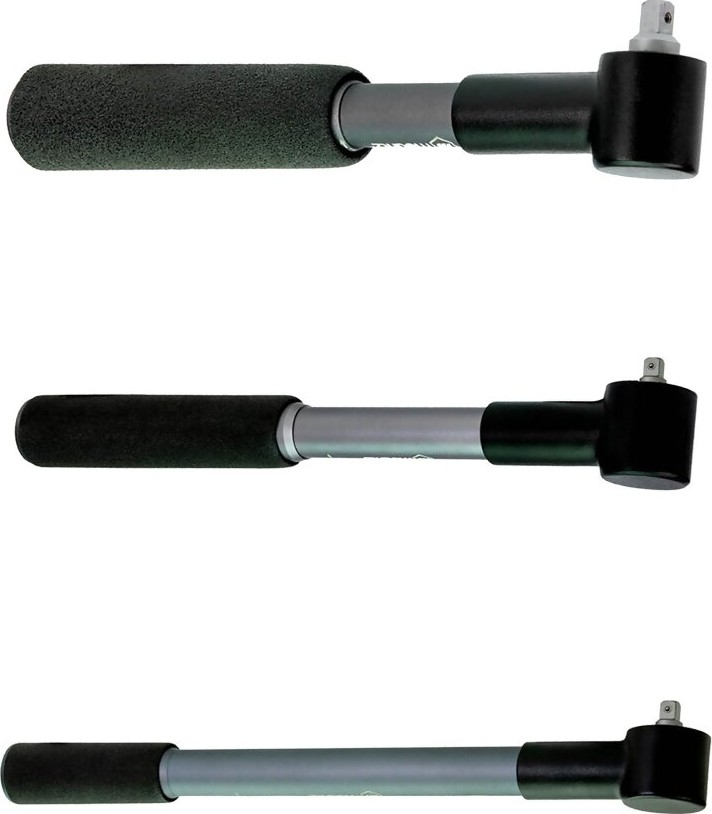

Mountz FGC Cam-Over Wrenches

See More Torque Wrenches

Mountz FGC Cam-Over Wrenches

See More Torque Wrenches
Price:
$655.00 - $1,172.00
    warrenty

    Product Description

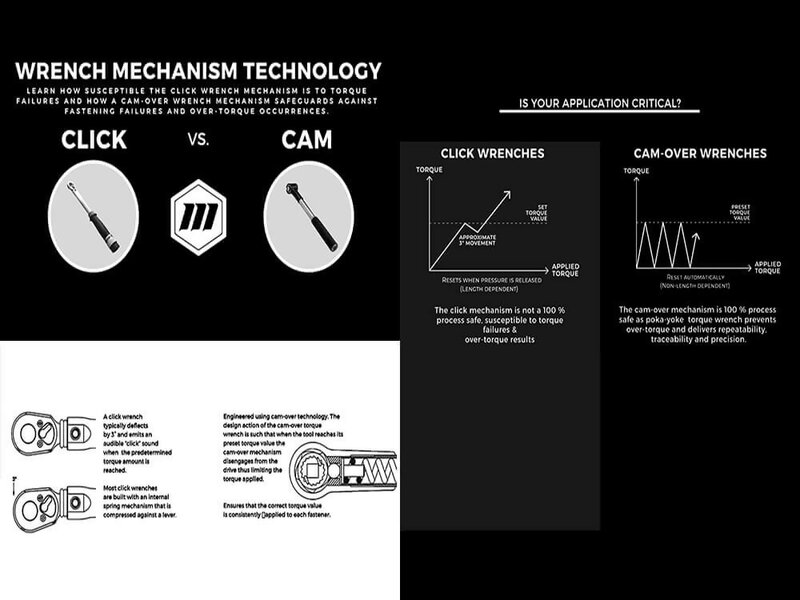

    Cam-over technology ensures correct torque is applied and eliminates fastener breakage issues
    Poka-yoke torque wrench prevents over-torque, as a click wrench cannot
    Error-proofing assembly process

    The Mountz FGC Cam-Over Wrenches is next-generation cam-over wrench by Mountz Torque. When under- or over-torquing puts your products at risk, the FGC wrench delivers the accuracy you need. Safeguarding against fastening failures, the poka-yoke torque wrench prevents over-torque. Implementing this error-proofing wrench removes the operator's influence out of the torque equation and delivers an accurate and repeatable fastening result than a standard click type wrench. You can give Mountz FGC wrenches to any operator and have the confidence that he/she will deliver the correct torque, time after time. Mountz FGC tools stay in calibration 2X longer than the most stringent industry standard (ISO 6789).

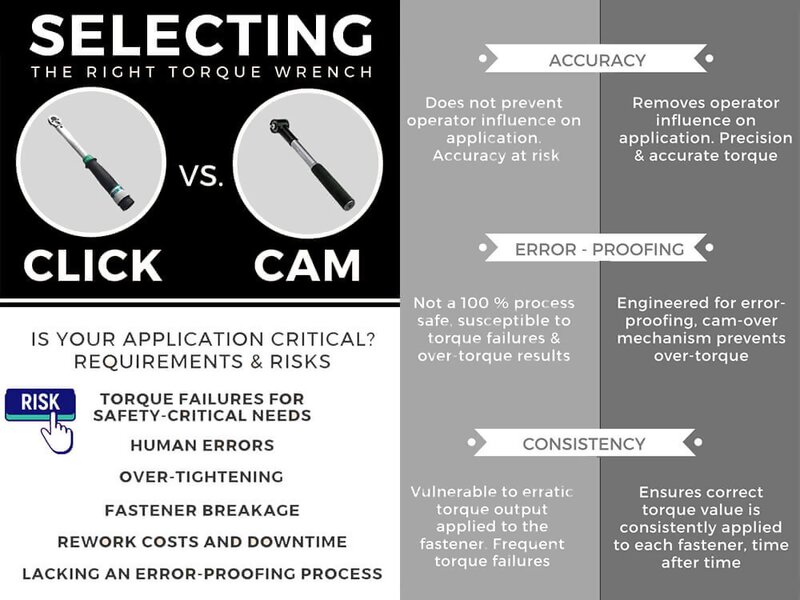

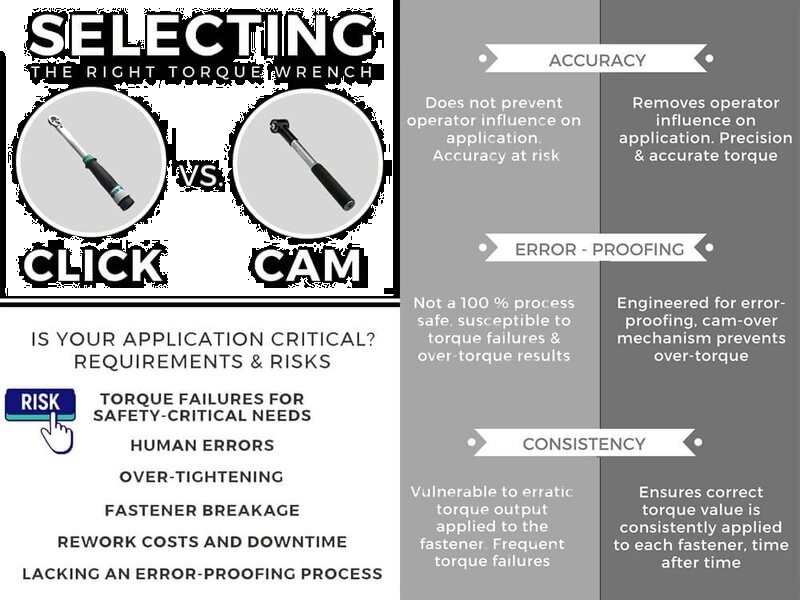

    A click wrench is not a 100 % process safe and is often susceptible to over-torque results. A click wrench does not physically prevent an operator from applying additional force, he/she can unknowingly generate over-torque.


    line
    Features
    line

    • Cam-over technology ensures correct torque is applied and eliminates fastener breakage issues
    • Poka-yoke torque wrench prevents over-torque, as a click wrench cannot
    • Error-proofing assembly process
    • Safeguards against fastening failures
    • Calibration life 2x ISO standards, unmatched by any wrench
    • A preset wrench ideal for fastening applications where operators repeatedly assemble parts at the same torque setting
    • A preset production torque wrench
    • Tool is set to a designated torque value and the correct torque value is consistently applied
    • Internal locking mechanism prevents incidental torque setting changes and ensures fastening precision and repeatability
    • Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer
    • Non-length dependent
    • Non-strip ratchet head
    • Wrench tightens in the CW direction only
    • Coated corrosion-resistant stainless steel head
    • Anodized aluminum handle
    • Ergonomic cushion grip reduces discomfort, fatigue, and risk of injury
    • Two-year unlimited warranty
    • Lifetime guarantee against manufacturing defects


    line
    Models
    line

    ModelPart NumberAmericanS.I.MetricDrive Size
    FGC-50765658.9 - 44.2 lbf.in1 - 5 N.m10.2 - 51 kgf.cm1/4" Sq. Dr.
    FGC-10D07656617.7 - 88.5 lbf.in2 - 10 N.m20.4 - 102 kgf.cm1/4" Sq. Dr.
    FGC-10A07656717.7 - 88.5 lbf.in2 - 10 N.m20.4 - 102 kgf.cm3/8" Sq. Dr.
    FGC-30D0765684.4 - 22.1 lbf.ft6 - 30 N.m0.6 - 3.1 kgf.m1/4" Sq. Dr.
    FGC-30A0765694.4 - 22.1 lbf.ft6 - 30 N.m0.6 - 3.1 kgf.m3/8" Sq. Dr.
    FGC-7507657011.1 - 55.3 lbf.ft15 - 75 N.m1.5 - 7.6 kgf.m3/8" Sq. Dr.
    FGC-12507657118.5 - 92.2 lbf.ft25 - 125 N.m2.6 - 12.7 kgf.m1/2" Sq. Dr.


    line
    Downloads
    line

    Mountz FGC Cam-Over Wrenches - Data Sheet
    Mountz FGC Cam-Over Wrenches - Instruction Manual
