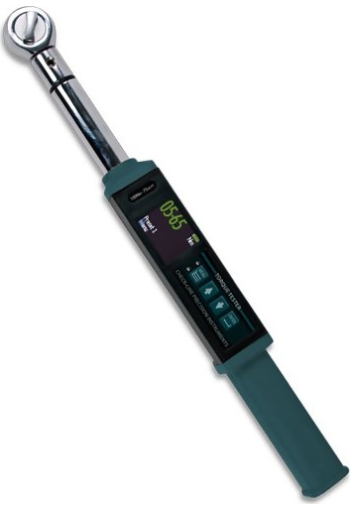

Checkline ETW-SPA-20 Digital Torque Wrench with Angle Measurement, 17.7 - 177 lbf-in, 1/4" Drive

See More Torque Wrenches

Checkline ETW-SPA-20 Digital Torque Wrench with Angle Measurement, 17.7 - 177 lbf-in, 1/4" Drive

See More Torque Wrenches
Price:
$1,495.00
    warrenty

    Product Description
    Checkline ETW-SPA Digital Torque and Angle Wrench with USB Data Output
    Capacities up to 1460 lb-ft / 2000 N-m
    Accuracy of ±1% of actual reading

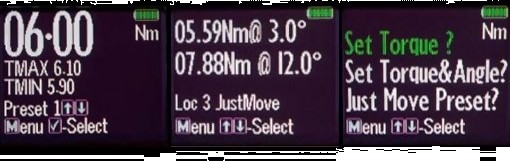

    The Checkline ETW-SPA is designed for precision torque and angle measurement. The large OLED display indicates real-time, peak torque and angle. 7 measuring units are operator selectable, (lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm).

    Users can program 99 preset torque targets for fast and accurate torque application on repetitive tasks. The ETW-SPA provides visual and audible alerts as you approach and hit the target value.


    line

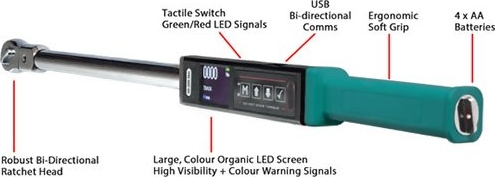

    Features
    line

    • Bi-Directional Accuracy better than 1% from 10%-100% of Capacity
    • Wireless Data Outuput OPTIONAL, inquire
    • Large Color OLED Screen. High Visibility, Warning Signals
    • Selectable Languages: English, Chinese, French, German, Italian, Polish, Portuguese, Russian and Spanish
    • Battery Life of over 120 hours
    • Includes Traceable Calibration Certificate in accordance with ISO 6789:2003
    • USB output & data transfer / analysis software
    • Memory (2000+ Measurements)
    • Selectable measuring units: lb-in, lb-ft, oz-in, N-m, cN-m, kgf-m, kfg-cm
    • Angle Measurement OPTIONAL, inquire
    • ASCII Data Outuput OPTIONAL, inquire


    lineSpecificationsline

    Accuracy±1% (Of indicated)
    10 - 100% of capacity (readings start at 5%)
    Sampling Frequency500 Hz (500 samples/sec)
    Display Update Rate4 Hz (4 times/sec)
    Memory2000 readings (Standard)
    6000 readings (Optional)
    Operation ModePeak hold/ Track /Preset
    Unit SelectionLb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in
    Length10-100 Nm: 0.4m
    200-340 Nm: 0.63m
    600-800 Nm: 1.25m
    1000 Nm: 1.35m
    1500-2000 Nm: 1.65m
    Head TypeRobust Bi-Directional Ratchet
    Battery4x AA
    Battery Life120 Hours
    Operating Temperature-10°C ~ 60°C
    Storage Temperature-20°C ~ 70°C
    HumidityUp to 90% non-condensing
    Warranty1 Years


    line
    Force Ranges
    line

    ModelRangeDrive
    ETW-SPA-101-10 Nm
    8.8 - 88 lbf-in
    1/4" or 3/8", 9x12
    ETW-SPA-202-20 Nm
    17.7 - 177 lbf-in
    1/4" or 3/8", 9x12
    ETW-SPA-505-50 Nm
    44 - 440 lbf-in
    3.7 - 37 lbf-ft
    1/4" or 3/8", 9x12
    ETW-SPA-10010-100 Nm
    89 - 890 lbf-in
    7.4 - 74 lbf-ft
    1/4" or 3/8", 9x12
    ETW-SPA-20020-200 Nm
    15 - 150 lbf-ft
    1/2", 14x18
    ETW-SPA-34034-340 Nm
    25 - 250 lbf-ft
    1/2", 14x18
    ETW-SPA-60060-600 Nm
    44 - 440 lbf-ft
    3/4", 24x32
    ETW-SPA-80080-800 Nm
    59 - 590 lbf-ft
    3/4", 24x32
    ETW-SPA-1000100-1000 Nm
    74 - 740 lbf-ft
    3/4", 24x32
    ETW-SPA-1500150-1500 Nm
    110 - 1100 lbf-ft
    1", 27x36
    ETW-SPA-2000200-2000 Nm
    147-1475 lbf-ft
    1", 27x36

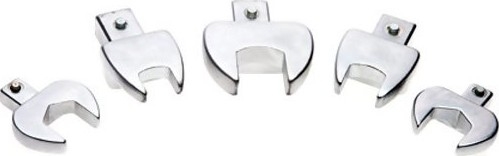

    lineOpen End Spanner Headsline

    Open end spanner heads are available as options in sizes 1/4 inch to 1 inch / 7-41mm

    *The ETW-PR-1000 and ETW-PR-2000 have fixed heads and are not compatible with the open end spanners.

    ETW models up to 100 Nm use heads with 9x12mm tangs, 200 Nm and above use 14x18mm tangs.


    line
    Downloads
    line

    ETW-SPA Digital Torque Wrench with Angle Measurement, Memory and Data Output - Instruction Manual
