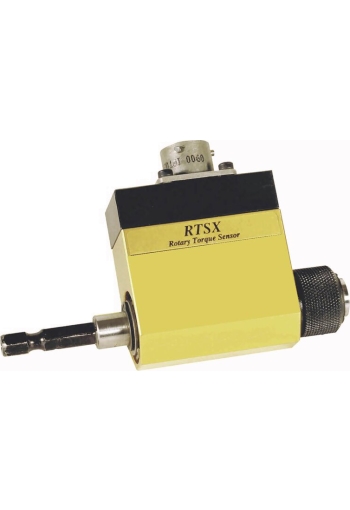

Mountz RTSX Rotary Torque Transducer

---

Rotary Torque Transducer - Mountz

---

Various models that range from 1 Lb-in to 1500 Lb-ft.

---

For use with most hand tools, power tools or rotational measurement applications

---

The Mountz RTSX Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications. The Mountz RTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener. Features an instant auto-recognition system of the RTSX connected to the PTT & LTT.

Specifications

---

Output at Rated Capacity	> 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability	Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity	+0.2% FS
Excitation Recommended	10V DC or AC RMS
Bridge Resistance	350 ohms
Usable Temperature Range	41-122 degrees F
Safe Overload	125% of rated output

Torque Ranges

---
