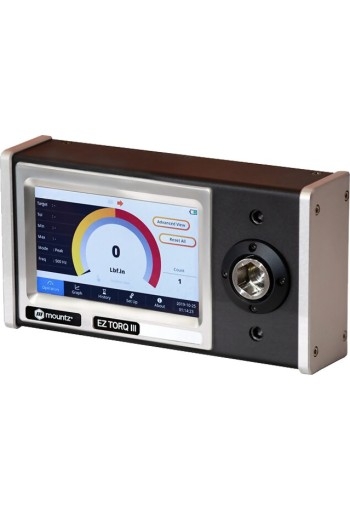

Mountz EZ-TorQ III Torque Analyzer

See More Torque Testers
Price:
$3,190.00 - $3,328.00
    warrenty

    Product Description
    An ISO 17025 certified torque analyzer used for calibrating and testing small hand screwdrivers, most wrenches, and power tools
    Quick and easy-to-use torque analyzer to verify a tool’s performance on the assembly line
    Integer a nibh scelerisque, convallis velit non, dignissim felis

    The Mountz EZ-TorQ III Torque Analyzer is easier and more available across every aspect of the line from the calibration lab to the assembly station. Highly portable and user friendly, this battery powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration. The new smart phone like touch-screen interface breaks down barriers and ensures quick and easy validation of different ranges as needed.

    Highly portable and user friendly, this battery-powered torque validation hub can be easily carried around the assembly line to spot check tools as part of a QA program or used at assembly stations for quick and easy torque tool validation and calibration. The new smartphone like touch-screen interface breaks down barriers and ensures quick and easy torque tool validation and calibration. EZ-TorQ digital torque tester features a built-in transducer. The easy-to-use torque analyzer is ideal for all small hand tools & non-impacting power tools.


    line
    Kit Contents
    line

    • Mountz EZ-TorQ III Torque Analyzer
    • 1/4 Female Sq. Dr. x 17mm Male Hex Adapter
    • 2 screw run down adapters
    • Universal Charger
    • Case


    line
    Features
    line

    • An ISO 17025 certified torque analyzer used for calibrating and testing small hand screwdrivers, most wrenches, and power tools
    • Quick and easy-to-use torque analyzer to verify a tool’s performance on the assembly line
    • Ensure proper torque is being applied and tools maintain conformity with quality standards
    • Instant verification that a tool is still in or out of calibration. Daily or weekly verification in the assembly area
    • Features a built-in Li-ion rechargeable battery
    • Portable torque tester
    • Vivid full color, smartphone-like touchscreen interface
    • Virtually unlimited data point storage with swappable SD card memory
    • Sophisticated onboard software with SPC analysis
    • Ability to analyze and create statistical data
    • Ability to capture and store data
    • Multi-language operation (English, Spanish, French, German, Chinese or Portuguese)
    • Mountz EZ-TorQ III Data Streamer. Ability to analyze data and calculate statistical data
    • Creates a historical record of your torque readings
    • Documentation solution


    line
    Order Guide
    line

    Part Number070810070811070812070813070814
    ModelEZ-TorQ III 10iEZ-TorQ III 50iEZ-TorQ III 100iEZ-TorQ III 150iEZ-TorQ III 300i
    American1 - 10 lbf.in5 - 50 lbf.in10 - 100 lbf.in15 - 150 lbf.in30 - 300 lbf.in
    S.I.11.3 - 113 cN.m56.5 - 565 cN.m113 - 1130 cN.m169.5 - 1695 cN.m339 - 3390 cN.m
    Metric1.2 - 111.5 kgf.cm5.8 - 57.6 kgf.cm11.5 - 115 kgf.cm173 - 17.3 kgf.cm34.5 - 345 kgf.cm
    Drive Size17mm F/Hex17mm F/Hex17mm F/Hex17mm F/Hex17mm F/Hex


    line
    Downloads
    line

    Mountz EZ-TorQ III Torque Analyzer - Data Sheet
    Mountz EZ-TorQ III Torque Analyzer - Instruction Manual
    Mountz EZ-TorQ III Torque Analyzer - Parts List
    Mountz EZ-TorQ III Torque Analyzer - Battery Safety Document
