Mountz AURA Auto Reversing Run Down

See More Torque Testers

Mountz AURA Auto Reversing Run Down

See More Torque Testers
Price:
$963.00
    warrenty

    Product Description

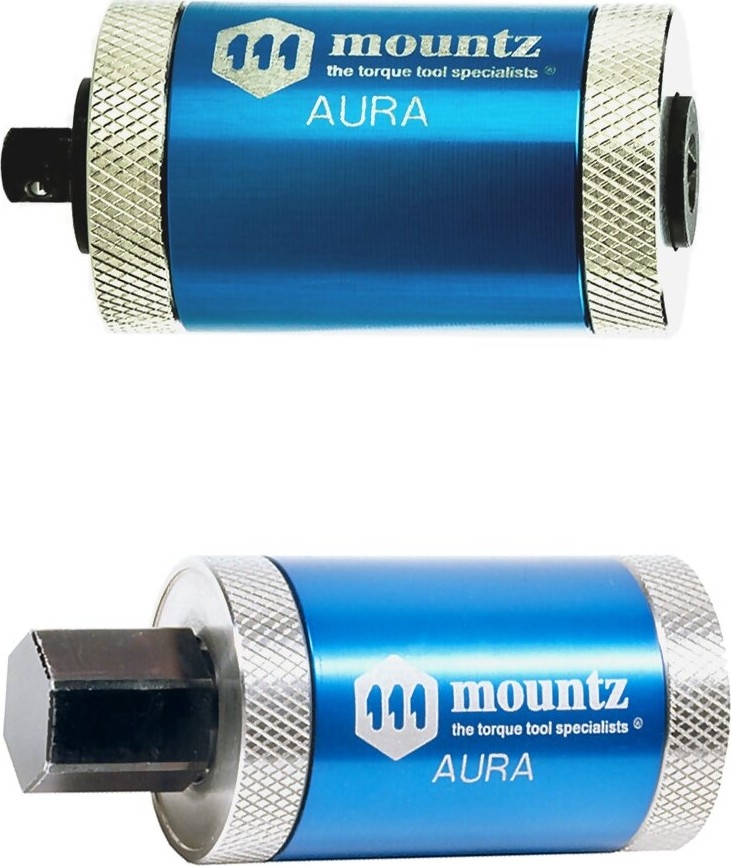

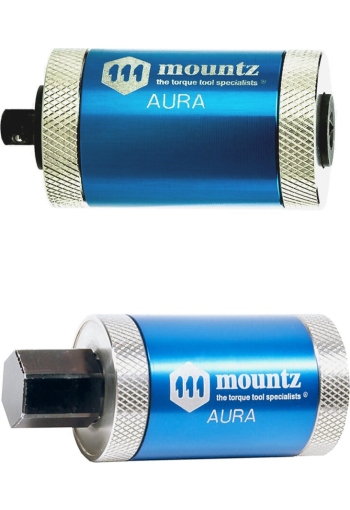

    Mountz AURA Auto Reversing Run Down
    Ideal for testing and recording the results of power tools with a torque analyzer or sensor
    Compact size and lightweight
    Includes two springs to cover the torque range 1 - 50 lbf.in

    The Mountz AURA Auto Reversing Run Down is adapters are designed to provide consistent and reliable torque readings for use with power driven torque control tools. The AURA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.


    line
    Features
    line

    • Ideal for testing and recording the results of power tools with a torque analyzer or sensor. Not recommended for pulse tools
    • Operates in clockwise direction only. Once the tool shuts off, the AURA automatically unwinds for the next run down
    • Eliminates the need to back it out
    • Designed to provide consistent and reliable torque readings for use with power driven torque control tools
    • Adapter is mounted in-line between tool drive and transducer
    • Compact size and lightweight
    • Includes two springs to cover the torque range 1 - 50 lbf.in


    line
    Ranges
    line

    Item NameAURA 50i 17mmAURA 50i
    Part Number063292063293
    American1 - 50 lbf.in1 - 50 lbf.in
    S.I.11.3 - 565 cN.m11.3 - 565 cN.m
    Metric1.2 - 57.6 kgf.cm1.2 - 57.6 kgf.cm
    Input Drive1/4 F/Sq1/4 F/Sq
    Output Drive17mm Hex1/4 M/Sq
