Mark-10 CAP-TSTM-DC Motorized Cap Torque Test System

See More Torque Testers

Mark-10 CAP-TSTM-DC Motorized Cap Torque Test System

See More Torque Testers
Price:
$11,120.00 - $11,175.00
    warrenty

    Product Description
    Mark-10 CAP-TSTM-DC Motorized Cap Torque Test System
    Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests

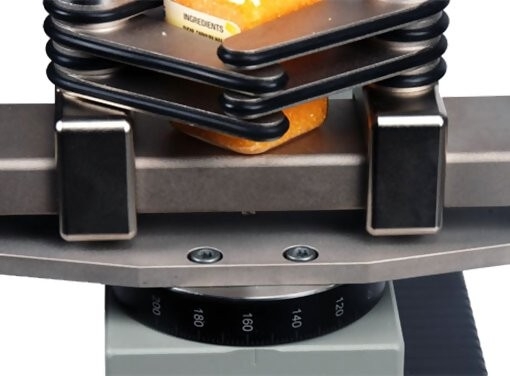

    Optional Digital Angle Indicator

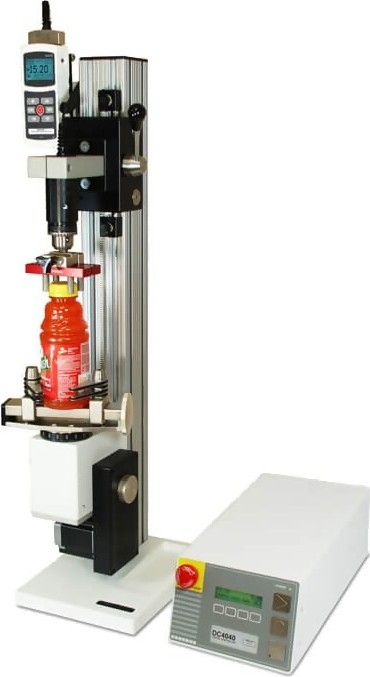

    The Mark-10 CAP-TSTM-DC Motorized Cap Torque Test System is designed to measure open and closure torque measurements on caps, lids, valves and more.

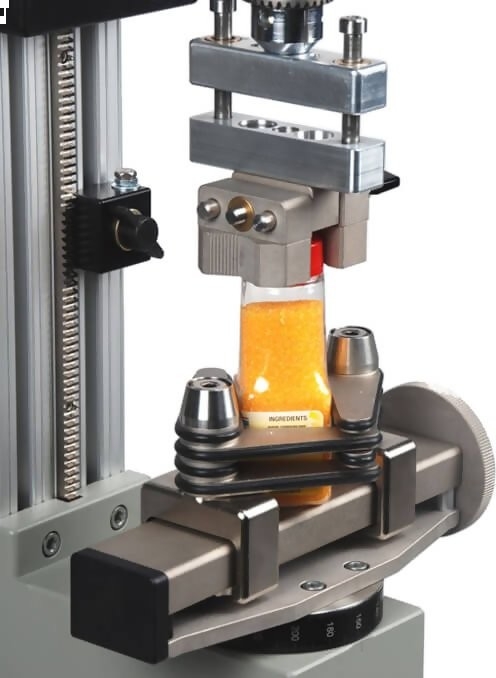

    Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests. Versatile modular design allows the stand to be configured with a variety of gripping fixtures while a lever-operated slider with travel stops makes engaging and disengaging samples quick and efficient.

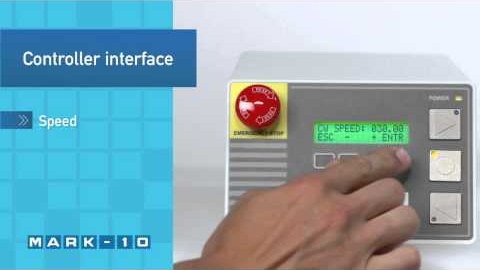

    The Mark-10 TSTM-DC offers expanded capabilities, including full PC control, programmable angle limits, programmable cycling, auto return, password protection, and other features.

    Complete system includes the Motorized Test Stand, Test Stand Controller, M5I Torque Indicator, R50 Torque Sensor, AC1029 Axial Compensator, G1058 Cap Grip and G1023 Container Grip

    • Container Size Limits
    • Cap Diameter: 0.2-3.5" (5.1-89.0 mm)
    • Container Diameter: 0-4.8" (0-122mm)
    • Container Height: 0-9" (0-225mm)

    *Optional Fixtures and Column Extension are available to accommodate larger containers, inquire.


    line
    Kit Contents
    line

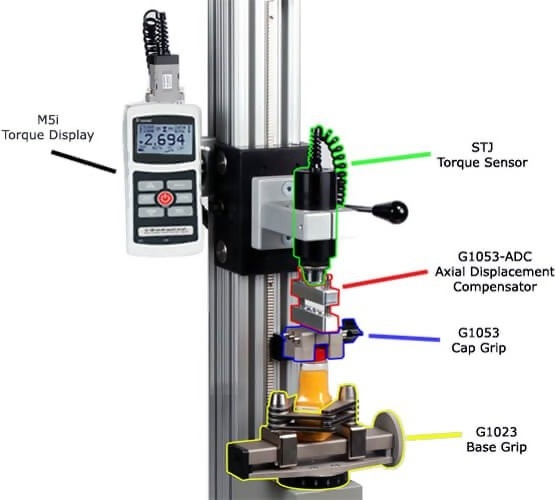

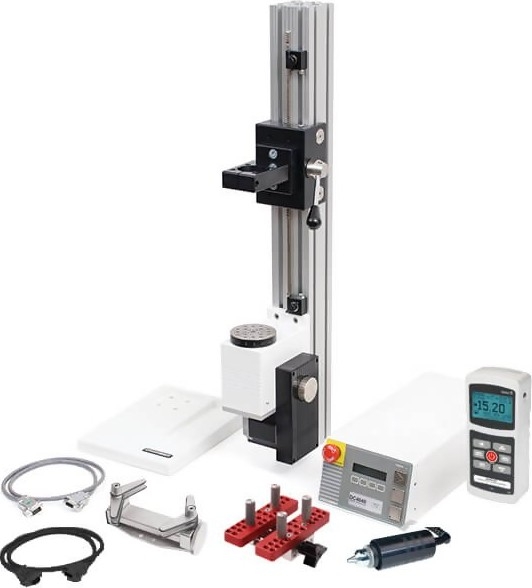

    The Mark-10 CAP-TSTM-DC Motorized Cap Torque Test System is sold as a complete test system that includes the following items:

    • TSTM-DC - Motorized Torque Test Stand with Digital Controller
    • Series-5i - Torque Display
    • R50 - Torque Sensor

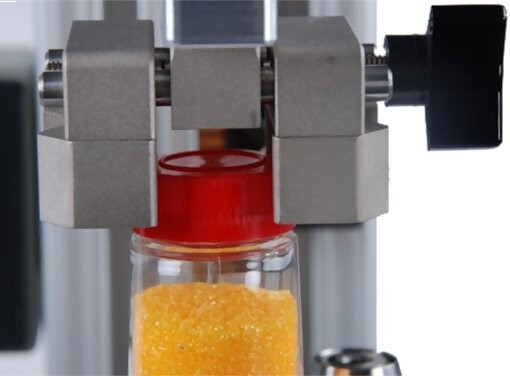

    • G1058 - Cap Grip

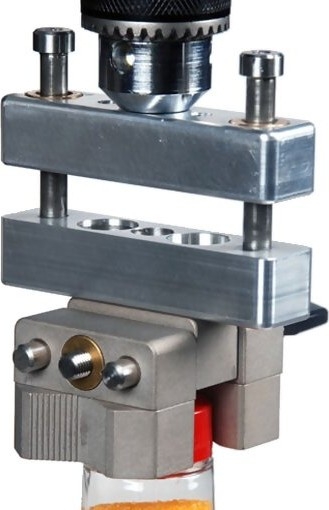

    • AC1029 - Axial Displacement Compensator

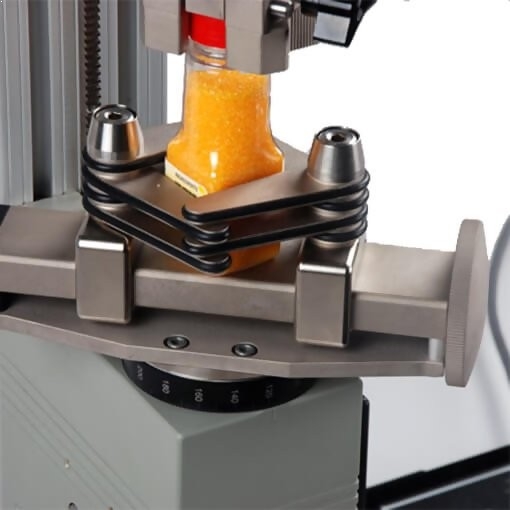

    • G1023 - Base Grip
    • 09-1162 - Torque Display to Test Stand Communication Cable
    • 09-1163 - RS232 Serial Output Cable


    line
    Features
    line

    • Includes NIST-Traceable Calibration Certificate
    • Motorized clockwise and counterclockwise rotation allows for highly precise and repeatable tests
    • No speed variation with load
    • Digital Angle Indication
    • Programmable angle limits
    • Overload Protection
    • Auto-return
    • Independent CW and CCW Speeds


    line
    Specifications
    line

    Speed Range0.01 - 15 RPM [0.05 - 90°/s]
    Speed Accuracy±0.2% of setting, ±0% variation with load

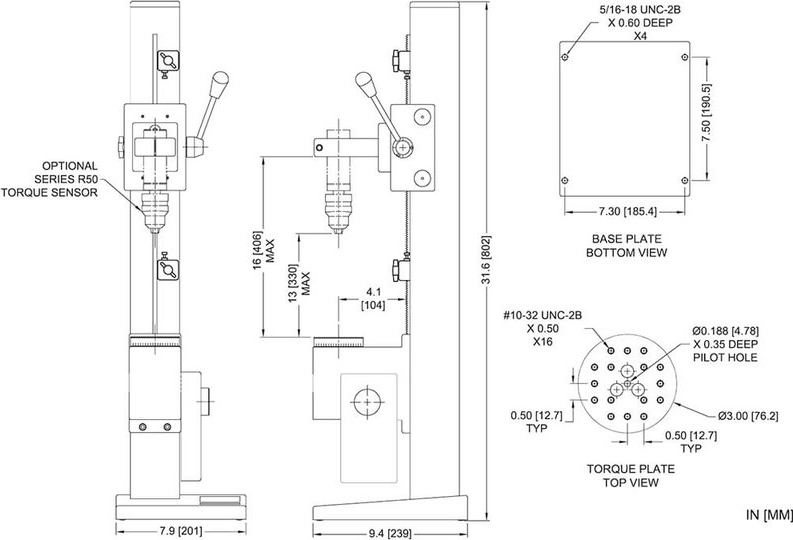

    Throat4.10" (104 mm)
    Maximum Cap Diameter3.5" / 89mm
    Manual Adjustment12º/knob rev
    Maximum Silder Travel15.5" (394 mm)
    Slider Travel Rate1.047" (26.6 mm) / level rev
    Complete SystemComplete system includes the Motorized Test Stand, Test Stand Controller, M5I Torque Indicator, R50 Torque Sensor, AC1029 Axial Compensator, G1058 Cap Grip and G1023 Container Grip


    line
    Force Ranges
    line

    ModelCapacityResolution
    CAP-TSTM-DC-50z50 ozin
    36 kgFmm
    35 Ncm
    0.02 ozin
    0.02 kgFmm
    0.02 Ncm
    CAP-TSTM-DC-12i12 lbin
    140 kgFmm
    135 Ncm
    0.005 lbin
    0.1 kgFmm
    0.1 Ncm
    CAP-TSTM-DC-50i50 lbin
    580 kgFmm
    570 Ncm
    0.02 lbin
    0.5kgFmm
    0.5 Ncm
    CAP-TSTM-DC-100i100 lbin
    1150 kgFmm
    1150 Ncm
    0.05 lbin
    05 kgFmm
    0.5 Ncm
