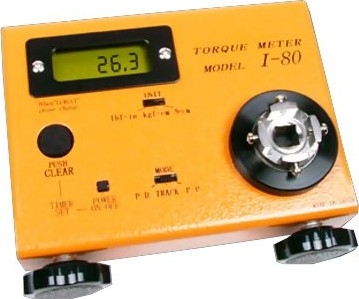

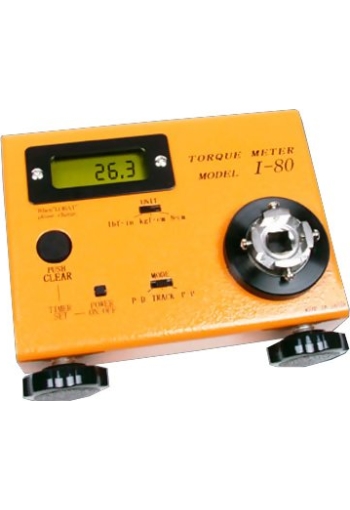

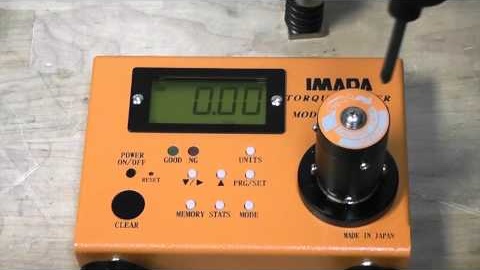

Imada Cedar Series I Torque Calibrators for Non-Impact Power Drivers & Manual Wrenches
3 ranges up to 130 lb-in
Units of measure: lb-in, oz-in, kg-cm, N-cm and N-m (selectable)
USB Data Output

The Imada Cedar Series I Torque Calibrators for Non-Impact Power Drivers & Manual Wrenches measure the peak torque of non-impact electric/air drivers. Under tightened bolts and screws do not generate sufficient clamp force and can lead to loosening and assembly failure. Over tightening, past the yield point, permanently deforms the screw joint and can also lead to failure which is why proper tightening torque is so important. Manual torque wrenches can also be calibrated.

Unique Smart Adapters
The unique Smart Adapters simulate the screw joint and do not need to be backed-off after each test. This features increases testing efficiency and ease of use by reducing the time between each test. Results can be downloaded through the USB port for analysis with data acquisition software. The Series i torque calibrators are compatible with SW-1SV-USB software.

The peak torque or peak down torque in breakaway tests is captured automatically. The Series i torque calibrator displays Max, Min and Avg statistics. The tester can read values in lbf-in, kgf-cm, N-cm and N-m.

What’s Included
All series i torque testers are sold in kit form complete with tester, hard carrying case, 2 driver adapters and AC charger/adapter. All testers come with a 3-Point Certificate traceable to NIST. ISO Certificates are available at an additional charge.

Do not use with impact or air tools (Ask for DI-1M impact wrench torque tester).
