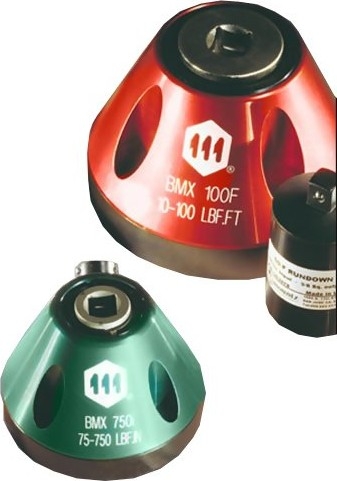

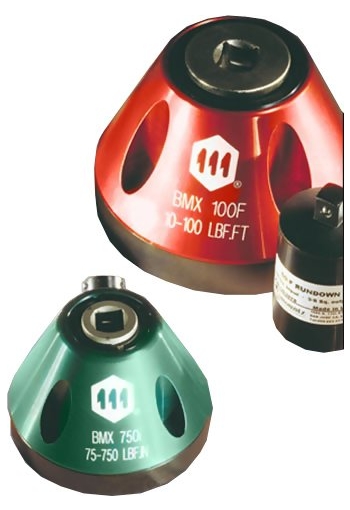

Mountz BMX Torque Reaction Transducer

See More Torque Sensors

Mountz BMX Torque Reaction Transducer

See More Torque Sensors
Price:
$1,925.00 - $8,553.00
    warrenty

    Product Description
    Torque Transducer
    Various models that range from 2 ozf.in to 20000 lbs-ft.
    For calibrating hand screwdrivers, wrenches, and power tools.

    The BMX torque transducer is designed to meet the requirement of testing multiple torque ranges for various torque tools used in production, maintenance and calibration labs, the versatile torque sensor is used in conjunction with a digital torque display. The torque sensor is a bench mounted calibration instrument designed for torque wrench calibration, torque screwdriver calibration, and electric & pneumatic screwdriver calibration. Controlling torque is essential for companies to ensure their product's quality, safety and reliability isn't compromised.


    line
    Features
    line

    • Supplied with ISO 17025 Certification of Calibration
    • Accuracy ± .25% of full scale (± 0.5% for 10,000F & 20,000F models)
    • Female square drive.
    • Bi-directional measurement
    • Mounting brackets available, optional

    line
    Specifications
    line

    BMX Transducer Specifications
    Rated Output 2mv/v Nominal
    Safe Overload 125% of Rated Output
    Bridge Resistance 350 Ohms Nominal
    Nonlinearity ± .1% of Rated Output


    line
    Torque Ranges
    line

    Model American S.I. Metric Drive Size
    BMX20z 2 - 20 ozf.in 1.5 - 14 cN.m 0.1 - 1.4 kgf.cm 1/4" F/Sq
    BMX40z 4 - 40 ozf.in 2.9 - 28.2 cN.m 0.3 - 2.9 kgf.cm 1/4" F/Sq
    BMX80z 8 - 80 ozf.in 5.7 - 56.5 cN.m 0.6 - 5.8 kgf.cm 1/4" F/Sq
    BMX10i 1 - 10 lbf.in 11.3 - 113 cN.m 1.2 - 11.5 kgf.cm 1/4" F/Sq
    BMX25i 2.5 - 25 lbf.in 28.25 - 282.5 cN.m 2.9 - 28.8 kgf.cm 1/4" F/Sq
    BMX50i 5 - 50 lbf.in 56.5 - 565 cN.m 5.5 - 57.6 kgf.cm 1/4" F/Sq
    BMX100i 10 - 100 lbf.in 113 - 1130 cN.m 11.5 - 115 kgf.cm 1/4" F/Sq
    BMX250i 25 - 250 lbf.in 282.5 - 2825 cN.m 28.8 - 288 kgf.cm 1/4" F/Sq
    BMX500i 50 - 500 lbf.in 565 - 5650 cN.m 57.6 - 575 kgf.cm 3/8" F/Sq
    BMX750i 75 - 750 lbf.in 847 - 8473 cN.m 86.3 - 863.5 kgf.cm 3/8" F/Sq
    BMX50F 5 - 50 lbf.ft 6.8 - 67.8 N.m 0.7 - 6.9 kgf.m 3/8" F/Sq
    BMX100F 10 - 100 lbf.ft 13.56 - 135.6 N.m 1.4 - 13.8 kgf.m 1/2" F/Sq
    BMX250F 25 - 250 lbf.ft 33.9 - 339 N.m 3.5 - 34.5 kgf.m 1/2" F/Sq
    BMX500F 50 - 500 lbf.ft 67.8 - 678 N.m 6.9 - 69 kgf.m 3/4" F/Sq
    BMX1000F 100 - 1000 lbf.ft 135.6 - 1355 N.m 13.8 - 138 kgf.m 1" F/Sq
    BMX2500F
    250 - 2500 lbf.ft 339 - 3389 N.m 34.5 - 345 kgf.m 1 1/2" F/Sq
    BMX5000F 500 - 5000 lbf.ft 678 - 6779 N.m 69 - 690 kgf.m 1 1/2" F/Sq

    The available engineering units of measurement on the BMX Torque Transducers are oz-in, lb-ft, cN-m and N-m.


    line
    Related Products
    line

    PTT
    Torque Analyzer

    • Operates with Torque & Force sensors
    • Real time graph of torque vs. time using associated PC Windows software
    related


    line
    Downloads
    line

    Mountz BMX Torque Reaction Transducer - Dimensions MB-1
    Mountz BMX Torque Reaction Transducer - Dimensions MB-3
