Name: Mountz Spring RDA - Run Down Adapters
Brand: Mountz
SKU: 1968

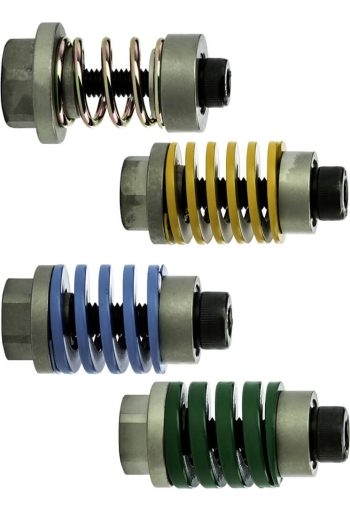

Mountz Spring RDA - Run Down Adapters

See More Torque Screwdrivers

Designed to provide consistent and reliable torque readings for use with power driven torque control tools

Compact size and lightweight

The Mountz Spring RDA - Run Down Adapters is designed only for EZ-TorQ analyzer. These units provide consistent and reliable torque readings for use with power driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability. The run down adapter is mounted in-line between the tool drive and transducer.

line
Features
line

Designed to provide consistent and reliable torque readings for use with power driven torque control tools
Adapter is mounted in-line between tool drive and transducer
Compact size and lightweight
Operates in clockwise direction only. After each run down, the RDA should be completely backed-up
Compatible with only the EZ-TorQ II Analyzer

line
Order Guide
line

Item Name	Spring RDA-10i	Spring RDA-50i	Spring RDA-100i	Spring RDA-150i
Part Number	070600	070605	070610	070615
American	1 - 10 lbf.in	5 - 50 lbf.in	10 - 100 lbf.in	15 - 150 lbf.in
S.I.	11.3 - 113 cN.m	56.5 - 565 cN.m	113 - 1130 cN.m	169.5 - 1695 cN.m
Metric	1.2 - 11.5 kgf.cm	5.8 - 57.6 kgf.cm	11.5 - 115 kgf.cm	17.3 - 173 kgf.cm
Input Drive	5mm Hex	6mm Hex	6mm Hex	6mm Hex
Output Drive	17mm Hex	17mm Hex	17mm Hex	17mm Hex

line
Downloads
line

Mountz Spring RDA - Run Down Adapters - Data Sheet

Mountz Spring RDA - Run Down Adapters - Instruction Manual

ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE

Models

Price

Mountz 070600 Spring RDA-10i, Run Down Adapter, 1 - 10 lbf.in, 11.3 - 113 cN.m, 1.2 - 11.5 kgf.cm, 5mm Hex - 17mm Hex View Model Details

$198.00

Mountz 070605 Spring RDA-50i, Run Down Adapter, 5 - 50 lbf.in, 56.5 - 565 cN.m, 5.8 - 57.6 kgf.cm, 6mm Hex - 17mm Hex View Model Details

$198.00

Mountz 070610 Spring RDA-100i, Run Down Adapter, 10 - 100 lbf.in, 113 - 1130 cN.m, 11.5 - 115 kgf.cm, 6mm Hex - 17mm Hex View Model Details

$198.00

Mountz 070615 Spring RDA-150i, Run Down Adapter, 15 - 150 lbf.in, 169.5 - 1695 cN.m, 17.3 - 173 kgf.cm, 6mm Hex - 17mm Hex View Model Details

$198.00
