The Mountz SDX Torque Screwdriver Transducer has been discontinued
Accuracy +/- 0.25% of full scale.
2 Models for up to 50 lbf-in / 565 cN-m Capacity
Accuracy +/- 0.25% of full scale.

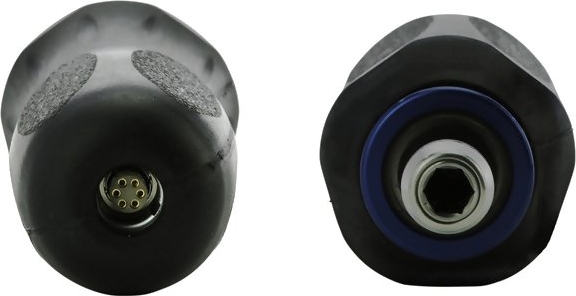

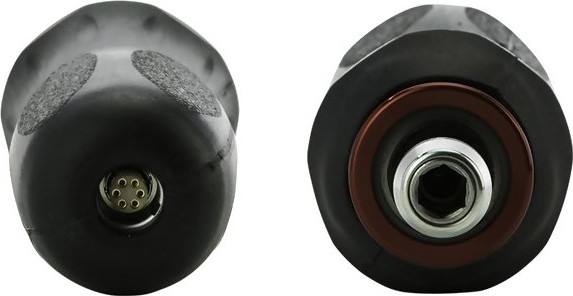

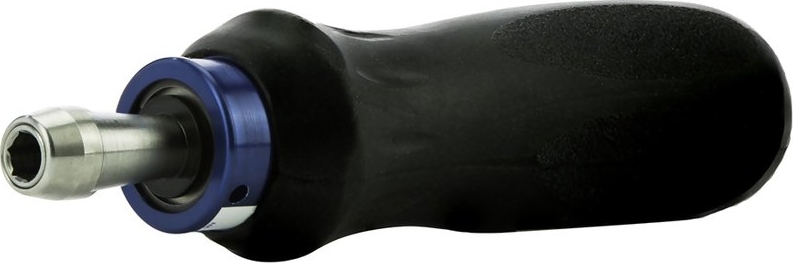

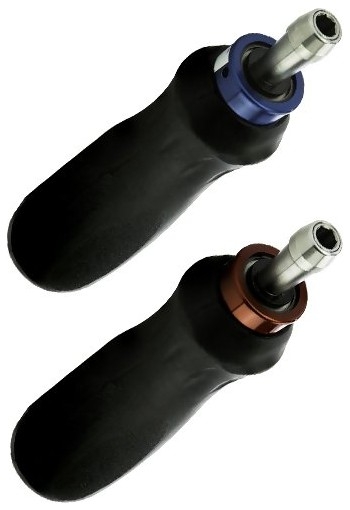

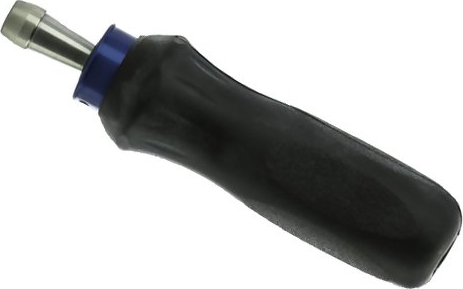

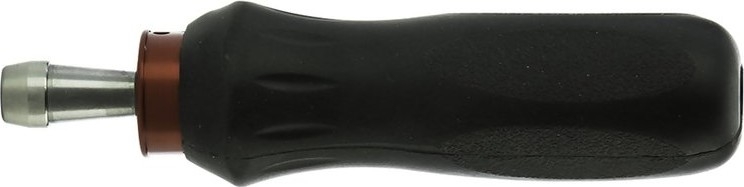

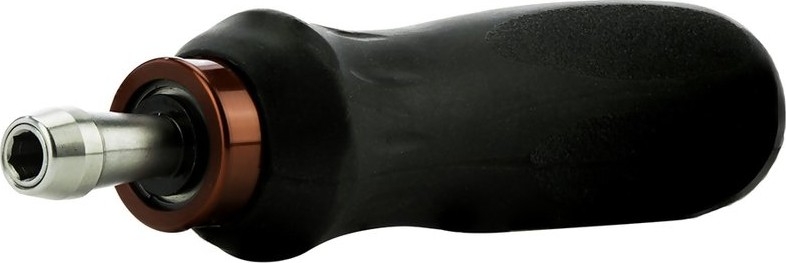

The Mountz SDX Torque Screwdriver Transducer is used for auditing or tightening fasteners to a specified torque when mated with a torque analyzer.
Features
- Ergonomic rubber grip and stainless steel Female/Hex bit holder.
- Features instant auto-recognition of the SDX when connected to the LTT or PTT.
- Connect to a torque analyzer to monitor, test or audit a fastener.
- Safe Overload: 125% of Rated Output.
Force Ranges
| Model | Range | Drive Size |
| SDX10i | 1 - 10 lbf-in | 1/4" F/Hex |
| SDX50i | 5 - 50 lbf-in | 1/4" F/Hex |
Units available on the SDX Torque Screwdriver Transducer: oz-in, lbf-in, lbf-ft, cN-m and N-m
