Mountz FG Preset Torque Screwdriver

See More Torque Screwdrivers

Mountz FG Preset Torque Screwdriver

See More Torque Screwdrivers
Price:
$308.00 - $400.00
    warrenty

    Product Description

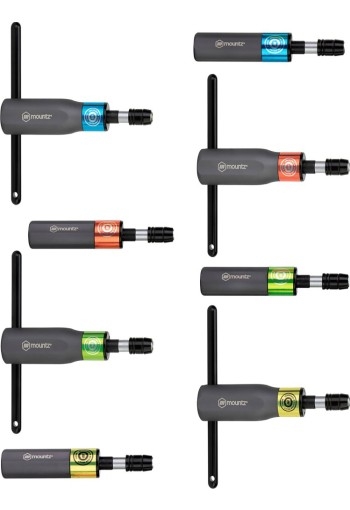

    Mountz FG Preset Torque Screwdriver
    Preset precision hand torque screwdrivers from .8 lbf.in – 125 lbf.in (9 cN.m – 14.1 N.m)
    Sleek and ergonomic design provides unmatched comfort
    Industry leading warranty: 2 years unconditional. Lifetime against defects

    The Mountz FG Preset Torque Screwdriver is engineered to give the operator the correct torque time after time.

    Designed for fastening applications where errors simply aren't acceptable, the FG preset torque screwdrivers applies the right amount of torque every time. Preset hand torque screwdrivers are ideal for fastening applications where operators repeatedly assemble parts at the same torque setting. Built with a cam-over design, the accurate screwdriver prevents a fastener or bolt from being under and over tightened. As a quality control tool, the screwdriver allows any user to deliver the correct torque with confidence regardless of task and operator skill level. Using a quality torque screwdriver ensures that proper torque is being applied and maintains requirements associated with ISO quality standards.

    The torque screwdriver is pre-set to the required torque value of the application. A preset torque screwdriver does not feature an external adjustment scale. These tools have an internal adjustment mechanism for setting the torque value and must be preset internally using a hex key and a torque tester. However, if the torque specification changes or a new project requires a different torque setting, the preset torque screwdriver is still flexible enough that a new torque setting can be set internally using a torque analyzer.

    The preferred and certified ranges of these tools is in accordance with the requirements of ISO 6789 (+/- 6% of indicated setting).


    line
    Features
    line

    • Preset precision hand torque screwdrivers from .8 lbf.in – 125 lbf.in (9 cN.m – 14.1 N.m)
    • Smooth cam-over poka-yoke function prevents over-torque and delivers the highest level of performance available
    • Sleek and ergonomic design provides unmatched comfort
    • Calibration cycles 4X longer than the most stringent industry standard (ISO 6789)
    • Industry leading warranty: 2 years unconditional. Lifetime against defects


    line
    Order Guide
    line

    Model Item Name / Number Label Color American S.I. Drive Size
    FG-8i 076546 Blue 0.8 - 8 lbf.in 9 - 90 cN.m 1/4" F/Hex
    FG-8i 076551 Red 0.8 - 8 lbf.in 9 - 90 cN.m 1/4" F/Hex
    FG-8i 076556 Green 0.8 - 8 lbf.in 9 - 90 cN.m 1/4" F/Hex
    FG-8i 076561 Gold 0.8 - 8 lbf.in 9 - 90 cN.m 1/4" F/Hex
    FG-20i 076547 Blue 2 - 20 lbf.in 22 - 226 cN.m 1/4" F/Hex
    FG-20i 076552 Red 2 - 20 lbf.in 22 - 226 cN.m 1/4" F/Hex
    FG-20i 076557 Green 2 - 20 lbf.in 22 - 226 cN.m 1/4" F/Hex
    FG-20i 076562 Gold 2 - 20 lbf.in 22 - 226 cN.m 1/4" F/Hex
    FG-40i 076548 Blue 4 - 40 lbf.in 0.4 - 4.5 N.m 1/4" F/Hex
    FG-40i 076553 Red 4 - 40 lbf.in 0.4 - 4.5 N.m 1/4" F/Hex
    FG-40i 076558 Green 4 - 40 lbf.in 0.4 - 4.5 N.m 1/4" F/Hex
    FG-40i 076563 Gold 4 - 40 lbf.in 0.4 - 4.5 N.m 1/4" F/Hex
    FG-125i 076549 Blue 25 - 125 lbf.in 2.8 - 14.1 N.m 1/4" F/Hex
    FG-125i 076554 Red 25 - 125 lbf.in 2.8 - 14.1 N.m 1/4" F/Hex
    FG-125i 076559 Green 25 - 125 lbf.in 2.8 - 14.1 N.m 1/4" F/Hex
    FG-125i 076564 Gold 25 - 125 lbf.in 2.8 - 14.1 N.m 1/4" F/Hex

    ADD TO CART THE ITEMS YOU WOULD LIKE TO PURCHASE
    Models Price
    $308.00
    $308.00
    $308.00
    $308.00
    $308.00
    $308.00
    $308.00
    $308.00
    $322.00
    $322.00
    $322.00
    $322.00
    $400.00
    $400.00
    $400.00
    $400.00
    Recommended Accessories PRICE
    $55.00
