    Imada HTGS Digital Torque Gauge
    4 Ranges up to 85.00 lbf-in
    1,000 data memory for recall or download

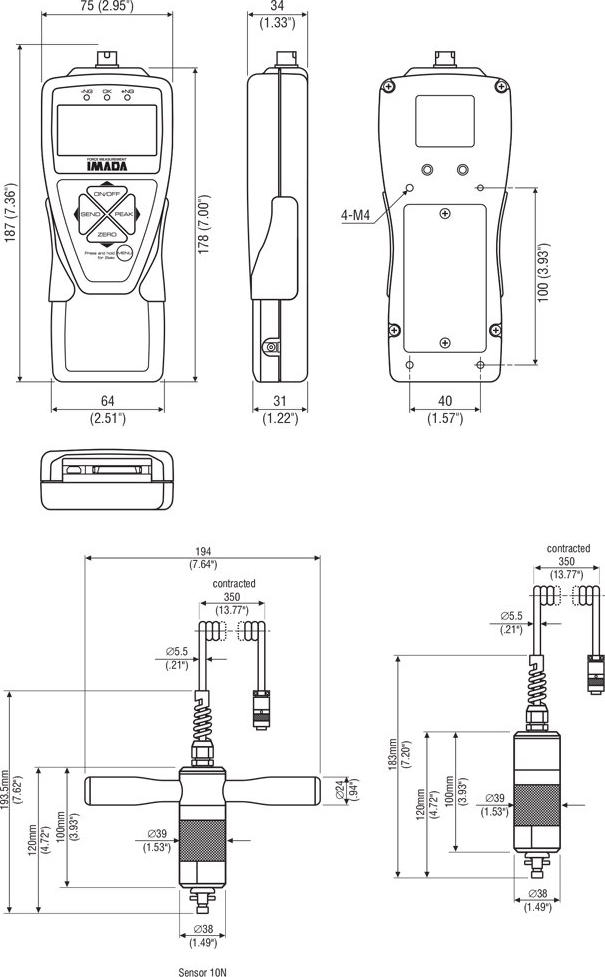

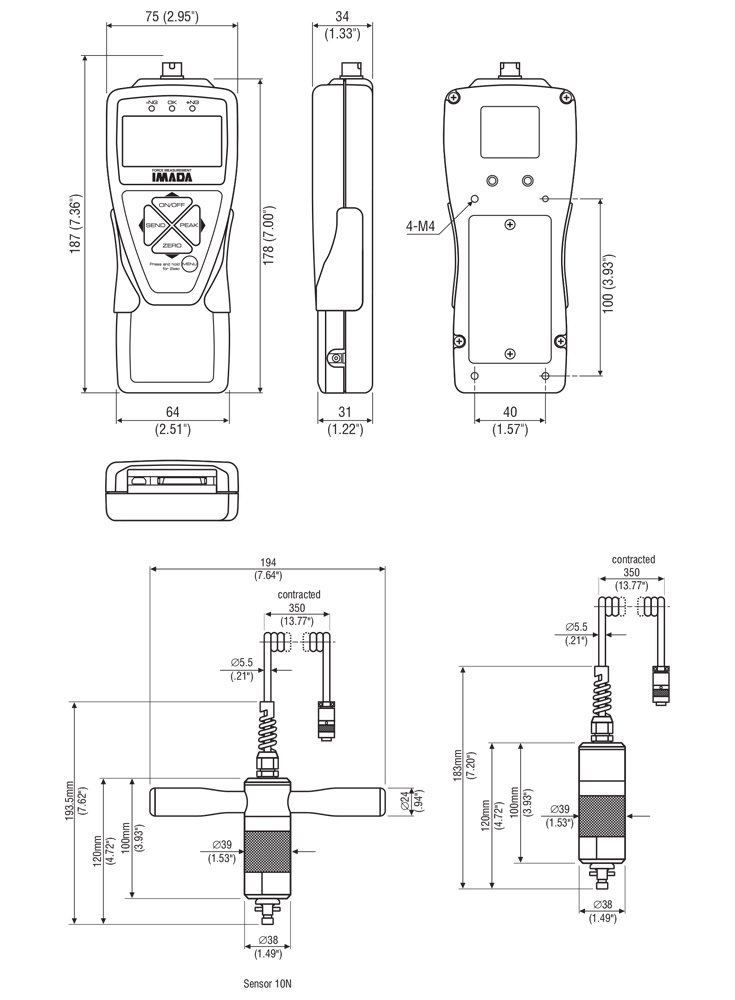

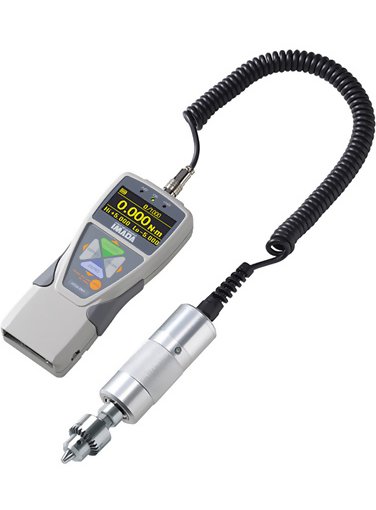

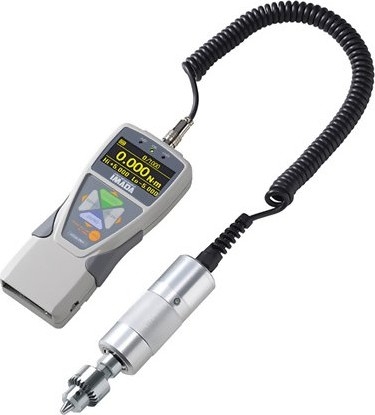

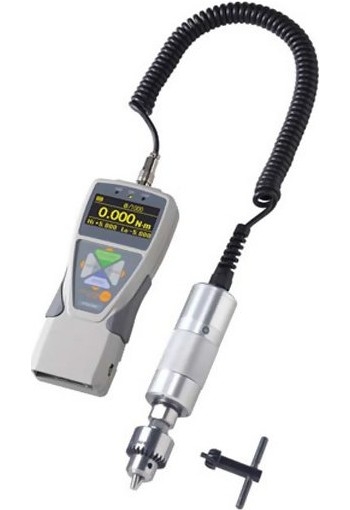

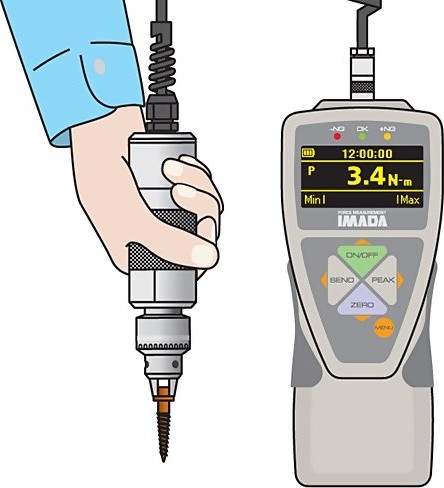

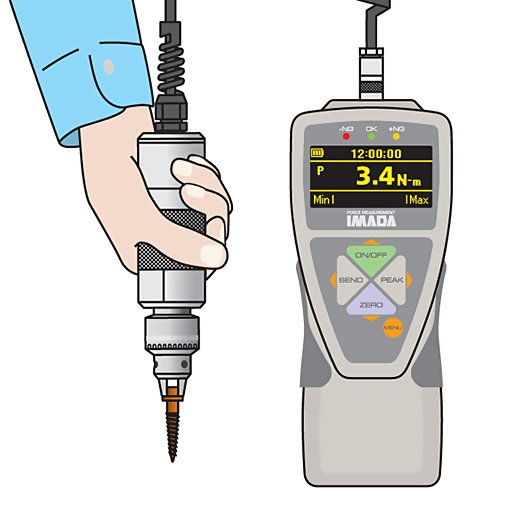

    The Imada HTGS Digital Torque Gauge features a remote torque sensor with a Jacobs chuck. The chuck is designed to grip a test sample, a screwdriver bit or a wide range of other fixtures. The Imada HTGS measures torque in both clockwise and counter-clockwise directions. The display shows measurements in lbf-in, ozf-in, kgf-cm, or N-cm.

    The Imada HTGS torque tester features easy to use menus to make programming simple. Select units, reverse the display, set high/low setpoints, and set all other functions using plain language menus. The bright electro luminescent display shows torque value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, angle value (optional HTGA model), etc. The HTGS also has a set of 3 indicator lights. The orange, green and red indicator lights can be used in conjunction with the programmable high/low setpoints for pass/fail testing. Color-coded LED indicators alert the user to Go/NoGo conditions. Process and transmit 2,000 actual data per second, not just the peak from a high sampling rate.

    The all new HTGS gauge includes the USB device driver and ZT Logger data acquisition software for windows. ZT Logger can download data from the gauge memory or capture a continuous stream of data at 10 data/second. Zero the gauge or capture data while at the computer. All gauge programming can be set and saved from the software.

    Optional Force Recorder Data Acquisition Software is designed to capture up to 2,000 data per second. No other gauges come close to this speed! Other functions include, gauge programming, graph overlay feature, automatic statistics generation


    line

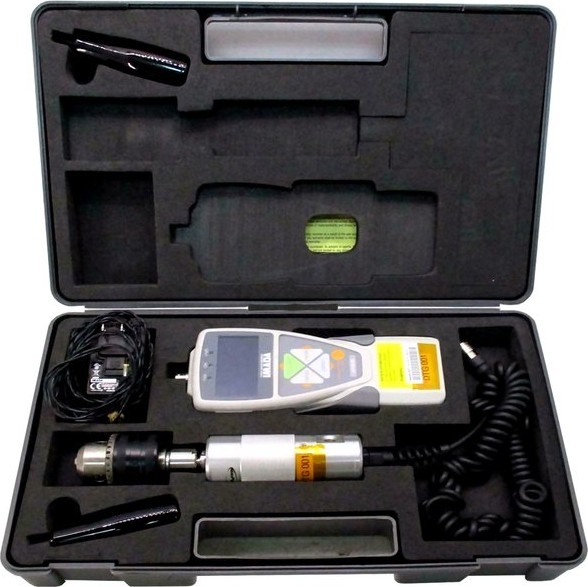

    Kit Contents
    line

    • Imada HTGS Digital Torque Gauge
    • Display
    • Sensing chuck
    • ZT Logger data acquisition software
    • USB cable
    • Allen wrench
    • AC adapter/charger
    • "85" ranges also include handle
    • Calibration cert traceable to NIST
    • Carrying case not included


    line
    Features
    line

    • Programmable high/low setpoints with color-coded LED indicators and output signal for quick Go/No Go testing
    • USB (virtual COM port), RS-232C, Digimatic and Analog outputs
    • lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm units are selectable
    • 1,000 data memory for recall or download
    • Internal Ni-MH batteries or AC adapter
    • Overload alarm and output signal
    • Ergonomic design, non-slip grips, heavy duty metal construction
    • Sample and transmit 2,000 data/sec using optional Force Recorder software
    • Overload capacity 200% of F.S.
    • Real time and peak mode (selectable)


    line
    Specifications
    line

    Accuracy ±0.5% ±1 LSD
    Selectable Units lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm
    Overload Capacity 200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
    Power Rechargeable Ni-MH battery pack or AC adapter
    Battery Indicator Indicates three charge states high, med and low
    Memory Non-volative, recall up to 1,000 data
    Setpoints Programmable high/low setpoints w/ color-coded LEDs & output signal
    Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
    Operating Temperature 32° to 100°F (0° to 40°C)


    line
    Force Ranges
    line

    Model Capacity Resolution Chuck Size
    HTGS-4 70.00 ozf-in
    5.000 kgf-cm
    50.00 N-cm
    0.01 ozf-in
    0.001 kgf-cm
    0.01 N-cm
    4mm
    HTGS-15 15.00 lbf-in
    20.00 kgf-cm
    200.0 N-cm
    0.01 lbf-in
    0.01 kgf-cm
    0.1 N-cm
    6.5 mm
    HTGS-15L 15.00 lbf-in
    20.00 kgf-cm
    200.0 N-cm
    0.01 lbf-in
    0.01 kgf-cm
    0.1 N-cm
    13 mm
    HTGS-40 40.00 lbf-in
    50.00 kgf-cm
    500.0 N-cm
    0.01 lbf-in
    0.01 kgf-cm
    0.1 N-cm
    6.5 mm
    HTGS-40L 40.00 lbf-in
    50.00 kgf-cm
    500.0 N-cm
    0.01 lbf-in
    0.01 kgf-cm
    0.1 N-cm
    13 mm
    HTGS-85 85.0 lbf-in
    100.0 kgf-cm
    1000 N-cm
    0.1 lbf-in
    0.1 kgf-cm
    1 N-cm
    6.5 mm
    HTGS-85L 85.0 lbf-in
    100.0 kgf-cm
    1000 N-cm
    0.1 lbf-in
    0.1 kgf-cm
    1 N-cm
    13 mm


    line
    Chuck Sizes & Min / Max Sample Diameters
    line

    Model Standard Optional (*L)
    HTGS-4 6.5mm / 0.260" NA
    HTGS-15 6.5mm / 0.260" 13mm / 0.512"
    HTGS-40 6.5mm / 0.260" 13mm / 0.512"
    HTGS-85 6.5mm / 0.260" 13mm / 0.512"

    *For 13mm Chuck add "-L" to part # ie: HTG2-15L

    Chuck Size Min Sample Max Sample
    6.5mm / 0.260" 0.5mm / 0.020" 6.5mm / 0.260"
    13mm / 0.512" 0.7mm / 0.028" 13mm / 0.512"


    line
    Downloads
    line

    Imada HTG-Series Digital Torque Gauge - Data Sheet
