Checkline Digital Torque Screwdriver with Memory & USB Data Output

---

7 Ranges up to 10 Nm / 88 lb-in

---

Bluetooth Output Optional

---

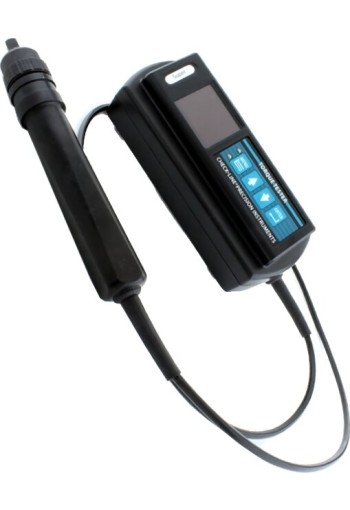

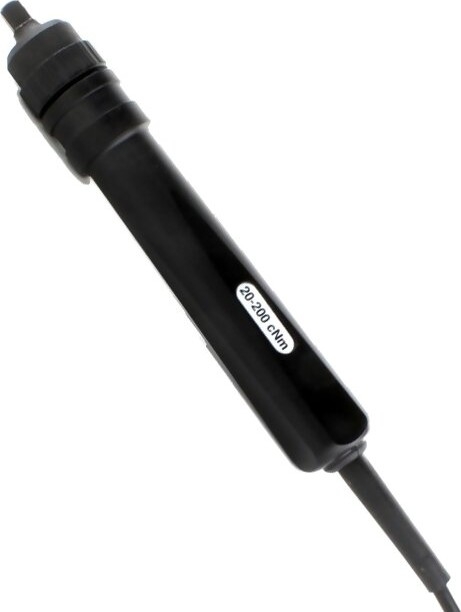

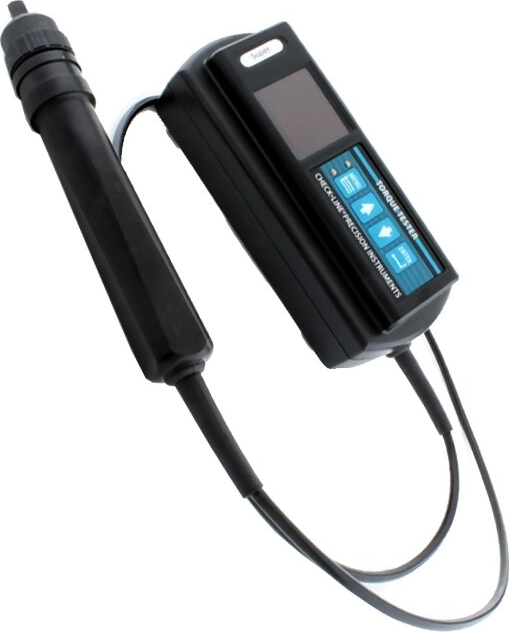

The Checkline DTSM - Digital Torque Measuring Screwdriver is a torque measuring manual screwdriver designed for lab and production use.

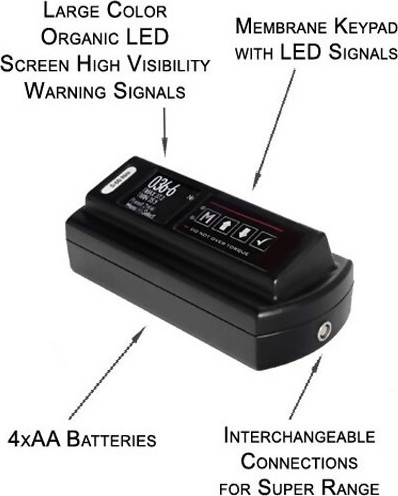

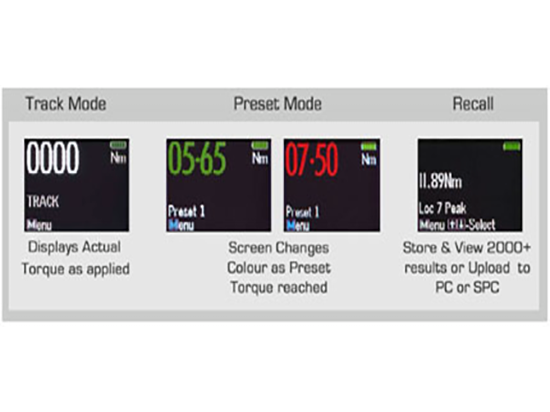

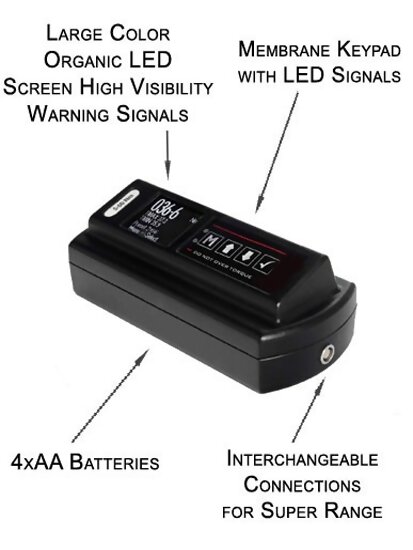

The Large Color OLED displays bi-directional torque in real-time or peak modes. The driver has an accuracy of ±1% of the indicated measurement from 10%-100% of range and offers programmable setpoints that provide both an audible beep and green/red LED signals for uniform tightening or GO/NO GO testing.

Use the > 2000+ internal memory for data recall and out via USB or Bluetooth (optional).

The MS / DTSM substantially reduces scrap and rework costs by eliminating over and under-tightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.

Features

---

• Traceable Calibration Certificate included
• 99 Programmable Preset Torque Targets
• Over 180 hours of battery life
• Accuracy of measurement better than 1%
• 1 year warranty
• Bluetooth output optionally available
• Data Transfer Software Included
• Serial/RS232 output option available on request
• A Torque lever is included with MST model torque screwdrivers

Specifications

---

Ranges

---
