Mark-10 ESM303H Advanced Motorized Horizontal Test Stand

Mark-10 ESM303H Advanced Motorized Horizontal Test Stand, 300 lb Capacity

See More Test Stands, Motorized

This product has been replaced by the Mark-10 EasyMESUR

Force Gauge sold Separately

Selectable speed setting

Right and left travel limit switches

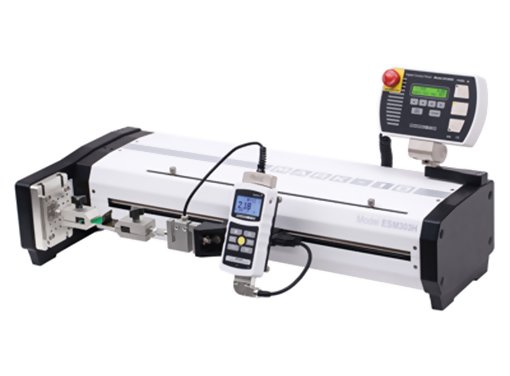

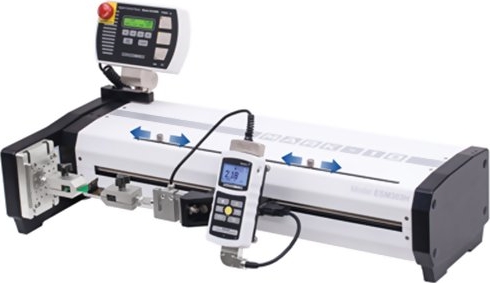

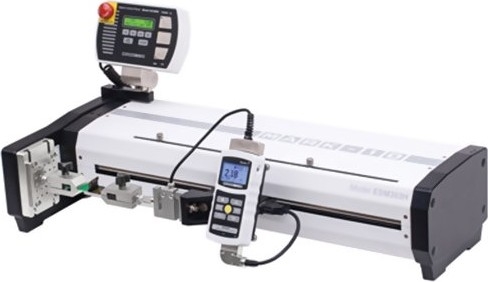

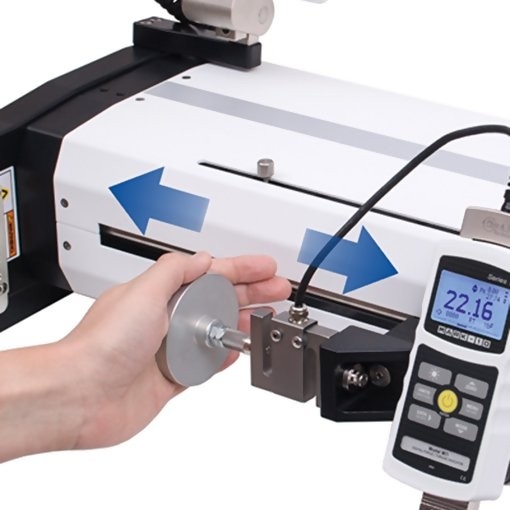

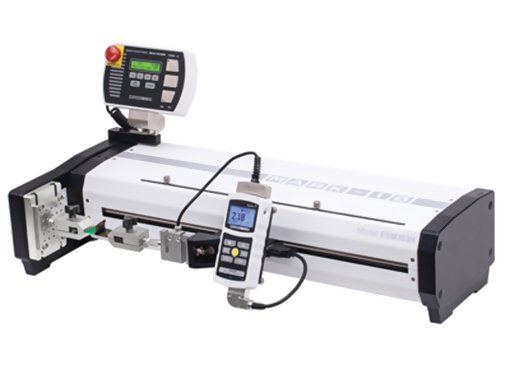

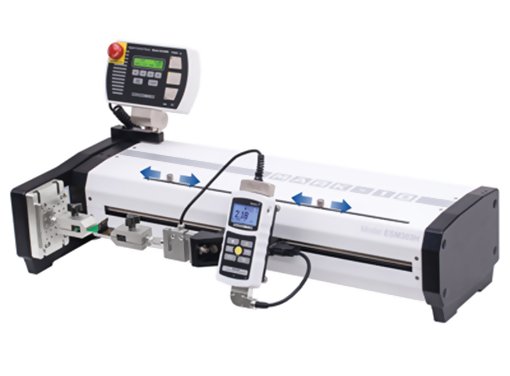

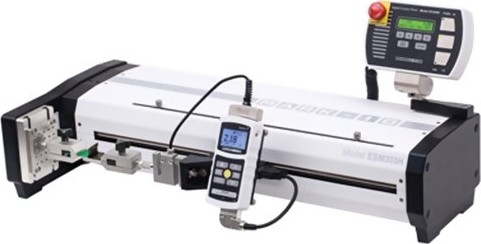

The Mark-10 ESM303H Advanced Motorized Horizontal Test Stand is a highly configurable horizontal force tester for tension and compression measurement applications up to 300 lbF [1.5 kN], with a rugged design suitable for laboratory and production environments. Sample setup and fine positioning are a breeze with available FollowMe™ force-based positioning - using your hand as your guide, push and pull on the load cell to move the crosshead at a variable rate of speed.

With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, loadholding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password. Save up to 50 profiles to accommodate a range of test methods.

When the Mark-10 ESM303H’s clearance is insufficient for the application, its modular mechanical design allows for frame extensions. Modularity extends to the controller functions as well. Individual functions, such as travel measurement, cycling, loadholding, etc., may be purchased either upfront or enabled in the field through an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget.

Collect force and travel data, plot and analyze the results, and control test stand motion via PC-based MESUR™gauge Plus software. Or, fully control the stand by a PC through a custom-written program in any language supporting ASCII communications.

line

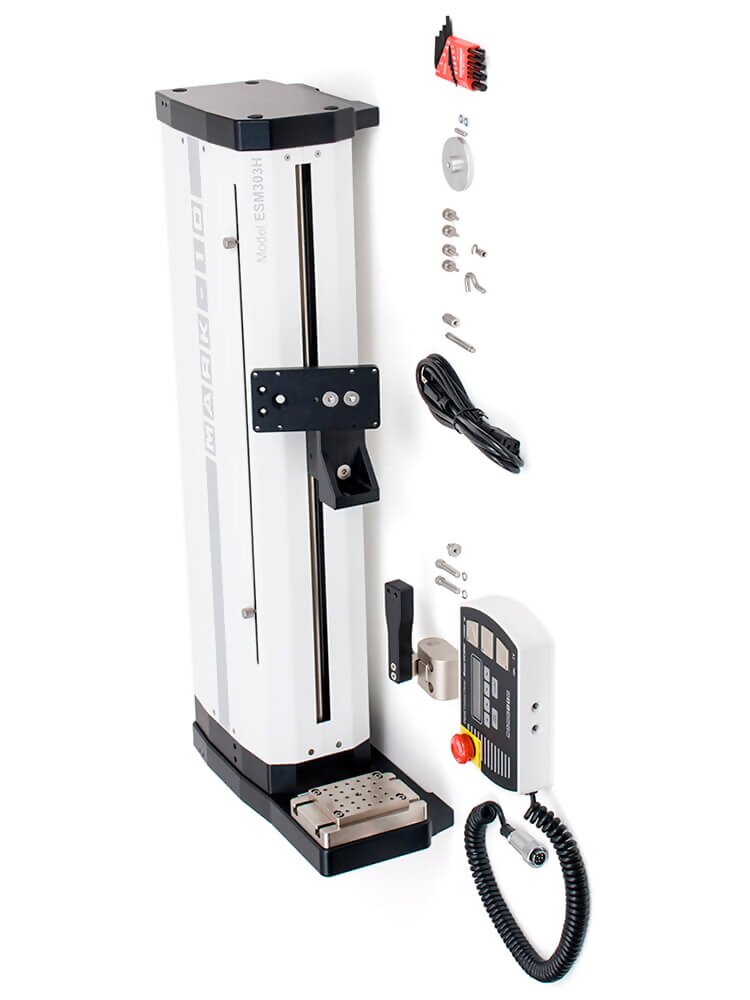

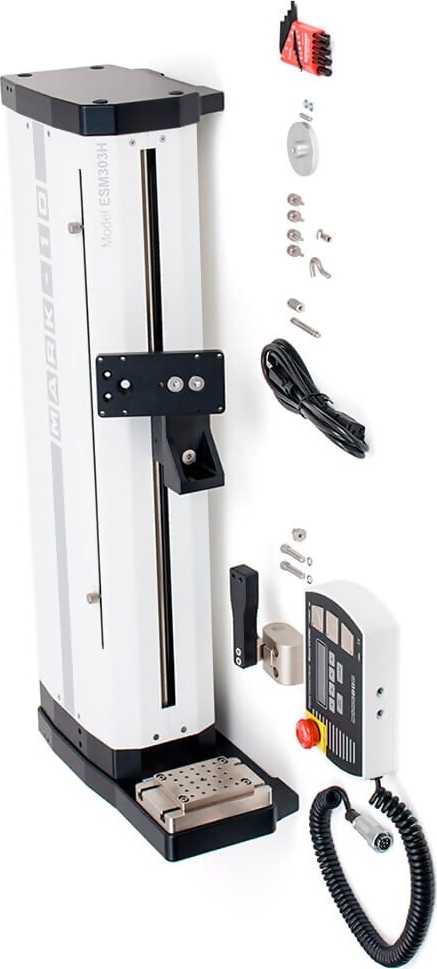

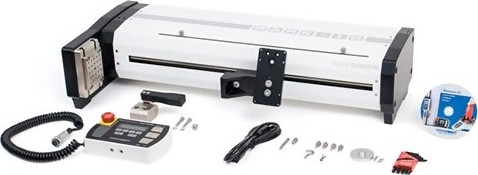

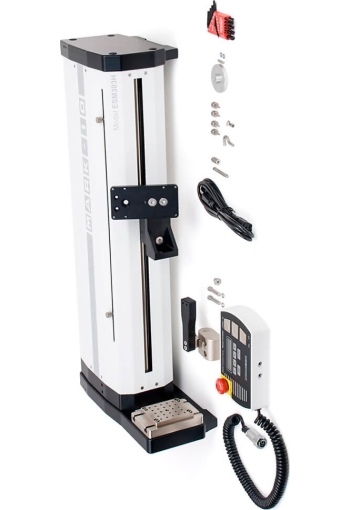

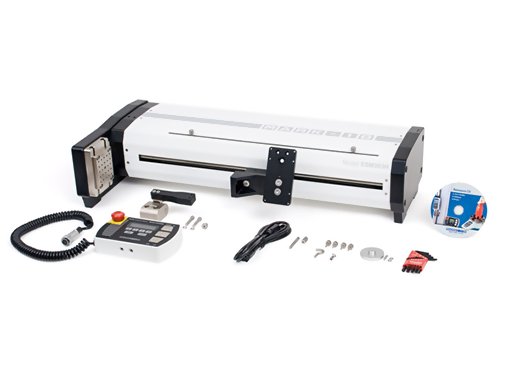

Kit Contents line

Mark-10 ESM303H Advanced Motorized Horizontal Test Stand
G1024 extension rod, 2”
G1028 small hook
G1038 medium hook
G1039 coupling, #10-32F/F
G1009 compression plate, 2” dia.
G1030 thread adapter, 5/16-18M to #10-32F (2- two)
G1067 thread adapter, 1/2-20 to #10-32F
G1069 thread adapter, 5/16-18F to 1/4-28M
#10-32 studs with hex nuts (3 - three)
Thumb screw for indicator (4 - four)
Thumb screw for limit switches (2- two)
Allen wrench set
Control panel
Control panel mounting bracket and hardware
Power cord

line
Features
line

Selectable speed setting
Right and left travel limit switches
Adjustable, removable control panel may be mounted to the left or right end of the frame
Password protection of test parameters
Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
USB output of force or force vs. travel
Compact footprint, suitable for crowded work benches
Ergonomic design, with smart, clean cable management
Integrated electronics assembly, easily removed and transported for service

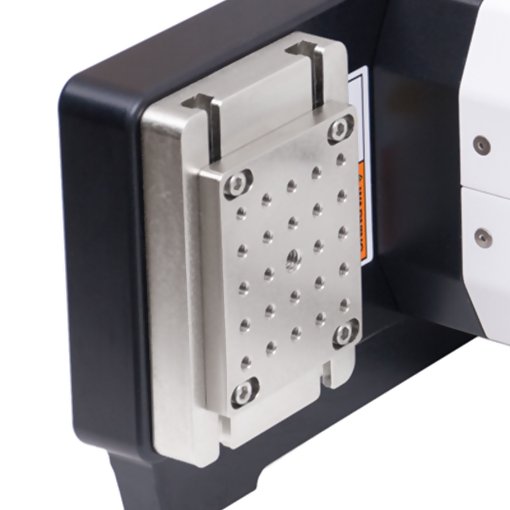

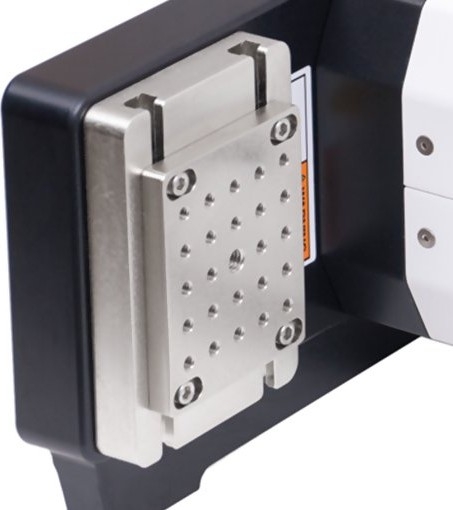

Adjustable mounting plate with T-slot base

line

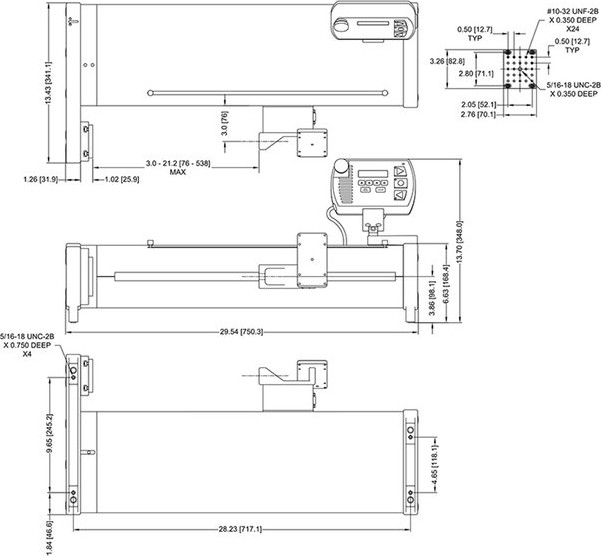

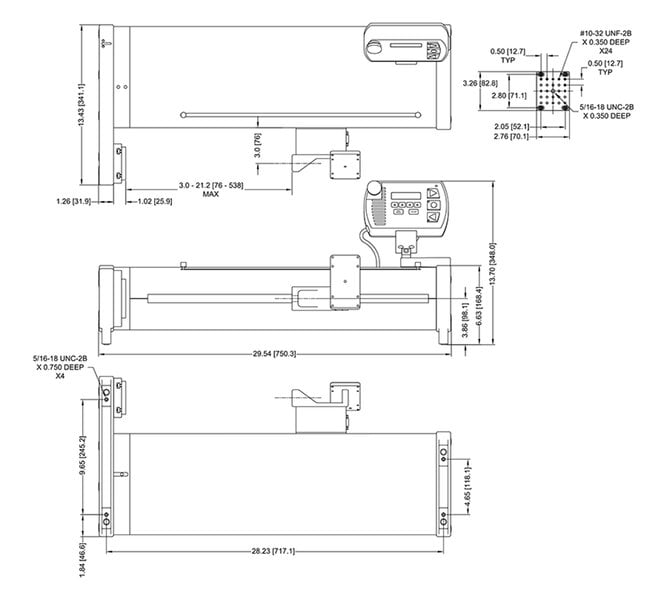

Specifications
line

Load capacity	300 lbF (1.5 kN) @ up to 24 in/min (610 mm/min) 200 lbF (1 kN) @ >24 in/min (610 mm/min)
Maximum travel distance	18.0 in (457 mm)
Speed range	Standard: 0.5 - 13 in/min (13 - 330 mm/min) Optional: 0.02 - 45 in/min (0.5 - 1,100 mm/min)
Speed setting accuracy	±0.2% of setting
Speed variation with load	±0% (stepper motor driven)
Travel accuracy*	±0.002 in. per 10 in. (±0.05 mm per 250 mm)
Travel resolution	0.001 in / 0.02 mm
Limit switch repeatability	0.001 in (0.03 mm)
Power	Universal input 80-240 VAC, 50/60 Hz
Weight	62.5 lb (28.4 kg)
Warranty	3 years (see individual statement for further details)

* Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance

line
Hardware and Software Options
line

Control panel tabletop mounting kit

For applications requiring remote use of the control panel. Consists of a base with mounting hardware for the angle bracket (bracket is included with the test stand). Base contains thru holes for bench mounting.

line

Data collection & motion control software

Consider MESUR™gauge Plus for force vs. travel or force vs. time data acquisition, plotting, analysis, reporting, as well as motion control. The software coordinates motor start / stop and data acquisition with one click.

Note: MESUR™gauge Plus does not require any optional test stand functions for motor control. Consider the Travel Indication option for force vs. travel vs. time output. See below section for details.

line

Indicators

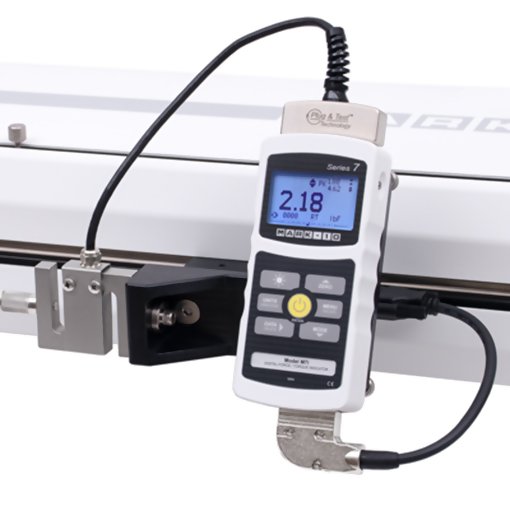

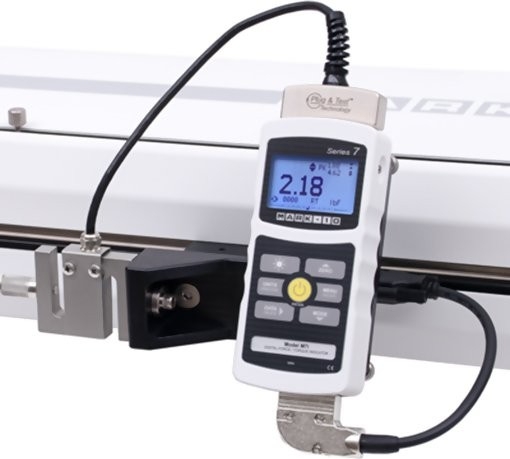

Select from Models M7i or M5i. Both indicators mount directly to the crosshead adapter.

Note: Force gauges cannot be mounted to the ESM303H test stand.

line

Series R01 S-beam load cells

Select from a range of capacities, from 50 lbF (250 N) and higher.

Add suffix "-1" for shortened cable, for optimal mounting. Ex: MR01-100-1.

line

Series R03 inline load cells

Select from a range of capacities, from 0.25 lbF (1 N) and higher.

Add suffix "-1" for short ened cable, for optimal mounting. Ex: MR03-50-1.

line

Interface cable, indicator to test stand (09-1252)

Connects an M7i or M5i indicator to the crosshead. This single cable is used to transmit data and power. The indicator's AC adapter is not required

line

USB cable, test stand to PC (09-1158)

For force and travel data output and PC control.

line

Load cell hardware kit (AC1064)

Set of mounting hardware to mount other manufacturers' load cells with #10-32, 1/4-28, or 1/2-20 mounting threads.

Note: Series R01 and R03 load cell part numbers ending in -1 (ex: MR01-500-1) include mounting hardware for an ESM303H.

line

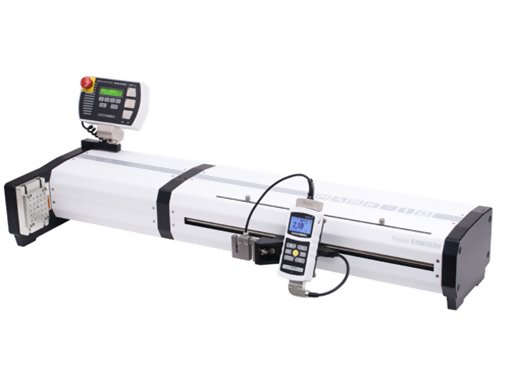

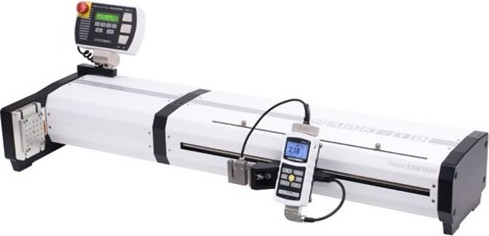

Frame extensions (ESM303-001-1 / -2 / -3)

Increase the clearance for long samples. Multiple extensions may be stacked for very long samples.

Three lengths are available: 6, 12 and 24 in [150, 300, and 600 mm]

line

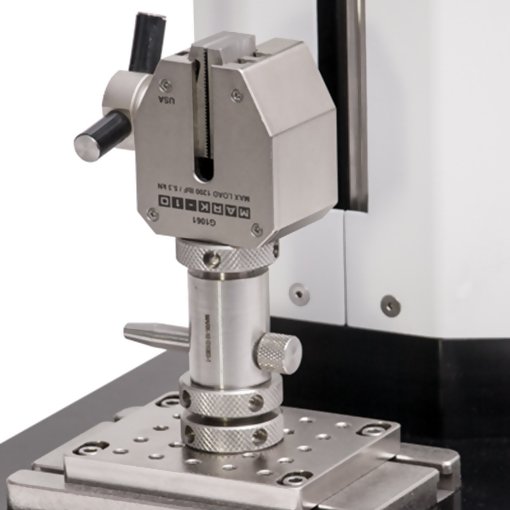

Eye end adapters

Allow for quick grip installation and removal, and prevent grip rotation. Mount to common test frames, load cells, and force gauges

line
Optional Functions
line

Any of the below functions may be purchased at time of order or may be enabled in the field at a later date via a code activation process. The only exception is the AF009 travel measurement option, which additionally requires field hardware installation.

A complete options package is also available, including all of the below functions at a discounted price. The test stand is shipped in Demo Mode, during which time all available functions are temporarily enabled for 160 hours of operation

Function	Part No.	Description
FollowMe™	AF008	Crosshead movement responds to manually pushing or pulling on the load cell. Increasing force produces greater speeds. Ideal for setups and quick positioning.
Travel indication	AF009	Travel is indicated on the control unit display, with output via USB. An internal scale utilizing Renishaw technology produces significantly higher accuracy than with conventional rotary encoder-based designs. Backlash and nonlinearity are virtually eliminated.
Computer control	AF010	The ESM303H may be fully controlled by a PC through a program written in any language supporting ASCII communications. Also responds to the legacy Chatillon TCD command set and legacy Nexygen TCD software (not available from Mark-10). This option is not required for MESUR™gauge Plus software.
Prog. travel limits	AF011	The stand stops at or cycles between programmable right and left travel distances.
Overload protection	AF012	Protects a load cell against overload. Program the desired percentage of full scale of the load cell. Adjustable analog voltage setting allows the stand to interface with virtually any instrument with analog output.
Auto Return	AF013	The crosshead moves to a limit switch, force set point, travel position, or break, then stops and reverses direction at full speed to the opposite limit.
Cycling / dwell time	AF014	Same as auto return, but with the ability to program up to 100,000 cycles. Programmable dwell time for right and left limits (set independently) can be set up for up to 10,000 seconds.
Independent right and left speeds	AF016	Configurable speeds for right and left directions.
Low Speed Extension	AF017	Extends the standard speed range down to 0.02 in/min (0.5 mm/min).
High Speed Extension	AF018	Extends the standard speed range up to 45 in/min (1,100 mm/min).
Break Detection	AF019	Crosshead stops at a sudden drop in force. Programmable percentage of peak force.
Load Holding	AF020	Dynamically adjusts the crosshead position to maintain a programmed load for an indefinite or specified period of time.
Preload / Sample Touch	AF021	Stops the crosshead and/or zeroes the travel display at an initial preload - useful in tensile, compression, spring, elongation, and other applications. Preload is programmable as a percentage of force gauge/load cell full scale. Three modes: (1) stop, (2) stop and zero, and (3) zero without stopping.
Profiles	AF022	Save and recall sets of test parameters, such as speeds, travel limits, preloads, etc. Up to 50 profiles may be stored.
Complete Options Package	AFCOMP-H	Includes all functions listed above, plus 09-1252 interface cable and 09-1158 USB cable. Requires a Model M7i or M5i indicator
