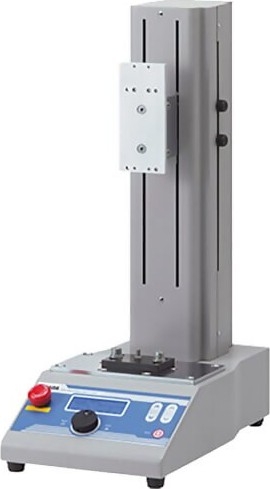

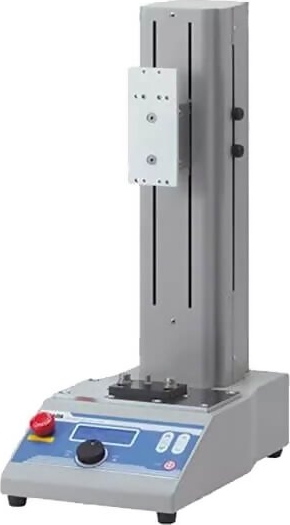

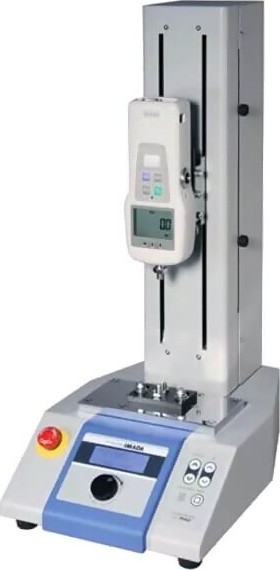

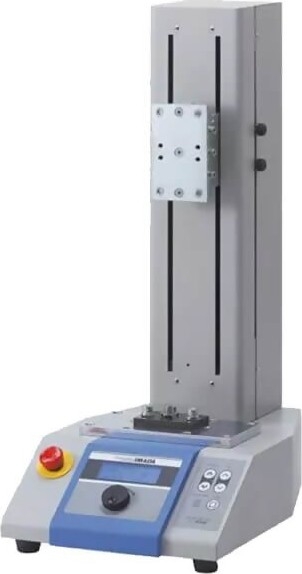

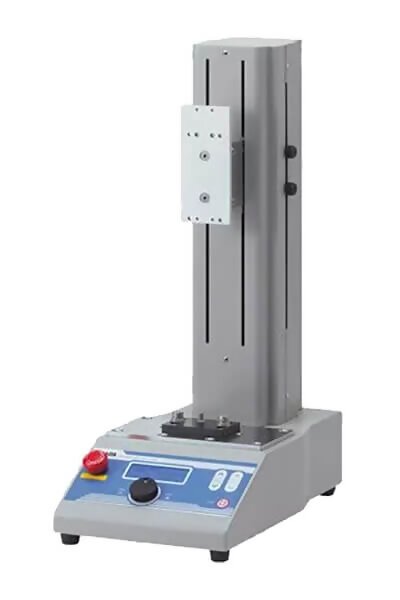

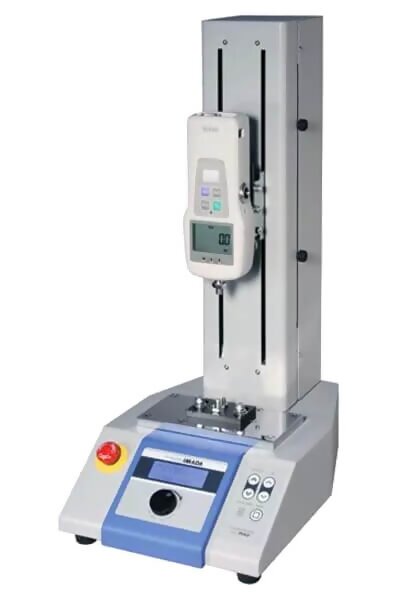

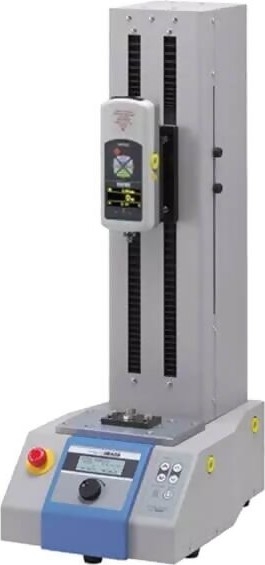

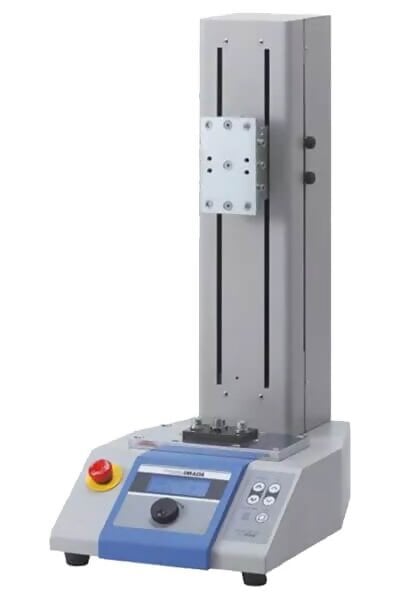

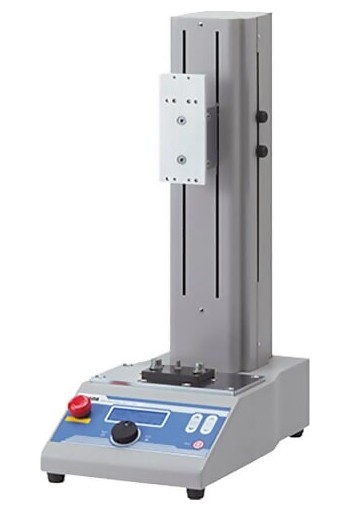

    Imada MX2 High Performance Motorized Test Stand


    Force Gauge sold Separately
    110lb and 550lb Capacity

    3 Capacities Available:
    Imada MX2-110 - 110 lbs / 50 Kg / 500 N
    Imada MX2-275 - 275 lbs / 125 Kg / 1250 N
    Imada MX2-550 - 550 lbs / 250 Kg / 2500 N

    High Performance, Force Control, Motorized Test Stand with Speed Control, Timer & Cycle Counter

    Imada MX2 Vertical Motorized Test Stands use maintenance-free, brushless, DC motors that provide smooth and powerful operation to ensure consistent force testing results.

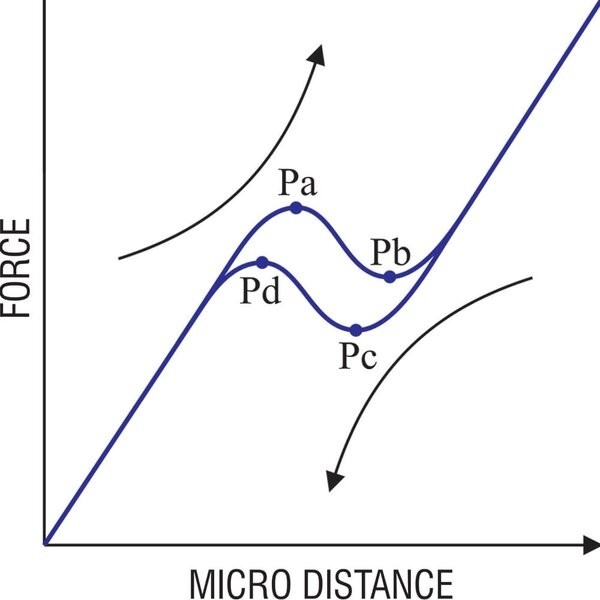

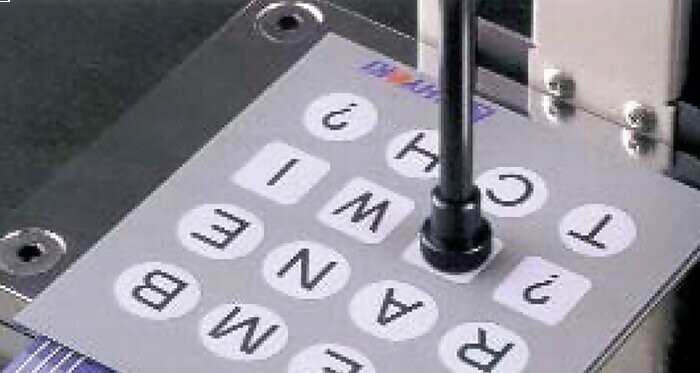

    Precise Increment Mode

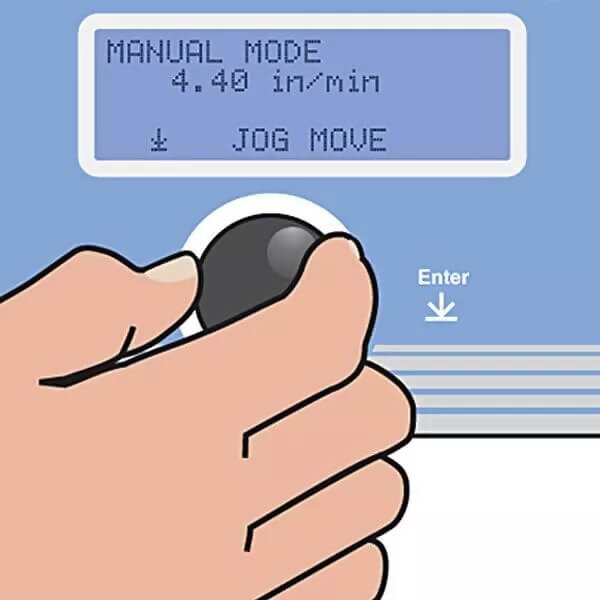

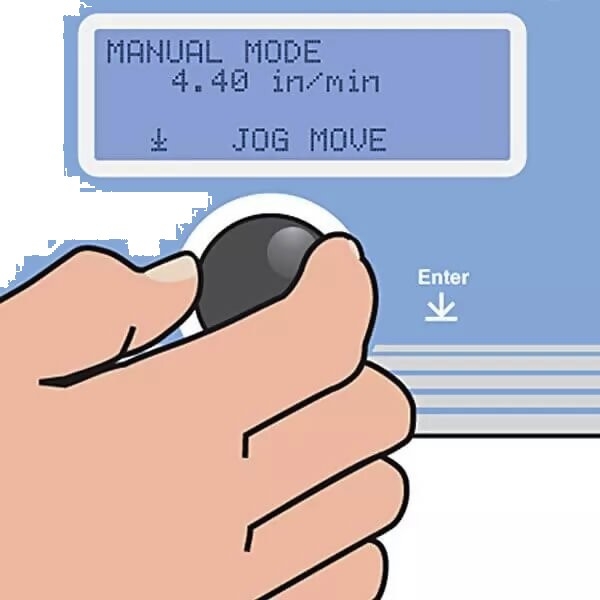

    MX2 features a unique jog movement control, for precise increment testing. In jog mode, each click of the program dial moves the cross head approximately .015mm for MX2-110, .01mm for MX2-275 and .05mm for MX2-550 (standard speed, under no load).

    Cycle Mode

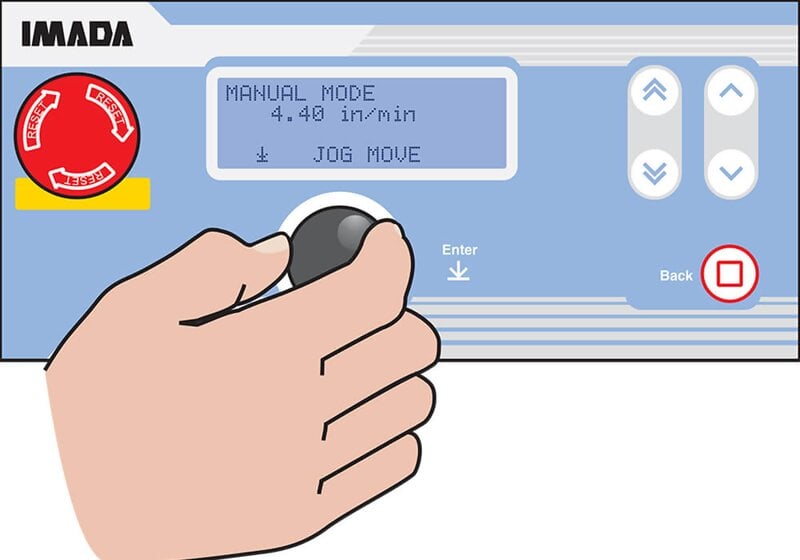

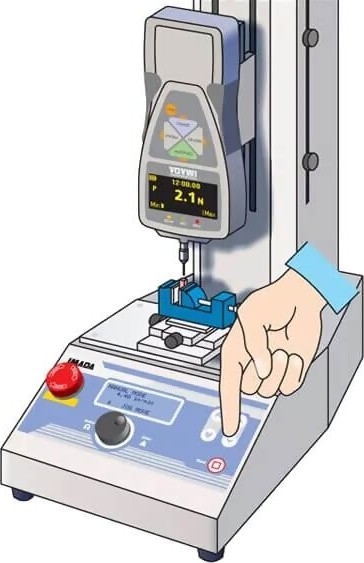

    MX2 Program dial and LCD interface In cycle mode, automated fatigue tests are easy to setup. Press the unique program dial and turn, to make selections from the menu screens and set mode, speed, test duration, units and cycles. Control start and return speeds independently.

    Force Control

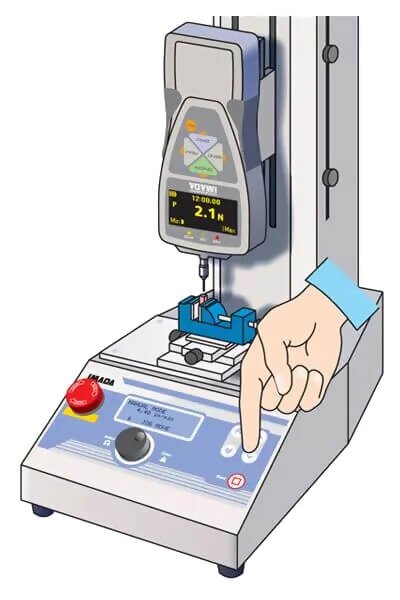

    Force controlled non-destructive tests are also easy to setup and program. Connect an Imada Z Series force gauge to the MX2 test stand to enable the following force controlled tests and Conditional Overload Prevention.

    Maintain Force Between High/Low Setpoints

    Initial cross head speed is controlled by the start speed setting. Force control activates when applied force exceeds the low setpoint (and below the high setpoint) on the Z Series force gauge. The cross head maintains that force for the programmed interval and then uses return speed to reset for the next cycle.

    Increase Force to High Setpoint and Stop

    Initial cross head speed is controlled by the start speed setting. When the applied force reaches the low set point of the Z Series force gauge, the test stand engages the measuring speed setting and stops when the applied force reaches the high set point on the Z series force gauge. Ideal for non-destructive or creep testing. The cycle is repeated until the counter limit is reached


    line
    Features
    line

    • Ultra rigid, .5mm deflection at maximum load
    • Wide speed range: 0.4 – 11.8 in/min (optional speed ranges available)
    • Manual, Increment, Single Cycle, Continuous Cycle and Force Control (with Z Series gauges) selectable
    • Force Controlled operation with Imada Z Series force gauges
    • Easy-to-use program dial and menu screens control mode, speed, timer and cycles
    • Optional digital distance meter available
    • Programmable timer up to 99' 59.9 sec in 0.1 sec increments
    • Conditional Overload Prevention
    • One stand for both compression (push) and tension (pull) tests
    • Max clearance 9" (with extender 14")


    line
    Specifications
    line

    Capacity MX2-110: 110 lbs / 50 Kg / 500 N
    MX2-275: 275 lbs / 125 Kg / 1250 N
    MX2-550: 550 lbs / 250 Kg / 2500 N
    Stroke MX2-110: 9.4 In / 240mm
    MX2-275: 12.2 In / 310mm
    MX2-550: 12.2 In / 310mm
    Travel Rate Refer to Speed Range Table above
    Dimensions See Download Section
    Compatible Gauges Z2, ZP and DS2
    Warranty 2 years
    Distance Meter Range S Version: 8"
    S12 Version: 12"
    *Note Optional Distance Meter Max Sampling Rate Output - 2 Samples Per Second


    line
    Speed Ranges
    line

    Model Speed Range
    MX2-110 0.4 – 11.8 in/min (10 - 300 mm/min)
    MX2-110-V600 0.8 - 23.5 in/min (20 - 600 mm/min)
    MX2-110-V90 0.1 - 3.5 in/min (3 - 90 mm/min)
    MX2-275 0.4 – 11.8 in/min (10 - 300 mm/min)
    MX2-275-V600 0.8 - 23.5 in/min (20 - 600 mm/min)
    MX2-275-V75 0.1 - 2.9 in/min (3 - 75 mm/min)
    MX2-550 0.4 - 12 in/min (10 - 305 mm/min)
    MX2-550-V75 0.1 - 3.5 in/min (3 - 75 mm/min)


    line
    Related Products
    line

    ZP
    Digital Force Gauge with USB Output

    • USB, RS-232C, and Analog outputs
    related

    line

    Z2
    Digital Force Gauge

    • Output signals (RS 232 C, analog and Mitutoyo Digimatic)
    related


    line
    Downloads
    line

    Imada MX2 High Performance Motorized Test Stand - Instruction Manual

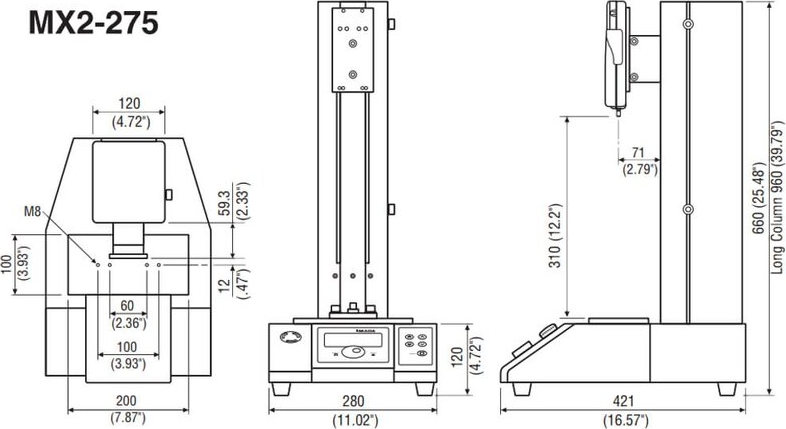

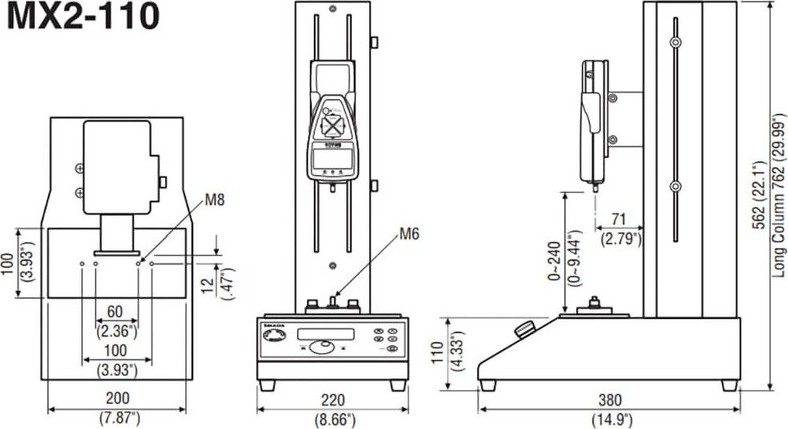

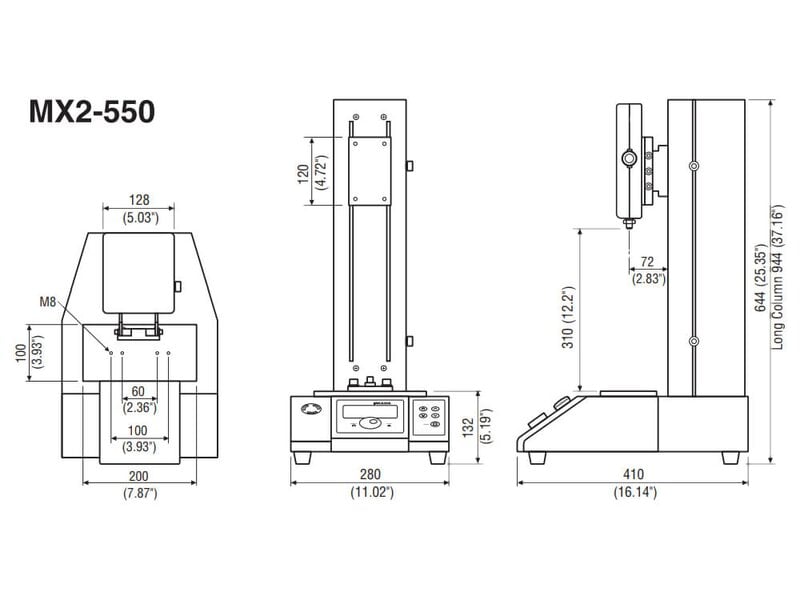

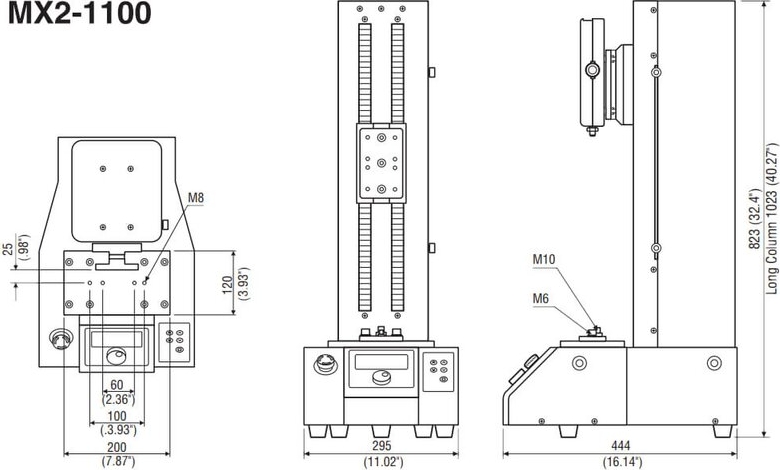

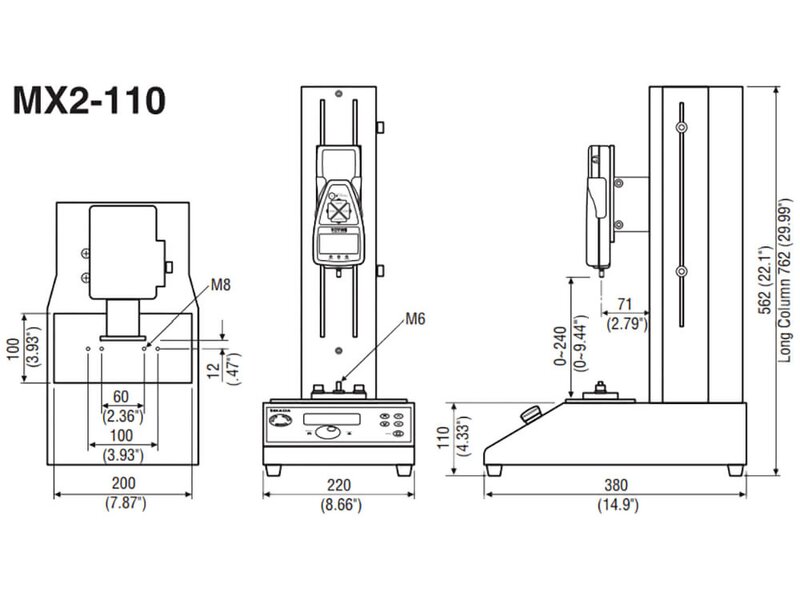

    Imada MX2 High Performance Motorized Test Stand - MX2-110 Dimensions

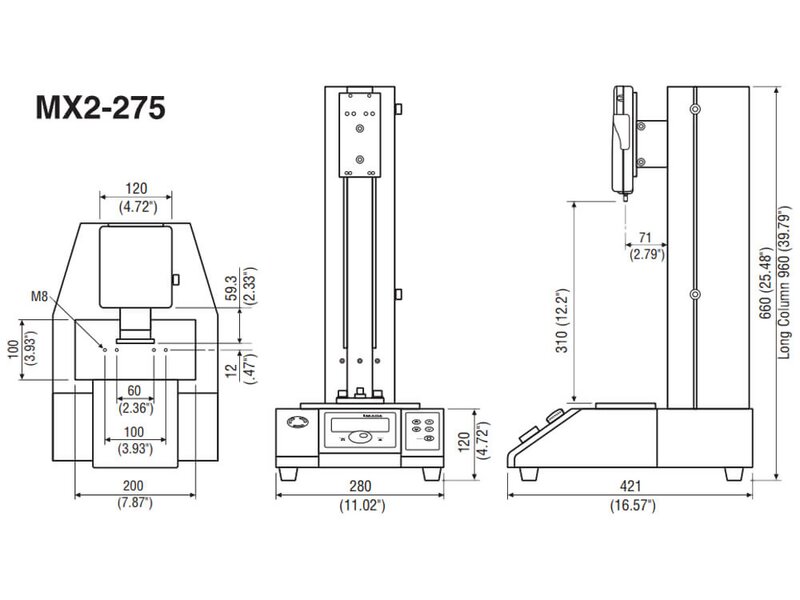

    Imada MX2 High Performance Motorized Test Stand - MX2-275 Dimensions

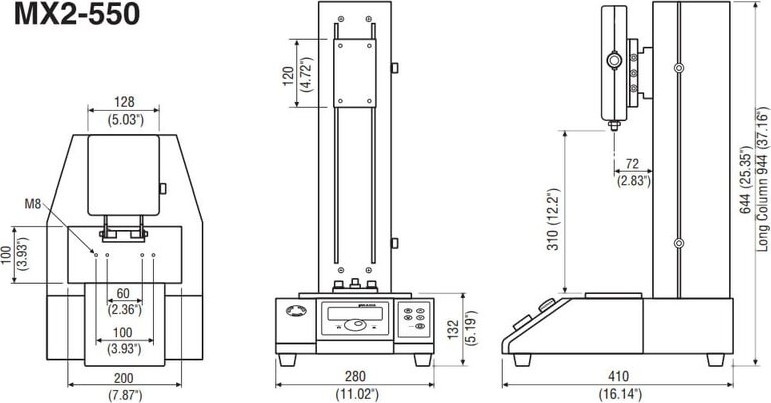

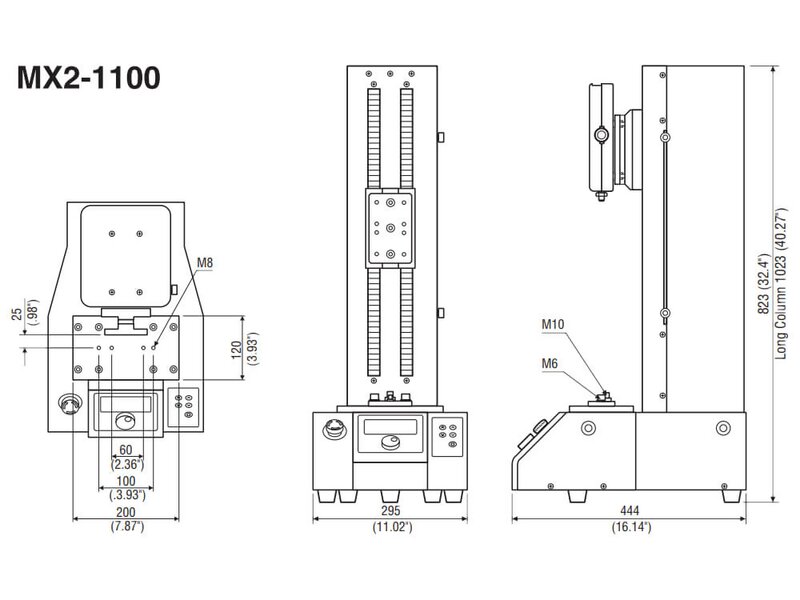

    Imada MX2 High Performance Motorized Test Stand - MX2-550 Dimensions
