Mark-10 TSC1000 Manual Test Stand
Force Gauge sold Separately
1,000lb Capacity
3.5" (89mm) Maximum Travel

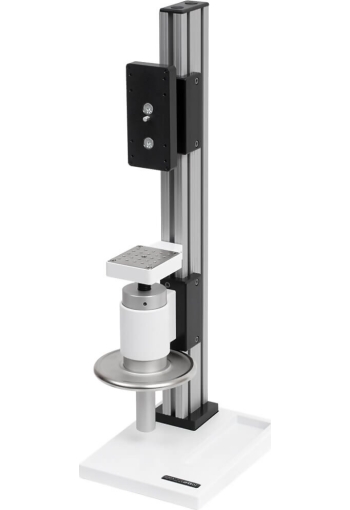

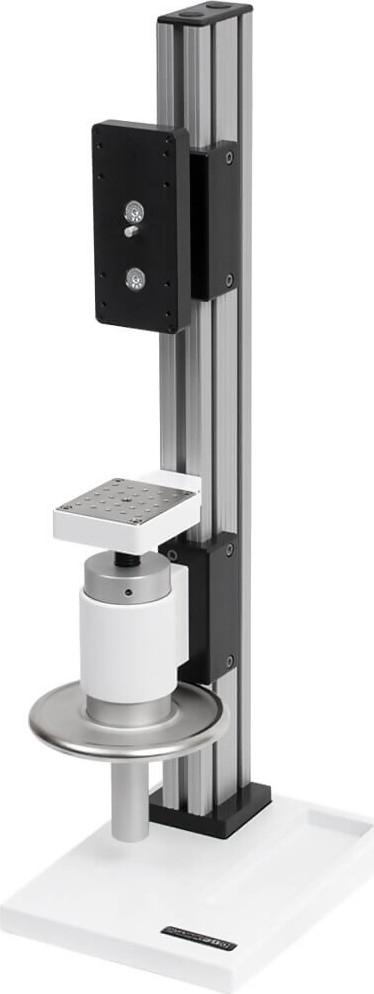

Mark-10 TSC1000 - Vertical

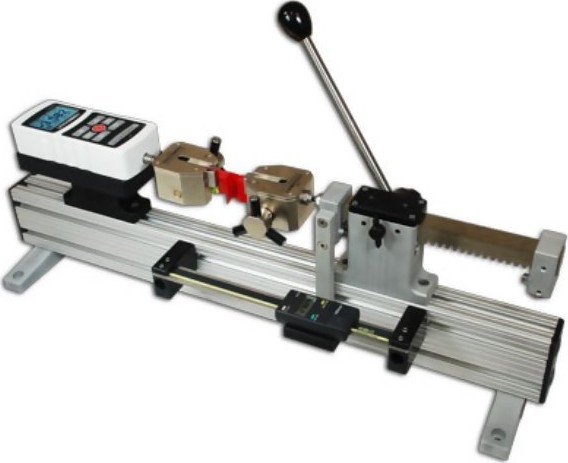

Mark-10 TSC1000H - Horizontal
The Mark-10 TSC1000 Manual Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.
A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

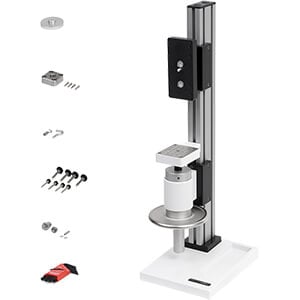

Kit Contents
- Mark-10 TSC1000 Manual Test Stand
- G1028 small hook
- G1038 medium hook
- G1035 large hook
- G1042 extra large hook
- G1009 compression plate, 2” dia.
- G1030 thread adapter, 5/16-18M to #10-32F
- G1044 adapter plate
- Allen wrench set
- #10-32 M/M stud with jam nuts
- Thumb screw for force gauges with 0.12 – 500 lbF capacities
- Thumb screw for force gauges with 1,000 – 2,000 lbF capacities
Features
- Compatible with all Mark-10 force gauges, accessories and grips
- Mounting holes for bench mounting

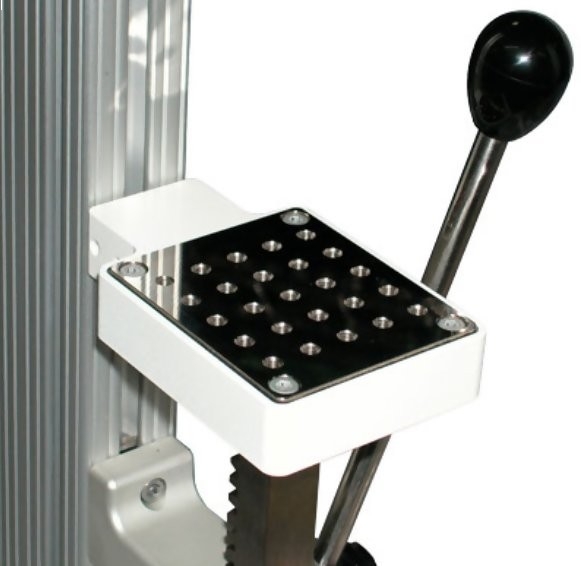

- Loading table with 25 #10-32 UNF holes for fixture mounting
- Precision Acme screw and nut

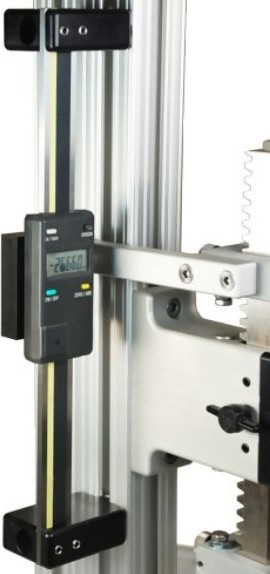

- Optional digital travel display
Specifications
| Capacity | 1,000lbs (4.5Kn) |
| Stroke | 3.5" (89mm) |
| Travel Rate | 0.1" (25.4mm) per rev |
| Dimensions | 6"W x 8"D x 26"H (152mm x 203 mm x 660mm) |
PC Connection
Mark-10 force gauges with data output include a USB cable, which can be connected directly to a PC.
If the digital travel display option is ordered and connection to a PC is desired, the following connection cables are required:
Travel display connection sequence:
