    Product Description
    Mark-10 TSC High Capacity Manual Test Stand

    Force Gauge sold Separately
    1,000lb Capacity

    3.5" (89mm) Maximum Travel

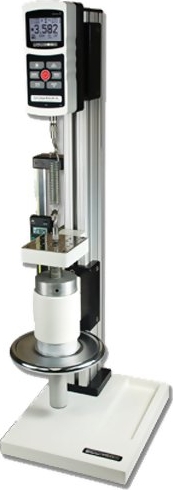

    Mark-10 TSC - Vertical

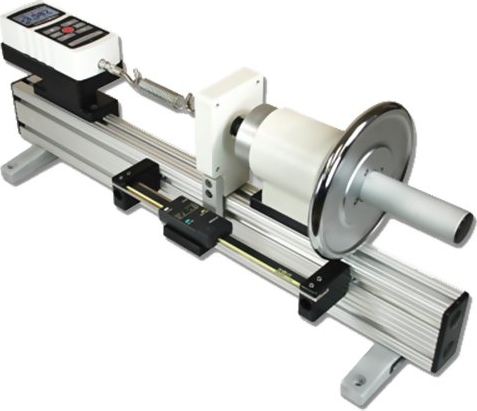

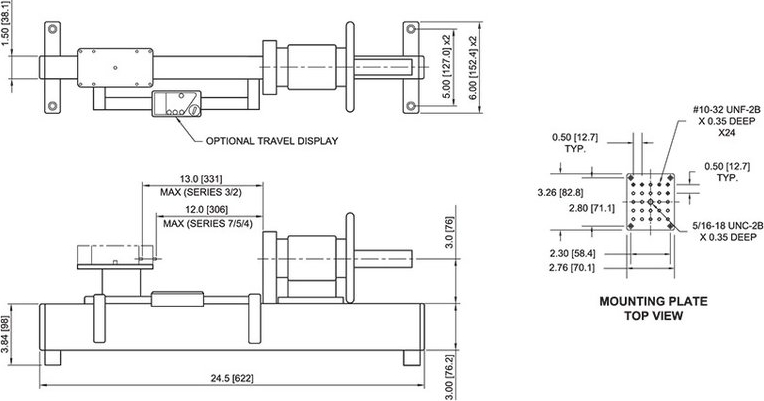

    Mark-10 TSCH - Horizontal

    The Mark-10 TSC High Capacity Manual Test Stand is ruggedly built for testing up to 1,000 lb of compression or tension force.

    A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The Mark-10 TSC High Capacity Manual Test Stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting. Available in vertical and horizontal orientations.

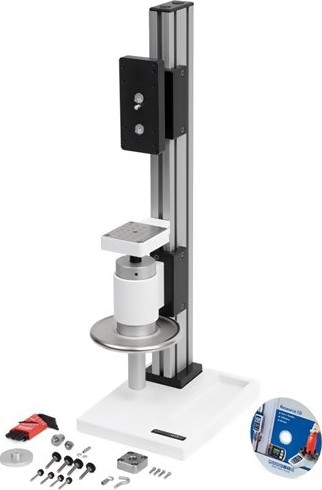

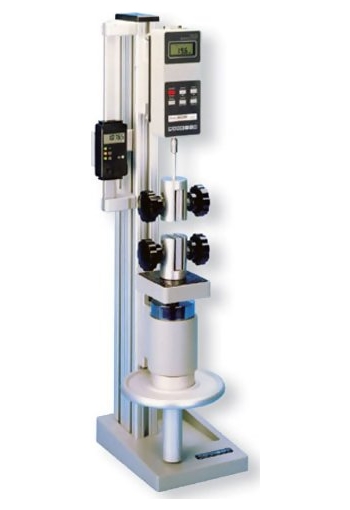

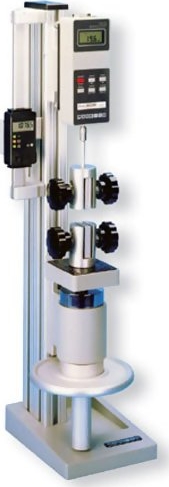

    *Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately


    line
    Features
    line

    • Mounting holes for bench mounting

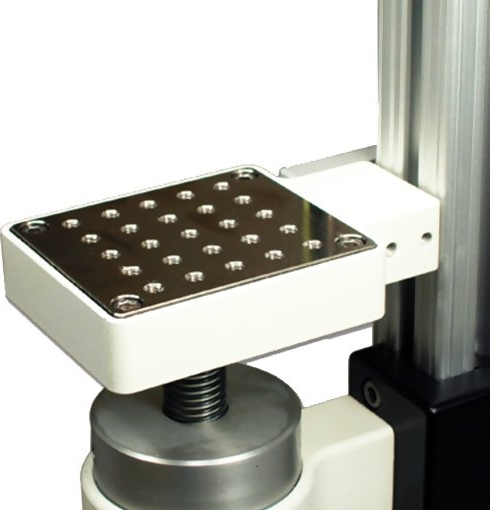

    • Loading table with 25 #10-32 UNF holes for fixture mounting
    • Precision Acme screw and nut

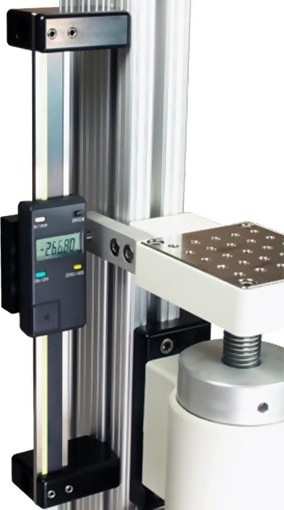

    • Optional digital travel display


    line
    Specifications
    line

    Capacity1,000lbs (4.5Kn)
    Stroke3.5" (89mm)
    Travel Rate0.1" (25.4mm) per rev

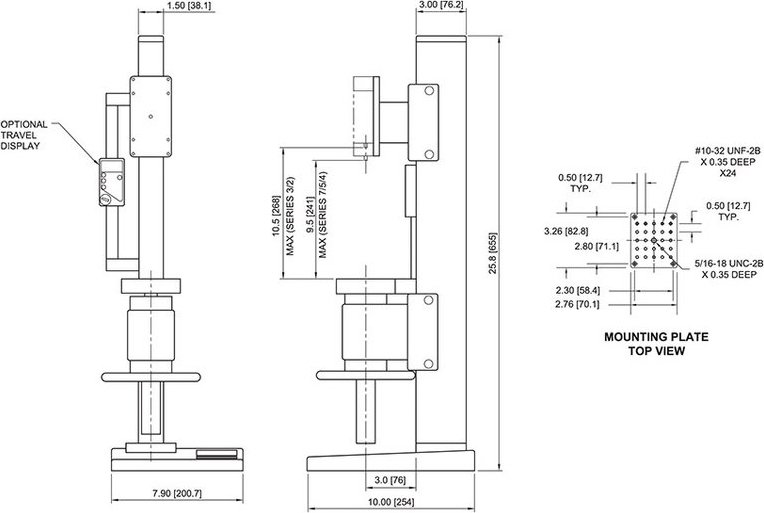

    Dimensions6"W x 8"D x 26"H (152mm x 203 mm x 660mm)
    Weight25 lbs (11.4kg)
