Imada LH Horizontal Wire Terminal Pull Tester

See More Test Stands, Mechanical
$2,789.00 - $3,426.00

    Product Description

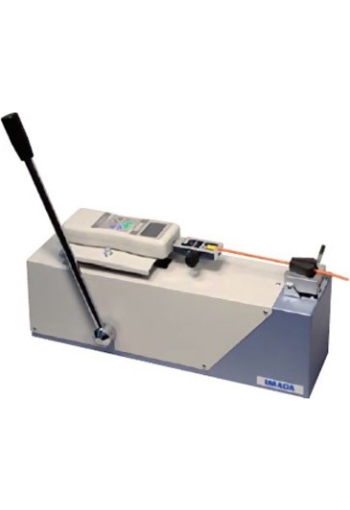

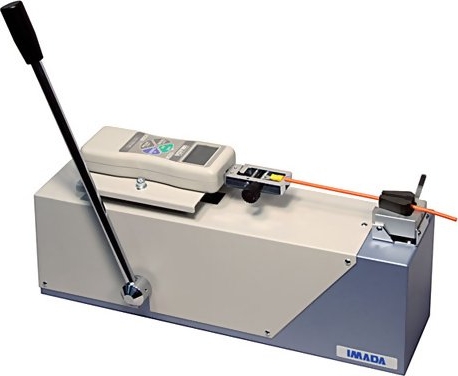

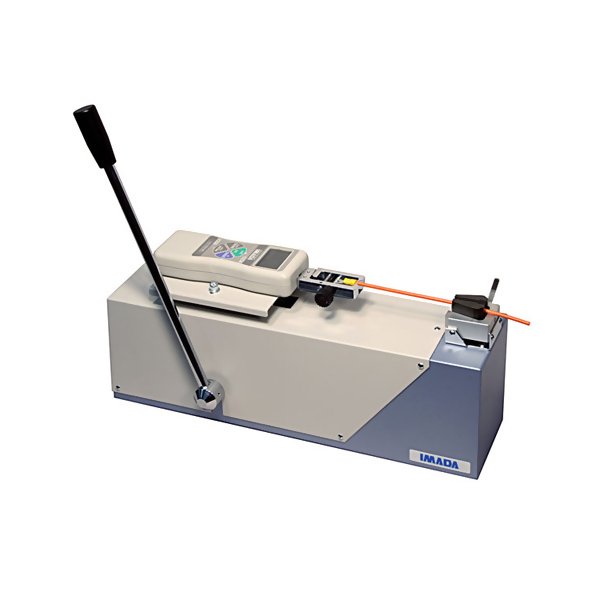

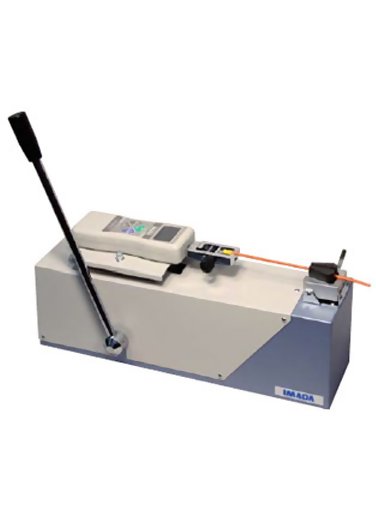

    Imada LH Horizontal Wire Terminal Pull Tester

    110 Lb and 220 Lb Capacity
    Force Gauge sold Separately

    2 Models
    Imada LH-110: 110 lbf capacity
    Imada LH-220: 220 lbf capacity

    The Imada LH horizontal, straight-pull, wire terminal testers are designed specifically to test the pull-off force of wire terminal connectors and includes gripping attachments.

    The display module has selectable units, peak or real time modes, and operates with either the internal battery or included AC adapter.

    The terminal grip opens to 5mm and allows wire terminals to be held with minimum damage to the wire jacket and holds the connector after pull-off. The wire grip has serrated jaws for a firm hold on the wire. Optional wire terminal grips are available.

    The lever provides rapid action and a straight-pull on the wire and wire terminal. The tester is unaffected by gravity and does not employ a return spring, making it perfect for wire terminal crimp testing.


    • Straight-pull without bending or winding the test wire
    • Horizontal positioning is easy to control
    • lbf, kgf, and Newton units are selectable
    • Runs on internal rechargeable batteries or AC adapter
    • Lever action allows for rapid testing
    • Stroke 3.34" (85mm)
    • RS-232C, Digimatic and analog outputs
    • NIST Calibration Certificate included (ISO 17025 Certificate optional)


    Model Capacity Resolution
    LH-110 110.0 lbf
    50.00 kgf
    500.0 N
    0.1 lbf
    0.01 kgf
    0.1 N
    LH-220 220.0 lbf
    100.0 kgf
    1000 N
    0.1 lbf
    0.1 kgf
    1 N

    Accuracy: ±0.2% F.S. ± 1 LSD
