    Product Description

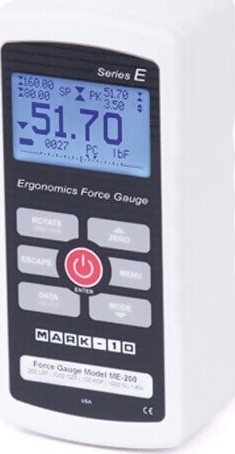

    Mark-10 Series E Ergonomics Force Gauges Kit EKE

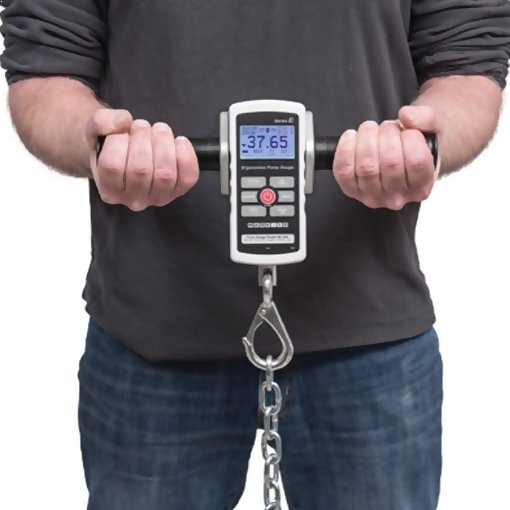

    Measure real time and peak push and pull forces
    Click-LockTM accessory mounting technology
    USB data output

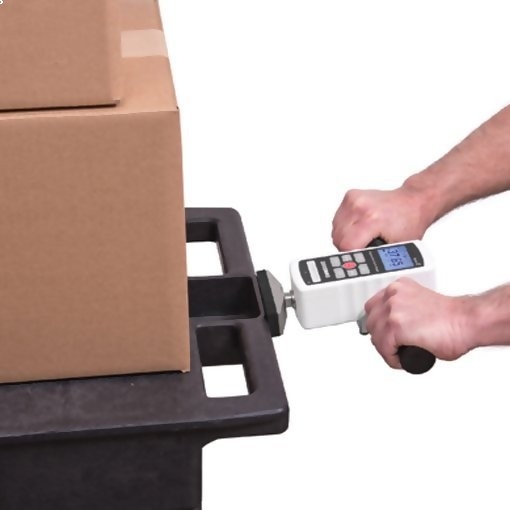

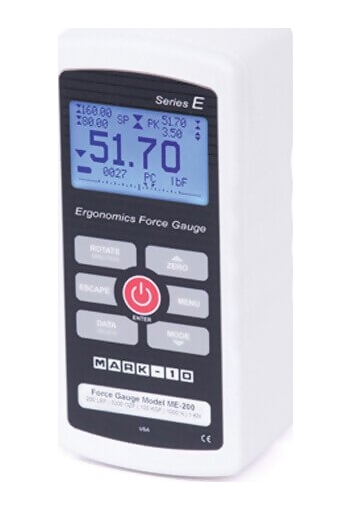

    Mark-10 Series E Ergonomics Force Gauge make job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. The Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs.

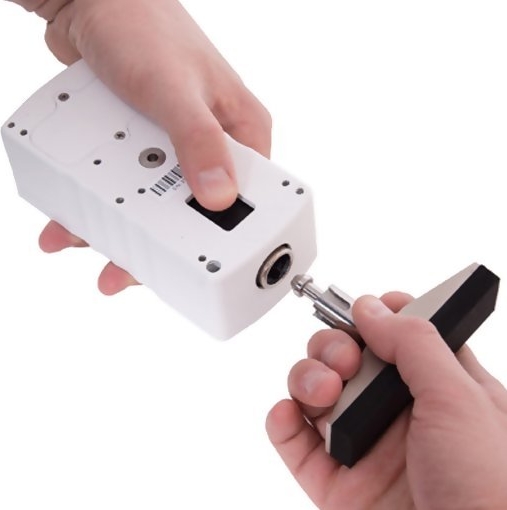

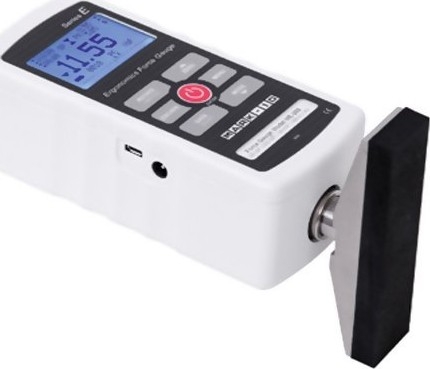

    Attachments click and lock into place via innovative Click-Lock™ technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90° or 180° orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.


    line
    Kit Options
    line

    Advanced Kits:
    • Mark-10 ME Digital Force Gage

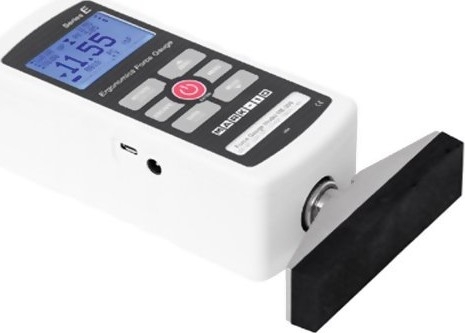

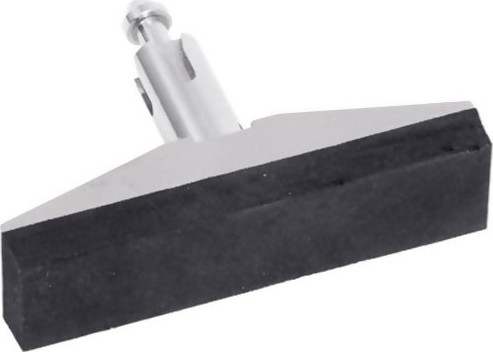

    • E1003 Rectangular Padded attach

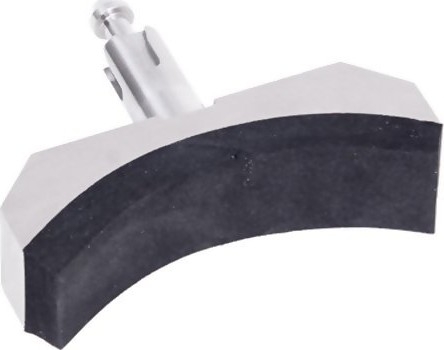

    • E1004 Curved Padded attach

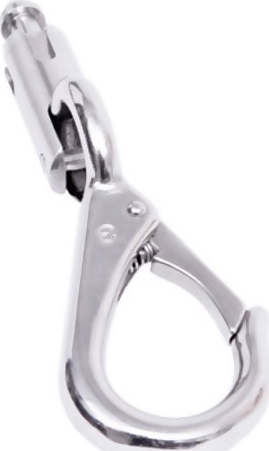

    • E1006 Hook

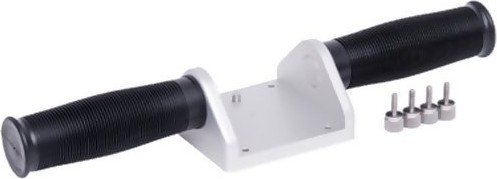

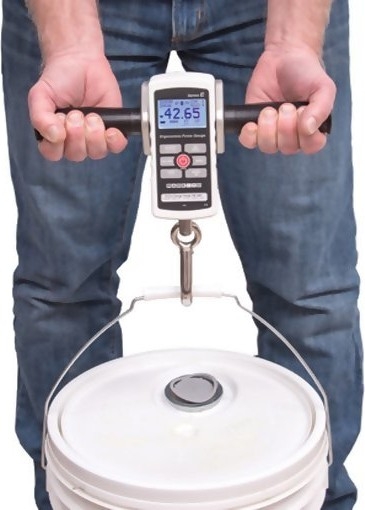

    • E1009 Double Handle Grip
    • E1000 Small Carrying Case



    line

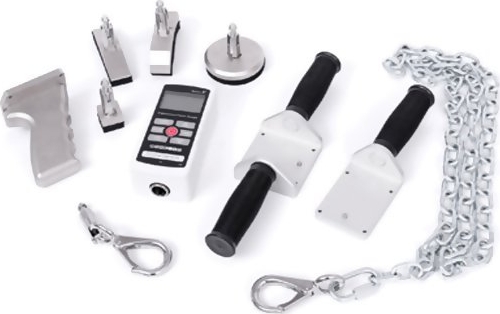

    Professional Kits:
    • Mark-10 ME Digital Force Gage

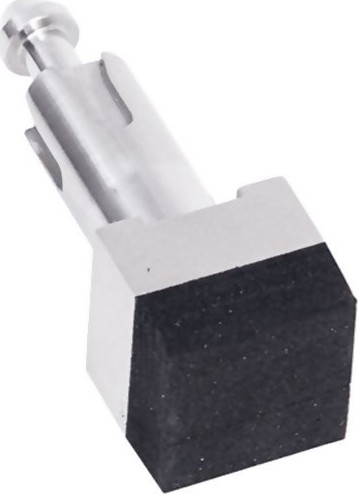

    • E1002 Square Padded attach
    • E1003 Rectangular Padded attach
    • E1004 Curved Padded attach

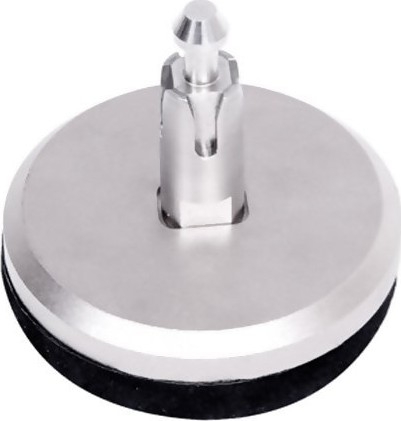

    • E1005 Circular Padded attach
    • E1006 Hook

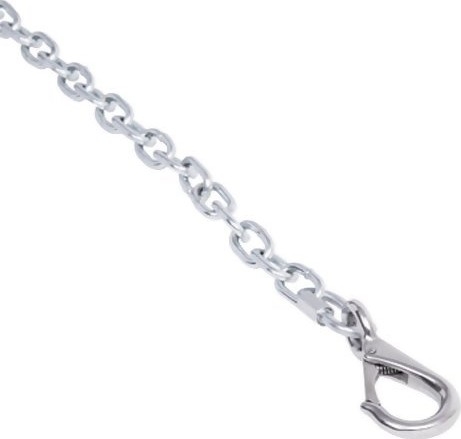

    • E1007 Chain / Hook Assembly

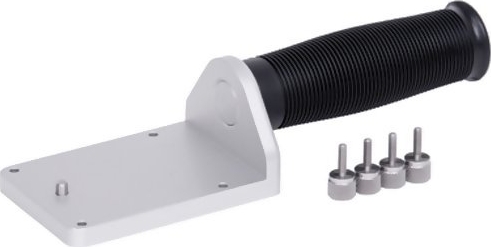

    • E1008 Single Handle Grip
    • E1009 Double Handle Grip

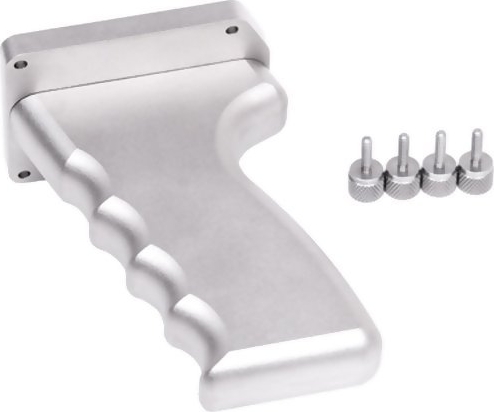

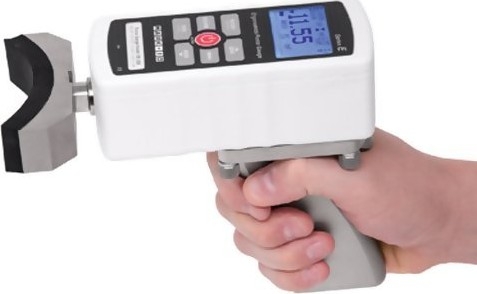

    • E1010 Pistol Grip
    • E1001 Large Carrying Case



    * Kits include a force gauge with 110V AC adapter.


    line
    Features
    line

    • Measure real time and peak push and pull forces
    • Three measuring ranges: 100, 200, and 500 lbF (500, 1000, and 2,500 N)
    • Click-Lock™ accessory mounting technology
    • USB data output
    • High / low limit indicators, for pass / fail and minimum force testing
    • Averaging mode calculates average force over a period of time
    • 5,000-point data memory - data points may be saved individually orlogged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR™ Lite data collection software.
    • Statistical calculations for saved data points


    line
    Specifications
    line

    Accuracy±0.2% of Full Scale
    Sampling rate7,000 Hz
    PowerAC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
    Battery LifeBacklight on: up to 7 hours of continuous use
    Backlight off: up to 24 hours of continuous use
    Measurement unitslbF, ozF, gF, kgF, N, kN (depending on model)
    USB OutputConfigurable up to 115,200 baud
    Safe overload200% of full scale (display shows "OVER" at 110% and above)
    Weight1.7 lb (0.8 kg)
    Included itemsCarrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR™Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
    Warranty3 years


    lineRanges (Capacity / Resolution)
    line

    ModellbFozFkgFgFNkN
    ME-100100
    0.002
    1600
    0.5
    50
    0.01
    50000
    10
    500
    0.1
    -
    ME-200200
    0.05
    3200
    1
    100
    0.02
    -1000
    0.2
    1
    0.0002
    ME-500500
    0.1
    8000
    2
    250
    0.2
    -2500
    0.5
    2.5
    0.0005


    line
    Ordering Guide
    line

    EKE-100-1Advanced ergonomics kit, 100 lbF / 500 N
    EKE-200-1Advanced ergonomics kit, 200 lbF / 1,000 N
    EKE-500-1Advanced ergonomics kit, 500 lbF / 2,500 N
    EKE-100-2Professional ergonomics kit, 100 lbF / 500 N
    EKE-200-2Professional ergonomics kit, 200 lbF / 1,000 N
    EKE-500-2Professional ergonomics kit, 500 lbF / 2,500 N


    line
    Accessories
    line

     ModelDescriptionAdvanced Kit1Professional Kit1
    ME-100
    ME-200
    ME-500
    ME-100
    ME-200
    ME-500
    E1002Padded attach., square
    E1003Padded attach., rectangular
    E1004Padded attach., curved
    E1005Padded attach., circular
    E1006Hook
    E1007Chain / hook assembly
    E1008Single handle grip
    E1009Double handle grip
    E1010Pistol grip

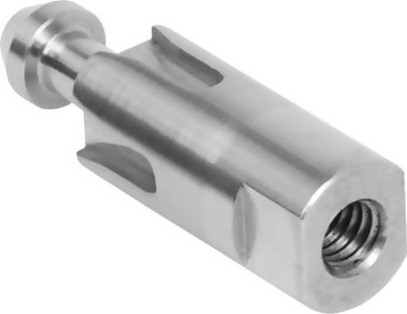

    E1011Grip adapter
    E1012Looped cable2
    E1013Myometer kit3
    E1000Carrying case, small
    E1001Carrying case, large
    1. Kits include a force gauge with 110V AC adapter. Add suffix ‘E’ for Euro plug, ‘U’ for UK plug, or ‘A’ for Australian plug. Ex: EKE-100-1E
    2. Does not fit into carrying cases
    3. Does not fit into carrying cases. Requires E1006 hook


    line
    Downloads
    line

    Mark-10 Series E Ergonomics Force Gauges Kit EKE - Data Sheet
    Mark-10 Series E Ergonomics Force Gauges Kit EKE - Instruction Manual
    Mark-10 Series E Ergonomics Force Gauges Kit EKE - Comparison Chart
