Name: Mark-10 R52 Torque Sensor for Tool Calibration
Brand: Mark-10
SKU: 830

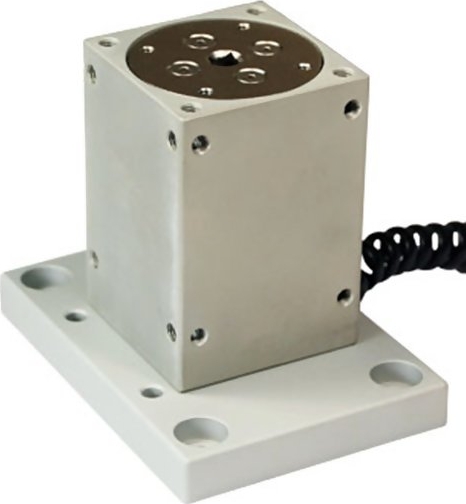

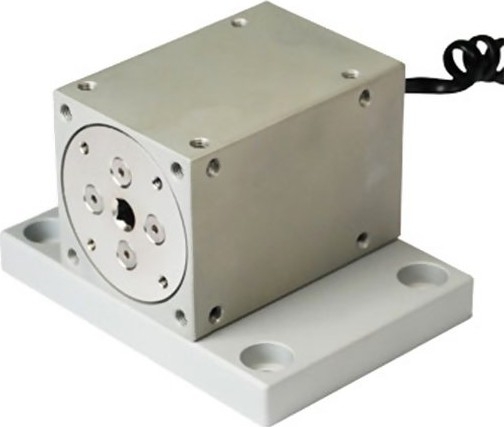

Mark-10 R52 Torque Sensor for Tool Calibration

See More Force Sensors

General torque testing

Mounting holes for bench mounting

Bi-directional

Capacities from 10 ozFin to 100 lbFin (7 to 1150 Ncm)

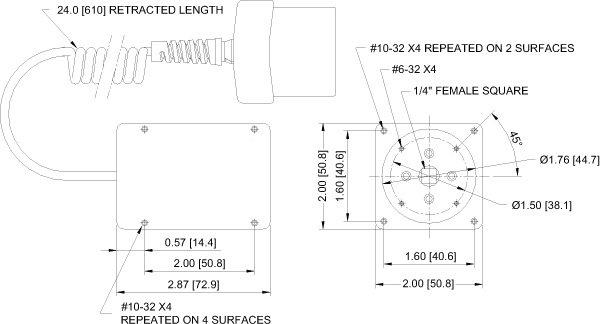

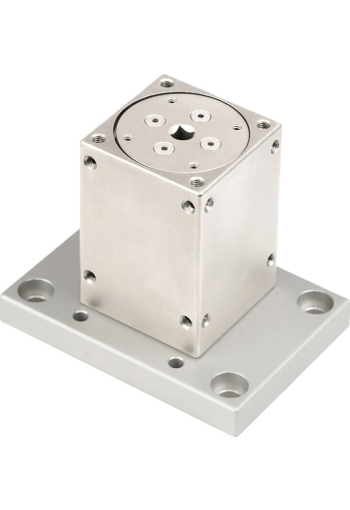

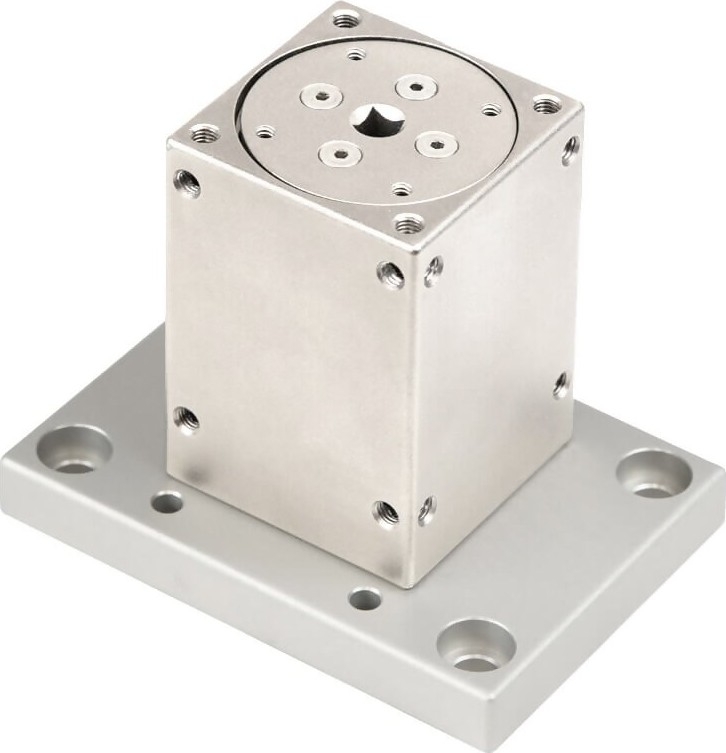

Calibrate torque tools with the Mark-10 R52 torque measurement sensor, or use the Mark-10 R52 as a component of a torque testing system. Tapped holes on every surface allow for easy mounting to a work bench, or fixture within a testing system. Capacities available from 10 ozin to 100 lbin.

Features

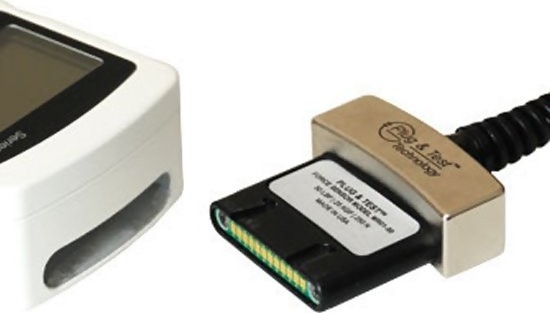

Member of the Plug & Test® family of interchangeable sensors and indicators

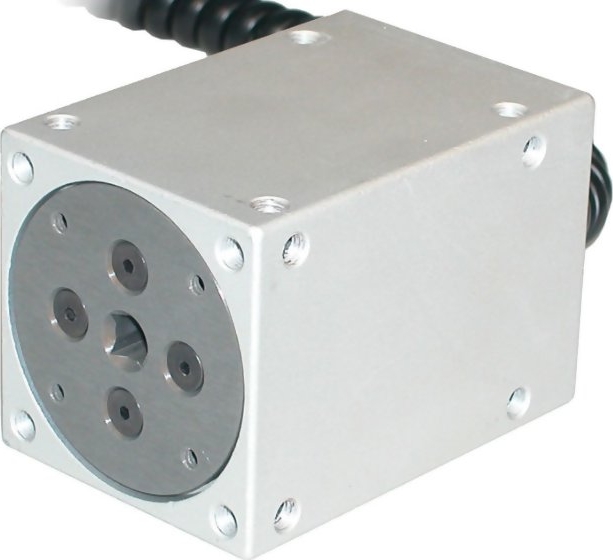

Rugged aluminum housing
Universal mounting

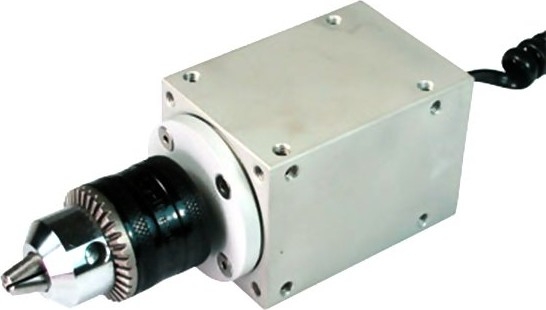

May be used for torque tool calibration or as a component of a torque testing system
NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
Warranty: 3 years

Specifications

Accuracy	± 0.35% of full scale ±1 digit + indicator
Weight	1.2 lbs (0.5 kg)

Force Ranges

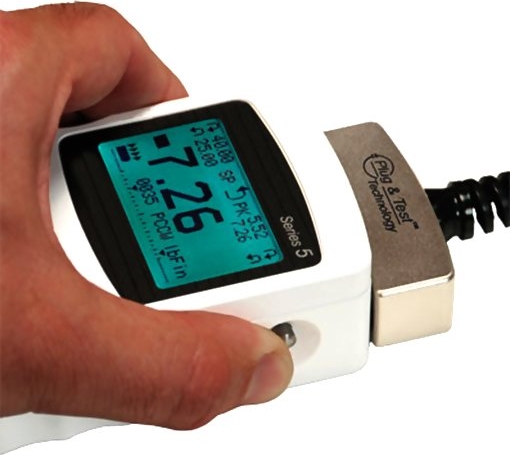

With 7i and 5i Indicators

Model	lbFin	ozFin	lbFft	gFcm	kgFmm	Nmm	Ncm	Nm
MR52-10Z	–	10 x 0.005	–	700 x 0.5	7 x 0.005	70 x 0.05	7 x 0.005	–
MR52-20Z	–	20 x 0.01	–	1400 x 1	14 x 0.01	140 x 0.1	14 x 0.01	–
MR52-50Z	–	50 x 0.02	–	3600 x 2	36 x 0.02	350 x 0.2	35 x 0.02	–
MR52-12	12 x 0.005	192 x 0.1	1 x 0.0005	–	–	–	135 x 0.1	1.35 x 0.001
MR52-50	50 x 0.02	800 x 0.5	4 x 0.002	–	–	–	570 x 0.5	5.7 x 0.005
MR52-100	100 x 0.05	1600 x 1	8 x 0.005	–	–	–	1150 x 0.5	11.5 x 0.005

With Model 3i Indicator

Model	lbFin	ozFin	kgFmm	Ncm
MR52-10Z	–	10 x 0.01	7 x 0.005	7 x 0.005
MR52-20Z	–	20 x 0.02	14 x 0.01	14 x 0.01
MR52-50Z	–	50 x 0.05	36 x 0.05	36 x 0.05
MR52-12	12 x 0.01	192 x 0.2	–	135 x 0.1
MR52-50	50 x 0.05	800 x 1	–	570 x 0.5
MR52-100	100 x 0.1	1600 x 2	–	1150 x 1
