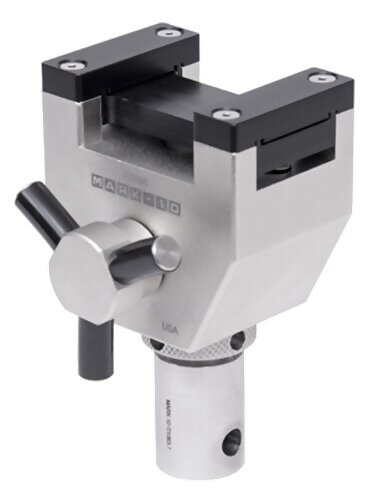

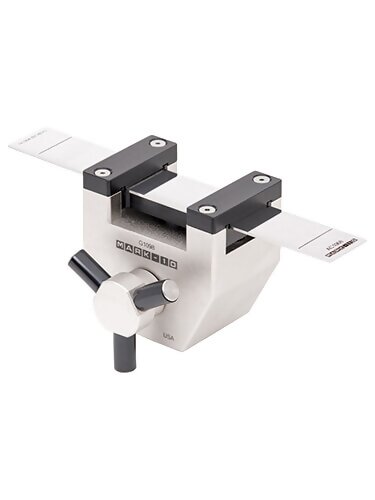

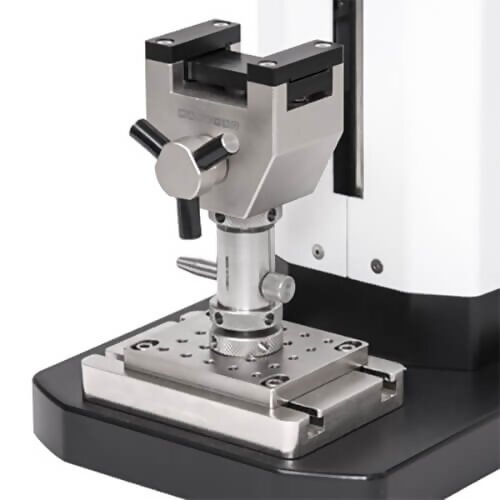

ASTM D6195 Loop Tack Fixture
Quick-change mechanism for test strips
Designed for loop tack force testing

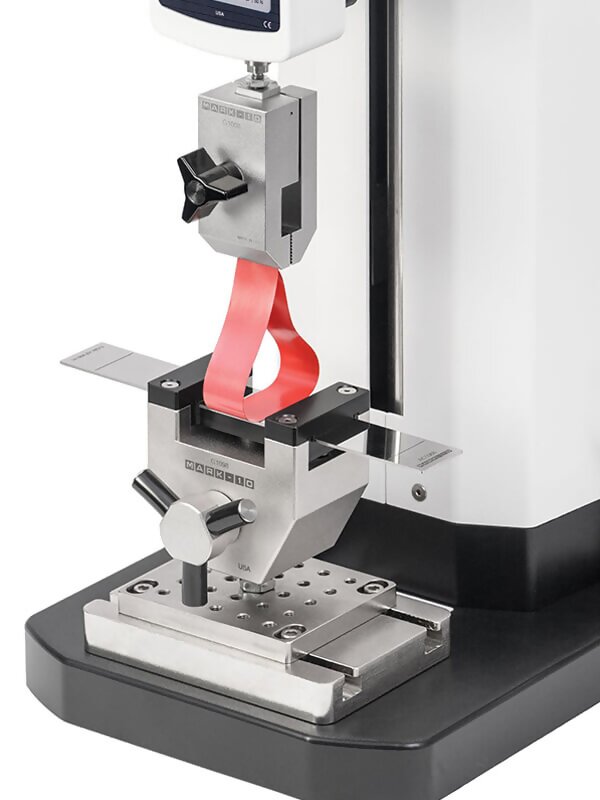

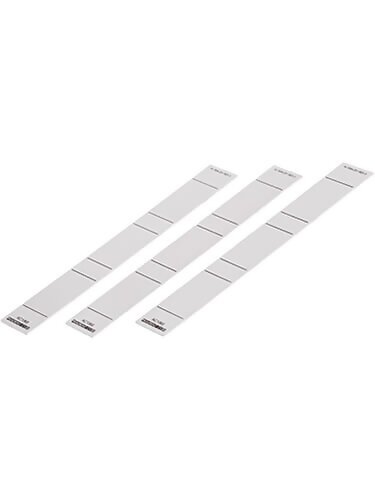

The Mark-10 G1098 ASTM D6195 Loop Tack Fixture is designed for tack force testing of pressure-sensitive adhesives, in conformance with ASTM D6195 and related standards. A looped sample is loaded onto the test strip, and the closed end of the loop is secured by an upper grip (not included - suggested model: G1008). The test strip may be indexed in three positions, allowing for three tests to be performed between cleaning cycles. The strip is secured and released by a lever-operated clamp. An additional set of three test strips is available.
Features
- Designed for loop tack force testing
- Quick-change mechanism for test strips
- Conforms to ASTM D6195
Specifications
| Capacity | 100 lbs / 500 N |
| Weight | 1.10 lbs / 0.5 N |
| Test strip material | T304 SS, per ASTM A666 |
| Standard Accessories | 1 Test strip and 5/16-18 M/M stud with jam nuts |
