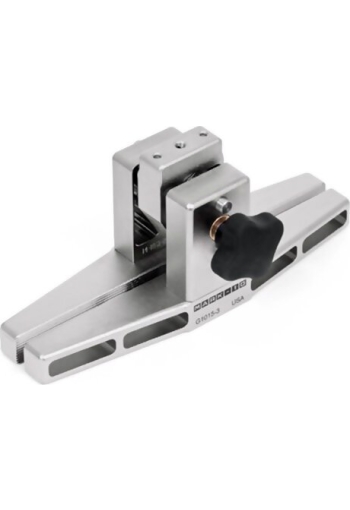

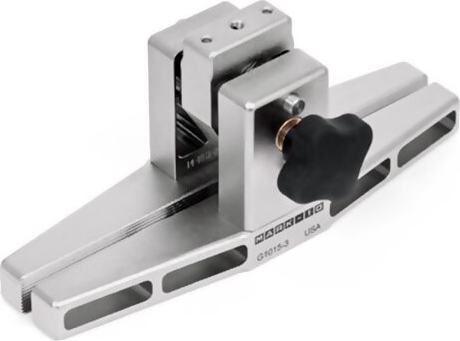

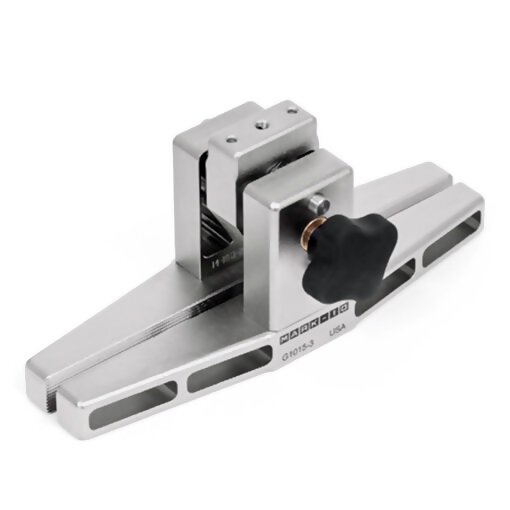

Mark-10 G1015-3 Film and Paper Grip 7", Capacity 100 lb

See More Force Gauge Attachments (Mark10)

Mark-10 G1015-3 Film and Paper Grip 7", Capacity 100 lb

See More Force Gauge Attachments (Mark10)
Price:
$425.00
    warrenty

    Product Description
    Mark-10 G1008 / G1015 Film & Paper Grips

    Tensile testing of film, paper, and other thin materials

    100 lb capacity

    Capacity: 100lb

    The Mark-10 G1008 and G1015 grips are designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 100 lb of force. The Mark-10 G1008 and G1015 grips are available in four sizes: 1.25", 3", 5", and 7". Use them with a force gauge and a test stand to create a complete testing system.


    line
    Specifications
    line

    Model Description
    G1008 Film & paper grip
    Capacity: 100 lb
    Size: 1.18"W x 1.25"D x 2.6"L
    Weight: 0.31 lb
    Thread: #10-32 UNF
    Sample size: 1" wide
    G1015-1 Film & paper grip
    Capacity: 100 lb
    Size: 1.85"D x 3"H x 3"W
    Weight: 0.57 lb
    Thread: #10-32 UNF
    Sample size: 3" wide
    G1015-2 Film & paper grip
    Capacity: 100 lb
    Size: 1.85"D x 3"H x 5"W
    Weight: 0.67 lb
    Thread: #10-32 UNF
    Sample size: 5" wide
    G1015-3 Film & paper grip
    Capacity: 100 lb
    Size: 1.85"D x 3"H x 7"W
    Weight: 0.77 lb
    Thread: #10-32 UNF
    Sample size: 7" wide
