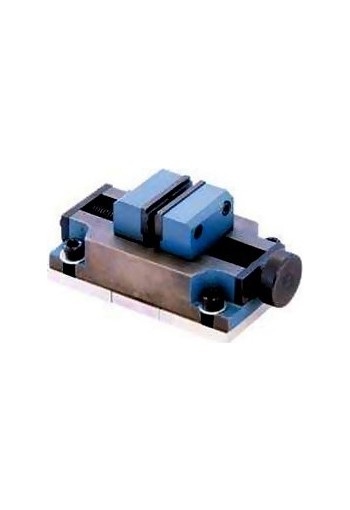

Imada GTW-50 Center-open Vise Grip
2 Capacities 110 lbs (500 N, 50 kgf) and 220 lbs (1000 N, 100 kgf)
Imada GTW-50 Center-open Vise Grip. Available in capacity from 500N (110 lbf, 50kgf) to 1000N (220 lbf, 100kgf).
Features
- Fixture that can be mounted on a test stand to hold and fix samples.
- Able to fix even round shape sample due to its V-groove.
- Center-open Vise Grip
Specifications
| Feature | GTW-50L: Lever/both side movable type. Both side open / Self-centering / Able to fix samples firmly by its lever.
GTW-50R: Knob/both side movable type. Both side open / Self-centering / Higher work efficacy due to its knob. | | Capacity | GTW-50L: 1000N (220 lbf, 100kgf)
GTW-50R: 500N (110 lbf, 50kgf) | | Grip width | 50mm | | Opening width | 68mm | | Weight | Approx. 3kg | *Not suitable for small and short samples
|
|
