Imada DB-1X - DB-2X Data Input Button

See More Force Gauge Attachments

Imada DB-1X - DB-2X Data Input Button

See More Force Gauge Attachments
Price:
$208.00 - $351.00
    warrenty

    Product Description

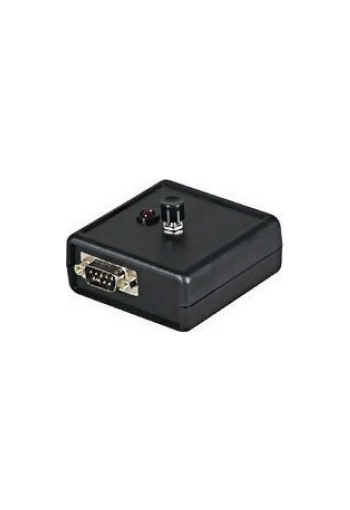

    Imada DB-1X - DB-2X Data Input Button

    Send data to a PC spread sheet with the touch of a button

    Imada DB-1X: one channel model - collects force or torque data

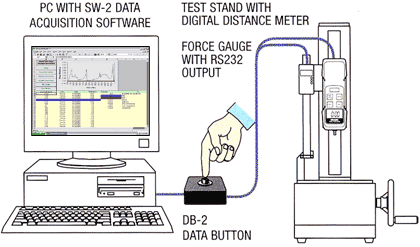

    Imada DB-2X: two channel model - collects both force or torque and displacement data (use with test stands equipped with digital distance meters)

    Imada DB-1X is a simple, compact, one channel interface that enables the user to send measurement data to a PC running SW-1, data acquisition software, or other software.

    Single data mode simplifies peak measuring tests because it also ‘zeros’ the gauge after sending the data to the computer, thus eliminating the need to reset manually for each test.

    Automatic acquisition mode allows users to select different acquisition rates from 20 data/second to 1 data/999.9 seconds. Start data acquisition by clicking the button, then click again to stop, which simplifies start/stop functions by eliminating the need to use computer mouse and screen to control testing. This allows users to focus on the testing rather than the PC and the data acquisition spreadsheet. As a visual confirmation, the LED lamp will light up for both single data and automatic acquisition modes when data is being sent to the computer. No external power supply is needed as power is supplied through the PC. Connect force gauges to the data input button with cable CB203 and the computer to the data button with a 6' DB9 serial cable (included with DB-1X).

    DB-1X can also be initiated with a remote switch

    line
    Features
    line

    • Send data to the PC spread sheet with the touch of a button
    • Select different acquisition rates
    • Zero the gauge

    line
    Diagram
    line

    dimensions

    line
    Related Products
    line

    SW-1
    Data Acquisition Software for Force Gauges & Torque Gauges

    • Full SPC and graphing capabilities
    • Automates your data collection
    • Provides a running log of all measurements along with a chart of the data as well as statistical information
