    Product Description

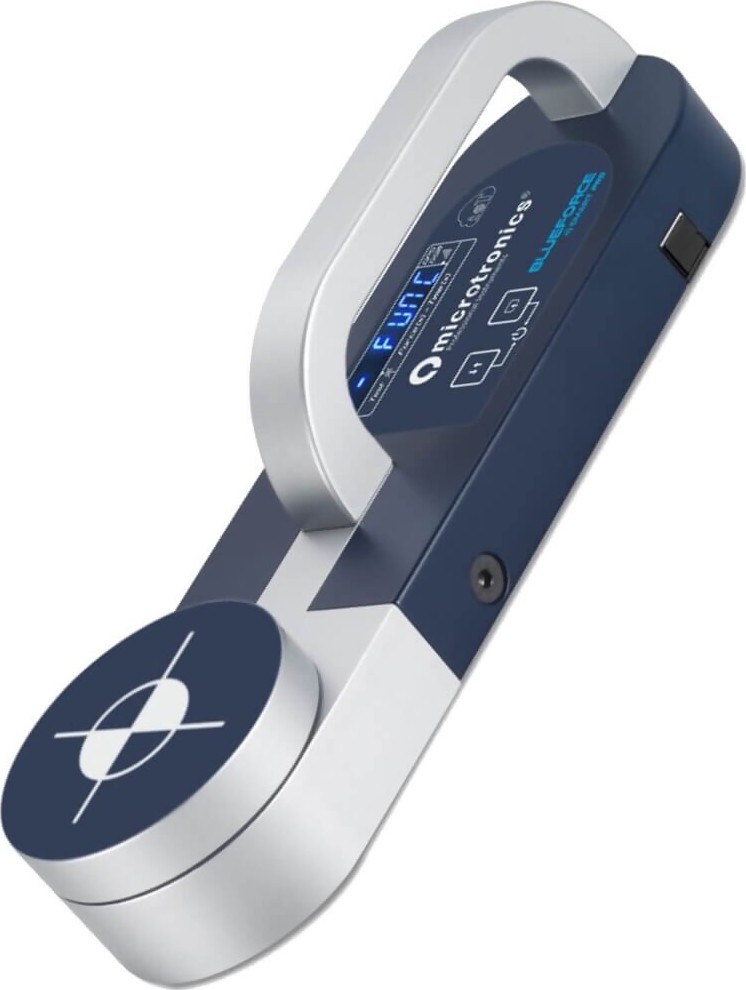

    Microtronics BlueForce Impact Force Gauge
    For use with automatic/power operated doors/gates
    2000N Capacity

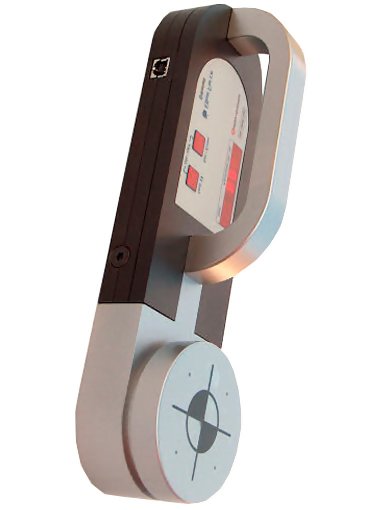

    The Microtronics BlueForce Impact Force Gauge is an impact force gauge for automatic/power operated doors/gates, which complies with standards EN 12445 and EN 12453.

    Imada BlueForce Impact Force Gauge: one of a kind, with dual Bluetooth and USB interface.

    Thanks to the PC-LINK mode, Blue Force can also be linked up to a handheld computer or a PC during testing, allowing immediate viewing of the graph and values, as a well as immediate access to test results.

    The comfortable handle, in an accessible and ergonomic position, ensures a steady grip and matchless manoeuverability; the handle is also easy to remove (using the key supplied) and can be rotated by 180° (i.e. turned upside down).


    line
    Kit Options
    line

    BlueForce Smart is offered in 3 different kits. Microtronics suggests the 50V001B2-PL kit as the best quality-price ratio.

    Every kit includes the software for Windows-PC, whereas the others accessories can be added later.

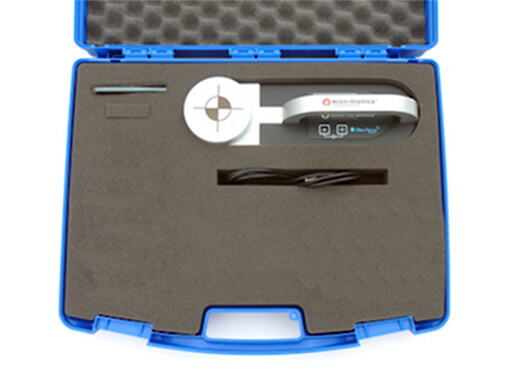

    BlueForce Smart Basic - 50V001B2

    • BlueForce Smart Instrument
    • Bluetooth/NFC Smart functions + App
    • USB cable for PC
    • Hex wrench for handle disassembly
    • Software
    • Certificate of Calibration downloadable from download section
    • Instructions

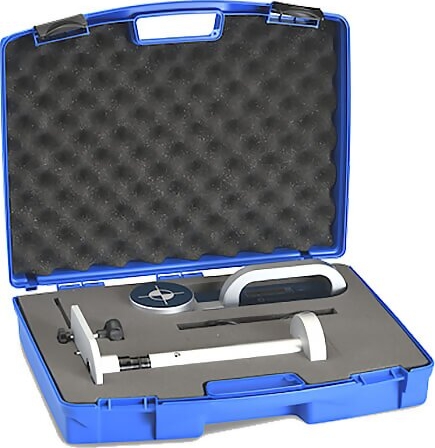

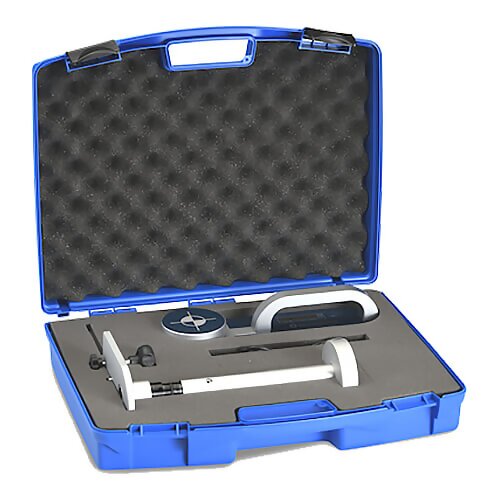

    • Carry-case with pre-formed interior

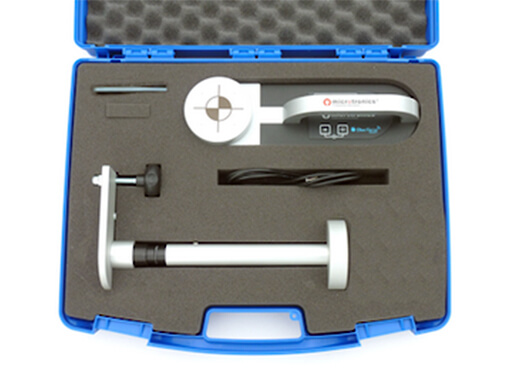

    BlueForce Smart Pl Kit - 50V001B2-PL

    • BlueForce Smart Instrument
    • Straight Extension
    • Bluetooth/NFC Smart functions + App
    • USB cable for PC
    • Hex wrench for handle disassembly
    • Software
    • Certificate of Calibration downloadable from download section
    • Instructions
    • Carry-case with pre-formed interior

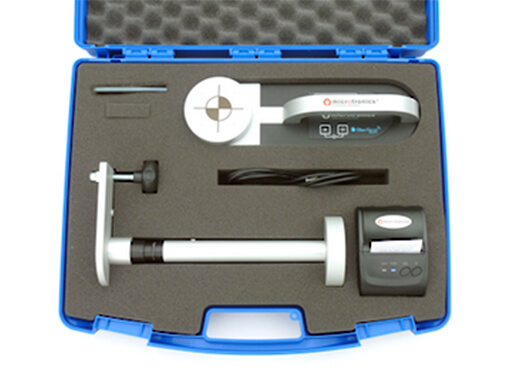

    BlueForce Smart PL Kit + FTP - 50V001B2-PRN

    • BlueForce Smart Instrument
    • Straight Extension
    • Thermal Printer FTP
    • Bluetooth/NFC Smart functions + App
    • USB cable for PC
    • Hex wrench for handle disassembly
    • Software
    • Certificate of Calibration downloadable from download section
    • Instructions
    • Carry-case with pre-formed interior


    line
    Features
    line

    • Software installation and set-up becomes even more straightforward!
    • Offers a fully independent operation mode, in which the parameters and mathematical averages can be displayed
    • Options include: sending, deleting and browsing saved tests (all using an interactive menu).
    • Blue Force is a dual purpose gauge, as it incorporates both a display and internal storage allowing up to 50 measurements to be saved.
    • With the plug'n'go receiver device supplied, the measurements can be conveniently transferred using wireless technology.


    line
    Specifications
    line

    Accuracy 0 - 400 N: 1%
    401-1000 N: 2%
    1001 - 1400 N: 4%
    1401 - 2000 N: 5%
    Range 0 - 2000 N
    Current Absorbed min. 4mA, average 12mA, max. 80mA
    Measuring Interval 6 sec. sampling 1Ksmp/s

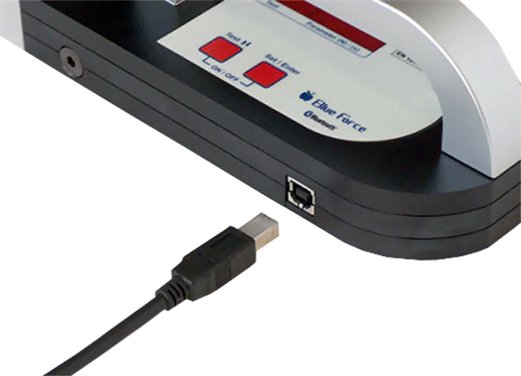

    Interface BLUETOOTH® - USB 1.1
    Power 9V battery
    Weight 1.8 kg ± 10%
    Dimensions (L x W x H) 280mm. X 80mm. X 50mm. ± 5%


    line
    Extension
    line

    Linear Extension

    Angular Extension

    During the use, the instrument has to be supported in way to not alter the results of measures.

    The optional accessories, (thanks to the fast-joint mechanism), permit to carry out measures by using only one hand, while with the other hand it is possible to drive the opening/closing device.


    Two versions are available: The Linear Extension, for measures at 30 or 50 cm. and Angular Extension, for measures from 0,5 mt. to 2,5 mt.
