This product has been replaced by the Imada DST Digital
The Imada DS2 Digital Force Gage has been replaced by the DST Digital Force Gauge
Imada Digital Force Gauge
with Output
Accuracy ± 0.2%
Measure force in lbs, Kgs or N
7 Ranges up to 220 lbs
RS-232C, Digimatic and Analog outputs
Reversible display

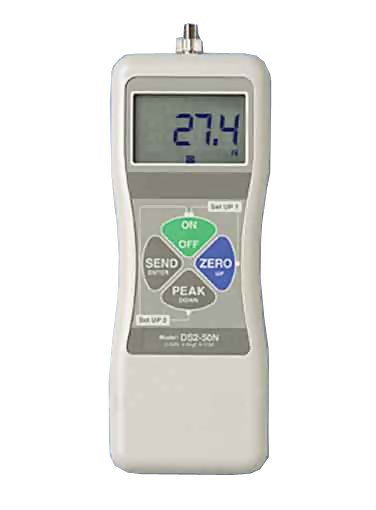

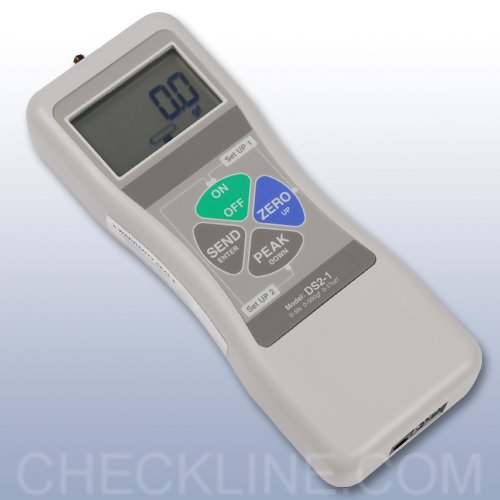

The Imada DS2 digital force gauges feature a large, easy-to-read LCD display and simple push-button operation. An ergonomic metal housing protects the highly accurate loadcell and electronics in tough industrial environments. When measuring, units of measure and a tension or compression icon are displayed. A battery icon indicates the NI-MH batteries are low. If an overload occurs the display will flash to warn you. If desired, you can program high/low setpoints to enable Go/NoGo testing using the LCD indicators. Standard outputs (RS-232C, Digimatic, and ±1VDC analog) enable you to acquire data for permanent record. All DS2 gauges can run on the internal NI-MH batteries or the AC adapter/charger. An optional handle to facilitate the measurement of heavy loads is also available. Optional Handle DOH-1  Features
- Real time and peak mode (selectable)

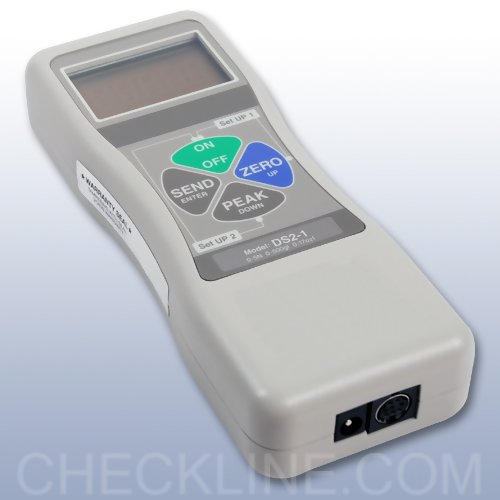

- RS-232C, Digimatic and analog outputs
- 2 Year Warranty
- lb, kg, and Newton units are push-button selectable
- Ergonomic, heavy-duty metal construction
- Overload alarm, low battery display indicator
- Runs on internal NI-MH batteries or AC adapter
- Overload capacity 200% F.S.
- Supplied with NIST Calibration certificate
- Programmable High/Low setpoints with LCD indicators
- User selectable sampling rate, 30 or 1000 per/second (Hertz)

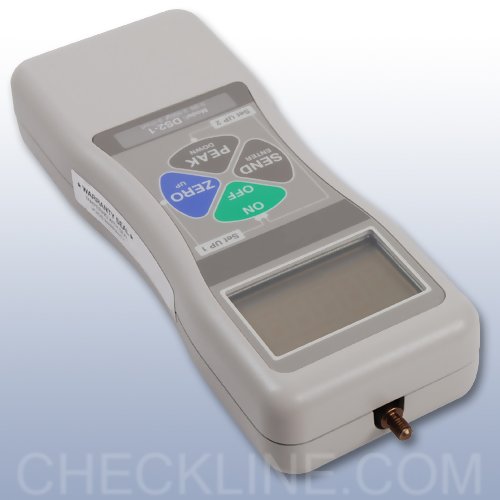

- Reversible Display
- ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
- 2 Year Warranty
Photo Gallery
Force Ranges
| Model | Capacity | Resolution | | DS2-0.4 | 7.00 oz
200 g
2.000 N | 0.01 oz
0.1 g
0.001 N | | DS2-1 | 18.00 oz
500 g
5.000 N | 0.01 oz
0.1 g
0.001 N | | DS2-4 | 4.400 lb
2.000 KG
20.00 N | 0.001 lb
0.001 Kg
0.01 N | | DS2-11 | 11.00 lb
5.000 Kg
50.00 N | 0.01 lb
0.001 kg
0.01 N | | DS2-44 | 44.00 lb
20.00 Kg
200.0 N | 0.01 lb
0.01 kg
0.1 N | | DS2-110 | 110.0 lb
50.00 Kg
500.0 N | 0.1 lb
0.01 kg
0.1 N | | DS2-220 | 220.0 lb
100.0 Kg
1000 N | 0.1 lb
0.1 kg
1 N |
Specifications
| Accuracy | ± 0.2% Full scale ± 1 LSD | | Display | 4 digit, 12 mm high | | Overload capacity | 200% Full scale,
display flashes beyond 105% full scale | | Data Processing Speed | 1,000 data/second (30 data/second rate selectable) | | Display Update | 10 times per second | | Outputs | RS-232, Mitutoyo Digimatic and ±1 VDC analog output | | Temperature range | 32° to 100° F (0 - 40° C) | | Low battery indicator | Display flashes when battery is low | | Power supply | Rechargeable NiMH battery pack or AC adapter (included) | | Setpoints | Programmable high/low setpoints with LCD indicators | | Housing dimension | 215 x 65 x 51 mm (L x W x H) | | Weight, net (gross) | approx. 430 g (1300 g) | | Warranty | 2 Years |
Related Products
MESURgauge
Mesurgauge Load & Travel Analysis Software - Sends data from a force or torque gauge and travel display to a PC for further analysis
Complete Kit

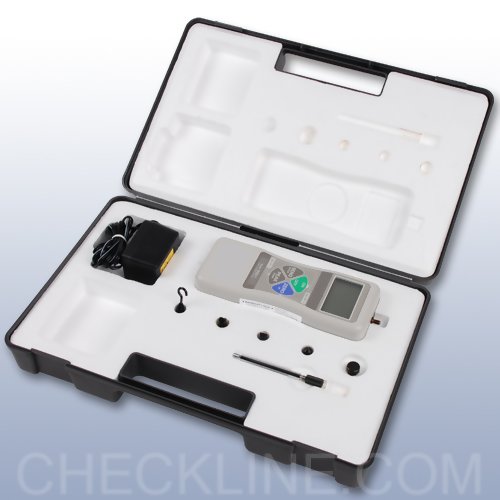

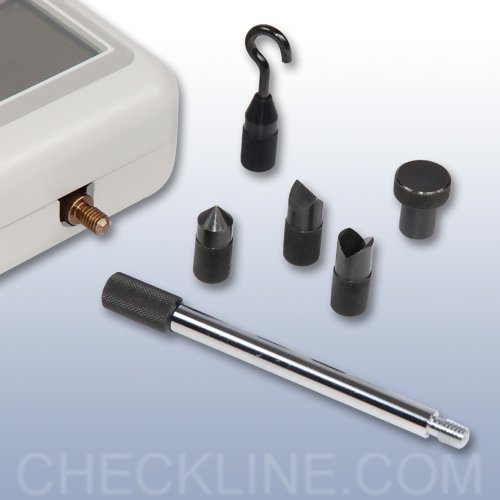

All DS2 gauges are sold in a complete kit with gauge, hard plastic carrying case, a set of six measuring adapters and AC adapter/charger.
