    Product Description
    Solar Powered Digital Force Gauge - Basic Model

    3 Ranges up to 110 lbs / 50 Kg / 500 N

    IP65 Splash-proof Housing

    Alluris FMI-S10 Digital Force Gauge are based on their own power supply by thesolar cell especially for mobile use in quality control, for quick andeasy measurements in industrial environments and also well suited foroutdoor applications.

    The extremely robust sensor module is integrated in the housing suchthat an optimal overload protection is accomplished by up to 500%. Themeasured values are in a big screen displayed either in the SI unit ofNewton or in units of weight.

    The force or pressure for train is on the M6-wave measurement,standard adapters are included. For hand-held measurements, additionalhandles are mounted on the housing. For this purpose, as well as for thetest stand fixture, inner thread provided on the housing.

    The simple application of the meter FMI-S10 in combination with a highaccuracy and affordability are hallmarks of this instrument.


    line

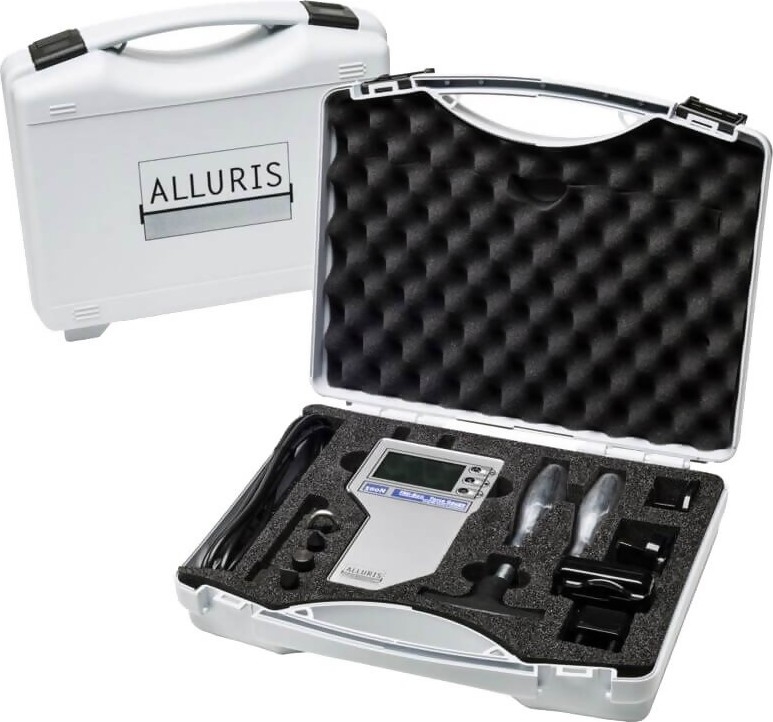

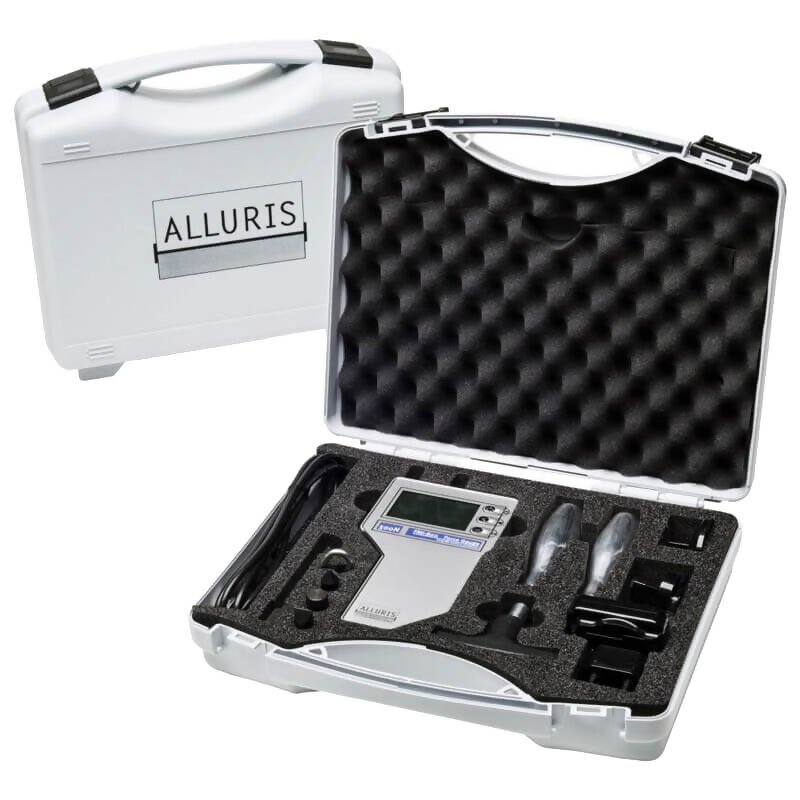

    Kit Contents
    line

    • Alluris FMI-S10 Digital Force Gauge
    • Notched
    • Cone
    • Hook
    • Chisel accessories
    • Manual
    • Carrying case


    line
    Features
    line

    • Always ready through independent power supply with photovoltaics
    • Automatic display adjustment use as a handheld device and for installation in a test stand
    • Outdoor use, splash protection IP65 (range from 500N)
    • Overload protection to 500% through rugged die-cast aluminum housing


    line
    Specifications
    line

    Accuracy @ 23°C (F.S.): +/- 0.3% (+/- 1 digit)
    Tk (absolute): Automatic balancing - Auto-Tara
    Tk (relativ): +/- 0.02% (°K)
    Measuring Principle Bi-directional sensor with strain gauges and high-speed data processing μProzessor
    Operation Mode Display the current value, either in c-N, N, g-f, Kg-f, oz or lb Maximum levels from tensile and compression (pointer function)
    Overload 500% (F.S.) *bei 5 kN 200%
    Display LCD, 5-digit, 12 mm high
    Display Update 1000 msec, 500 msec, 200 msec or 100 msec (selectable)
    Power Supply solar cell
    Temperature Range 32 - 104 °F (0 - 40 °C)
    Weight 1 lbs (100%g)

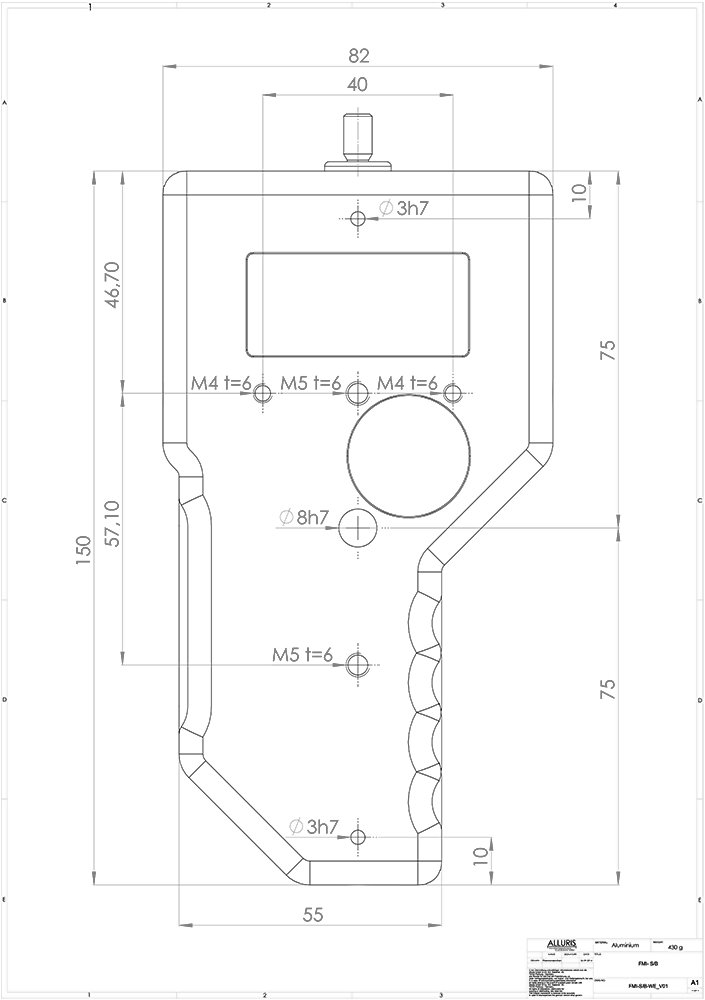

    Dimensions 6 x 3 x 1 in (150 x 82 x 29 mm)
    Housing Material Aluminium dye cast
    Fixing 2 x M4, 2 x M5, centering holes


    line
    Force Ranges
    line

    Model Range Resolution
    FMI-S10B5 0 - 50 N 0.05 N
    FMI-S10C1 0 - 100 N 0.1 N
    FMI-S10C5 0 - 500 N 0.5 N
    FMI-S10K1 0 - 1000 N 1 N
    FMI-S10K5 0 - 5000 N 5 N
