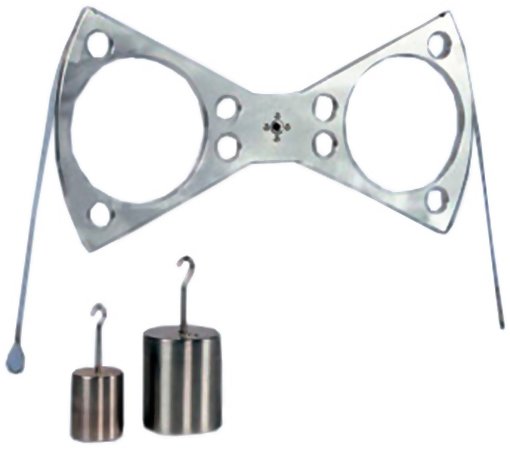

    Imada SBK-492 Calibration Fixture for DTX2 Cap Torque Tester
    Load Weight Sold Separately

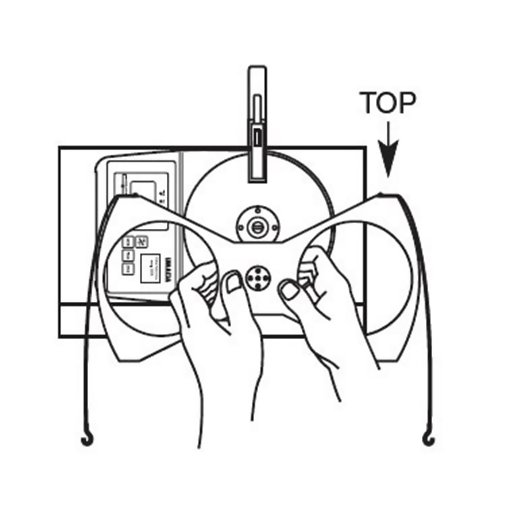

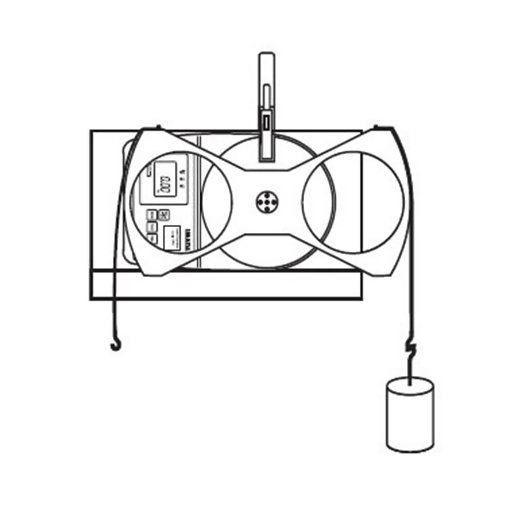

    The Imada SBK-492 Calibration Fixture for DTX2 Cap Torque Tester is a precision calibration fixture for the DTX2 Cap Torque Tester, allowing you to test and recalibrate in-house. Requires a precision weight set, refer to table below for required weights. (must be purchased from alternate vendor).


    line
    Specifications
    line

    ModelDTX / DTX2-15DTX / DTX2-40DTX / DTX2-85
    Capacity (kgf-cm)20.0050.00100.0
    Allowable Range (kgf-cm)19.90 ~ 0.1049.75 ~ 50.2599.5 ~ 100.5
    Allowable Tolerance (kgf-cm)0.100.250.5
    *Weight (kg)12.55
    *Weight is appropriate for 20 cm radius calibration arm
