ElektroPhysik 80-810-0000 SecoTest Cross Hatch Cutter Handle - BLADES SOLD SEPARATELY

See More Coating Thickness Gauges

ElektroPhysik 80-810-0000 SecoTest Cross Hatch Cutter Handle - BLADES SOLD SEPARATELY

See More Coating Thickness Gauges
Price:
$300.00
    warrenty

    Product Description
    Blades Sold Separately
    For testing according to ISO 2409 and ASTM D3359-02
    Multi cutting blade with 6 cutting edges
    Cutting edges lie on the surface
    With Magnifying glass for clear evaluation of the cut edges

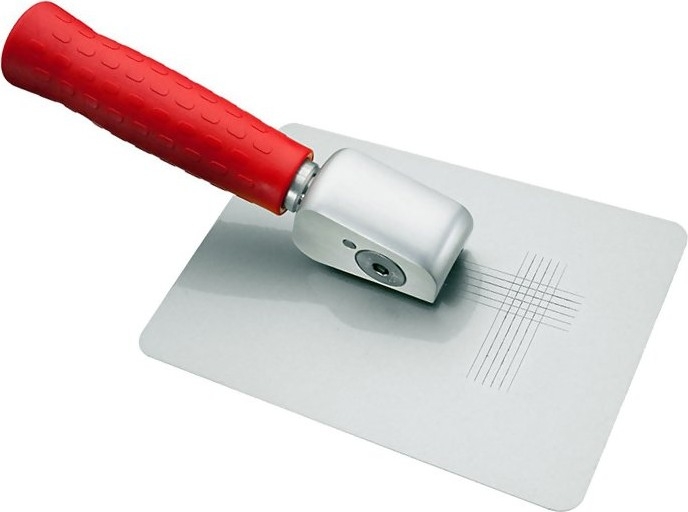

    Exceptionally strong and handy cross hatch cutter made on the lines of DIN EN ISO 2409 and ASTM D3359-02 to conduct cross cut tests. The SecoTest is used for the assessment of adhesiveness of single or multiple coatings (varnishes, synthetic materials, etc.) on hard (steel) and soft (wood) substrates.

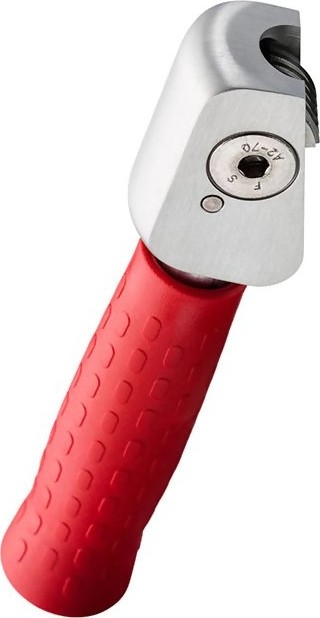

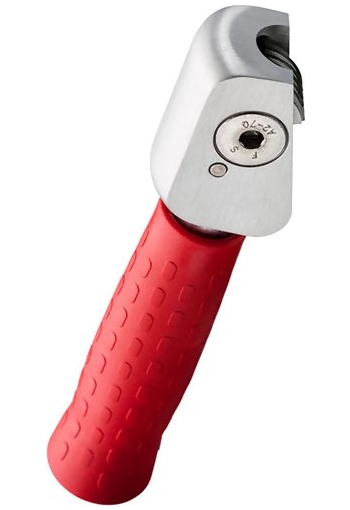

    The cross cut testers of the SecoTest series consist of a sturdy holder for the six-edge multi cutting blade and a rotatable non-slip grip, which prevents the multi cutting blade from canting.

    To ensure that this procedure is repeatable, put the test object through a suitable conditioning process (see DIN EN ISO 2409, section 6); while testing at construction sites make a note of the ambient conditions in the test report.

    The procedure defined by ISO 4642 can be employed to measure adhesiveness.


    line

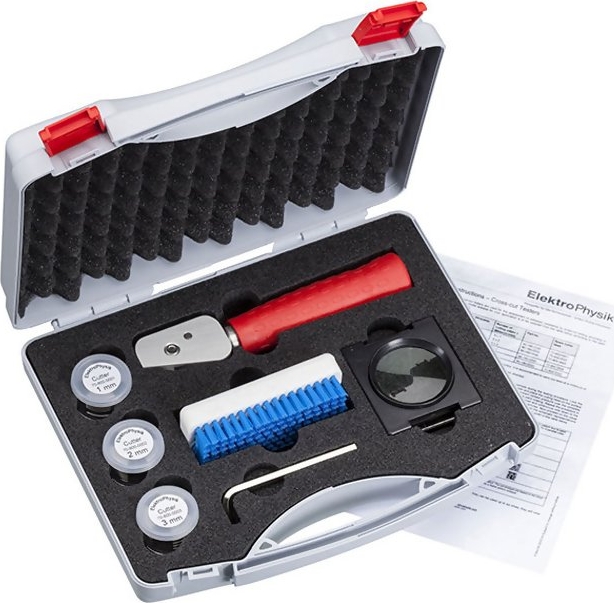

    Kit Contents
    line

    • SecoTest gauge with cutting head
    • Hex tip screwdriver for changing the blades
    • Magnifier for visual inspection
    • Brush
    • Carrying case
    • Instruction Manual

    Blades are sold separately


    line
    Features
    line

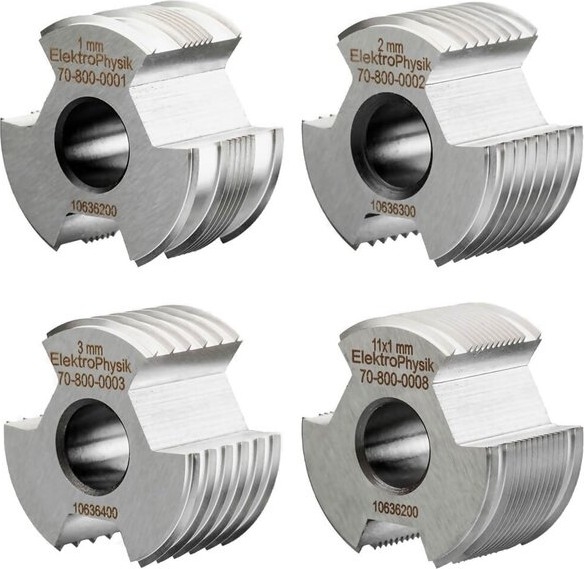

    • High-grade, tool-steel multi cutting blade in 4 different models with standard cutting-edge geometry
    • Movable cutter head
    • Multi cutting blade with 6 cutting edges
    • Versions for tests according to DIN EN ISO 2409 and ASTM D 3359
    • Cutting edges lie on the surface
    • With Magnifying glass for clear evaluation of the cut edges


    line
    Specifications
    line

    Dimensions 18 x 3,8 x 3 cm
    Weight 330 gram
    Warranty 1 year

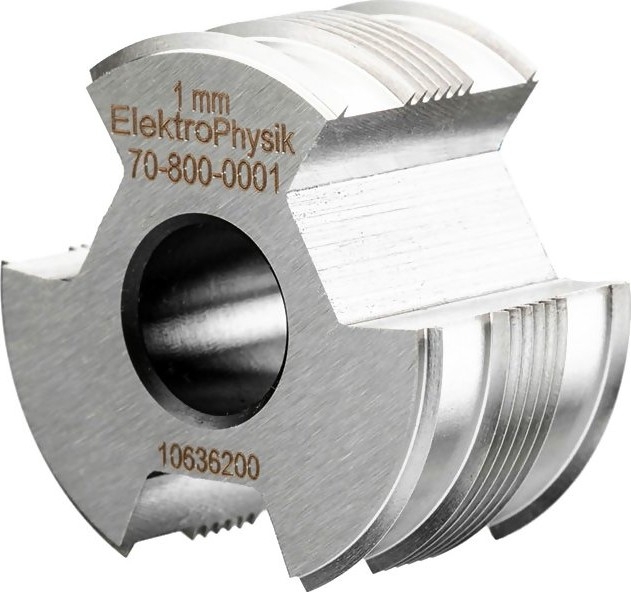

    lineSecoTest 1

    Coating Thicknessup to 60 μm on hard substrates (e.g. metal, plastics)
    6 x 1 mmNumber of cutting edges x distance (mm)
    NormDIN EN ISO 2409


    lineSecoTest 2

    Coating Thicknessup to 60 μm on soft substrates (e.g. wood, render)
    Coating Thicknessfrom 61 μm to 120 μm on hard and soft substrates

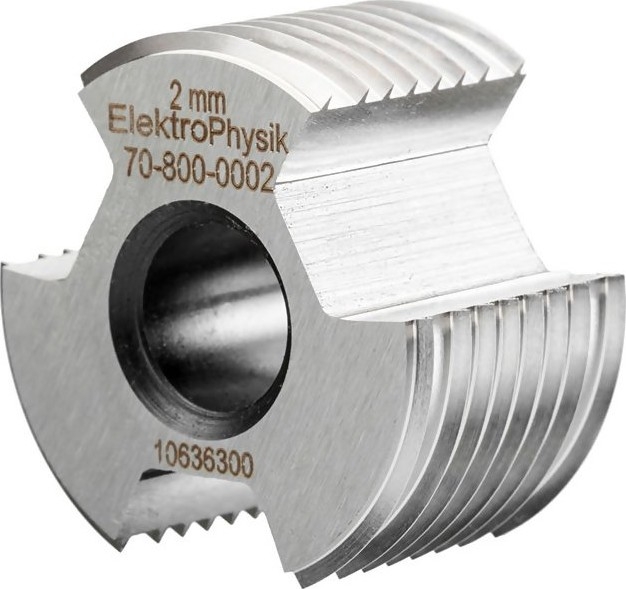

    6 x 2 mmNumber of cutting edges x distance (mm)
    Norm DIN EN ISO 2409


    lineSecoTest 2

    Coating Thickness from 51 μm to 125 μm
    6 x 2 mm Number of cutting edges x distance (mm)
    Norm ASTM D 3359

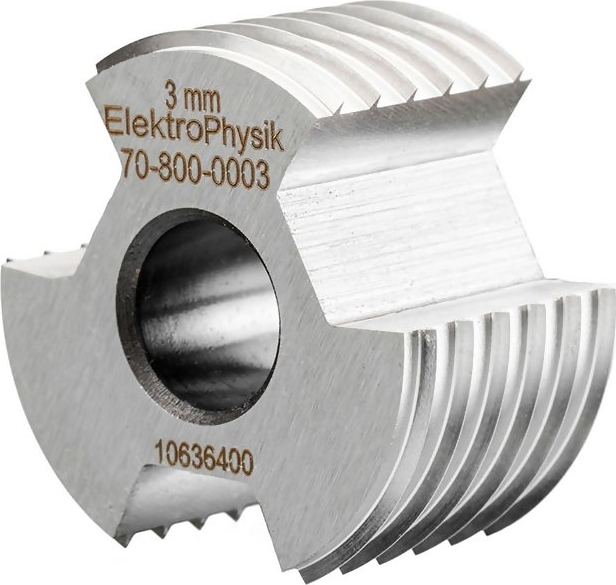

    lineSecoTest 3

    Coating Thicknessfrom 121 μm to 250 μm on hard and soft substrates
    6 x 3 mmNumber of cutting edges x distance (mm)
    NormDIN EN ISO 2409

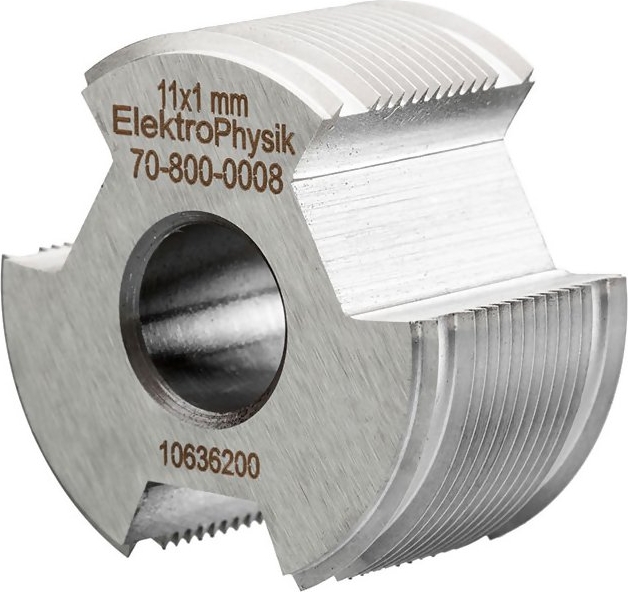

    lineSecoTest 4

    Coating Thicknessup to 50 μm
    11 x 1 mmNumber of cutting edges x distance (mm)
    NormASTM D 3359


    line
    Downloads
    line

    ElektroPhysik SecoTest Cross Hatch Cutter - Data Sheet
    ElektroPhysik SecoTest Cross Hatch Cutter - Instruction Manual
