DeFelsko FRS3-G PosiTector 6000 FRS3 Coating Thickness Gauge with Advanced Gage Body, Right Angle Cabled Probe FRS, Measures Coatings on Ferrous Metals, 0-60 mils

See More DeFelsko PosiTector 6000

DeFelsko FRS3-G PosiTector 6000 FRS3 Coating Thickness Gauge with Advanced Gage Body, Right Angle Cabled Probe FRS, Measures Coatings on Ferrous Metals, 0-60 mils

See More DeFelsko PosiTector 6000
Price:
$1,330.00
    warrenty

    Product Description
    DeFelsko FRS3-G PosiTector 6000 FRS3 Advanced Ferrous Coating Thickness Gage with right angle cabled probe for general purpose paint and coating applications
    Model: FRS3-G with Advanced Body
    Storage: 250,000 readings in up to 1,000 batches and sub-batches
    Substrate: Ferrous Metals
    Range: 0 - 60 mils (0 - 1500 µm)

    The DeFelsko FRS3-G PosiTector 6000 FRS3 Advanced Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles.

    The PosiTector 6000 FRS3 features a right angle probe for measuring within areas of low headroom. This constant-pressure, stainless steel probe is hermetically sealed to be totally waterproof - ideal for underwater use.

    The DeFelsko PosiTector 6000 FRS3 Advanced Ferrous Coating Thickness Gage for general purpose applications features a NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.


    line
    Kit Contents
    line

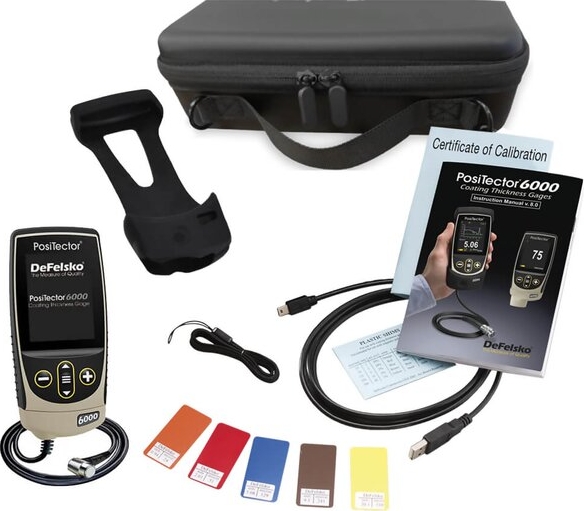

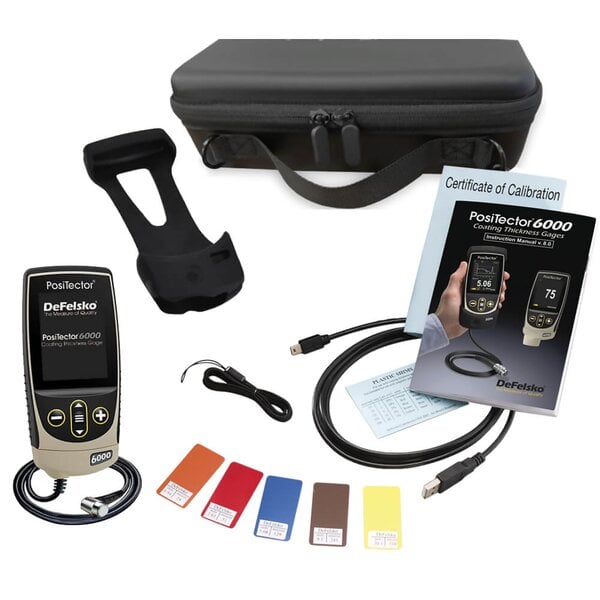

    The DeFelsko PosiTector 6000 FRS3 Advanced Coating Thickness Gage Kit includes everything needed for testing:

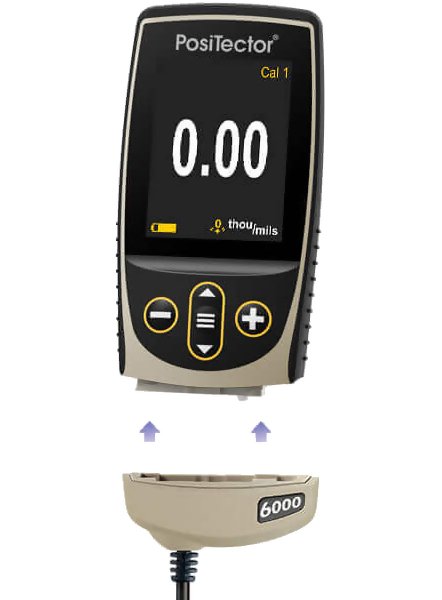

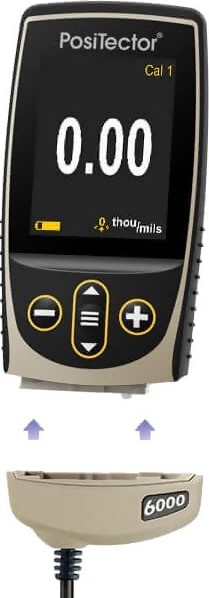

    • PosiTector Advanced Gage Body BDYADV-G
    • PosiTector 6000 Probe PRBFRS-D
    • Precision plastic shims
    • Protective rubber holster with belt clip
    • Wrist strap and protective lens shield
    • 3 AAA alkaline batteries
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration traceable to NIST or PTB
    • Convenient carrying case and instructions
    • Two (2) year warranty


    line
    Features
    line

    Simple

    • NEW Faster measurement speed - 60+ readings per minute
    • Ready to measure - no calibration adjustment required for most applications
    • Enhanced one-handed menu navigation
    • Flashing display - ideal in a noisy environment
    • RESET feature instantly restores factory settings

    Durable

    • Solvent, acid, oil, water and dust resistant - weatherproof
    • Wear-resistant probe tip
    • Shock-absorbing, protective rubber holster with belt clip
    • Two year warranty on gage body AND probe

    Accurate

    • Certificate of Calibration showing traceability to NIST or PTB included (Long Form)
    • Built-in temperature compensation ensures measurement accuracy
    • Hi-RES mode increases displayed resolution for use on applications that require greater precision
    • Conforms to national and international standards including ISO and ASTM

    Versatile

    • Multiple Calibration adjustment options including 1 point, 2 point, known thickness, average zero

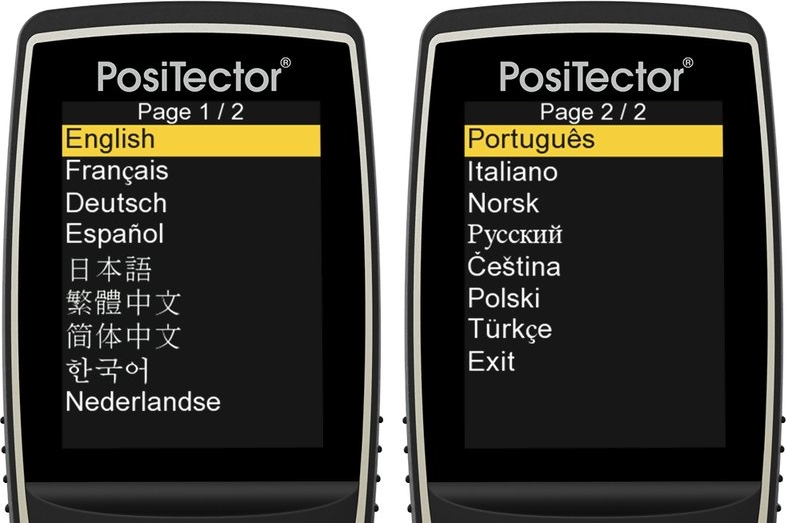

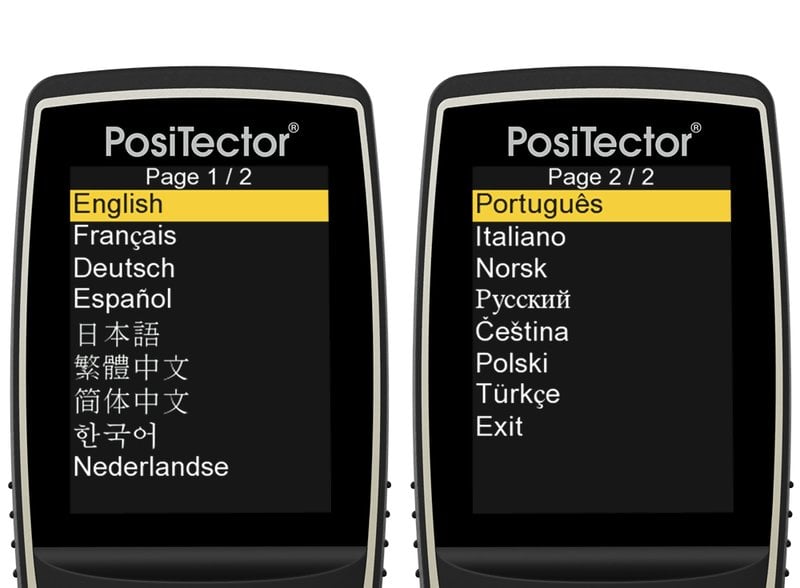

    • Selectable display languages
    • High contrast LCD with backlit display
    • Flip display enables right-side-up viewing
    • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
    • Uses alkaline or rechargeable batteries (built-in charger)
    • Mils/Microns/mm switchable

    Powerful

    • Statistics mode continually displays/updates average, standard deviation, min/max thickness and number of readings while measuring
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • NEW Enhanced FAST mode - 90+ readings per minute for quick inspection

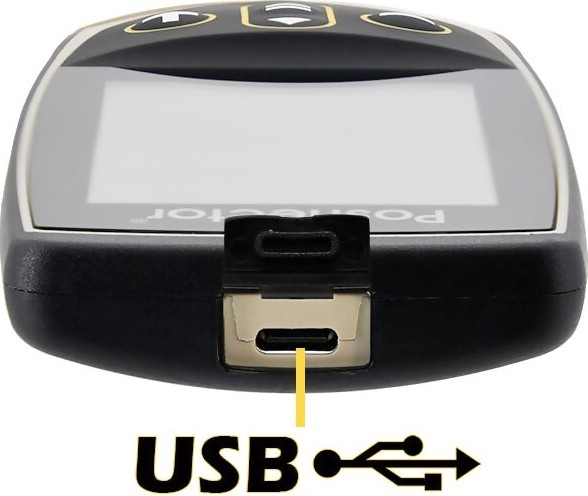

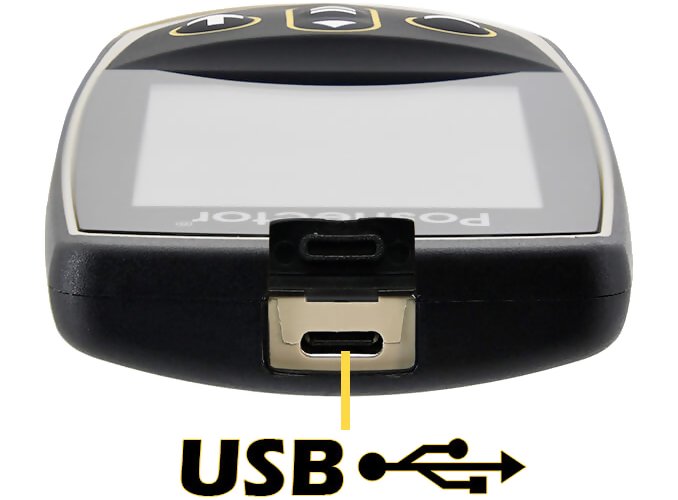

    • Sealed USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
    • Software Updates via web keep your gage current
    • Screen Capture – record and save image into USB flash memory for record keeping and review

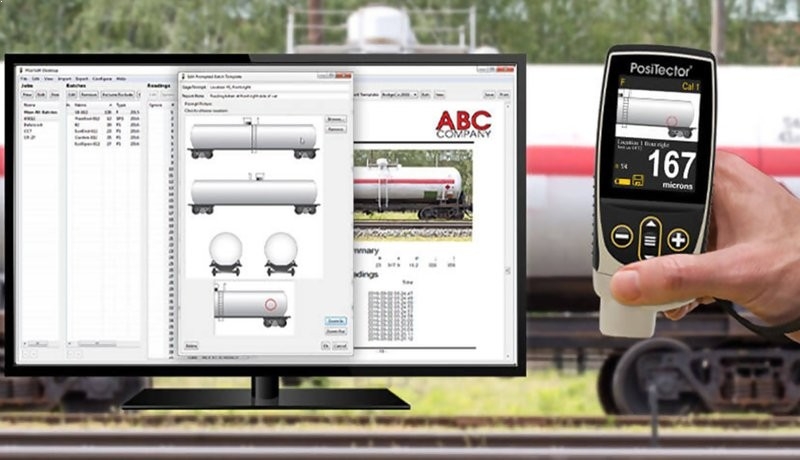

    • Software Solutions for viewing, analyzing & reporting data
    • Every stored measurement is date and time stamped


    line
    Advanced Model Features
    line

    • Includes ALL features as shown above plus:
    • Storage of 250,000 readings in up to 1,000 batches and sub-batches
    • Live graphing of measurement data
    • 3 Scan Modes - increase measurement speed to 180+ readings per minute
      • Normal - take continuous readings without lifting the probe
      • NEW Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
      • NEW Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
    • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
    • SSPC-PA 2 feature determines if film thickness over a large area conforms to user-specified min/max levels
    • PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
    • Onscreen Batch Annotation-add notes, change batch names and more with built-in QWERTY keyboard
    • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
    • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
    • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols



    Specifications

    Measuring principle magnetic induction principle (Ferrous)
    eddy-current principle (Non-Ferrous)
    Display High contrast, reversible color LCD
    Data Output USB - "1" & "3" Models
    Bluetooth - "3" Models
    Power 3 AAA batteries, Included
    Dimensions 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
    Weight 5.8 oz. (165 g) without batteries
    Protection Class Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
    Warranty 2 Years
    Calibration Certificate Certificate of Calibration showing traceability to NIST included



    Probe Specifications

    Range: 0 - 60 mils
    0 - 1500 μ
    *Accuracy: ± (0.05 mils + 1%) 0 - 2 mils
    ± (0.1 mils + 1%) > 2 mils
    ± (1 μ + 1%) 0 - 50 μ
    ± (2 μ + 1%) > 50 μ



    PosiSoft Suite of Software

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


    line
    FAQ's - Frequently Asked Questions
    line

    Click to View DeFelsko PosiTector 6000 Frequently Asked Questions

    line
    Related Products
    line

    Bluetooth Printer
    PRINTERBT

    • For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI

    line

    DeFelsko Certified Coated Metal Plates

    • Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage

    line

    DeFelsko SMLINK
    PosiTector SmartLink Wireless Module

    • Wirelessly connect PosiTector probes to smart devices wit the Positector SmartLink


    line
    Downloads
    line

    DeFelsko PosiTector 6000 Coating Thickness Gages - FRS Ordering Guide
    DeFelsko PosiTector 6000 Coating Thickness Gages - Full Instruction Manual
    DeFelsko PosiTector 6000 Coating Thickness Gages - Literature
    DeFelsko PosiTector 6000 Coating Thickness Gages - Quick Guide
    DeFelsko PosiTector 6000 Coating Thickness Gages - Online Instructions Manual
    DeFelsko Accessories for Inspection Instruments - Online Catalog
