DeFelsko Dollies for PosiTest AT Adhesion Testers

Description
Price: $35,00 to $350.00
DeFelsko Dollies for PosiTest AT Pull-Off Adhesion Tester

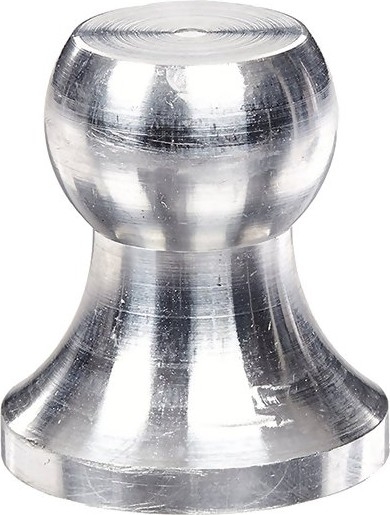

Positest AT dollies are ideal for use with PosiTest AT-A or PosiTest AT-M models for measuring coating bond strengths on metal substrates. Featuring spherical heads, PosiTest at dollies automatically self-level on uneven surfaces. Precision-machined DeFelsko dollies are manufactured to exacting tolerances, to ensure maximum repeatability, and compatibility with all PosiTest at models.



Features

  • Loading fixtures, stubs for adhesion testing

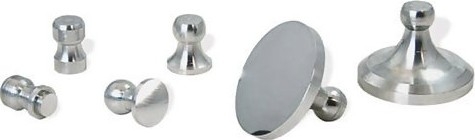

  • 10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths
  • Genuine, precision-machined DeFelsko dollies for maximum repeatability
  • Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces
  • For use with PosiTest AT-A or PosiTest AT-M




Videos







Dollies and Related Products

Dollies
Loading fixtures, stubs for adhesion testing. Choose from the following sizes and quantities:

SizeQuantityOrder Code
10 mm10DOLLY10
14 mm10DOLLY14
20 mm10DOLLY20
50 mm4DOLLY50
related


line

Dolly Multipacks
Larger quantity of dollies at a reduced cost. Select from the following multipacks

SizeQuantityOrder Code
10 mm100DOLLY10APK100
14 mm100DOLLY14APK100
20 mm100DOLLY20APK100
50 mm50DOLLY50APK50
related


line

20 mm Conversion Kit
Order Code: AT20KIT

  • Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 10, 14 and 20 mm dollies
  • Ideal for high bond strength finishes such as coatings on metal
  • Includes 20 mm stand-off, 20 mm hole saw and 20 mm aluminum test dollies (20)
related

line

50 mm Conversion Kit
Order Code: AT50KIT

  • Interchangeable stand-off allows a PosiTest ATM20 or ATA20 to pull 50 mm dollies
  • Ideal for lower bond strength finishes such as coatingson wood, concrete and plastic
  • Larger surface area of dolly provides improved low range precision and repeatability
  • Includes 50 mm stand-off, 50 mm hole saw and 50 mm aluminum test dollies (12)
related

line

Drilling Template for 50 mm Dollies
Order Code: TMPLTAS

  • Drilling template and drill bits to isolate test area, ideal for thicker coatings on concrete
  • Includes (10) drill bits 5/32" (4 mm)
related

line

Glue Kit
Order Code: ATADHESIVEKIT

  • ResinLab EP11HT 2-Part Epoxy
  • Additional glue, mixing sticks, palettes and cotton swabs
related


line
Downloads
line

DeFelsko Dollies for PosiTest AT Adhesion Testers Glue Kit - Data Sheet
