Measuring Range in Steel
0.040 - 8.00 inches

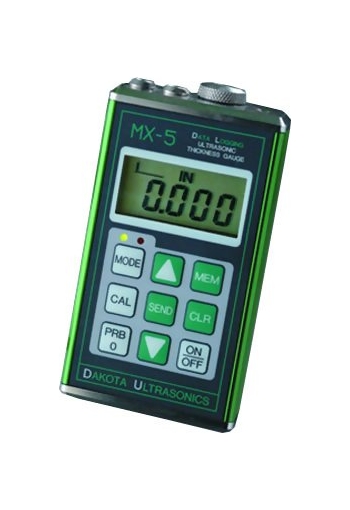

1.00 - 199.0 mm The Dakota Ultrasonics MX-5DL Data-Logging Ultrasonic Thickness Gauge is a simple to operate Ultrasonic Thickness Gauge with an internal data logger. It offers features that make your job easier. An Alarm mode, Differential mode, high speed scanning, and data send are the main features of the MX-5 DL. MX-5DL Data-Logging Ultrasonic Thickness Gauge will automatically log your readings in numeric order (1 to 1000 readings). The gauge comes as a complete kit, ready to use, and is backed by our 5 year limited warranty.
Features
- Resolution of 0.001 inch (0.01 mm)
- Large, backlit LCD display retains last reading
- Simple operator controls virtually eliminate training
- Special-purpose probes are offered for a variety of applications
- Switch-selected units for inches or mm
- CE Certified
- For underwater surveying, probe cable lengths up to 50 feet are optionally
- Differential Mode
- Alarm Mode
- RS232 output sends thickness readings to a printer, computer or other external storage device
- Automatic numeric Data Logging system 1 to 1000 readings
- Includes NIST Calibration Certificate
Typical Applications
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | | Minimum Radius for Concave Surfaces | 3" (76.2 mm) | | Minimum Headroom | 1" (25.0 mm) | | Minimum Sample Diameter | 0.150" (3.8 mm) | | Minimum Substrate Thickness - F | na | | Minimum Substrate Thickness - NFe | na |
Specifications
| Range in Steel | 0.040-8.00" (1.00-199.9 mm) | | Resolution | .001" (0.01 mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Velocity Range | 6,500-33,000 ft./sec (2000-10,000 m/sec.) | | Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) | | Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. | | Battery Type | Two AA batteries | | Battery Life | 200 hours | | Weight | 7 ounces (196 g) | | Size | 2.5 x 4.5 x 1.25"
(64 x 114 x 32 mm) | | Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probes: 90 Days |
Complete Kit
The MX-5DL Data-Logging Ultrasonic Wall Thickness Gauge is supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carrying case
