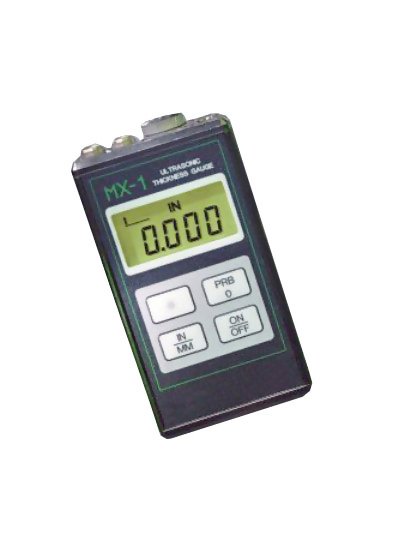

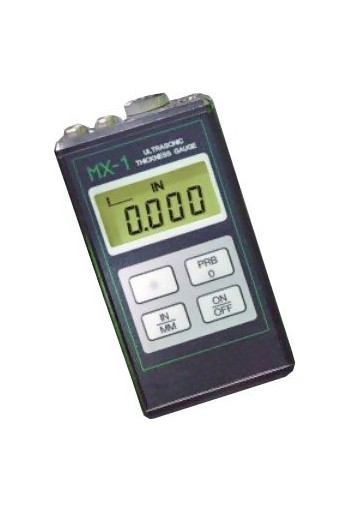

The Dakota Ultrasonics MX-1 Ultrasonic Thickness Gauge will hold a single velocity, making it the perfect choice applications where only one material is being tested day after day. With the preset velocity in the gauge, you simply turn the MX-1 Ultrasonic Wall Thickness Gauge on and go to work. The tool's backlit display is easy to read, even in dim light conditions, and the unit operates for up to 200 hours on a single set of AA batteries. MX-1 Ultrasonic Thickness Gages come complete, ready to use, and is protected by Dakota Ultrasonics 5 year limited warranty Applications: | Corrosion & Pitting Tube & Pipe Tanks | Boilers Glass Variety of Applications |
Features
- Multi-function 4.5 digit liquid crystal display with 0.500 inch numerals, backlit for use in poor light conditions
- Measurements displayed in inches, inches/microsecond, millimeters, and meters/second
- Measures from 0.025 to 19.999 inches (0.63 to 199.99 millimeters) switch to select English or metric units
- Four readings per second for single point measurements
Typical Applications
Measuring Limits
| Minimum Radius for Convex Surfaces | 0.350" (8.89 mm) | | Minimum Radius for Concave Surfaces | 3" (76.2 mm) | | Minimum Headroom | 0.150" (3.8 mm) | | Minimum Sample Diameter | 0.150" (3.8 mm) | | Minimum Substrate Thickness - F | na | | Minimum Substrate Thickness - NFe | na |
Specifications
| Measuring Range | 0.025 to 19.999 inches
0.63 to 199.99 millimeters | | Resolution | 0.001 inch
0.01 millimeter | | Velocity Range | .0492 to .3937 in/µs
1250 to 10,000 meters/sec | | Dimensions | 2.5 W x 4.75 H x 1.25 D inches | | Range in Steel | 0.040-6.000" (1.00-150.0 mm) with supplied probe. Other probes available. | | Resolution | .001" (0.01 mm) | | Display | 4½ - Digit, 0.5" Backlit LCD | | Probe | 1/4", 5 MHz, actual wearface is 5/8" (17mm) | | Cable | 4 ft. (1.2 m) waterproof cable with non-polarized, quick-disconnect connectors. Optional lengths up to 50 ft. (15 m). | | Temp. Limits | Ambient: -20 to 120° F (-30 to 50° C)
Material: -0 to 200° F (-20 to 100° C
Special high temperature probes are optionally available. | | Battery Type | Two 1.5V alkaline or 1.2V NiCad AA cells. | | Battery Life | Typically operates for 200 hours on alkaline and 130 hours on NiCad. | | Weight | 10 ounces (283 g) | | Accessories Included | Probe/cable assembly. 4 oz. bottle of coupling fluid, NIST Calibration Certificate, 2 AA batteries, operating instructions, hard-plastic carrying case. | | Warranty | Gauge: 5 Years
Probes: 90 Days |
Complete Kit
The MX-1 Ultrasonic Wall Thickness Gaugeis supplied as a complete kit with the gauge, probe, 4 oz. bottle of coupling fluid, 2 AA batteries, NIST Calibration Certificate, and Operating Instruction Manual - all in a foam-fitted carryingcase
Related Products
CF12
Coupling Fluid - Used to create an ultrasonic coupling between the probe and material to be measured
- 12 oz Bottle
V-Block
Transducer Holder - The V-Block transducer holder offers the operator greater control and repeatabily when measuring on pipes and other curved areas
|
