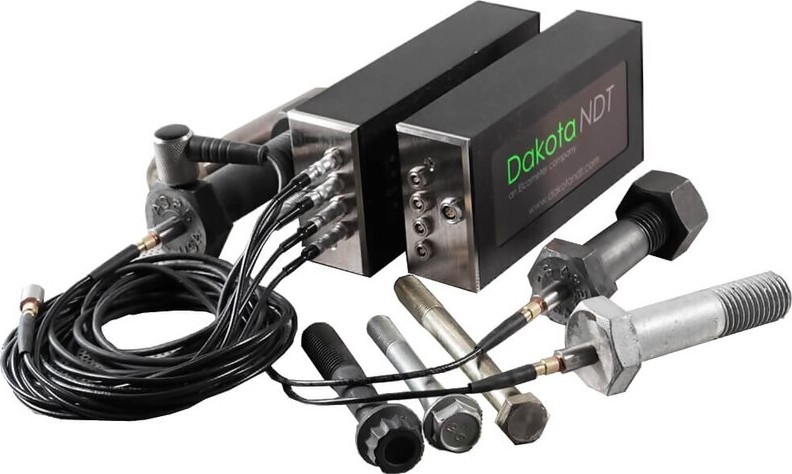

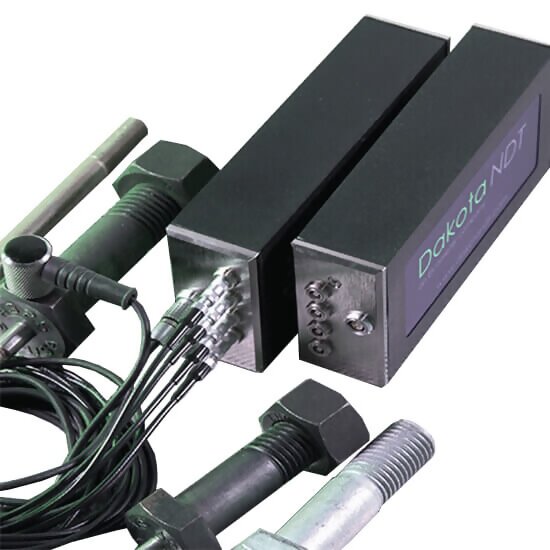

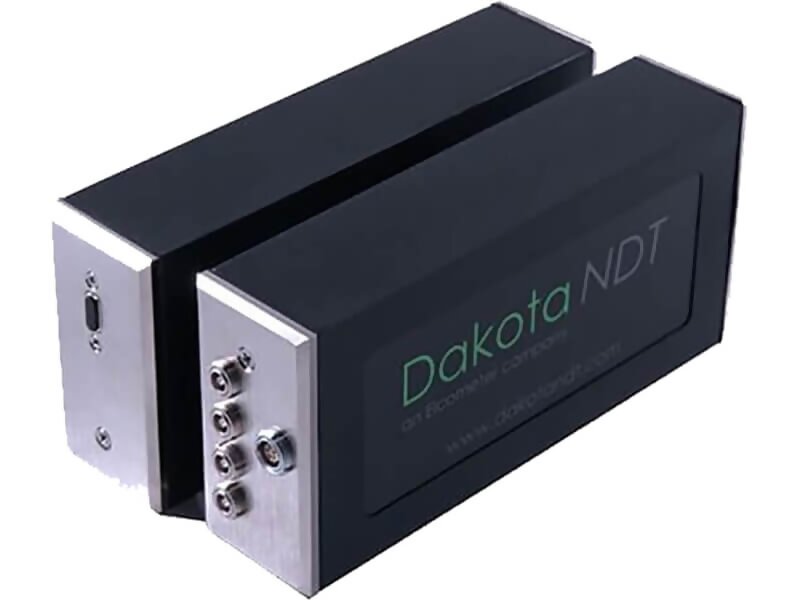

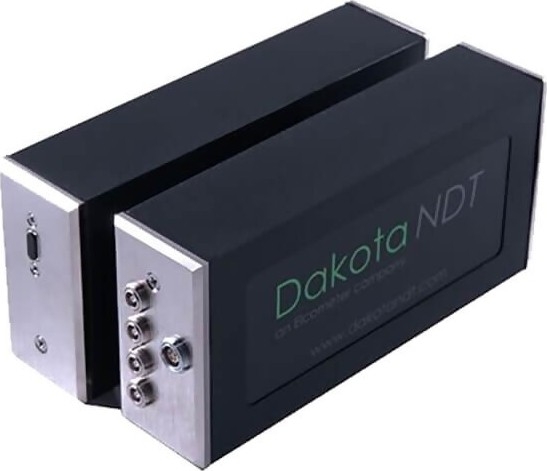

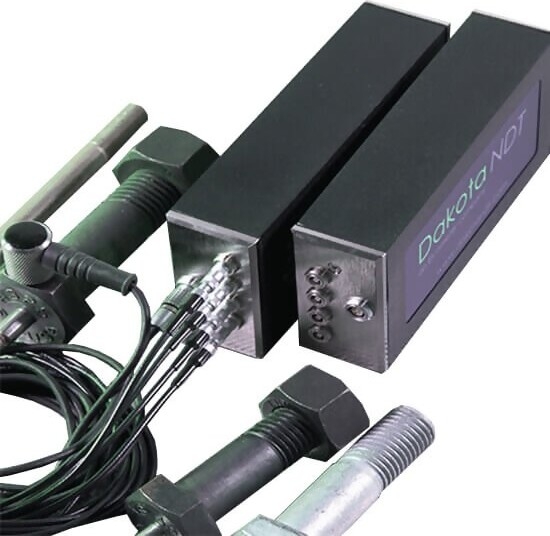

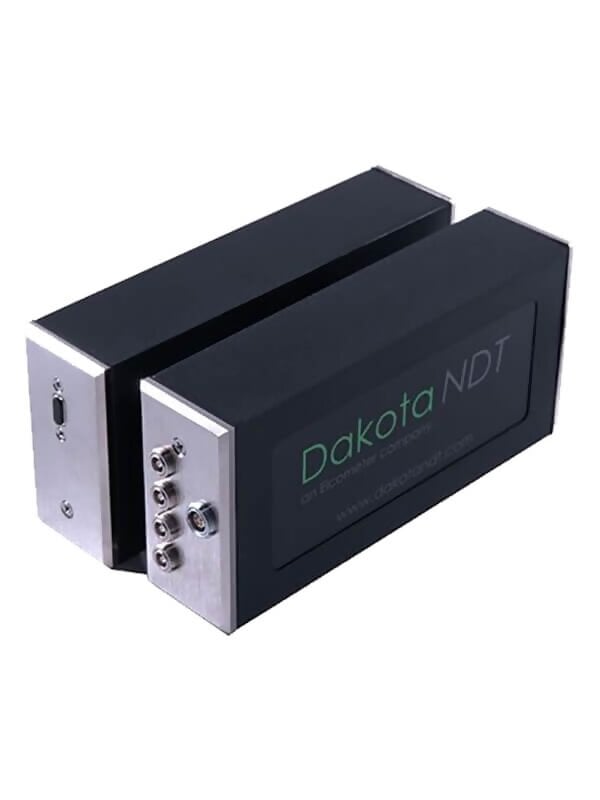

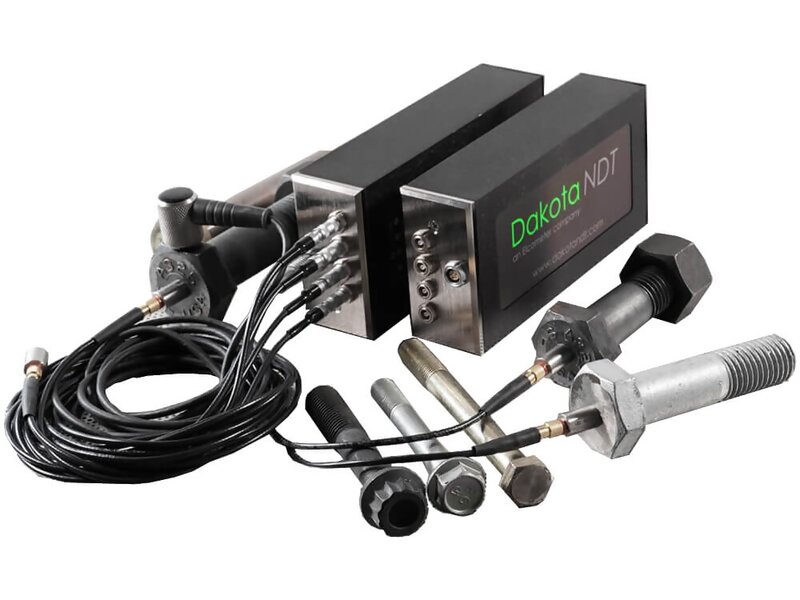

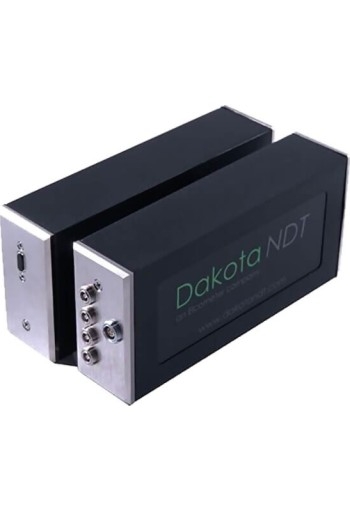

The MultiMax by Dakota NDT is a cutting-edge 4 Channel Ultrasonic Bolt Tension Monitor that delivers precise, real-time data on fastener stretch, load, stress, and strain – all from anywhere in the world.
The Dakota MultiMax Ultrasonic Bolt Tension Monitor - Z-226-0001 revolutionizes fastener monitoring by directly measuring bolt tension with ultrasonic precision – eliminating the inaccuracies caused by friction. Now, imagine having absolute accuracy and real-time insights into your critical bolted joints, no matter how far away they are.
The Dakota MultiMax Ultrasonic Bolt Tension Monitor - Z-226-0001 provides remote, continuous measurement of fastener length changes. Seamlessly integrate it into your existing condition monitoring system with the intuitive Dakota MultiUI software. This powerful combination enables real-time condition monitoring of bolt elongation, empowering proactive maintenance and preventing costly failures. Plus, the Dakota MultiMax Ultrasonic Bolt Tension Monitor - Z-226-0001 is easily expandable, allowing you to monitor hundreds of bolts simultaneously.
Gain unprecedented control and ensure the integrity of your bolted connections.
- Dakota MultiMax Ultrasonic Bolt Tension Monitor - Z-226-0001
- USB Type A to Type C Transfer/Power Cable
- PC Interface Software (download from website)
- Certification
- Instruction Manual
- Carrying Case
- Highly Accurate Measurements: The Dakota MultiMax measures the stretch (elongation), load, stress and %strain of a fastener under tension with extreme precision
- Ultrasonic Technology: By sending an ultrasonic wave down the length of the fastener and measuring the change in transit time, the Dakota MultiMax provides accurate calculations, avoiding the limitations of torque-based methods.
- Multi-Channel Efficiency: With four independent channels, the Dakota MultiMax can simultaneously monitor four bolts, increasing productivity.
- Scalability: Multiple Dakota MultiMax modules can be stacked together, allowing users to monitor numerous channels from a single interface.
- User-Friendly Software: The Dakota MultiUI interface software simplifies setup and monitoring of the Dakota MultiMax, and can be accessed from local or remote locations.
- Remote Control: The built-in remote commander operating system enables remote control of individual modules and channels.
- Customizable Interface: Users have the option to create their own UI software platform, thanks to the Dakota MultiMax's built-in operating system.
- Durable and Compact: The Dakota MultiMax features an extruded aluminium body with nickel-plated aluminium end caps, meeting IP65 requirements, and weighs only 16 ounces.
- Versatile Transducer Options: The Dakota MultiMax supports single element transducers from 1MHz to 10 MHz, glue-on transducers for permanent installation, and various connector types.
- Automatic Features: Includes automatic zeroing, gating & display configuration.
- Temperature Monitoring: Real-time temperature monitoring and compensation ensure accurate measurements.
- Data Logging and Storage: Measurements can be auto stored, and data can be archived in various formats on the 4GB internal SD memory.
- Temperature Compensation
- Low Battery Indicator
- USB-C Interface
- Temperature Sensor
- 2 Year limited warranty and is proudly made in the USA
| Measurement Range: | PE - 25.4 - 25,400mm (1 - 999”) EE, EEV
|
| Velocity Calibration Range: | 1250 - 13,995m/s (0.0492 - 0.5510 in/μs)
|
| Memory and Data Logging: | 4GB internal memory , Fixed grid format
|
| Calibration Options: | Automatic, fixed, single and two-point
|
| Transducer Probe Type: | Single element
|
| Transducer Frequency Range: | 1 - 10MHz
|
| Units (Selectable): | in/mm, μs
|
| Transducer Connector Type: | Microdot, Lemo and BNC
|
| Timing: | Precision TCXO timing with single shot 100 MHz 8 bit ultra-low power digitizer
|
| Pulser Type: | Spike. Pulser Voltage 100 – 200v Selectable step options Spike, Thin, Wide
|
| Damping: | 50 ohms Fixed
|
| Frequency Band: | Broadband 1.8 - 19 MHz (-3dB) filter
|
| Horizontal Linearity: | +/- 0.4% FSW
|
| Vertical Linearity: | +/- 1% FSH
|
| Amplifier Linearity: | +/- 1 dB
|
| Delay: | 25,400 mm (0 - 999.9”) at steel velocity
|
| Measurement Gate: | Three independent gates depending on measurement mode selected, with audible and visual alarms. Amplitude 5-95%, 1% steps
|
| Auto Set: | Automates the detection, scope, and display setting process for each individual bolt
|
| Field Calibration: | Vector or Regression correction curve for increased accuracy using Load & Stress
|
| Detections: | Zero Crossing
|
| Time: | Nanoseconds
|
| Elongation: | Change in length (in/mm)
|
| Load: | Force load applied (pounds KIP, or megapascals MPa)
|
| Stress: | Force for unit area stress applied (inches per inch or millimeters per millimeter)
|
| %Strain: | Ratio of elongation to effective length
|
| Bolt Materials: | Select types from a preset or custom list
|
| Glue-On: | Available for short bolts with minimal/short elongations to eliminate transducer placement errors
|
| Operating Temperature: | -10 to 60ºC (14 to 140ºF)
|
| Power Supply: | USB Only
|
| Gauge Weight: | 454g (16oz) - including batteries
|
| Gauge Dimensions: | 76 x 165 x 38mm ( 3.0 x 6.5 x 1.5" ) |
The Dakota Ultrasonics TI-MINIMAX Bolt Tension Monitor Meter Z-182-0002 Extensometer is a state of the art instrument designed to measure elongation produced by tightening a threaded fastener. The Dakota Ultrasonics TI-MINIMAX Bolt Tension Monitor Meter Z-182-0002 Extensometer can measure the elongation very accurately in fasteners of virtually any material from 1/2 inch to 4 feet in length. The measurement is achieved by determining the change in the transit time of an ultrasonic shock wave along the length of the fastener as the fastener is tightened by any method. The on-board microcomputer automatically interprets this time measurement to display the time(nanoseconds), elongation, load, stress, or %strain from stretching a fastener.
The Dakota Ultrasonics MAX-II Ultrasonic Bolt Tension Monitor Z-197-0001 is designed for precision measurement of fasteners up to 100 ft / 30 m in length. It incorporates all of the great features of the original MiniMax unit, with improved features, hardware, speed, and range. The MAX II is designed for use in a wide range of industrial and lab applications. The MAX-II Bolt Tension Monitor enables you to accurately monitor bolt tension ultrasonically measuring the elongation (change in length) of your bolts. It enables you to re-visit your bolts in certain intervals and monitor the quality of your bolt connections over time. The new "Auto Correlation" feature that helps you to optimize your transducer placement. Together with the large QVGA sunlight readable color display and the calibration function, it is very easy to use without the steep learning curves associated with other models.
