Checkline CPS Certified Plastic Shims

See More Coating Thickness Gauges

Checkline CPS Certified Plastic Shims

See More Coating Thickness Gauges
Price:
$120.00 - $130.00
    warrenty

    Product Description

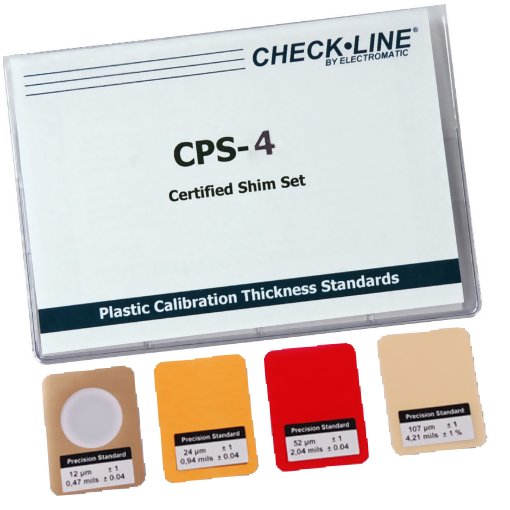

    CPS Certified Plastic Shim Set

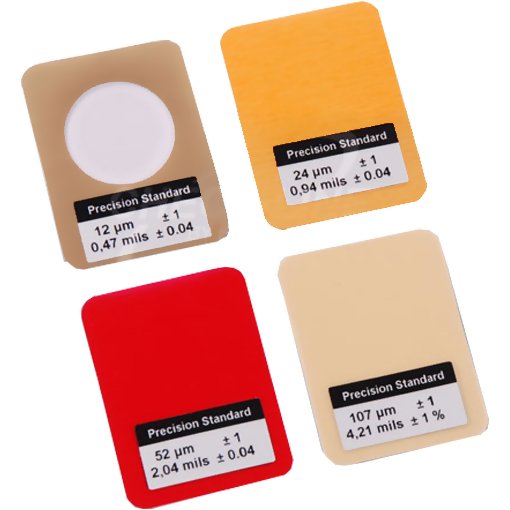

    Set includes four (4) certified shims

    4 Models:

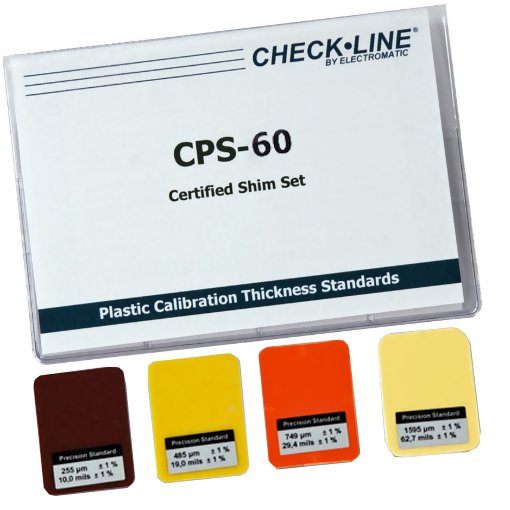

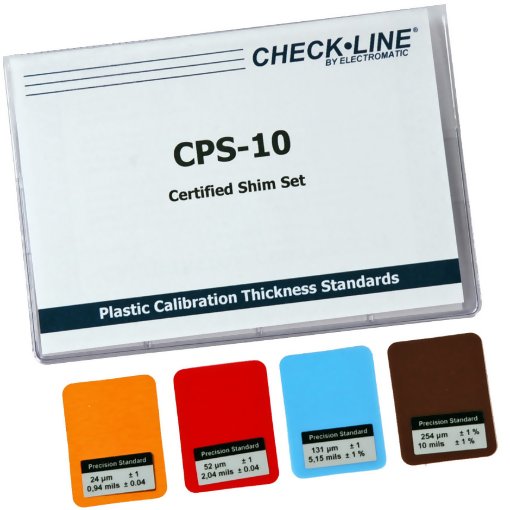

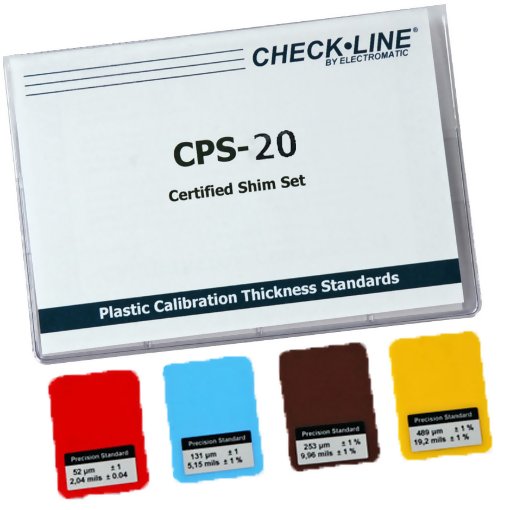

    CPS-4, CPS-10, CPS-20 & CPS-60

    Verify the accuracy and calibration of all Coating Thickness Gauges with Certified Plastic Shims. Shim Thickness Tolerance ± 1µm / 0.04 mils. Shim size 30mm x 40mm.


    line
    Features
    line

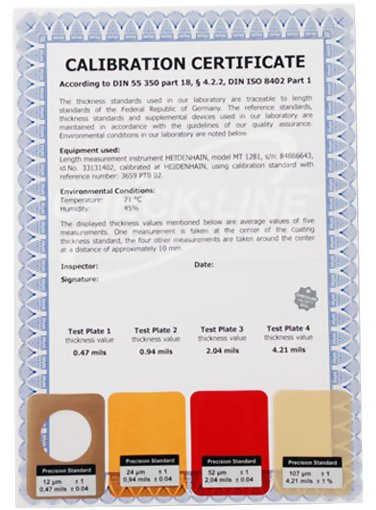

    • Supplied with calibration certificate traceable to Dakks
    • Thickness labeled in Mils and MM


    line
    Specifications
    line

    Part NumberShim Thickness (mils)
    CPS-40.6125
    CPS-1012510
    CPS-20251020
    CPS-6010203060
    Part NumberShim Thickness (µm)
    CPS-4152550125
    CPS-102550125250
    CPS-2050125250500
    CPS-602505007601500
    Note: above thickness values are approximate
