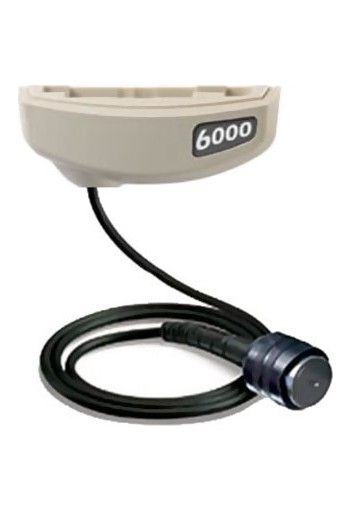

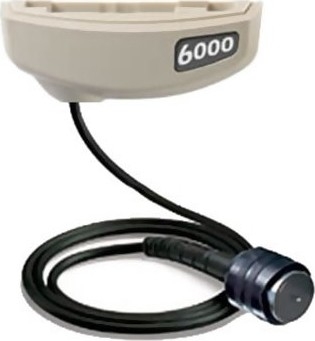

DeFelsko PosiTector 6000 High-Range Cabled Spare Probes For Use With 6000 Series
Display Sold Separately
Measure non-conductive coatings on steel substrates.
FHXS Xtreme™ probe with Alumina wear face and braided cable for hot or rough surfaces.
Hot surfaces up to 250° C (500° F).Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
Specifications FTS
 | Range: | 0 - 250 mils |
| 0 - 6 mm |
| 0 - 6000 μ |
| *Accuracy: | ± (0.05 mils + 1%) 0 - 2 mils |
| ± (0.1 mils + 1%) > 2 mils |
| ± (1 μ + 1%) 0 - 50 μ |
| ± (2 μ + 1%) > 50 μ |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Specifications FNTS
| Range | 0 - 250 mils |
| 0 - 6 mm | 0 - 6000 μm |
| Accuracy | ± (0.5 mils + 1%) 0 - 100 mils |
| ± (0.5 mil + 3%) > 100 mils |
| ± (0.01 mm + 1%) 0 - 2.5 mm |
| ± (0.01 mm + 3%) > 2.5 mm |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Specifications FKS, NKS
| Range: | 0 - 500 mils |
| 0 - 13 mm |
| Accuracy: | ± (1 mils + 3%) |
| ± (0.02 mm + 3%) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
Specifications FLS
| | Probe Model | FLS |
| Range: | 0 - 1.5 inches |
| 0 - 38 mm |
| *Accuracy: | ± (0.01 in. + 3%) |
| ± (0.2 mm + 3%) |
| Minimum Surface Area: | 3.25 x 3.25 in. (83 x 83 mm) |
| Minimum Substrate Thickness: | 0.1 in. (2.5 mm) |
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
