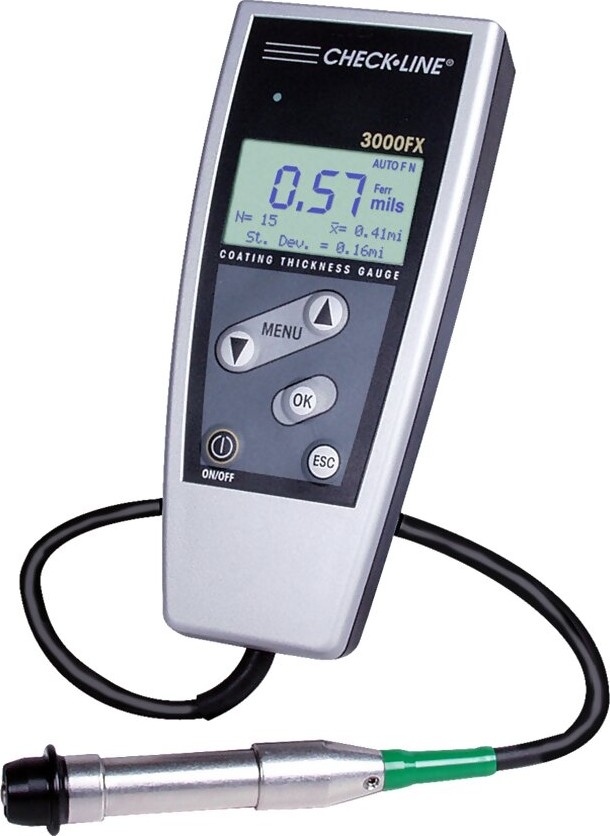

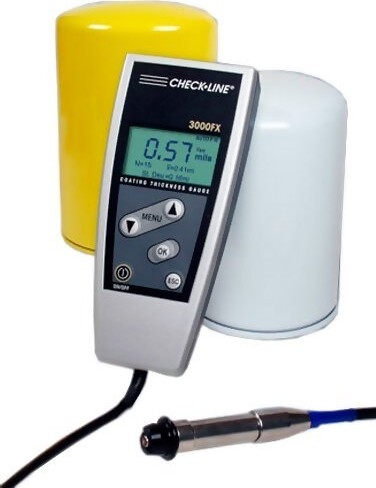

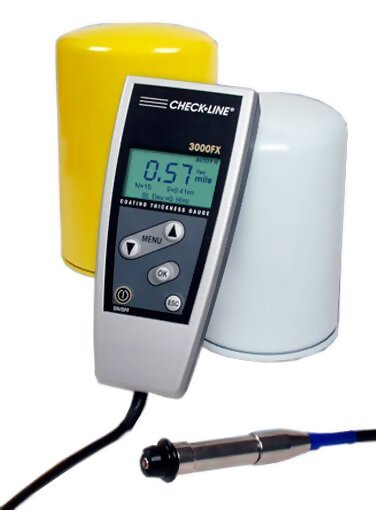

Checkline 3000FX Series Coating Thickness Gauge

See More Coating Thickness Gauges

Checkline 3000FX Series Coating Thickness Gauge

See More Coating Thickness Gauges
Price:
$995.00 - $1,350.00
    warrenty

    Product Description
    Measuring Range: 0-60.0 mils (0-1500 µm)

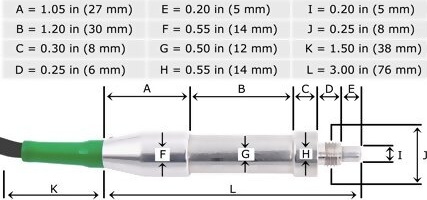

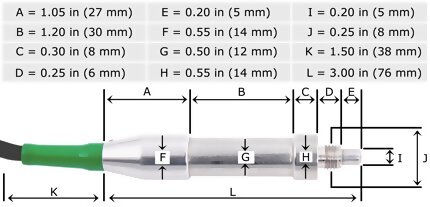

    Separate Probe
    Keypad-selectable units: Mils or Microns
    Live Statistics Displays: Number of readings, mean, standard deviation, maximum and minimum reading of up to 10,000 readings

    3 Models
    DCF-3000FX
    - Ferrous Only Model
    DCN-3000FX - Non-Ferrous Only Model
    DCFN-3000FX - Combination Ferrous & Non-Ferrous Model

    The 3000FX Series coating thickness gauge is a multifunctional fully menu driven gauge for fast, professional and precise coating thickness measurement for

    varnish, paint and electroplated coatings on iron/steel and

    varnish, paint and anodising coatings on non-ferrous metals and on austenitic stainless steels

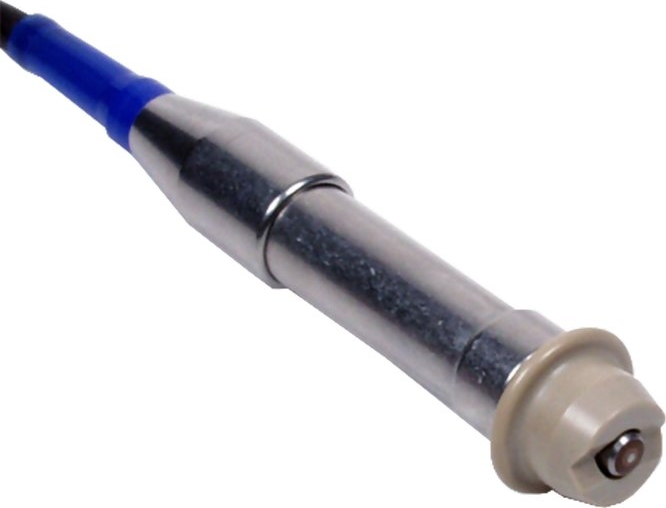

    All external probes are machined to ultra-high standards and utilize a unique, hard-metal probe tip which prevents probe wear.

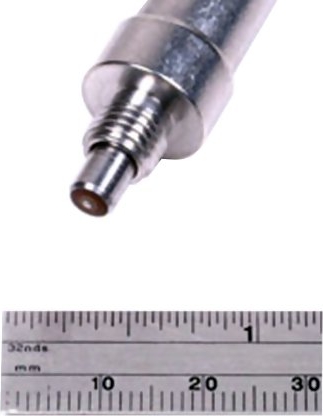

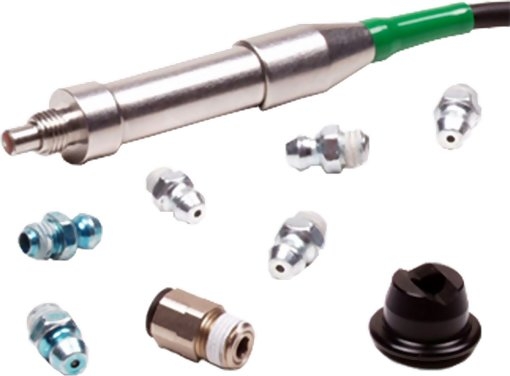

    A v-notched footer provides a stable footing on small cylindrical parts, which can be removed to expose a "micro-probe" sensor perfect to measure on small surfaces and parts.

    Where to use the 3000FX coating thickness gauge Series?

    Wherever coatings are applied – whether on visual and aesthetic grounds, to prevent corrosion protection, or for functional and mechanical reasons – the coating thickness represents an essential quality feature. The 3000FX Series is ideal for speedy, non-destructive and exceptionally precise coating thickness measurement.


    line

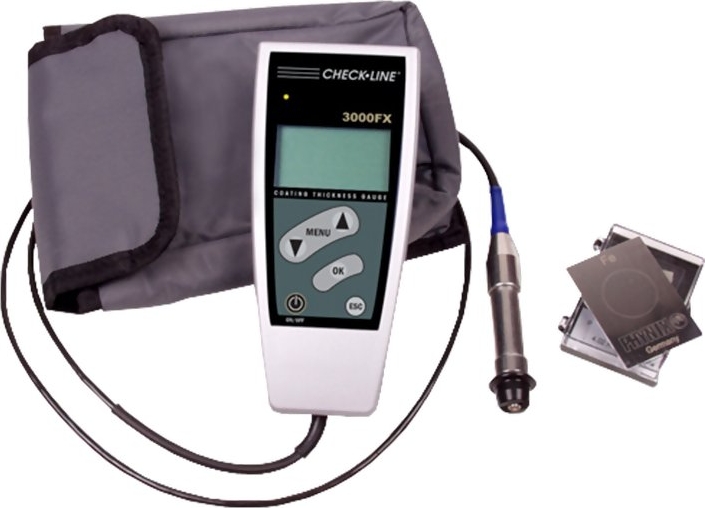

    Kit Contents
    line

    • 3000FX Series Coating Thickness Gauge
    • Ferrous and or non-ferrous zero plate(model dependent)
    • 2 calibration standards
    • 2 AA batteries
    • Soft carrying pouch
    • Instruction manual
    • Calibration certificate


    line
    Features
    line

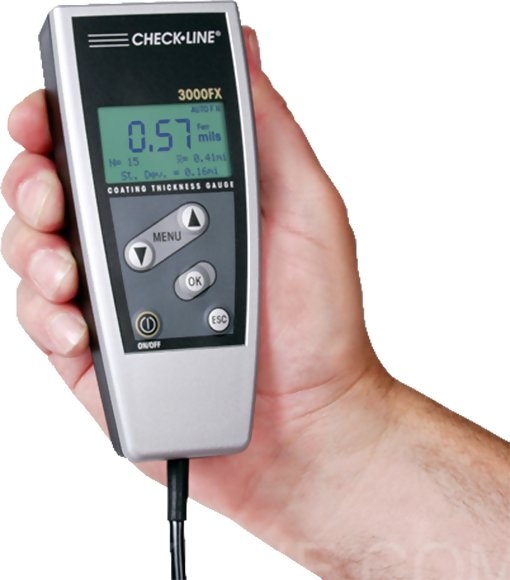

    • The 3000FX Series is a compact, lightweight coating thickness gauge for operators who require both innovative and user-friendly measuring techniques
    • The 3000FX Series ensures non-destructive coating thickness measurement on steel and non Ferrous metals
    • Data transfer to a printer or PC takes place via an infra-red interface
    • Up to 10 000 readings can be statistically evaluated: number of readings, mean value, standard deviation, minimum and maximum reading
    • The 3000FX Series identifies the substrate and activates the appropriate measuring procedure
    • Menu in a choice of three languages ensures ease of operation
    • The uniform contact pressure of the sensor is kept to a minimum, preventing scratches and indentations to sensitive surfaces
    • Optional high temperature footer for measuring on surfaces up to 150 °C/302 °F
    • NIST Certificate Included at no additional cost
    • 1 Year Warranty


    line
    Specifications
    line

    Measuring principle magnetic induction principle (Ferrous)
    eddy-current principle (Non-Ferrous)
    Range 0 - 60.00 mils
    0 - 1500 µm
    Accuracy ±0.04 mils / 1µm + 1% of reading
    Resolution Refer to RESOLUTION TABLE, above
    Display back-light, 4-digit alphanumeric, digit height 10mm
    Minimum Measuring Area 0.2" x 0.2" (5 mm x 5 mm)
    Minimum Curvature Radius convex: 0.12" (3 mm), concave: 0.2" (5 mm)
    Minimum Substrate Thickness Ferrous: 20 mils / 0.5 mm
    Non-Ferrous: 2 mils / 50 µm
    Calibration factory calibration, zero calibration, foil calibration, offset-function: addition or subtraction of a constant value
    Memory 80 readings
    Statistics Program Number of readings, mean value, standard deviation, maximum and minimum reading of max. 10,000 readings
    Data Output Infrared IrDA Standard
    Operating Temp. 32 °F - 122 °F / 0 °C - 50 °C
    Surface Temp. 5° F - 140° F / -15° C - 60° C (standard)
    5° - 302° F / 15° - 150° C (w/optional footer)
    Storage Temp. -4 °F to 140 °F / -20 °C to +60 °C
    Power 2 AA 1.5V
    Dimensions 5.6" x 2.5" x 1.2" (140 mm x 62 mm x 30 mm)
    Weight 7 oz (200 g) (gauge + probe)
    Protection Class IP 52 (proof against dust and dripping water)
    Standards DIN, ISO, ASTM, BS
    Warranty 1 Year
    Calibration Certificate Included


    lineMeasuring Limits
    line

    Minimum Radius for Convex Surfaces 0.2" (5 mm)
    Minimum Radius for Concave Surfaces 2" (50mm)
    Minimum Headroom 4" (100 mm)
    Minimum Sample Diameter 0.5" (13 mm)
    Minimum Substrate Thickness - F
    Minimum Substrate Thickness - NFe
    20 mils (0.5 mm)
    2 mils (50 µm)


    line
    Resolution Table
    line

    Mils Microns (µm)
    0.00 - 9.99 mils 0.01 mils 0.0 - 99.9 µm 0.1 µm
    10.00 - 24.98 mils 0.02 mils 100.0 - 249.8 µm 0.2 µm
    25.00 - 49.95 mils 0.05 mils 250.0 - 499.5 µm 0.5 µm
    50.0 - 99.9 mils 0.1 mils 500 - 999 µm 1 µm
        1.000 - 1.998 mm 0.002 mm


    line
    Downloads
    line

    Checkline 3000EZ-E Series Coating Thickness Gauge - Data Sheet
    Checkline 3000EZ-E Series Coating Thickness Gauge - Instruction Manual
