The DeFelsko KITSSPFS3 PosiTector Advanced Steel Structure Painting Inspection Kit is for Dry and Wet Film Thickness, Environmental, Soluble Salt, and Surface Profile Evaluation. DeFelsko KITSSPFS3 PosiTector Advanced Steel Structure Painting Inspection Kit feature the most popular instruments for measuring wet and dry film thickness, surface profile, environmental conditions, salt contamination, and include an SSPC VIS 1 Visual Reference Standard—delivering a complete solution for structural steel coating inspection.

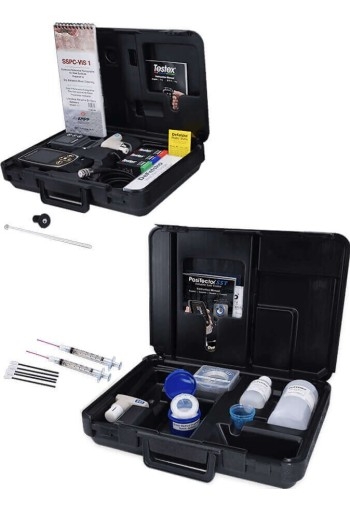

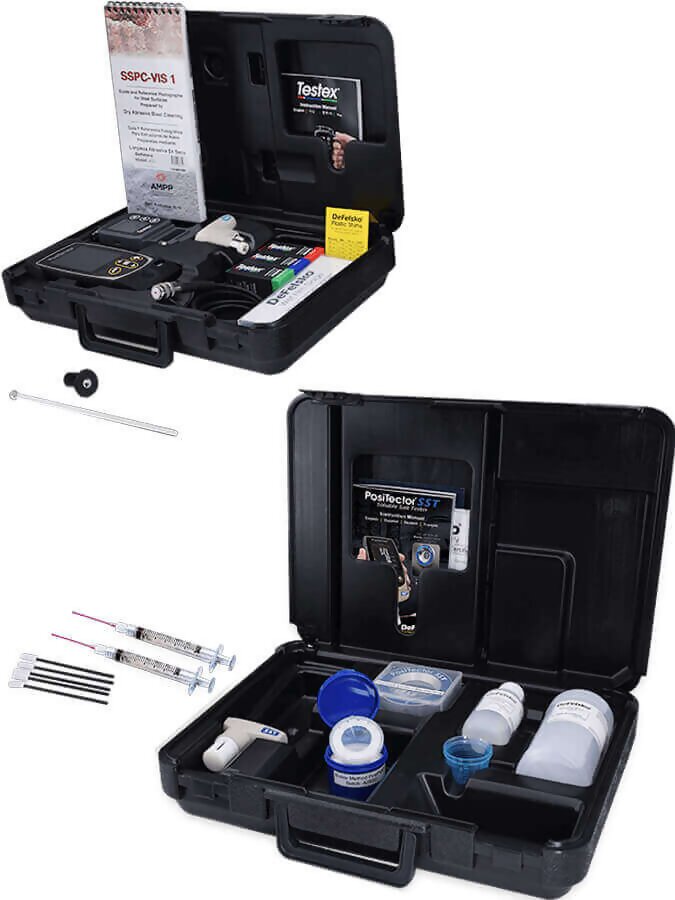

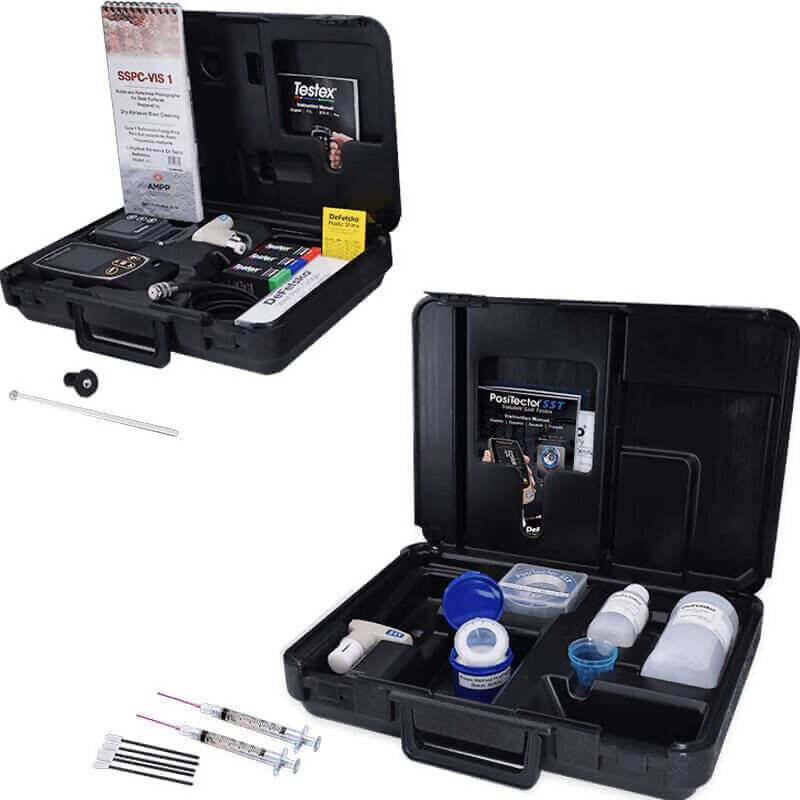

Kit Contents
- DeFelsko 6000FS3 Advanced Ferrous Coating Thickness Gage
- DeFelsko DPM PRBDPM Integral Probe

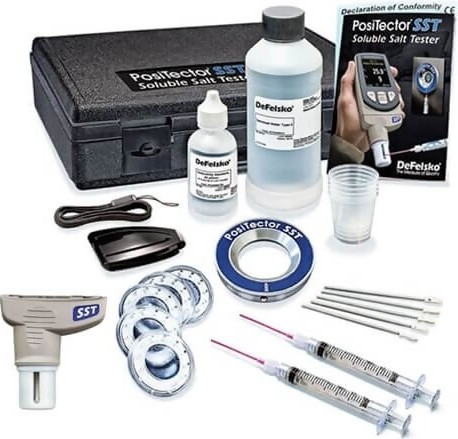

- DeFelsko SST PosiTector SSTKITP Soluble Salt Tester
- Testex Digital Micrometer

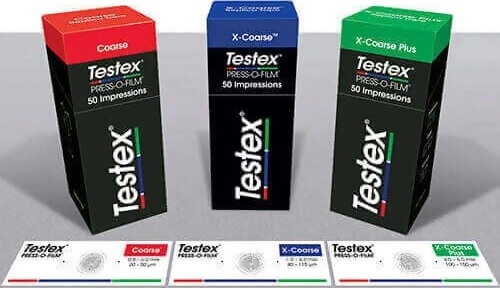

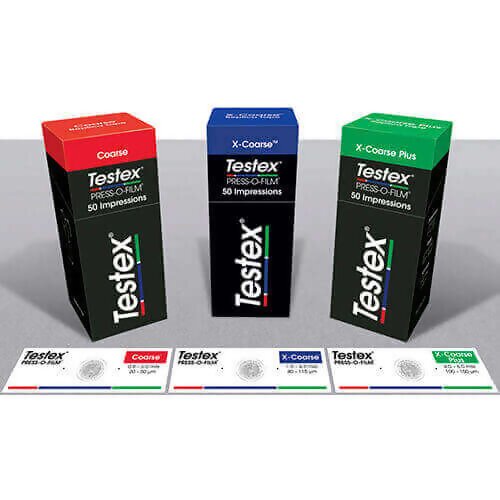

- 1 Testex Coarse Tape, 1 Testex X-Coarse Tape, 1 Testex X-Coarse Plus Tape
- DeFelsko VIS1 SSPC VIS 1 Standards
- DeFelsko WFG60/1500SSC Certified Stainless 8-Sided Wet Film Thickness Gage
- Protective Carrying Case and Instructions
Features

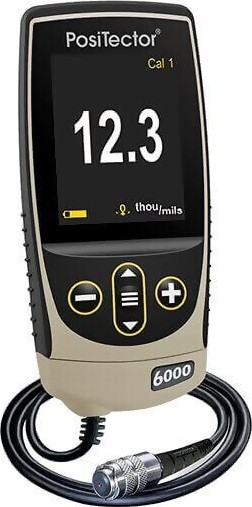

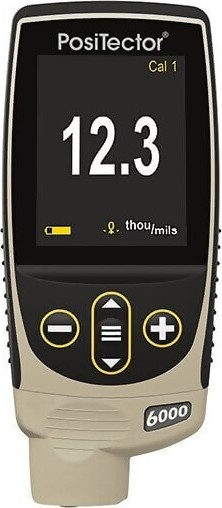

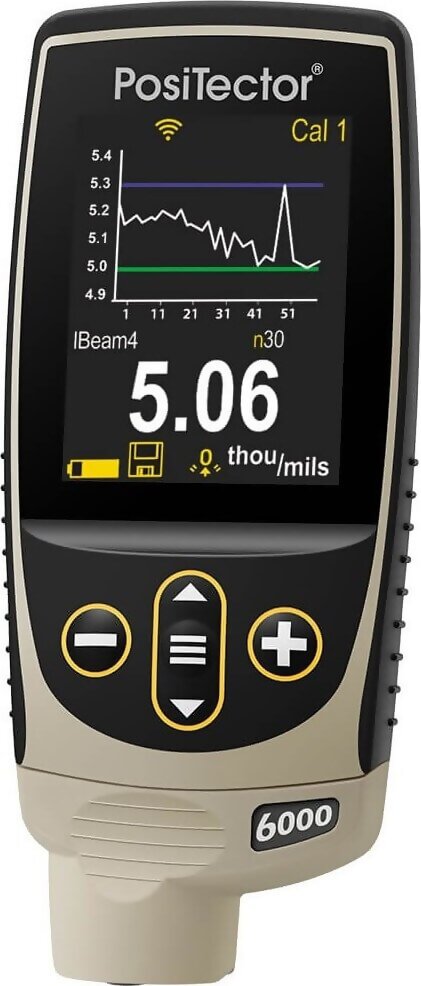

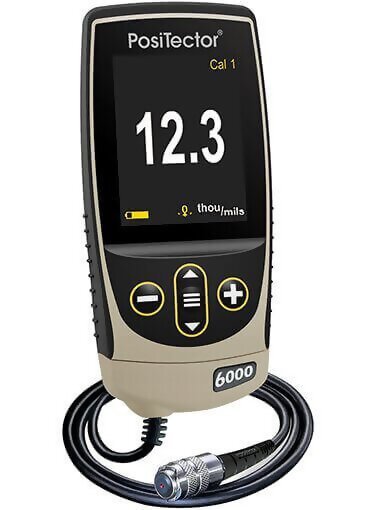

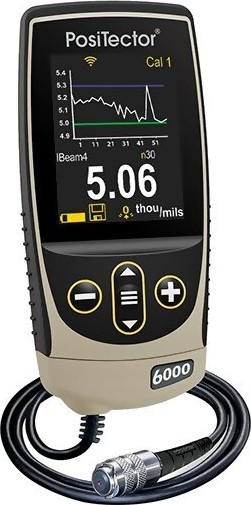

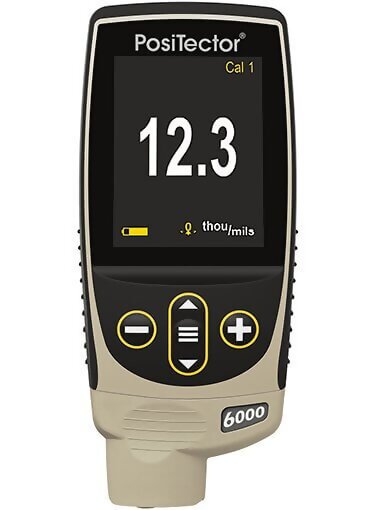

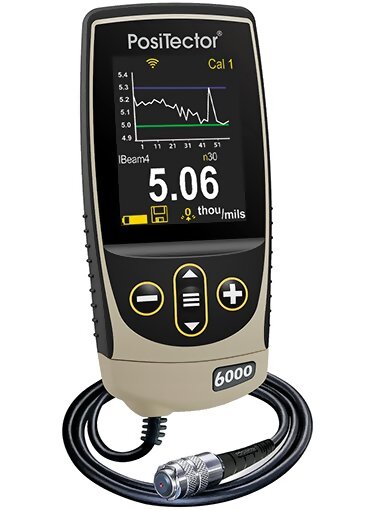

DeFelsko PosiTector 6000 Advanced:
- NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW On-gage help explains menu items at the touch of a button
- NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
- NEW Ergonomic design with durable rubberized grip
- NEW Auto rotating display with Flip Lock
- NEW Screen Capture - save 100 screen images for record keeping and review
- NEW Up to 30% longer battery life
- Storage of 250,000 readings from multiple probes in up to 1,000 batches
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
- NEW Instant-on feature quickly powers up the gage if recently powered down
- Live graphing of measurement data
- NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes - increase measurement speed to 180+ readings per minute:
- Normal – take continuous readings without lifting the probe
- Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
- Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
- NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
- Cabled Probe for Steel
- Range: 0 - 1500 µ, 0 - 60 mils

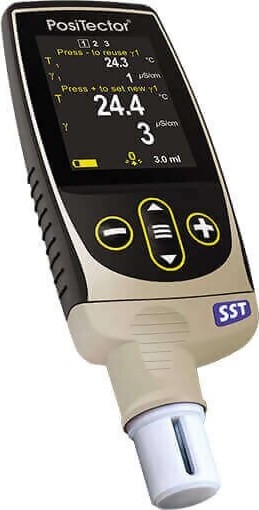

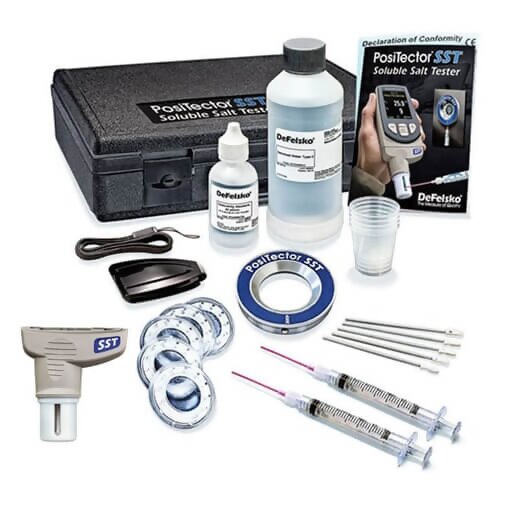

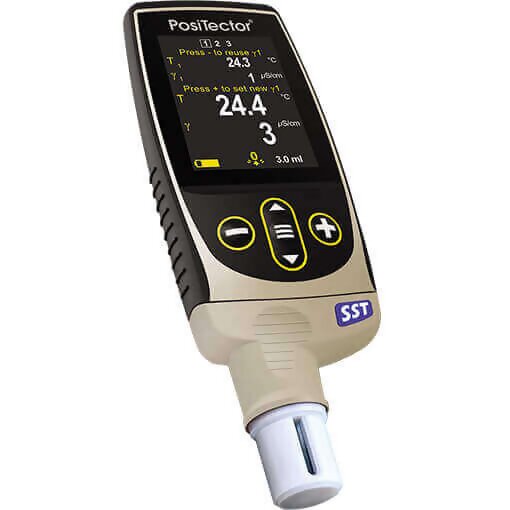

DeFelsko PosiTector SST Advanced:
- Easy 1-2-3 gage interface guides users through the Bresle test method
- Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)

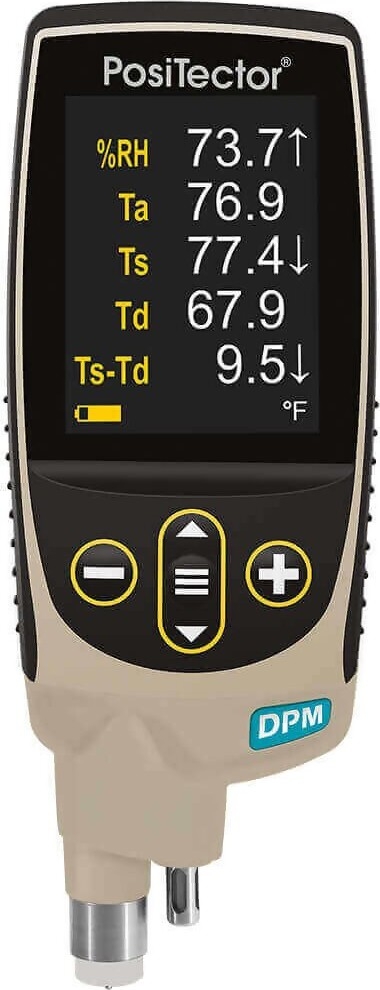

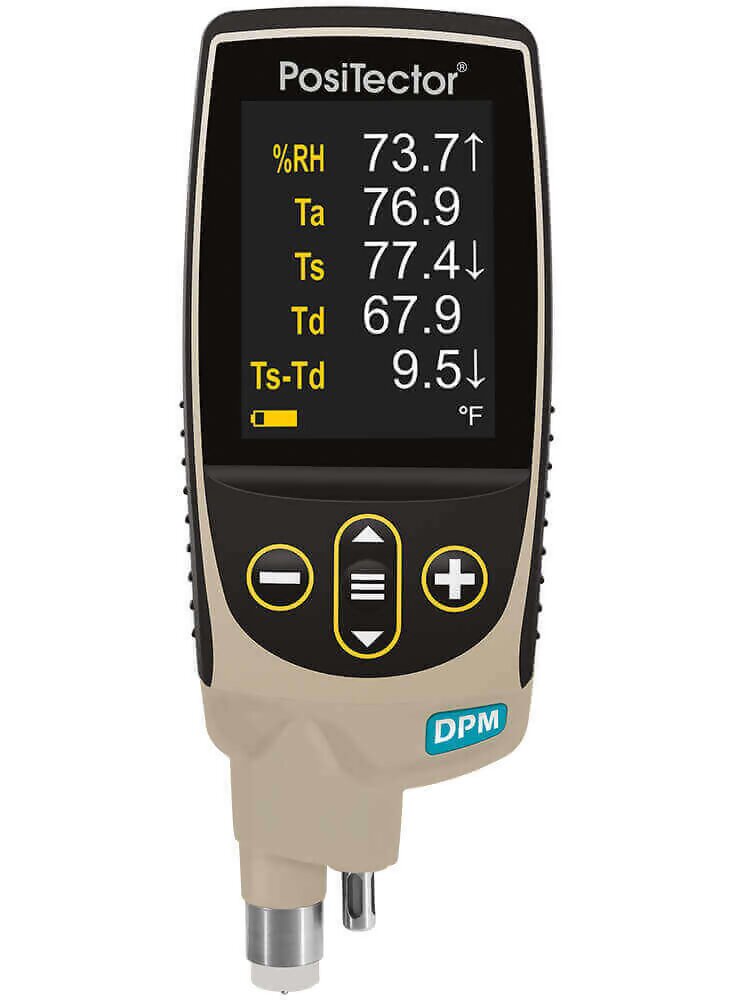

DeFelsko PosiTector DPM Advanced:
- NEW Instant-on feature quickly powers up the gage if recently powered down
- Enhanced Auto Log mode turns the gage off between readings for up to 8 months of battery life. Each reading can be uploaded to PosiSoft.net or an FTP server using WiFi. Automatically group readings into batches at daily, weekly, or monthly intervals
- User defined limits for all parameters - visible and audible warnings. Receive email alerts when connected to WiFi
- Trend Charts graph readings in real-time
- Wet bulb temperature can be displayed and recorded

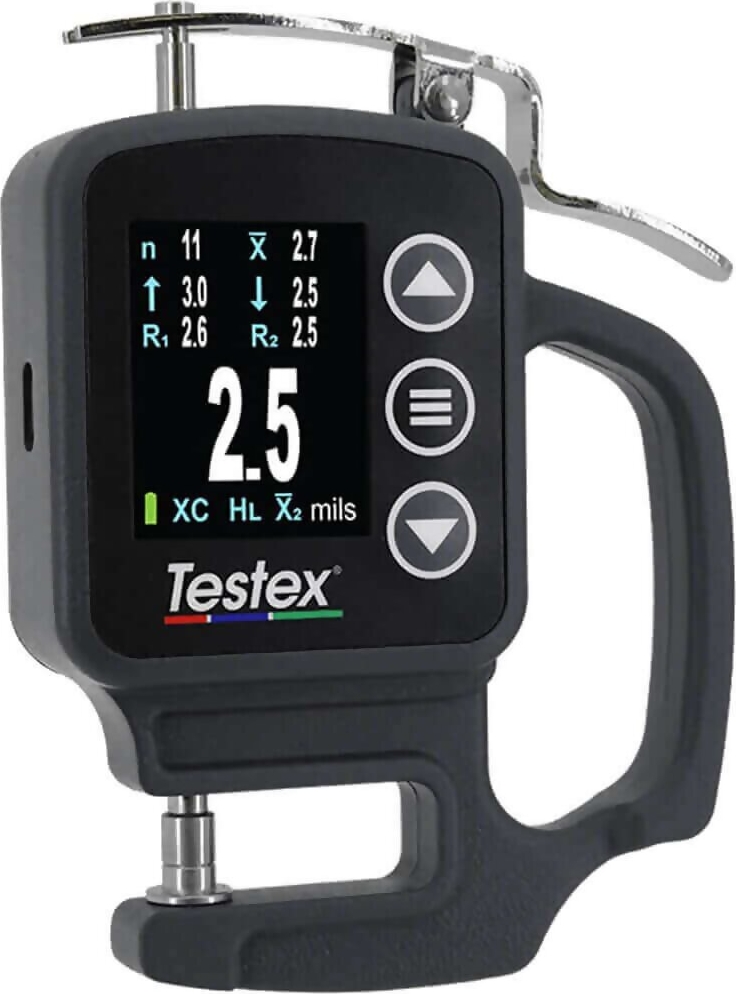

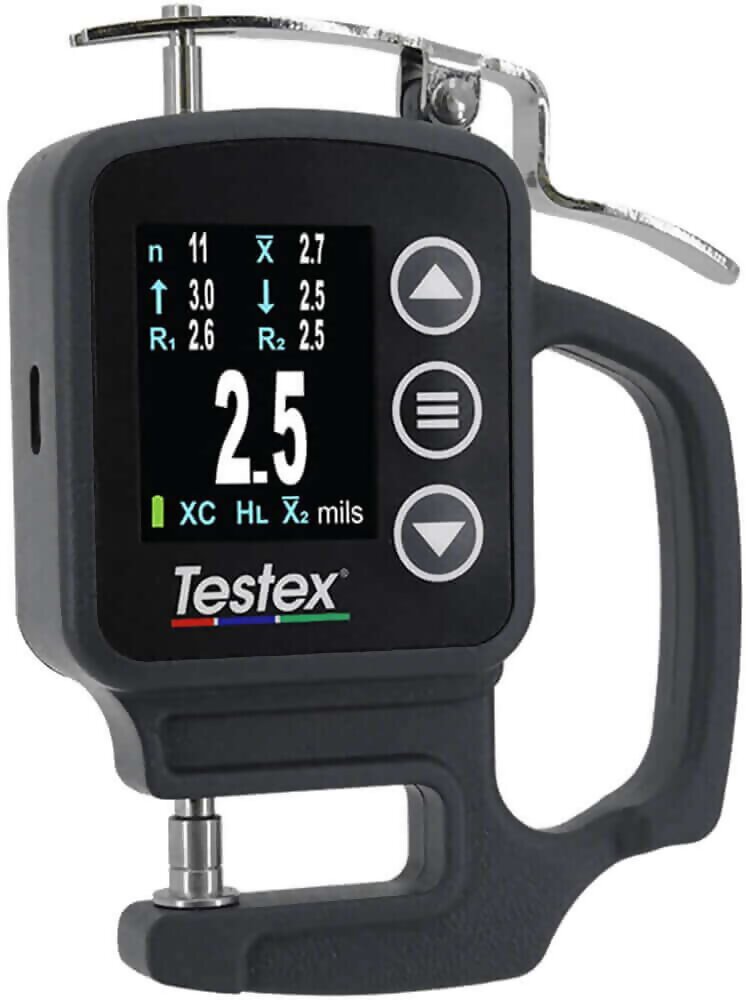

Testex Digital Micrometer
- Bright, high-contrast digital color display with large numerals for easy viewing in bright or dark environments
- Measures in both Microns and Mils
- Built-in memory for up to 250 readings with on-screen statistics. View and download measurements on any computer using the included USB cable. No software required
- Durable, all-metal housing
- Simply select the appropriate replica tape grade to automatically apply the appropriate conversion factor and subtract the 50 µm (2 mils) backing thickness
- In 'Average mode', the Micrometer prompts the user and averages two readings, in compliance with international standards
- A traceable Certificate of Calibration is included with each digital micrometer
- Fully compatible with powerful PosiSoft Software for archiving and reporting measurement data
- USB Drive mode retrieves data in a manner similar to a flash drive in .csv format. No software to install or internet connection required
SSPC VIS 1 Standard
- Ideal for Surfaces Prepared by Dry Abrasive Blast Cleaning

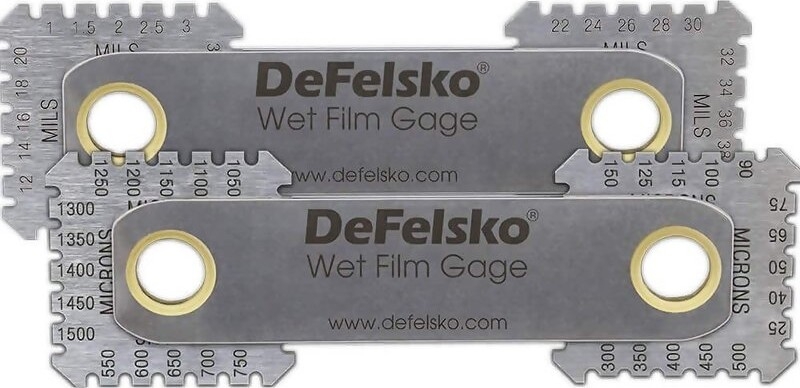

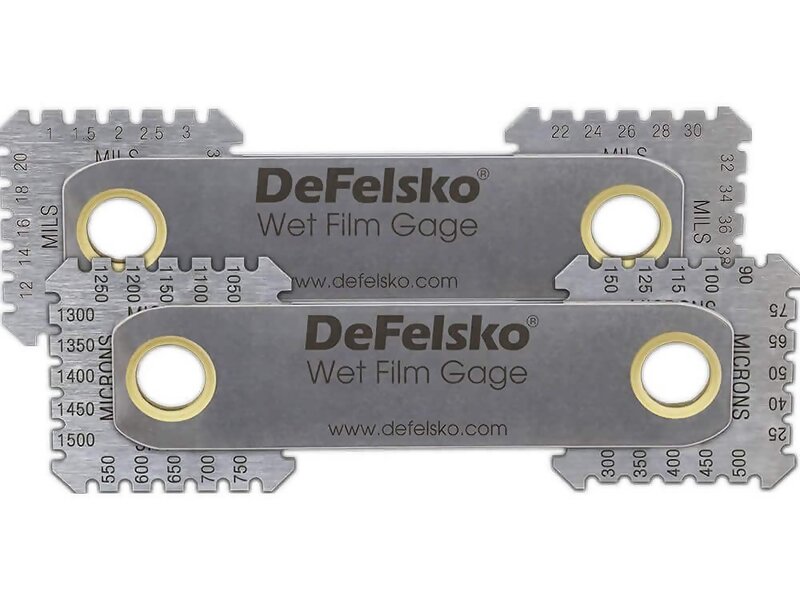

DeFelsko Certified 8-Sided WFT Gage
- Durable stainless steel constructionIncludes Certificate of Accuracy
- 40 notches for superior resolution - 5 notches per side
- Two-sided - Microns and Mils
- Includes compact hard-shell storage case and pictorial instruction card
Related Products
DeFelsko ATM20 PosiTest AT-M Manual Pull-off Adhesion Tester
The DeFelsko ATM20 PosiTest AT-M Manual Pull-off Adhesion Tester measures adhesion of coatings to metal, wood, concrete and other substrates - Revolutionary self-alignment feature and pull rate indicator brings new meaning to adhesion measurements
DeFelsko PosiTest CH Cross Hatch Adhesion Test
Includes all tools and accessories required for cross hatch testing in accordance with ISO 2409 and ASTM D3359. Ergonomic tool handle with non-slip grip provides comfortable all-day use. Pivoting cutting head ensures proper positioning and equal pressure across the cutting surface

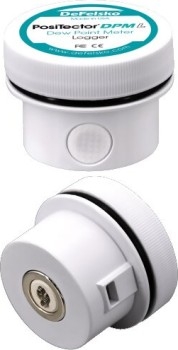

DeFelsko PosiTector DPM L Dew Point Meter Logger
