DeFelsko F90S1-G Positector 6000 F90S1 Coating Thickness Gauge with Standard Body, 90° Microprobe, Measures Coatings on Ferrous Metals, 0-45 mils

See More DeFelsko PosiTector 6000

DeFelsko F90S1-G Positector 6000 F90S1 Coating Thickness Gauge with Standard Body, 90° Microprobe, Measures Coatings on Ferrous Metals, 0-45 mils

See More DeFelsko PosiTector 6000
Price:
$1,105.00
    warrenty

    Product Description
    DeFelsko F90S1-G Positector 6000 F90S1 Standard Ferrous Coating Thickness Gauges with separate 90 degree Micro Probe for measuring thin coatings and small parts in hard-to-reach areas
    Model: F90S1 with Standard (1) Body
    Range: 0-45 mils (0-1150 µm)

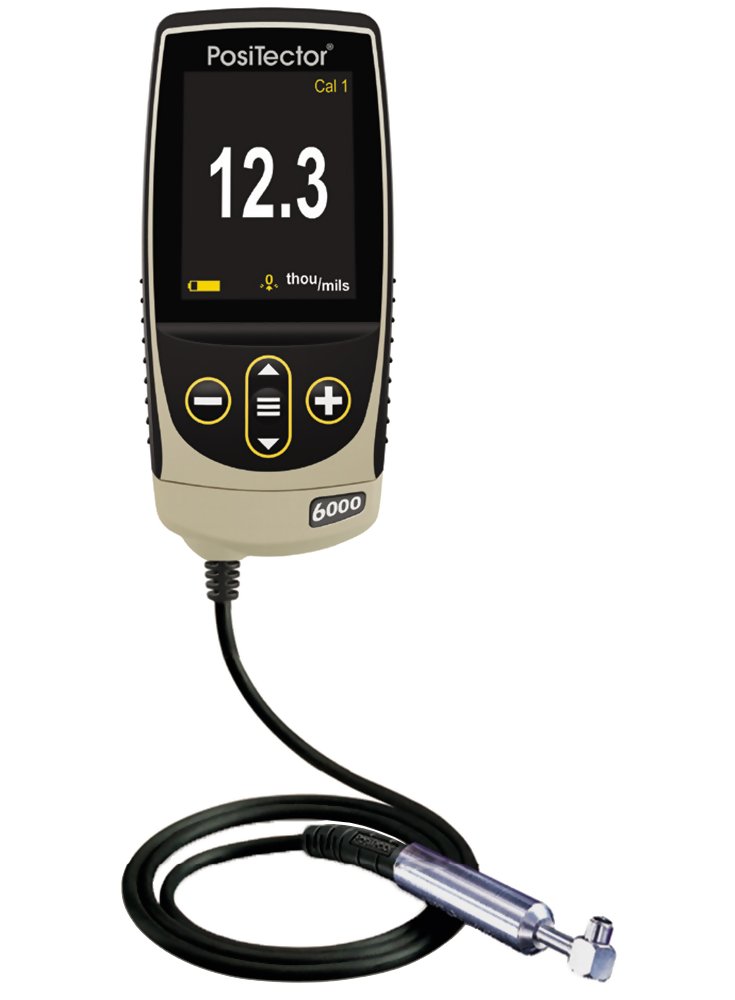

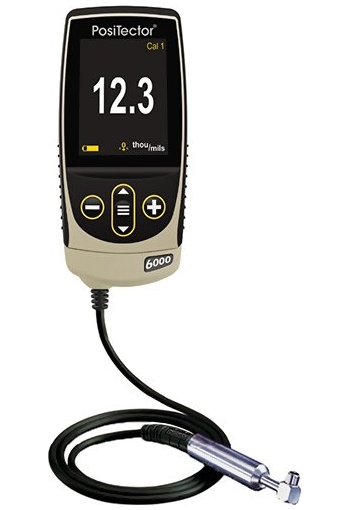

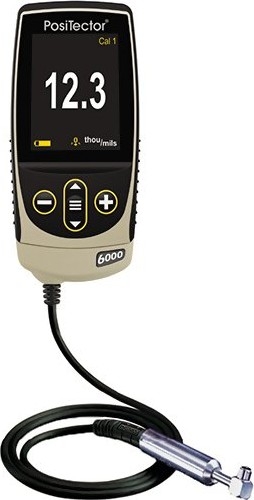

    The DeFelsko F90S1-G Positector 6000 F90S1 Standard Coating Thickness Gauge is a precise, rugged tester designed to measure coating thickness on Ferrous metals accurately and quickly using magnetic induction principles.

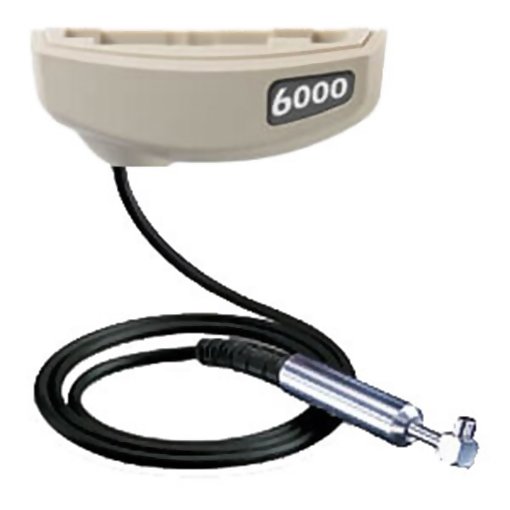

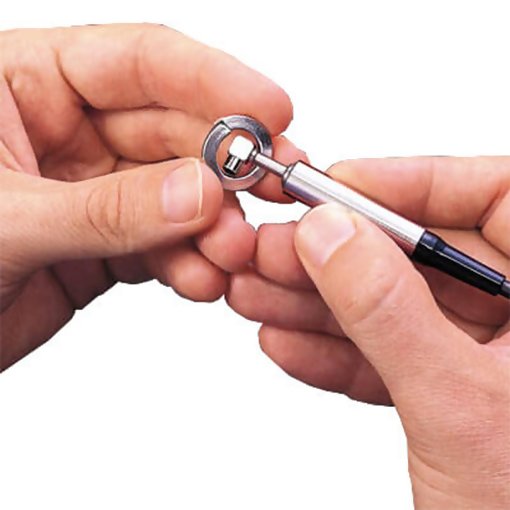

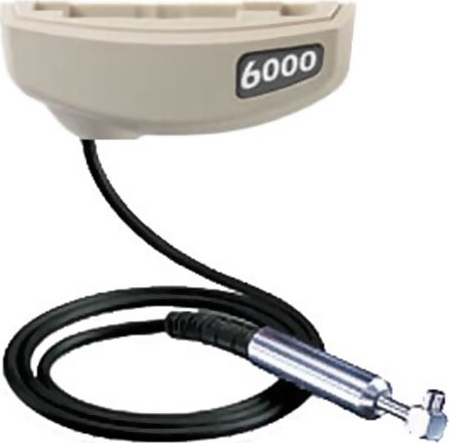

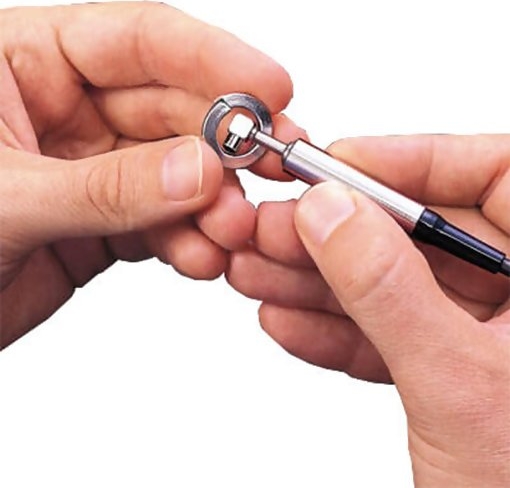

    The F90S1 features a right angle probe for measuring within areas of low headroom. With a small measuring tip and best thin-film accuracy, the DeFelsko PosiTector 6000 F90S1 is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

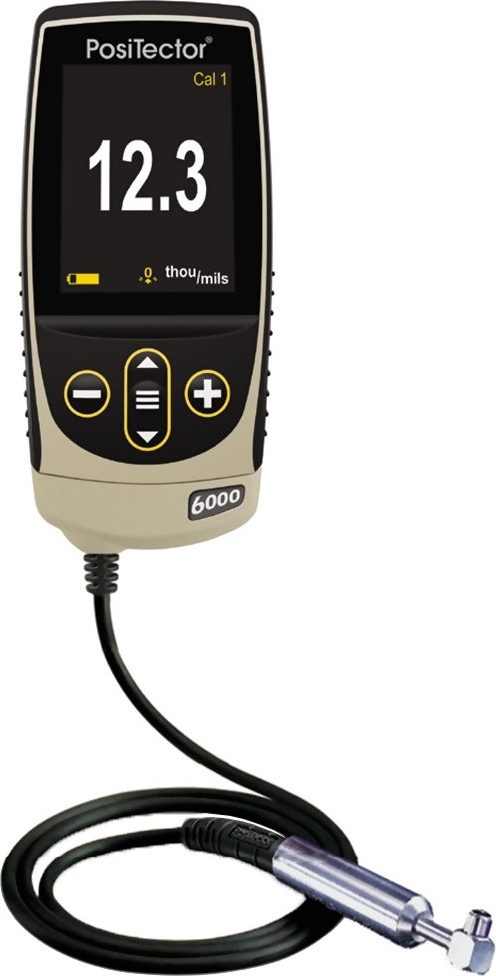

    The DeFelsko F90S1-G Positector 6000 F90S1 Standard Coating Thickness Gauges has a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 1,000 in one group memory reading storage capacity and USB data output.


    line
    Kit Contents
    line

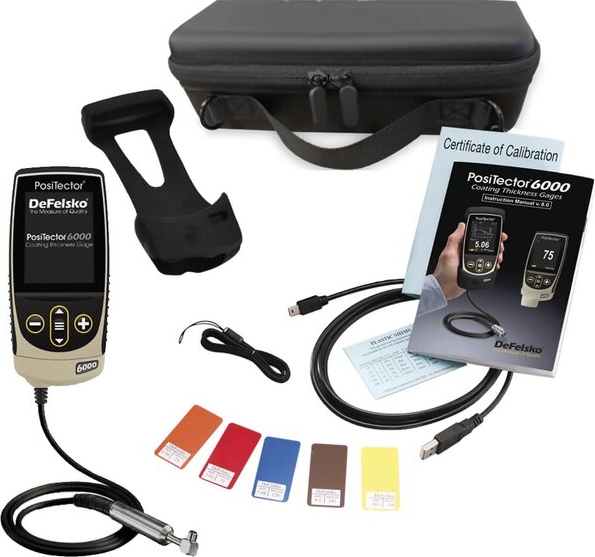

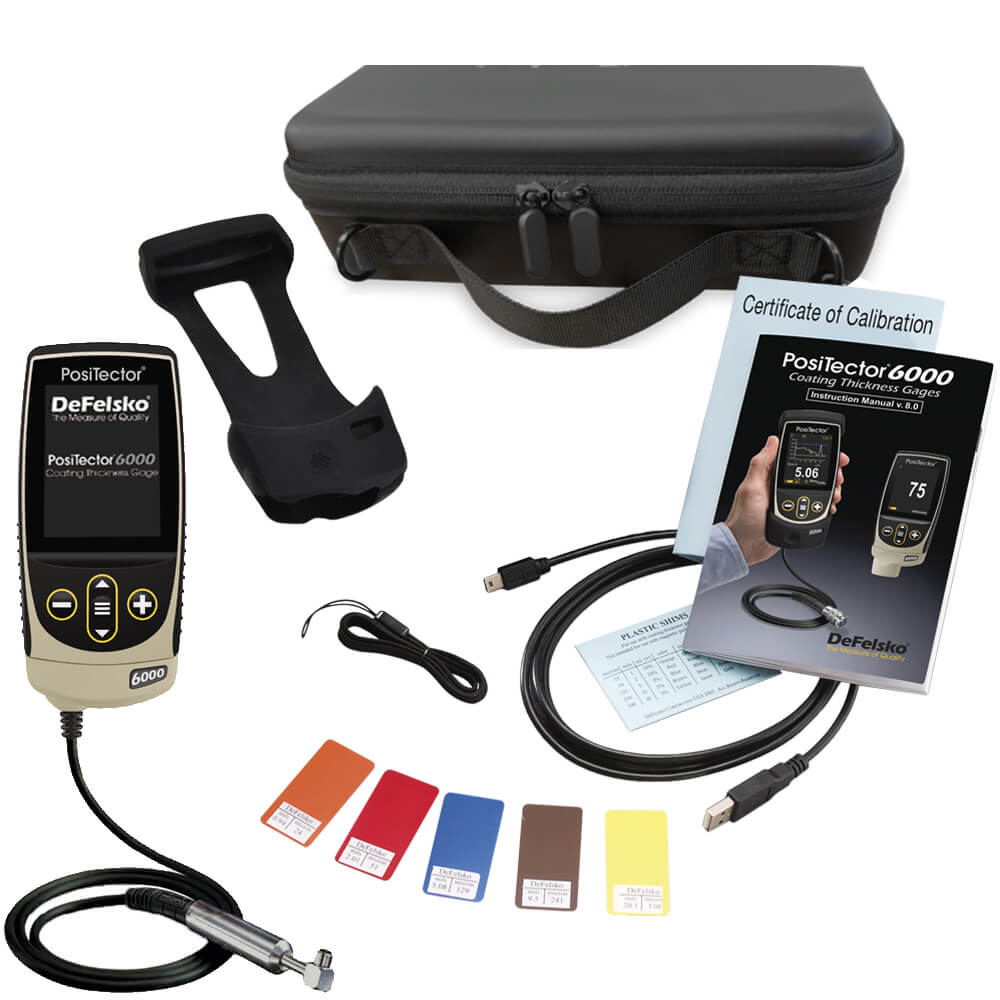

    The DeFelsko PosiTector 6000 F90S1 Standard Coating Thickness Gage Kit includes everything needed for testing:

    • PosiTector Standard Gage Body BDYSTD-G
    • PosiTector 6000 Probe PRBF90S-D
    • Precision plastic shims
    • Protective rubber holster with belt clip
    • Wrist strap and protective lens shield
    • 3 AAA alkaline batteries
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration traceable to NIST or PTB
    • Convenient carrying case and instructions
    • Two (2) year warranty


    line
    Features
    line

    Simple

    • Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
    • Ready to measure - no adjustment required for most applications
    • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • NEW On-gage help explains menu items at the touch of a button
    • Flashing display - ideal in a noisy environment
    • RESET feature instantly restores factory settings

    Durable

    • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
    • NEW Ergonomic design with durable rubberized grip
    • Wear-resistant probe tip
    • Shock-absorbing, protective rubber holster for added impact resistance
    • Two year warranty on gage body AND probe

    Accurate

    • Certificate of Calibration showing traceability to NIST or PTB included
    • Built-in temperature compensation ensures measurement accuracy
    • Hi-RES mode increases displayed resolution for precision applications
    • Conforms to national and international standards including ISO and ASTM

    Versatile

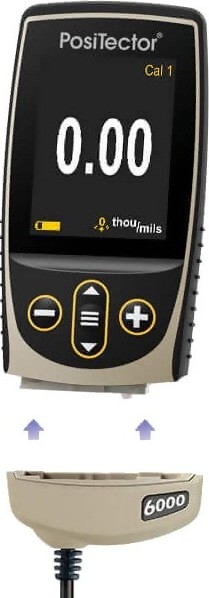

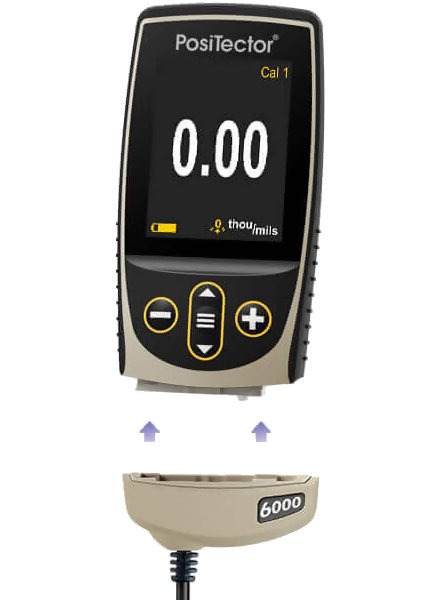

    • PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
    • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

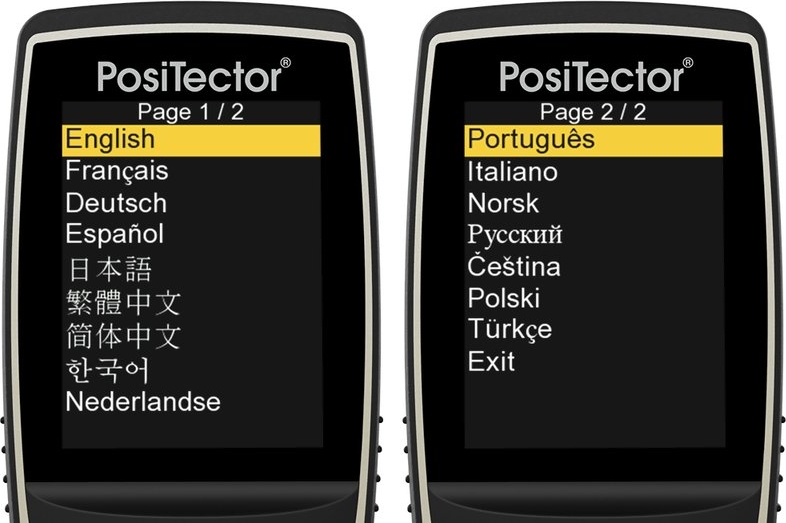

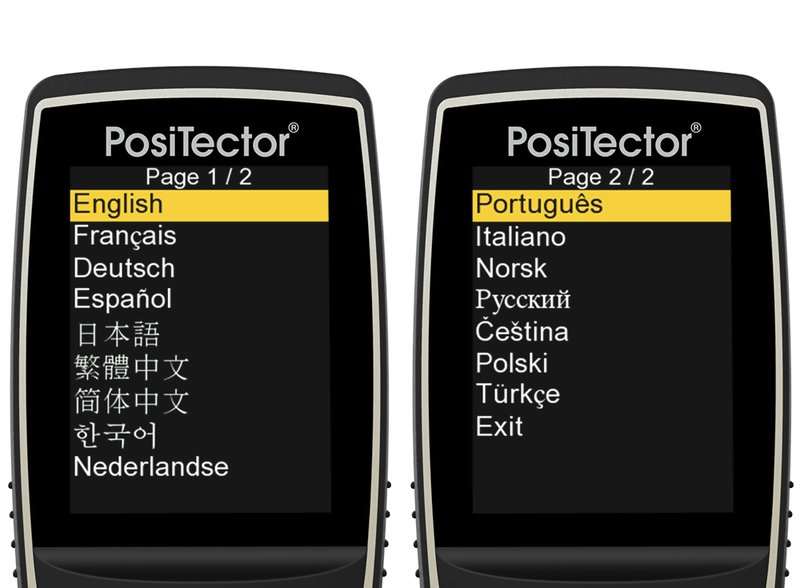

    • Selectable display languages
    • NEW Auto rotating display with Flip Lock
    • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
    • Mils/Microns/mm switchable

    Powerful

    • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
    • NEW Screen Capture - save 100 screen images for record keeping and review
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • NEW Instant-on feature quickly powers up the gage if recently powered down
    • NEW Up to 30% longer battery life

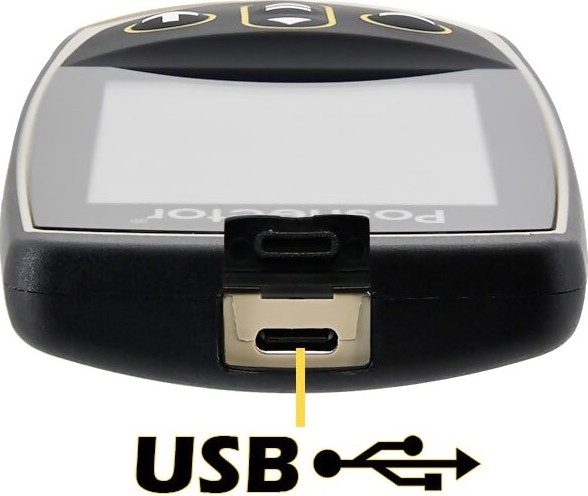

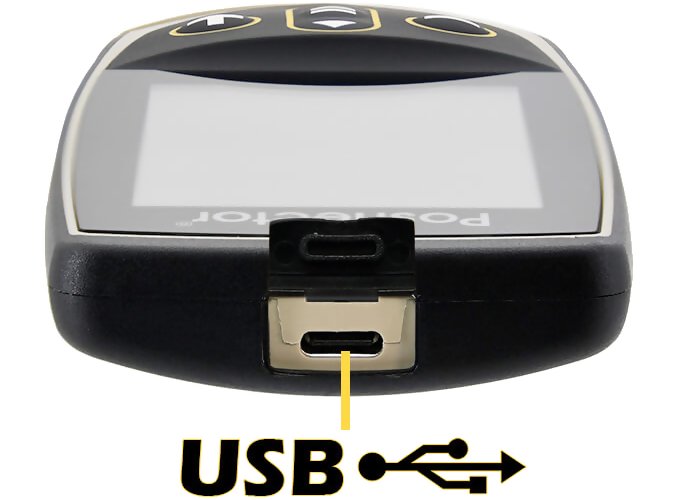

    • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
    • Every stored measurement is date and time stamped
    • Software Updates via web keep your gage current
    • Software Solutions for viewing, analyzing & reporting data


    line
    Standard Model Features
    line

    • Includes ALL features as shown above plus:
    • Storage of 1,000 readings per probe - stored readings can be viewed or downloaded



    Specifications

    Measuring principle magnetic induction principle (Ferrous)
    eddy-current principle (Non-Ferrous)
    Display High contrast, reversible color LCD
    Data Output USB - "1" & "3" Models
    Bluetooth - "3" Models
    Power 3 AAA batteries, Included
    Dimensions 5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
    Weight 5.8 oz. (165 g) without batteries
    Protection Class Meets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
    Warranty 2 Years
    Calibration Certificate Certificate of Calibration showing traceability to NIST included



    Probe Specifications

    Range: 0 - 45 mils
    0 - 1150 μ
    *Accuracy: ± (0.02 mils + 1%) 0 - 4 mils
    ± (0.1 mils + 3%) > 4 mils
    ± (.5 μ + 1%) 0 - 100 μ
    ± (2 μ + 3%) > 100 μ



    PosiSoft Suite of Software

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


    line
    FAQ's - Frequently Asked Questions
    line

    Click to View DeFelsko PosiTector 6000 Frequently Asked Questions


    lineRelated Products
    line

    DeFelsko Certified Coated Metal Plates

    • Used to verify the accuracy and operation of any Type 1 (mechanical) and Type 2 (electronic) magnetic, eddy-current or ultrasonic coating thickness gage

    line

    DeFelsko SMLINK
    PosiTector SmartLink Wireless Module

    • Wirelessly connect PosiTector probes to smart devices wit the Positector SmartLink


    line
    Downloads
    line

    DeFelsko PosiTector 6000 Coating Thickness Gages - F90S Ordering Guide
    DeFelsko PosiTector 6000 Coating Thickness Gages - Full Instruction Manual
    DeFelsko PosiTector 6000 Coating Thickness Gages - Literature
    DeFelsko PosiTector 6000 Coating Thickness Gages - Quick Guide
    DeFelsko PosiTector 6000 Coating Thickness Gages - Online Instructions Manual
    DeFelsko Accessories for Inspection Instruments - Online Catalog
