DeFelsko F0S3-G PosiTector 6000 F0S3 Coating Thickness Gage with Advanced Body, 0° Microprobe, Measures Coatings on Ferrous Metals, 0-45 mils

See More DeFelsko PosiTector 6000

DeFelsko F0S3-G PosiTector 6000 F0S3 Coating Thickness Gage with Advanced Body, 0° Microprobe, Measures Coatings on Ferrous Metals, 0-45 mils

See More DeFelsko PosiTector 6000
Price:
$1,555.00
    warrenty

    Product Description

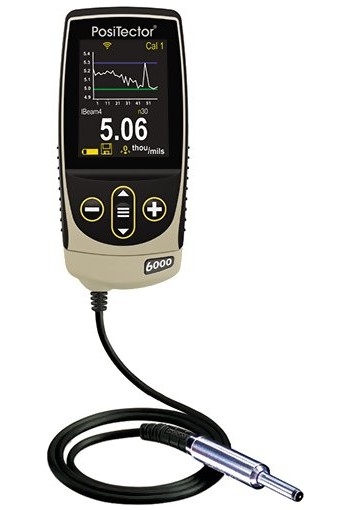

    DeFelsko F0S3-G PosiTector 6000 F0S3 Advanced Ferrous Coating Thickness Gage with Cabled 0 degree Micro Probe for measuring thin coatings and small parts in hard-to-reach areas
    Model: F0S3-G with Advanced Body
    Storage: 100,000 readings in up to 1,000 batches and sub-batches
    Substrate: Ferrous Metals
    Range: 0 - 45 mils (0 - 1150 µm)

    The DeFelsko F0S3-G PosiTector 6000 F0S3 Advanced Coating Thickness Gage is a precise, rugged tester designed to measure coating thickness on ferrous metals accurately and quickly using magnetic induction principles.

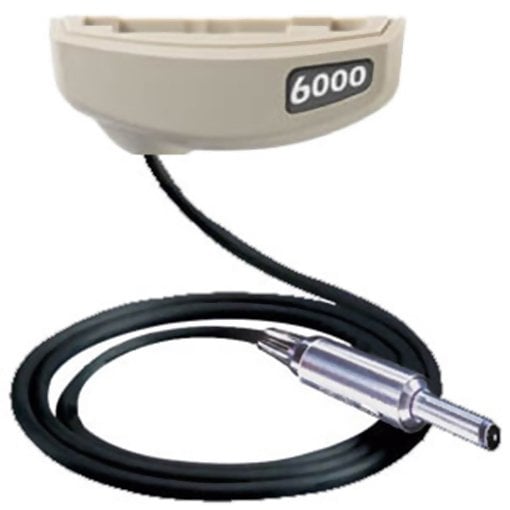

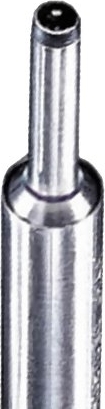

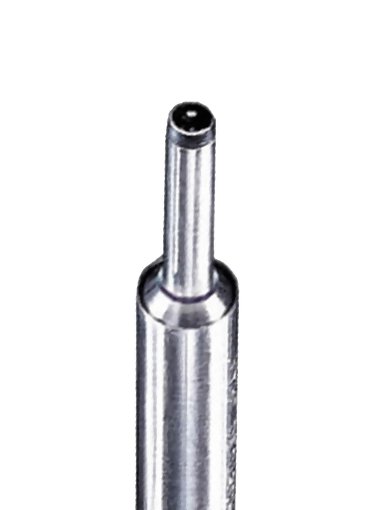

    With a small measuring tip and best thin-film accuracy, the DeFelsko Positector 6000 F0S3 is ideal for measuring on small parts, hard-to-reach areas, or close to edges. This straight microprobe has a quick release adapter that makes it a constant pressure probe for alignment on small, flat or curved parts. The adapter is held in place by a spring. If the sleeve is not required, it can be removed by simply pulling it off the probe.

    The DeFelsko PosiTector 6000 F0S3 Advanced Coating Thickness Gauges features a large 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation, 250,000 in up to 1000 groups memory reading storage capacity, USB data output, Scan Mode, Real-Time Graphing Bluetooth output and more.


    line
    Kit Contents
    line

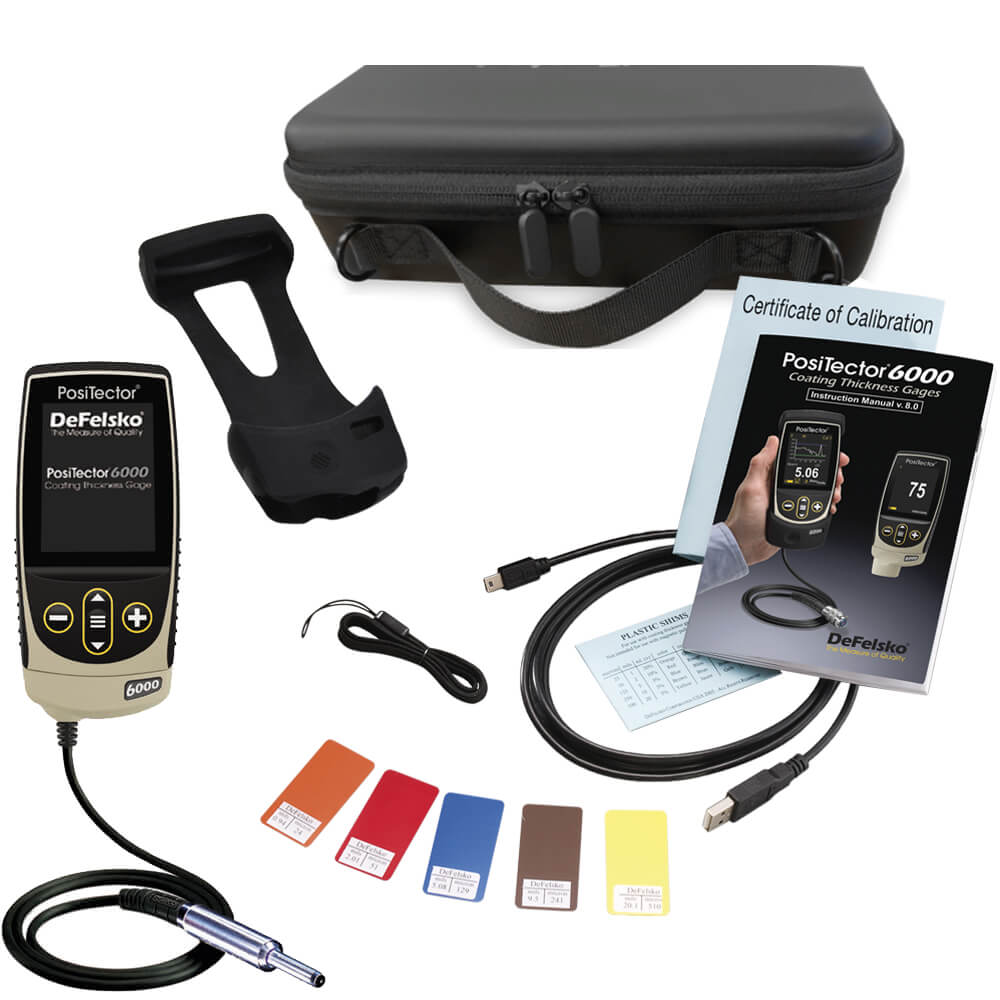

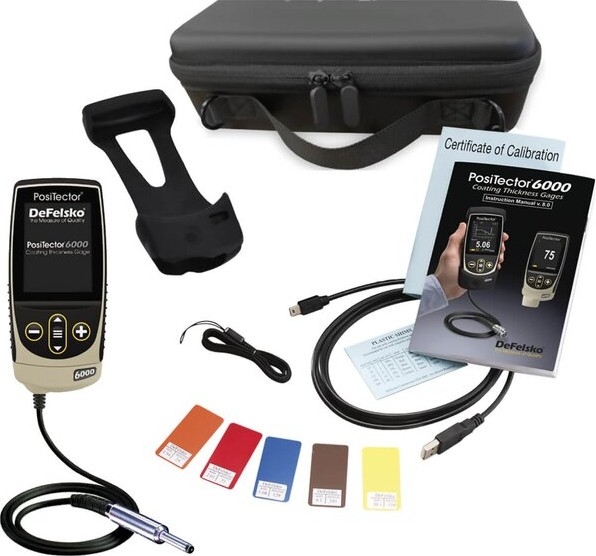

    The DeFelsko PosiTector 6000 F0S3 Advanced Coating Thickness Gage Kit includes everything needed for testing:

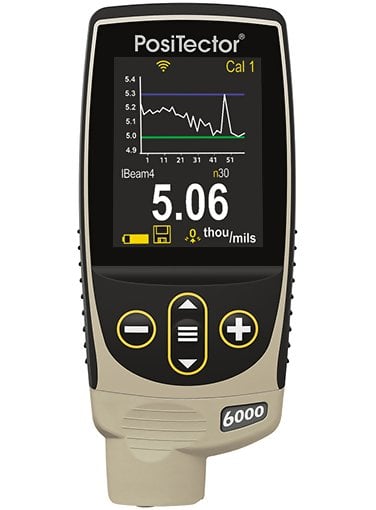

    • PosiTector Advanced Gage Body BDYADV-G

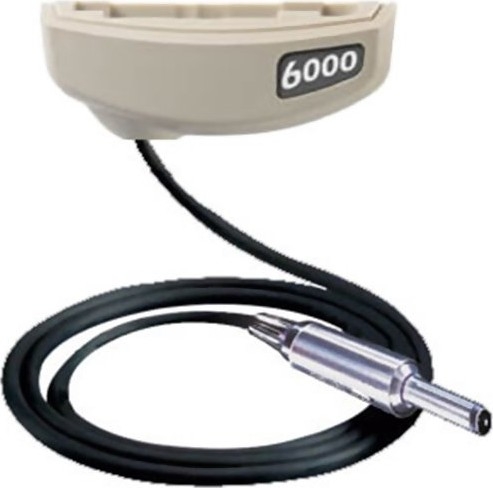

    • PosiTector 6000 Probe PRBF0S-D
    • Precision plastic shims
    • Protective rubber holster with belt clip
    • Wrist strap and protective lens shield
    • 3 AAA alkaline batteries
    • PosiSoft Software and USB cable
    • Long Form Certificate of Calibration traceable to NIST or PTB
    • Convenient carrying case and instructions
    • Two (2) year warranty


    line
    Features
    line

    Simple

    • Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
    • Ready to measure - no adjustment required for most applications
    • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
    • NEW On-gage help explains menu items at the touch of a button
    • Flashing display - ideal in a noisy environment
    • RESET feature instantly restores factory settings

    Durable

    • NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
    • NEW Ergonomic design with durable rubberized grip
    • Wear-resistant probe tip
    • Shock-absorbing, protective rubber holster for added impact resistance
    • Two year warranty on gage body AND probe

    Accurate

    • Certificate of Calibration showing traceability to NIST or PTB included
    • Built-in temperature compensation ensures measurement accuracy
    • Hi-RES mode increases displayed resolution for precision applications
    • Conforms to national and international standards including ISO and ASTM

    Versatile

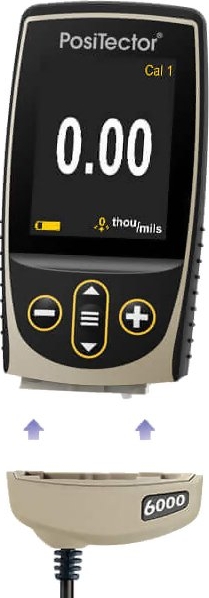

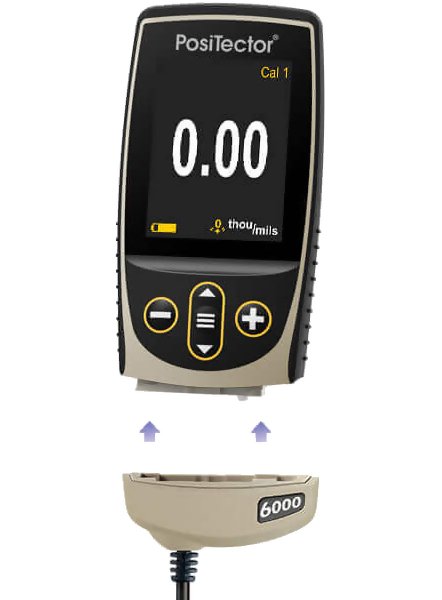

    • PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester
    • Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors

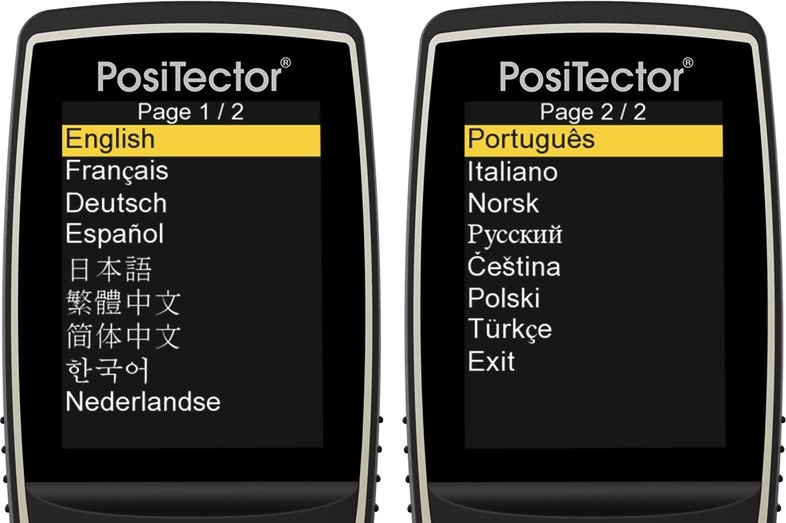

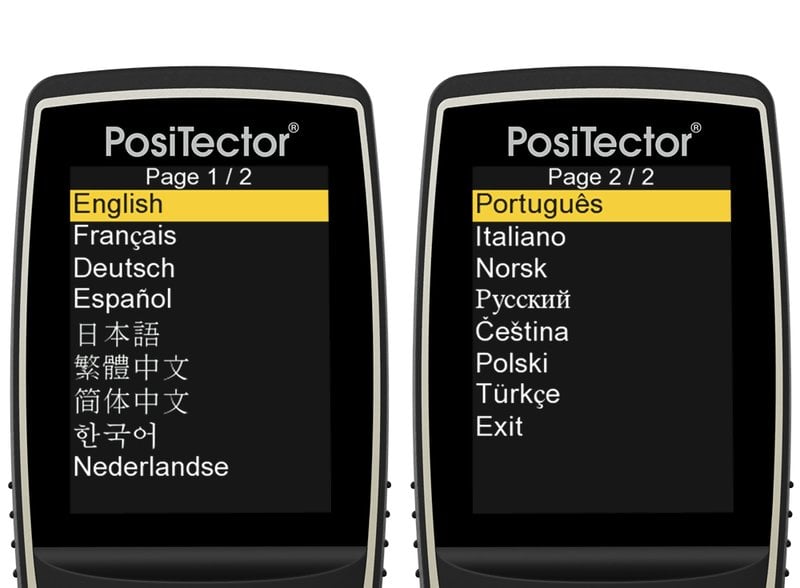

    • Selectable display languages
    • NEW Auto rotating display with Flip Lock
    • Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
    • Mils/Microns/mm switchable

    Powerful

    • Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
    • NEW Screen Capture - save 100 screen images for record keeping and review
    • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
    • NEW Instant-on feature quickly powers up the gage if recently powered down
    • NEW Up to 30% longer battery life

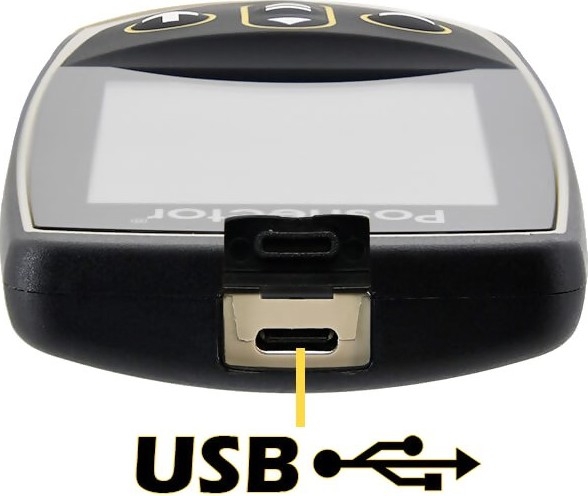

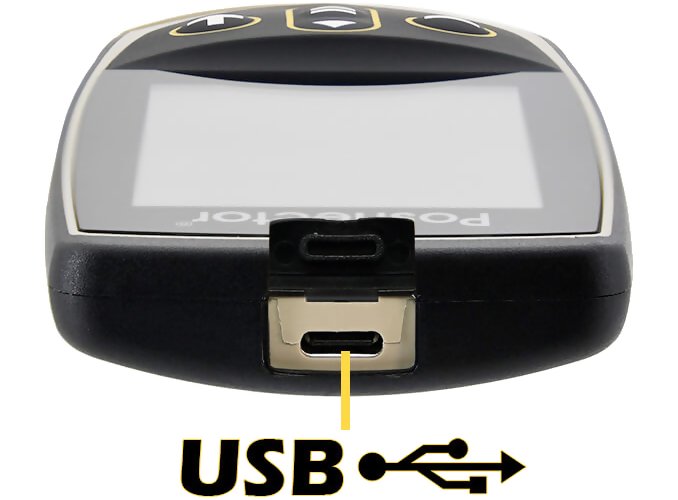

    • USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
    • Every stored measurement is date and time stamped
    • Software Updates via web keep your gage current
    • Software Solutions for viewing, analyzing & reporting data


    line
    Advanced Model Features
    line

    • NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches

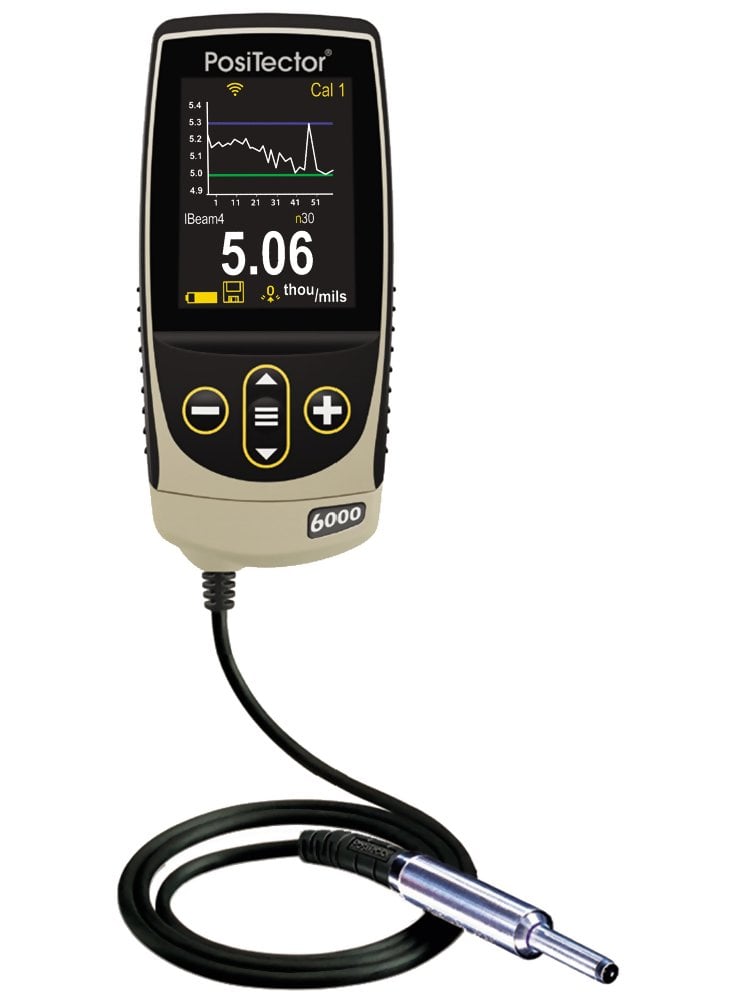

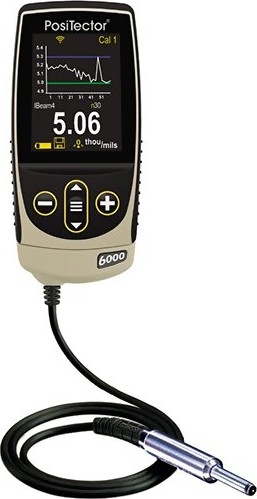

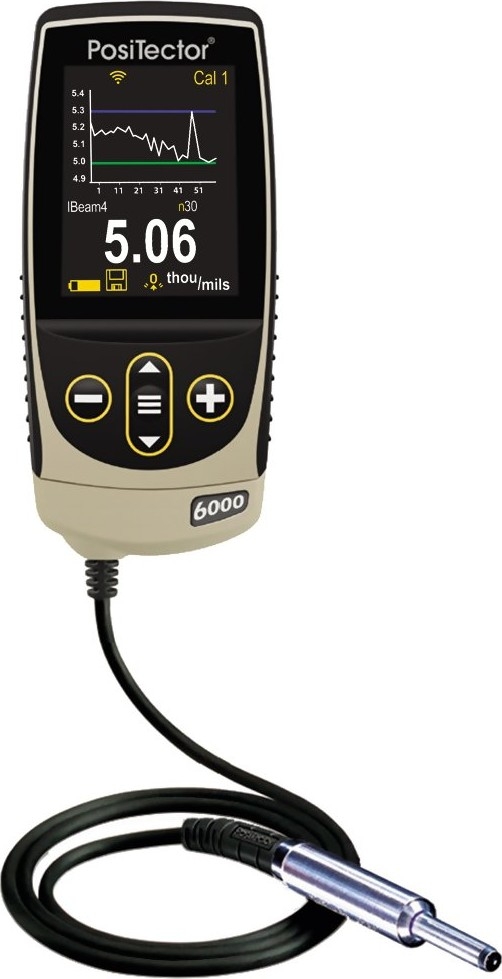

    • Live graphing of measurement data

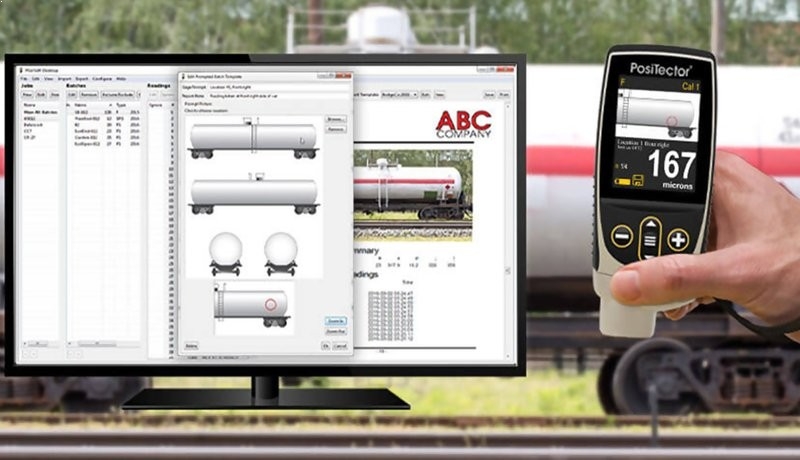

    • NEW Prompted Batch Mode-create pre-defined batches with on-screen text and image prompts for each reading
    • 3 Scan Modes - increase measurement speed to 180+ readings per minute
      • Normal - take continuous readings without lifting the probe
      • Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
      • Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
    • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
    • Multiple stored calibration adjustments for measuring on a variety of substrate conditions
    • NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
    • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
    • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software
    • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols



    Specifications

    Measuring principlemagnetic induction principle (Ferrous)
    eddy-current principle (Non-Ferrous)
    DisplayHigh contrast, reversible color LCD
    Data OutputUSB - "1" & "3" Models
    Bluetooth - "3" Models
    Power3 AAA batteries, Included
    Dimensions5.75" x 2.5" x 1.2" (146 x 64 x 31 mm)
    Weight5.8 oz. (165 g) without batteries
    Protection ClassMeets or exceeds IP5X, Solvent, acid, oil, water & dust resistant
    Warranty2 Years
    Calibration CertificateCertificate of Calibration showing traceability to NIST included



    Probe Specifications

    Range:0 - 45 mils
    0 - 1150 μ
    *Accuracy:± (0.02 mils + 1%) 0 - 4 mils
    ± (0.1 mils + 3%) > 4 mils
    ± (.5 μ + 1%) 0 - 100 μ
    ± (2 μ + 3%) > 100 μ



    PosiSoft Suite of Software

    Four FREE and unique ways to view and report your PosiTector and PosiTest data. Learn More


    line
    FAQ's - Frequently Asked Questions
    line

    Click to View DeFelsko PosiTector 6000Frequently Asked Questions


    line
    Related Products
    line

    Bluetooth Printer
    PRINTERBT

    • For use with the: PosiTector 6000, PosiTector 200, PosiTector SPG, PosiTector RTR H, PosiTector RTR 3D, PosiTector DPM, PosiTector IRT, PosiTector SST, PosiTector UTG, PosiTector SHD, PosiTector BHI

    line

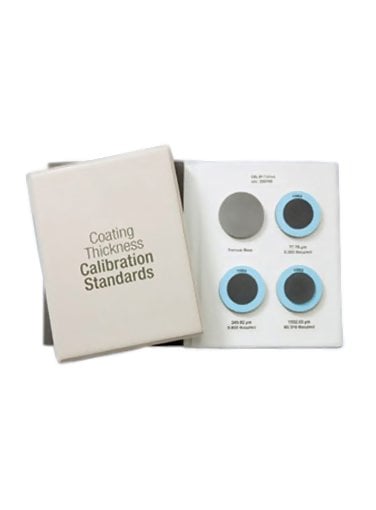

    DeFelsko Certified Coated Metal Plates
