Checkline TI-1071 Intrinsically Safe Thickness Gauge

Discontinued Without Replacement

Intrinsically safe Gauge for measuring thickness in hazardous areas

Range:
0.060 - 10.00 inches
1.50 - 250.00 mm

Resolution: .001" (0.01 mm)

Datalogging: NO

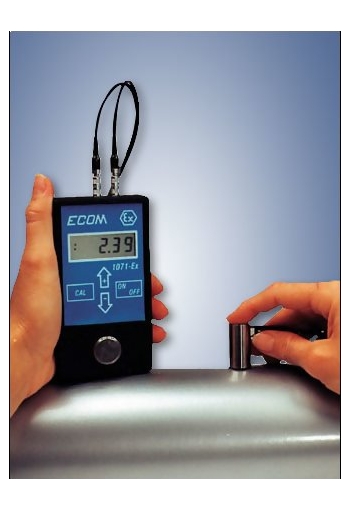

TI-1071 Intrinsically Safe Ultrasonic Thickness Gauge

Measuring Range in Steel
TI-1071: 0.048 - 10.00 inches (1.2 - 250.0 mm)
TI-1071-TW: 0.030 - 1.000 inch (0.7 - 25.0 mm)
TI-1071-HW: 0.160 - 16.00 inches (5.0 - 400.0 mm)

The TI-1071 Intrinsically Safe Ultrasonic Wall Thickness Gauge accurately measures wall thickness and the extent of corrosion of all metals, ceramics, glass and most rigid plastics - from only one side!

Features of the TI-1071 Intrinsically Safe Ultrasonic Thickness Gauges
line

Limit value guides and monitoring

Adjustable sensitivity

Includes protective vinyl pouch with clear plastic window for safe use in rugged environments.

Energy saving mode

Accuracy ± 0.0019" (0.05 mm)

Class I Zone 0 AEx ia IIC T4
I.S. Class I Divison 1 Group A-D T4

Optional Accessories for the TI-1071 Intrinsically Safe Ultrasonic Thickness Gauges
line


NIST-Traceable Steel Test Block 3 Sizes Available
Precision Machined and Finished Includes NIST Report and Test Data

___________________________________________


Uncertified Steel Test Block For Ultrasonic Gauges
For convenient confirmation of thickness gauge calibration

___________________________________________


CF12 Coupling Fluid
Used to create an ultrasonic coupling between the probe and material to be measured 12oz Bottle

Complete Kit of the TI-1071 Intrinsically Safe Ultrasonic Wall Thickness Gauges
line


TI-1071 Intrinsically Safe Ultrasonic Wall Thickness Gages are supplied as a complete kit including the Gauge, transducer, protective pouch, coupling fluid and instruction manual all in a foam fitted carrying case.

Related Products for the TI-1071 Intrinsically Safe Ultrasonic Thickness Gauges
line

F.A.Q.

Do Checkline Ultrasonic Thickness Gauges require any training for use?

No. Checkline Ultrasonic Thickness Gauges are designed for simple operation and feature easy-to-use instruction manuals. We also provide technical support via telephone and/or email, and a 30-day money back guarantee.

Are Checkline Ultrasonic Thickness Gauges calibrated at the factory?

Yes. Checkline Ultrasonic Thickness Gauges arrive fully calibrated and ready to measure.

Do Checkline Ultrasonic Thickness Gauges include Certificate of Calibration?

Yes. Checkline Ultrasonic Thickness Gauges Include NIST-Traceable Calibration Certificate, CE-Certified

Can I measure the thickness of non-metallic materials like plastic and rubber with Ultrasonic Thickness Gauges?

Yes. Checkline Ultrasonic Thickness Gauges features several preprogrammed sound velocities for common materials.

Can Checkline Ultrasonic Thickness Gauges measure cast/ductile iron or cast aluminum?

Yes. Checkline Ultrasonic Thickness Gauges instruments are designed to accurately measure the wall thickness of carbon steel, aluminum, stainless steel and plastic.
