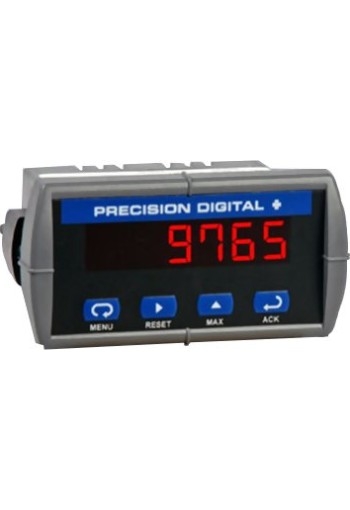

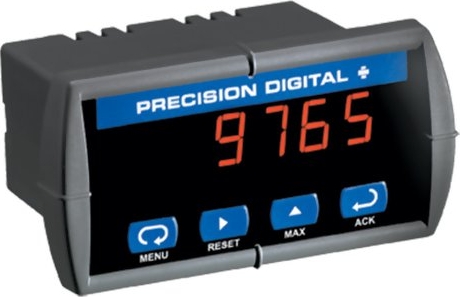

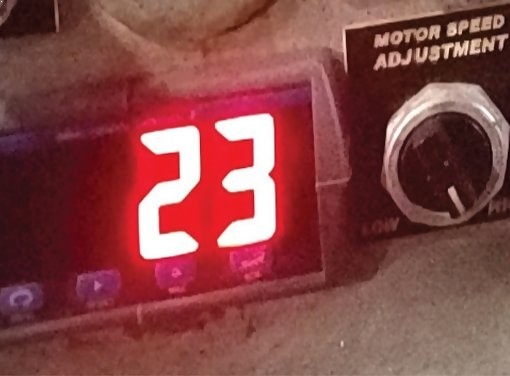

    Checkline PD765-6R3-20 Digital Tension Indicator 4-Digit Display

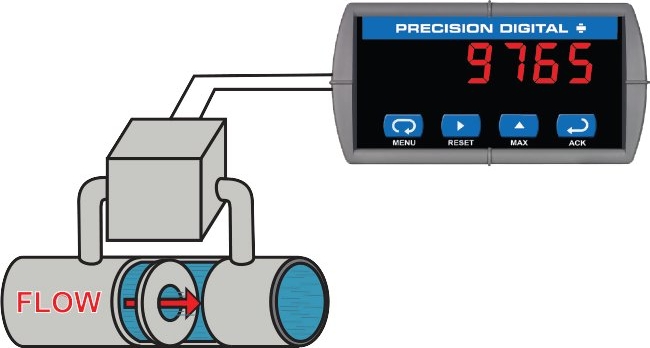

    The Checkline PD765 Digital Indicator is designed to work with Check-Line tension sensors providing a large, bright LED display of real-time tension values. It is easy to set up and permits flush panel mounting in a 1/8  DIN cutout. The PD765-6R3-20 offers 4-20 mA output for external recording and data-logging purposes. Hi/Lo limits and relay contacts can be optionally specified on PD765-6R5-10 supplied instead of the 4-20 mA analog output. The standard model PD765-6R3-20, operates from all worldwide AC-Power (85-265V AC). 0-10V DC output is not available


    line
    Features
    line

    • Can be scaled to any engineering units desired with user-set decimal point.
    • 4-20 mA analog output for recording and control purpose (No analog output provided on PD765-6R5-10)
    • Requires 85-265V AC Power, provides regulated power for the tension sensor
    • Hi/Lo Limits and relay contacts provided on PD765-6R5-10 (supplied instead of 4-20ma output)
    • User-set filters can be used to adjust signal sensitivity to reduce fluctuations of tension values


    line
    Specifications
    line

    Display Range-1999 to 9999
    Display4-digit Red LED, 14.2 mm high
    Display IntensityEight user selectable levels
    Front PanelNEMA 4X, IP65; panel gasket provided

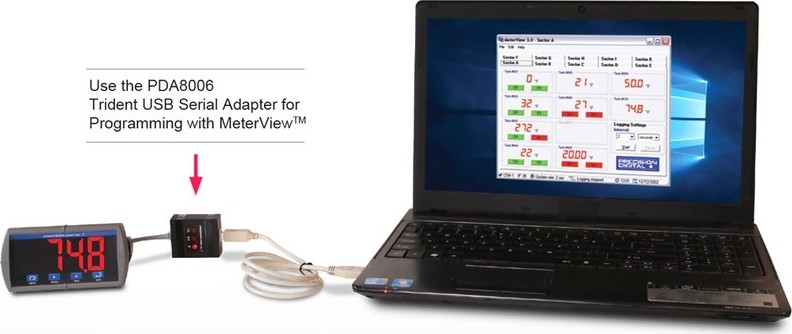

    Programming MethodsFour front panel buttons, cloning with Copy feature, PC with MeterView or LavVIEW software and Modbus registers. Certified LabVIEW driver available.
    Noise FilterProgrammable 2 to 199 (0 will disable filter)
    Display Update RateProcess/RTD: 3.7-5/sec; TC: 1.8-2.5/sec
    OverrangeDisplay flashes 9999
    UnderrangeDisplay flashes -1999
    RecalibrationAll inputs are calibrated at the factory; recalibration is recommended at least every 12 months.
    Min/Max DisplayStored until reset by user or meter is turned off
    PasswordRestricts modification of programmed settings
    Non-Volatile MemorySettings stored for a minimum of 10 years
    Power Options85-265 VAC; 12-36 VDC
    Required FuseUL Recognized, 5 A max, slow-blow; up to 6 meters may share one fuse
    Normal Mode Rejection64 dB at 50/60 Hz
    Isolation4 kV input/output-to-power line; 500 V input-to-output or output-to-24 VDC supplies. -6R5 models only: 100 V output-to-24 VDC supply
    Operating Temperature0 to 65°C
    Storage Temperature-40 to 85°C
    Relative Humidity0 to 90% non-condensing
    ConnectionsPower & Signal: removable screw terminal blocks accept 12 to 22 AWG. Serial: RJ11 header, standard on all meters

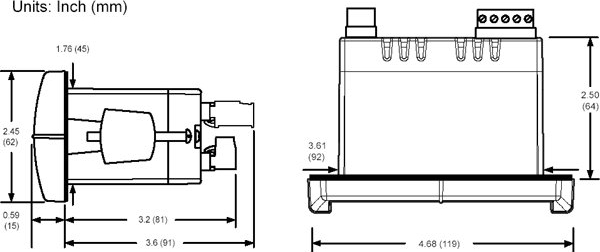

    Enclosure1/8 DIN, high impact plastic, 94 V-0, color: gray
    Weight9.5 oz (269 g) (including options)
    Warranty3 years
    Accuracy±0.05% FS ±1 count; square root: ±0.1% FS ±2 counts
    FunctionLinear or square root
    Low-Flow Cutoff0 to 9999 (0 disables cutoff function)
    Decimal PointUp to 3 decimals
    CalibrationScale without signal or calibrate with signal source
    Calibration RangeUser programmable over entire range of meter
    Input InpedanceVoltage range: greate than 1MΩ, Current range: 50-100 Ω, varies with resettable fuse impedance
    Input OverloadProtected by automatically resettable fuse
    Temperate Drift±50 PPM/°C
    Transmitter SupplyIsolated, one or two transmitter supplies:
    P1: 24 VDC ±10% @ 200 mA max (-10 option)
    P1 & P2: 24 VDC ±10% @ 200 mA & 40 mA max (-20 option)
    RELAYS (MODEL PD765-6R5-10 ONLY)
    RatingForm C (SPDT); rated 3 A @ 30 VDC or 3 A @ 250 VAC resistive load; 1/14 HP (≈50 watts) @ 125/250 VAC for inductive loads such as contactors, solenoids, etc.
    Deadband0 - 100% FS, user selectable
    High or Low AlarmUser may program any alarm for high or low
    Relay Operation1. Automatic (non-latching)
    2. Latching
    3. Pump alternation control
    Relay ResetUser selectable via front panel buttons or PC
    1, Automatic reset only (non-latching)
    2. Automatic plus manual reset at any time (non-latching)
    3. Manual reset only, at any time (latching)
    4. Manual reset only after alarm condition has cleared (latching)
    Automatic ResetRelays reset when input passes the reset point
    Manual ResetFront panel button, MeterView, Modbus registers
    Time Delay0 to 199 seconds, on and off delays; programmable
    Fail-Safe OperationProgrammable, independent for each relay. Relay coils are energized in non-alarm condition. In case of power failure, relays will go to alarm state.
    Auto InitializationWhen power is applied to the meter, relays will reflect the state of the input to the meter

    ISOLATED 4-20 MA TRANSMITTER OUTPUT


    Scaling Range1.00 to 23.00 mA; reverse scaling allowed
    CalibrationFactory calibrated 4.00 to 20.00 mA
    Accuracy±0.1% FS ±0.004 mA
    Temperature Drift50 PPM/°C Note: Analog output drift is separate from input drift
    Isolation500 V input-to-output or output-to-24 VDC supplies; 4 kV output-to-power line
    Output Loop Resistance24 VDC: Minimum - 10Ω Maximum - 700Ω
    35 VDC (external): Minimum - 100Ω Maximum - 1200Ω


    line
    Ordering Guide
    line

    PD765-6R3-20 - Digital Tension Indicator 4-Digit Display for connection to tension Sensors. Provides regulated power for the sensor, includes 4-20mA Analog output. Requires 85-265V AC-Power

    PD765-6R5-10 - Digital Tension Indicator 4-Digit Display for connection to tension Sensors. Provides regulated power for the sensor, includes 2 Alarm Limits & Relays. No analog output provided. Requires 85-265V AC-Power

    PD6000-6R3 Digital Tension Indicator 4-Digit Display for connection to tension Sensors. Provides regulated power for the sensor, includes 4-20mA Analog output. Requires 85-265V AC-Power
